ACF48WADA Matching refrigerator 1fb6556d9b0cb2e64cec9dc4031ce73c627b001b680e10e944813b0725db703e

Frost-free operation eliminates the need to defrost the interior

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • 32 inch height fits under lower ADA compliant counters
  • Digital thermostat offers more precision in temperature management
  • Frost-free operation ensures low maintenance use
  • Flexible design allows built-in or freestanding use in 24" spaces
  • Hospital grade cord for added safety
  • Factory installed lock provides security you can count on
  • Commercially listed to NSF-7
  • Made in the U.S.A.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Shelf Type Steel
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 4.2 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Temperature Range -5 to 10ºF/-20 to -12ºC

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

At 24" wide and 32" high, the ACF48WADA is ideally sized for various institutional settings following ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

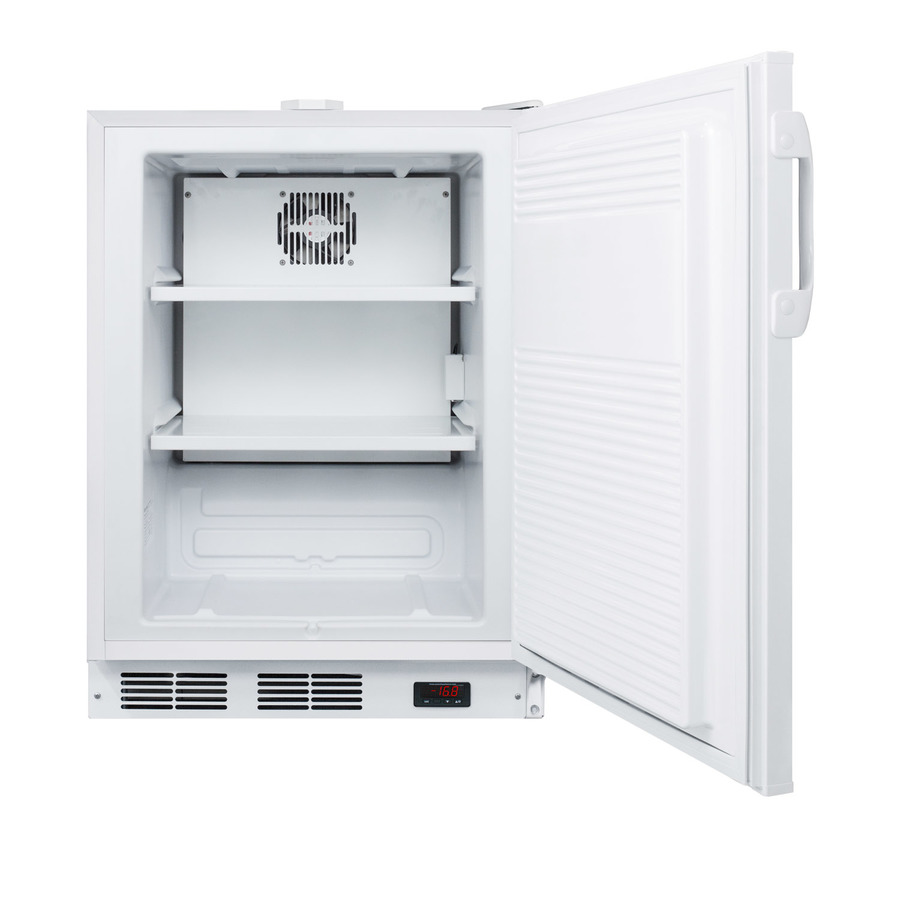

Full frost-free operation eliminates the need to defrost the interior, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.

Made in the USA, the ACF48WADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LBIADA all-refrigerator.

FEATURES

ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Slim undercounter dimensions
Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
Frost-free operation
Low maintenance design ensures no frost buildup inside the unit
Digital temperature control
Electronic controls located in the exterior kickplate for precise temperature management
Factory installed lock
Keyed lock for added security, located towards the top of the door to ensure convenient access
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Removable shelves
Includes two slide-out shelves made from durable steel
Hospital grade cord
Secure three-pronged cord for added unit safety
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Matching refrigerator available
Pair with the FF7LBIADA to create a matching set
Reversible door
User-reversible door swing for added flexibility
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Fully finished white cabinet
Allows the unit to be used freestanding
Commercially approved
Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Shelf Type Steel
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 4.2 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Temperature Range -5 to 10ºF/-20 to -12ºC

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
