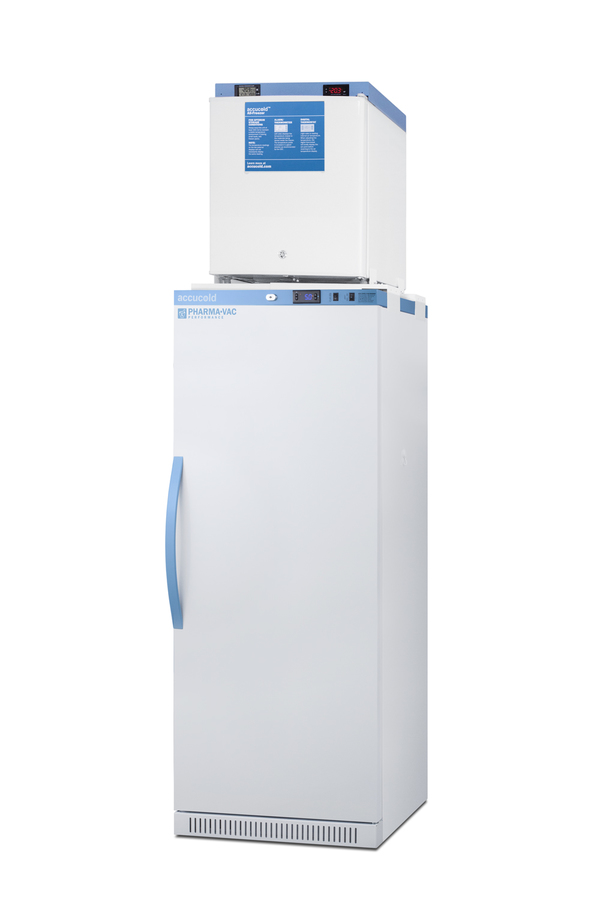

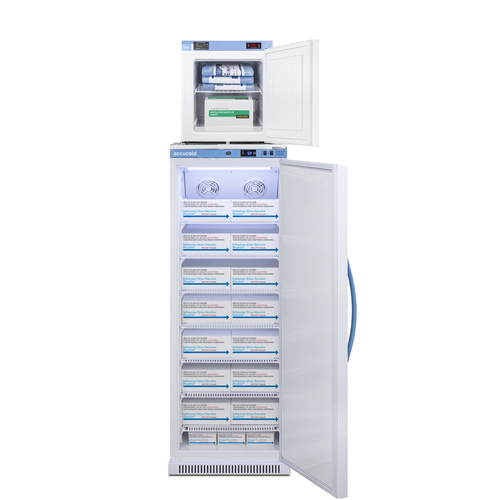

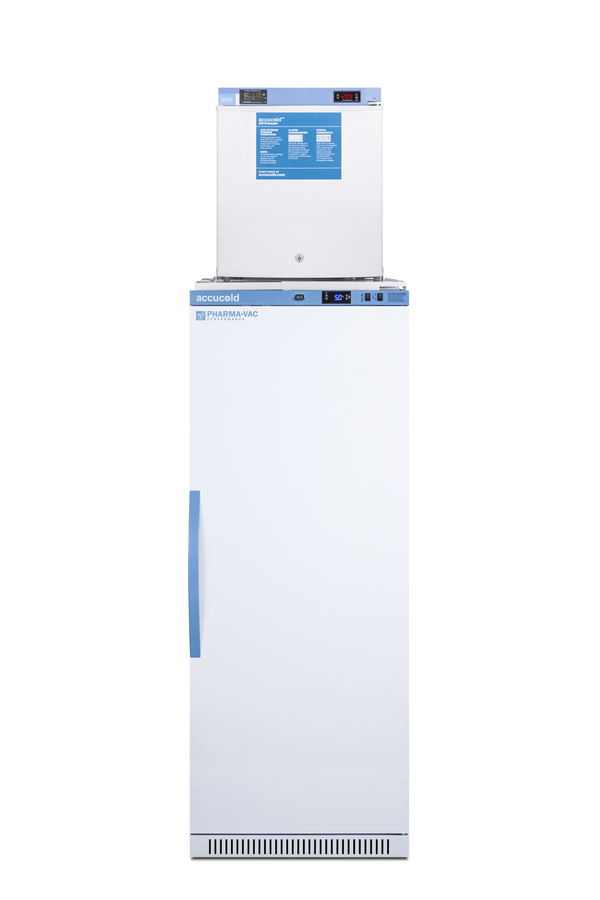

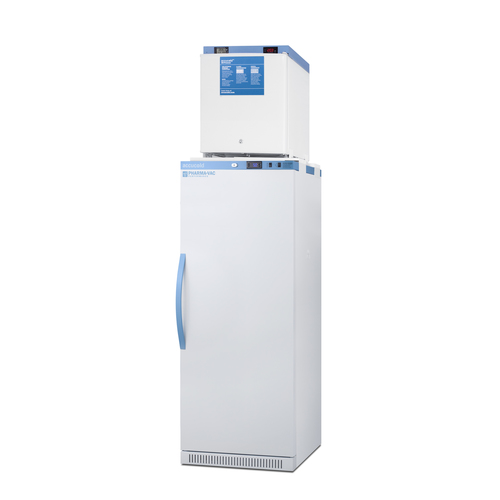

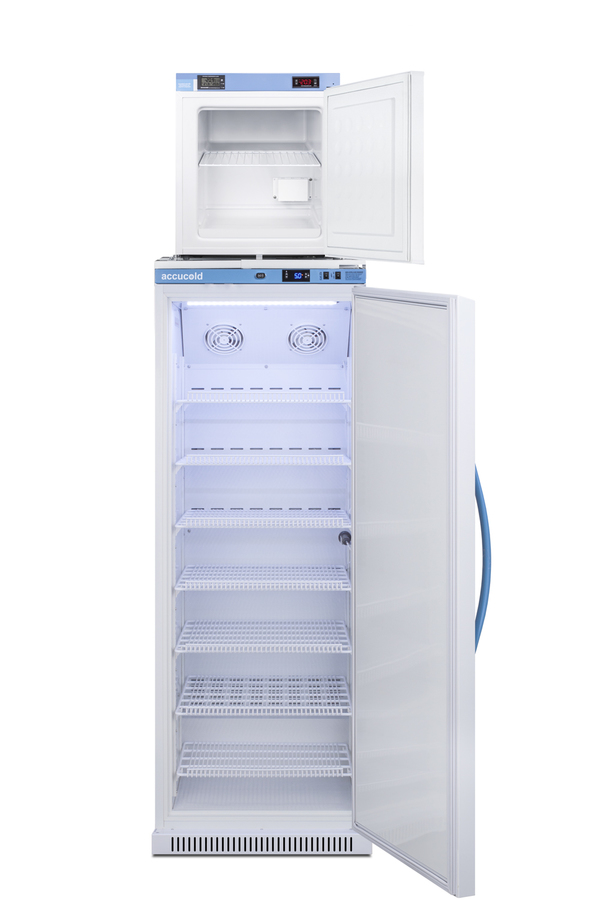

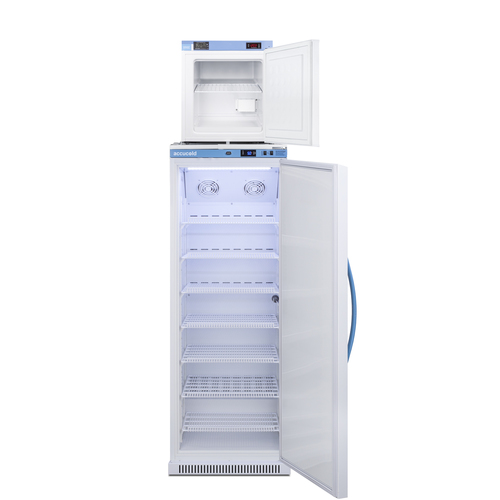

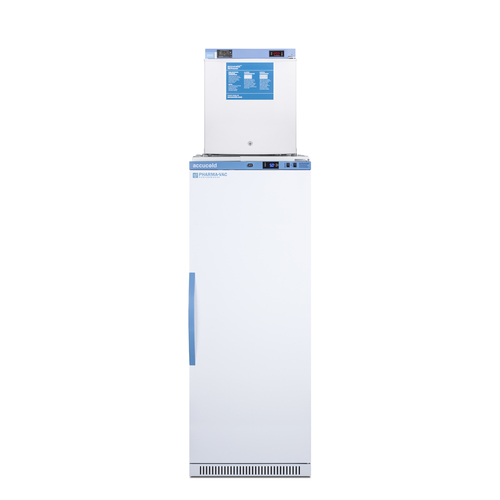

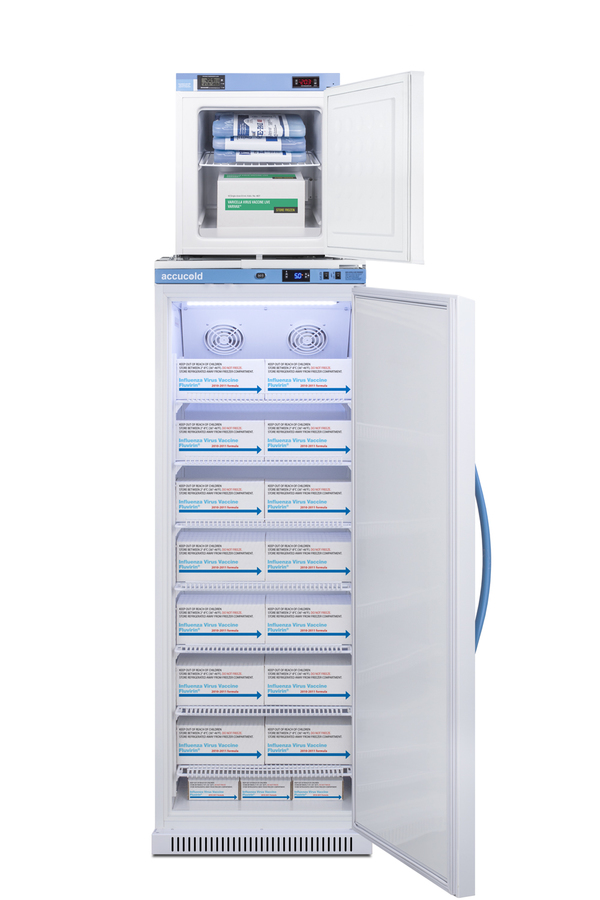

24" Wide All-Refrigerator/All-Freezer Combination

SKU: ARS12PV-FS24LSTACKMED2
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
83.5" H x 23.38" W x 24.38" D
(212cm H x 59cm W x 62cm D)

Overview
Height of Cabinet 83.5" (212 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 46.5" (118 cm)
Capacity 13.4 cu.ft. (379 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.8
Voltage/Frequency 115 V AC/60 Hz
Weight 215.0 lbs. (98 kg)
Shipping Weight 221.5 lbs. (100 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101077673
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 53.0" (135 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 12.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 7
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 2.11 oz.
Freezer - Interior Height 14.38" (37 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.25" (34 cm)
Freezer - Capacity 1.4 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Thermostat Type Digital
Fan Type Interior
Freezer - Temperature Range -20º to -15ºC
Freezer - Refrigerant Type R600a
Freezer - Refrigerant Amount 0.8 oz.

Interior
DR-Ventilated Drawer
Full-extension ventilated storage drawer factory-installed inside refrigerator
LockBoxW - Interior locking compartment with window
Interior drop-down locking compartment with combination lock and two windows for use in 24" wide Pharma-Vac and Med-Lab units (prefix "ARG" or "ARS"), SCR610BL, SCR1156, SCR1401, FFAR12W, or FFAR121SS
LockBoxSS - Interior locking compartment
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS units
Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Handle
CP Full-Length Copper Pipe Handles
Factory-installed full-length handles made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handles
Factory-installed towel bar handles made from pure copper for antimicrobial protection
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit

Space-saving design

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

ARS12PV all-refrigerator

12 cu.ft. automatic defrost all-refrigerator with digital controls, antimicrobial handle, wire shelving, and keyed lock for added security

FS24LMED2 all-freezer

Compact manual defrost all-freezer with digital thermostat and wire shelving

Easy assembly

Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

+/-1ºC Variation (refrigerator)

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -20º to -15ºC (freezer)

Antimicrobial silver ion-coated handle (refrigerator)

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Temperature alarms

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts (refrigerator)

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost (refrigerator)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Manual defrost (freezer)

Static cooling system for reduced temperature fluctuations

Access ports

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Open door alarm (refrigerator)

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm (refrigerator)

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm (refrigerator)

Audible and visual alarm warns if the sensor is disrupted

Password protection (refrigerator)

Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panels

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display (refrigerator)

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed locks

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

Adjustable plastic-coated wire shelves for improved circulation

Designed to accommodate a variety of sizes for flexible storage

Reversible door (refrigerator)

User-reversible door swing for added flexibility

Factory reversible door (freezer)

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

Hospital grade cord with 'green dot' plug (refrigerator)

Secure three-pronged cord for added unit safety

Interior light (refrigerator)

Energy efficient LED lighting with internal on/off switch

Magnetic door gaskets

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly (refrigerator)

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Versatile design (refrigerator)

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Both units utilize eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines.

Sized just under 24" wide, the ARS12PV-FS24LSTACKMED2 combines the 12 cu.ft. ARS12PV auto defrost all-refrigerator with the compact FS24LMED2 all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.

Refrigerator ARS12PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8ºC. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The ARS12PV comes with a user-reversible door with a factory-installed antimicrobial handle that is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

Inside, the ARS12PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with two internal fans ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. We include seven shelves, more than competitor products providing to maximize interior shelving storage area. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

Designed to be stacked on top of the ARS12PV, the FS24LMED2 freezer utilizes manual defrost operation, with a digital control panel and NIST calibrated thermometer that provides a continuous display of the current and high/low temperature. This unit is also equipped with a temperature alarm and access port to accept additional monitoring equipment.

Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal. Additional stacked combinations are available, including smaller sizes and units with glass doors. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
