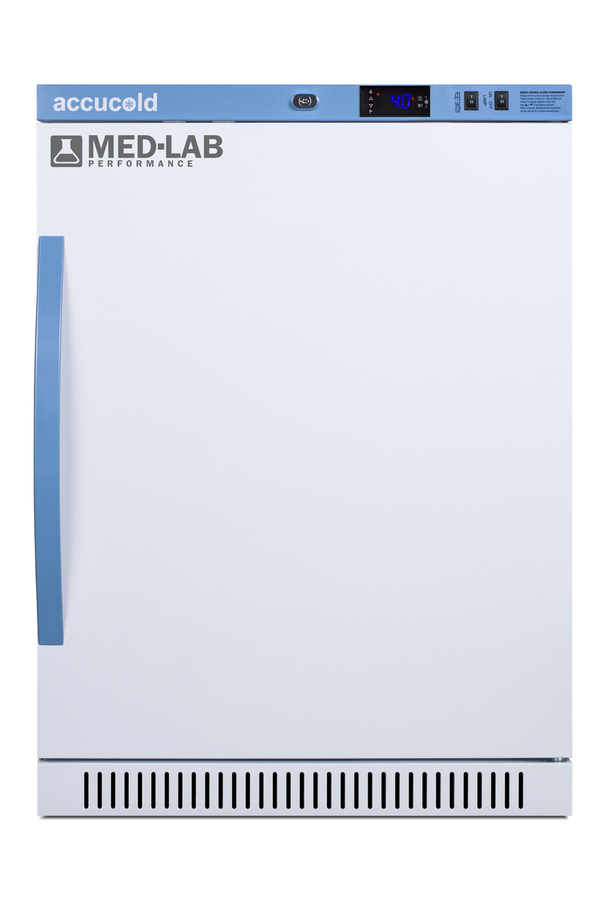

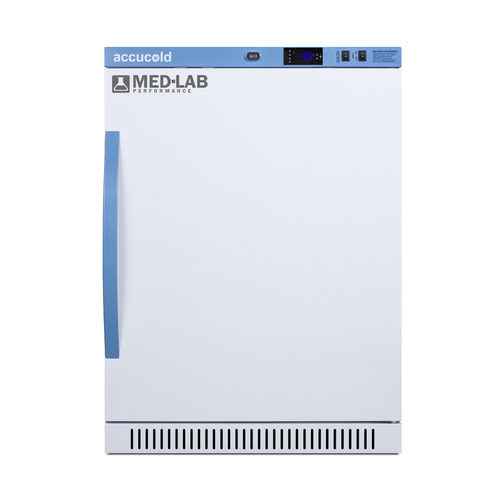

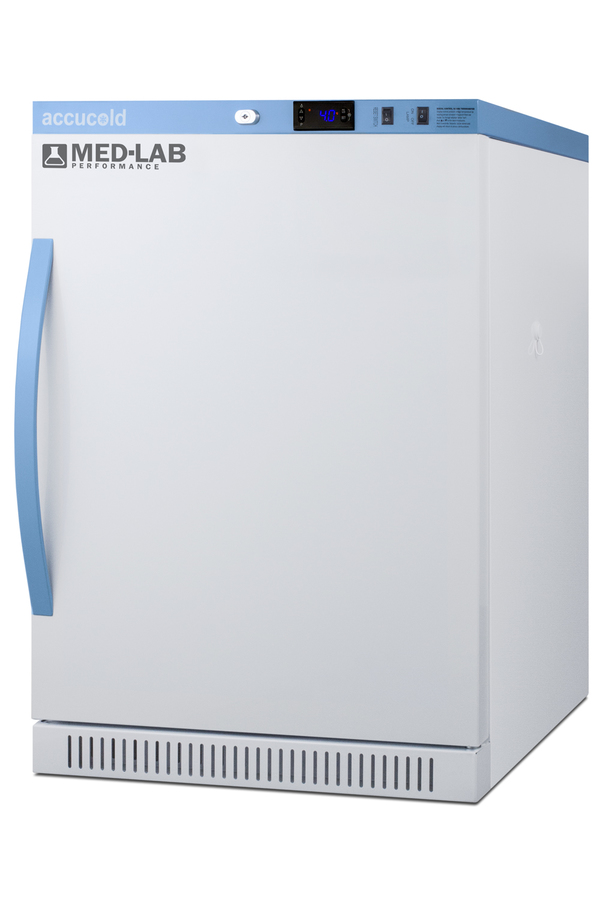

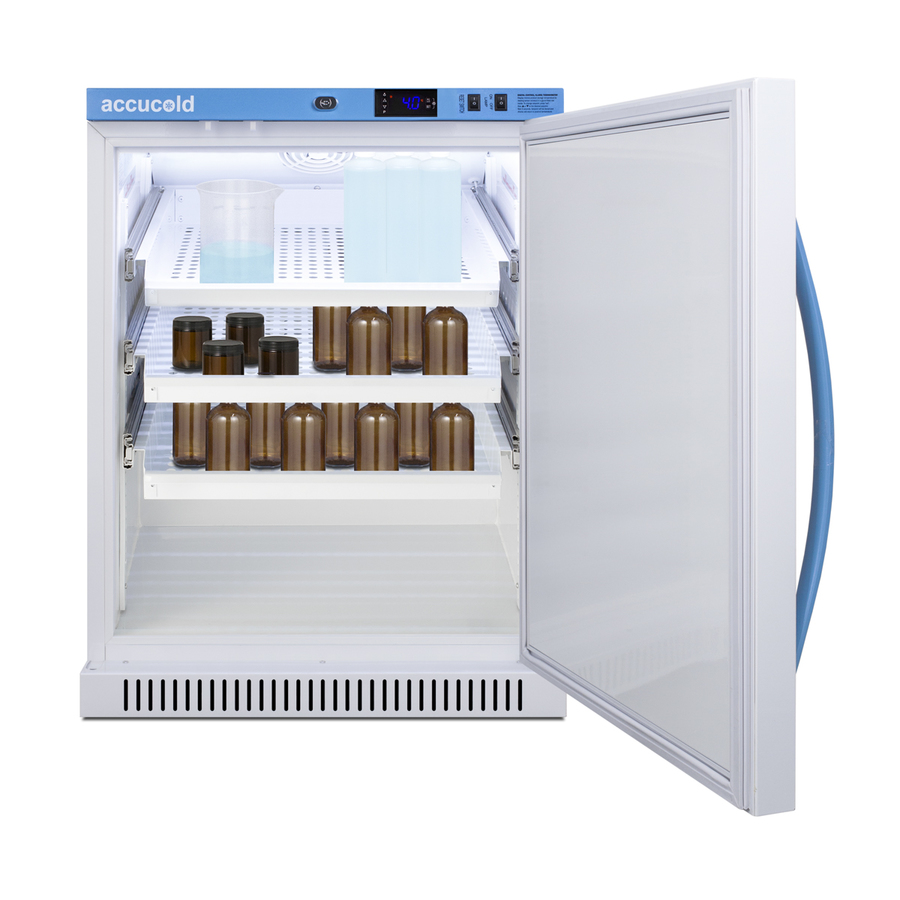

6 Cu.Ft. ADA Height Laboratory Refrigerator with Removable Drawers

SKU: ARS6MLDR
Designed and purpose-built to meet the demanding needs of life science, laboratory, and medical cold storage applications, with antimicrobial handle
Estimated Time to Ship:

5 to 7 days

32.5" H x 23.38" W x 24.63" D
(83cm H x 59cm W x 63cm D)

Overview
Height of Cabinet 32.5" (83 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 24.63" (63 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 46.5" (118 cm)
Capacity 6.0 cu.ft. (170 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.75
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Shipping Weight 154.5 lbs. (70 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101075129
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Drawers
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
Interior Light Yes
Temperature Range 2 to 10ºC
Sound Level 36.4 dB
Dimensions
Interior Height 24.5" (62 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.0" (13 cm)

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Interior
LockBoxW - Interior locking compartment with window
Interior drop-down locking compartment with combination lock and two windows for use in 24" wide Pharma-Vac and Med-Lab units (prefix "ARG" or "ARS"), SCR610BL, SCR1156, SCR1401, FFAR12W, or FFAR121SS
LockBoxSS - Interior locking compartment
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS units
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit

Purpose-built design

Designed and purpose-built to meet the demanding needs of scientific, life science, laboratory, and medical cold storage applications

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +10ºC

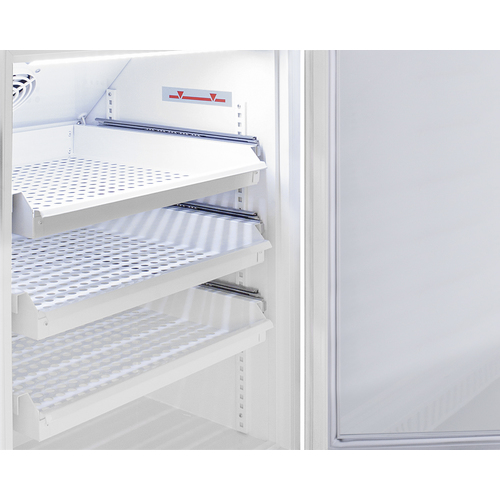

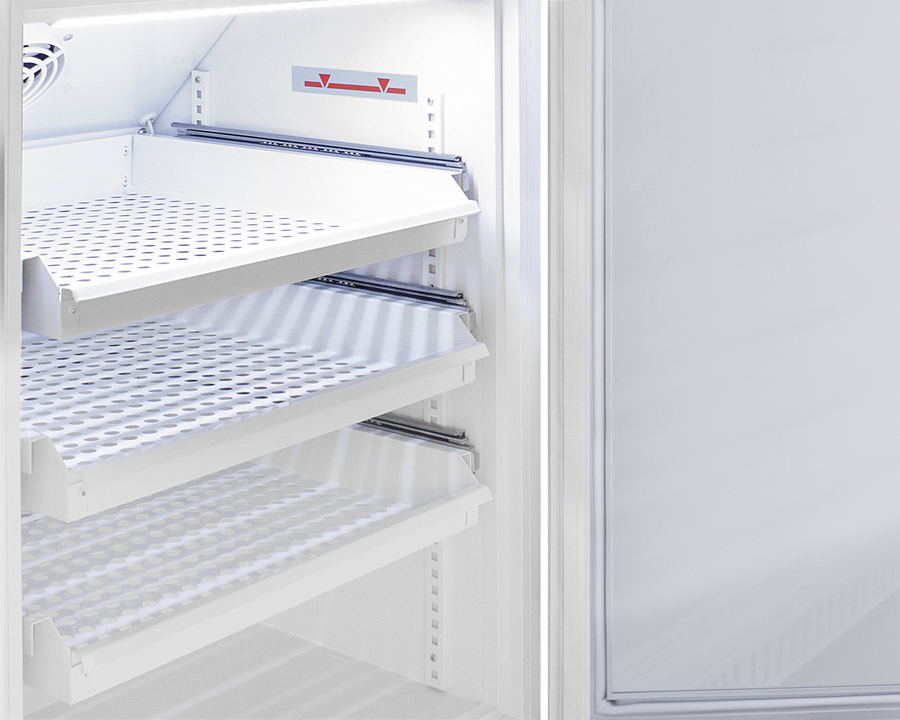

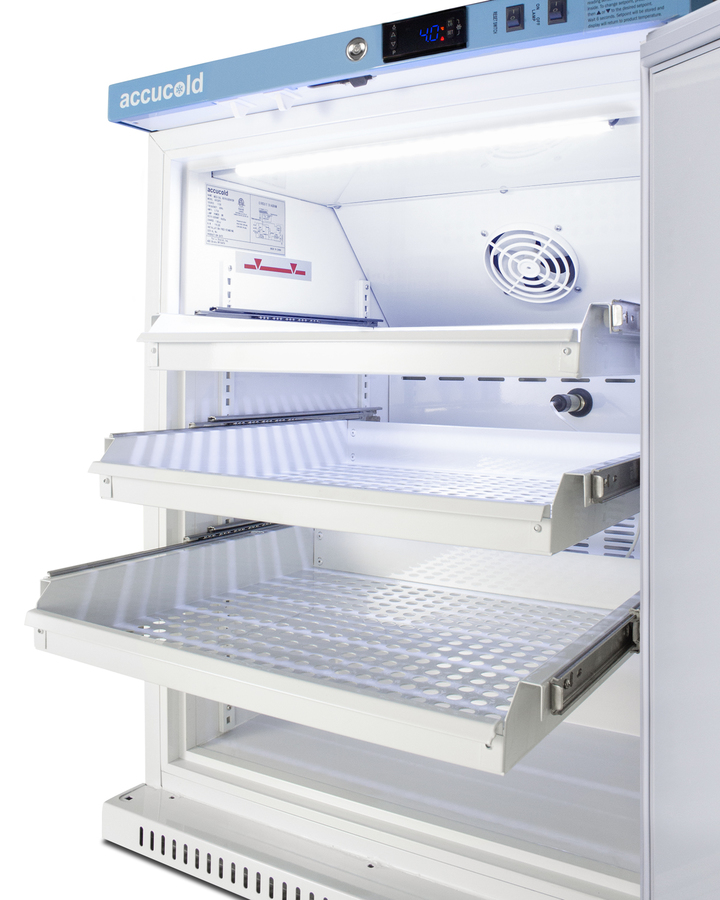

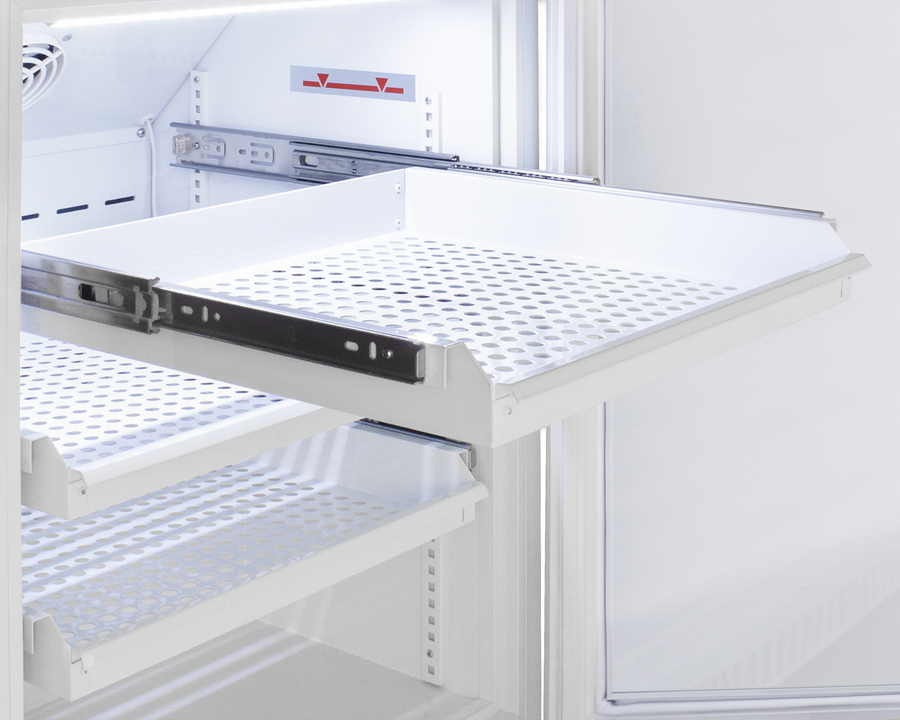

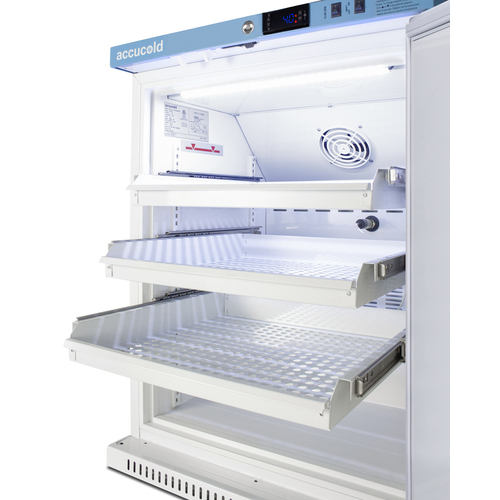

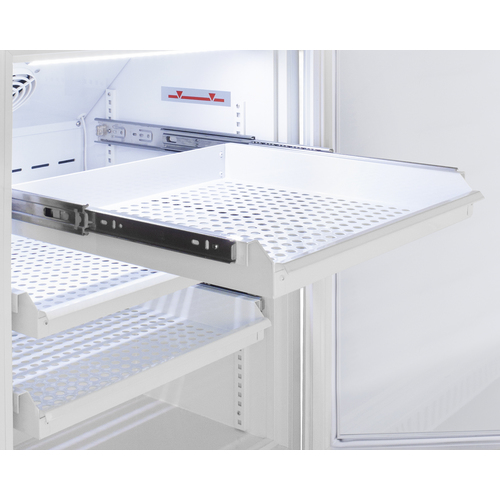

Full-extension ventilated drawers

Three drawers made from powder-coated aluminum glide out smoothly for convenient storage, with perforated bottoms to ensure proper air circulation

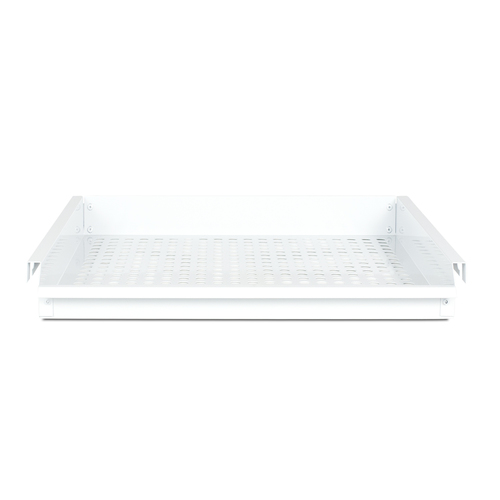

Removable drawers

Drawers can be easily removed for convenient transporting of contents to a lab counter or work station

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Reversible door

User-reversible door swing for added flexibility

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices

Solid and glass door choices available from 1 to 15 cu.ft. Browse the Med-Lab series for more information

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

ADA compatible height

Sized at 32.5 inches high for use with most ADA compliant applications

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's Med-Lab Performance Series all-refrigerators are designed and purpose-built to meet the demanding needs of life science, laboratory, and medical cold storage applications, with a powder-coated silver ion handle that helps prevent germ spread.

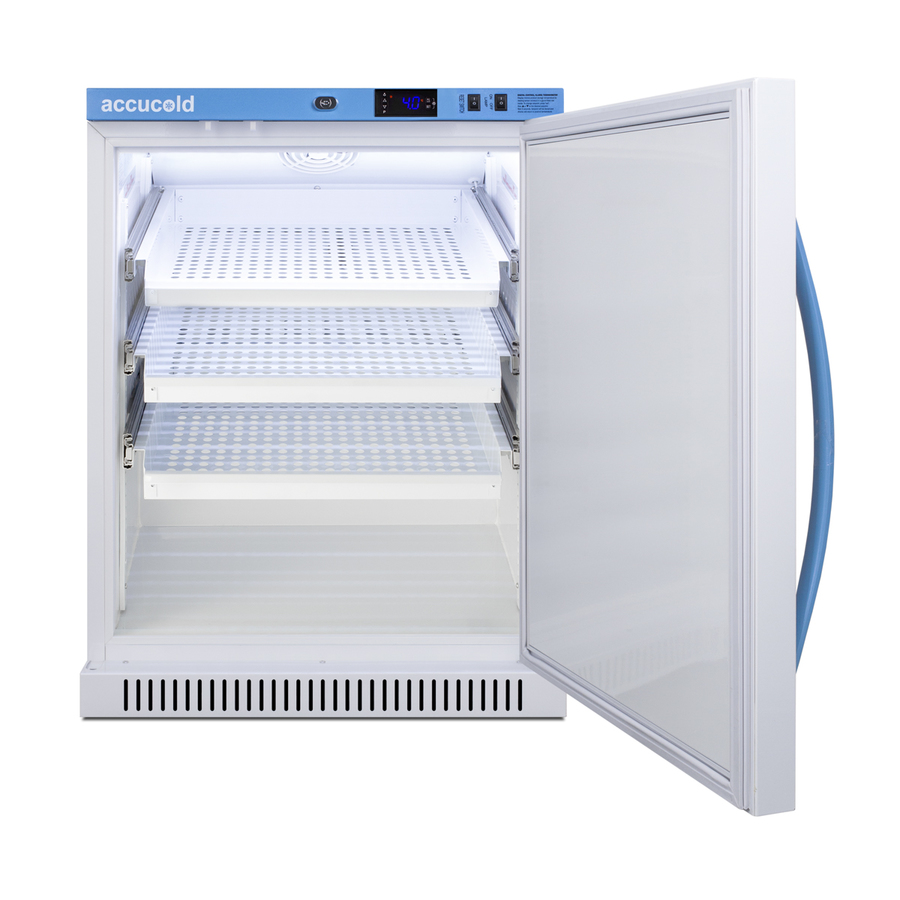

The ARS6MLDR is a 6 cu.ft. all-refrigerator sized at 32.5 inches high for use in most ADA compliant applications. The adjustable control range allows you to manage the temperature between +2 to +10ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

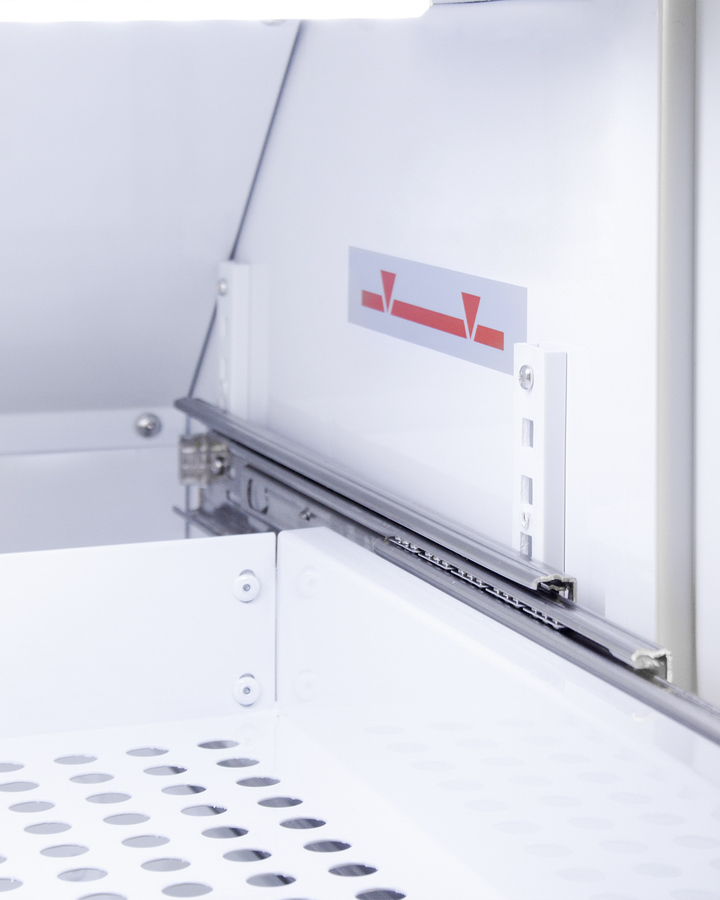

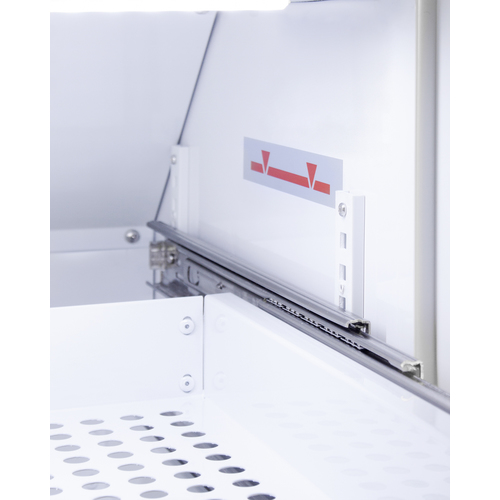

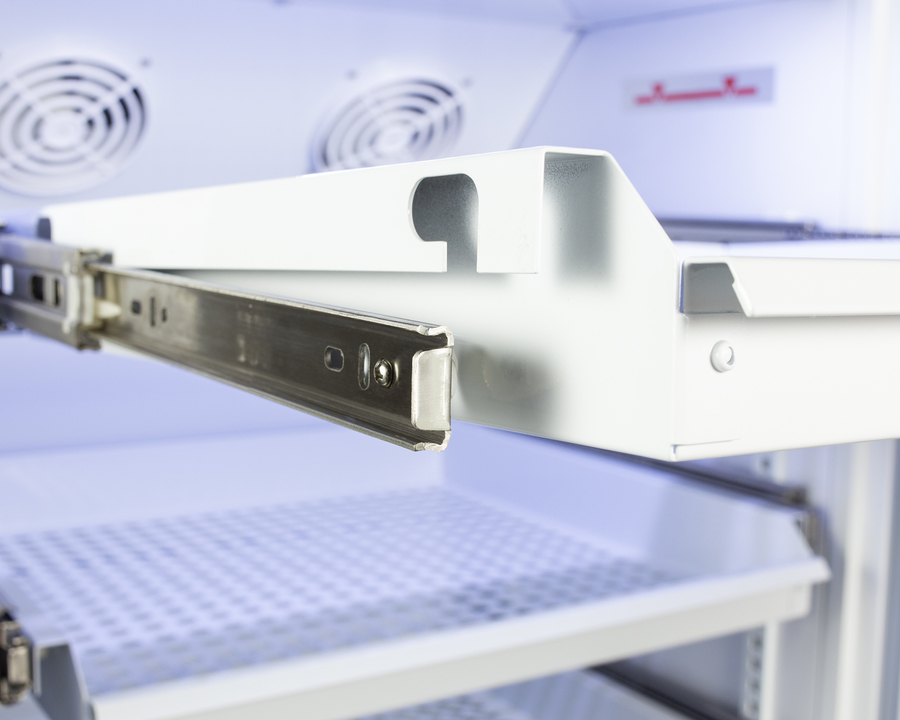

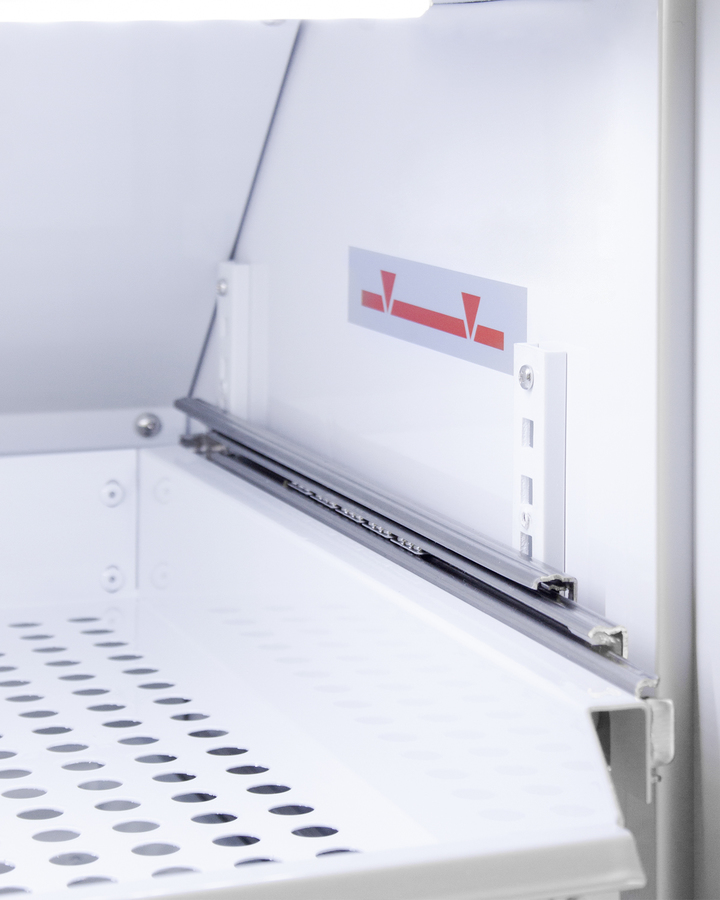

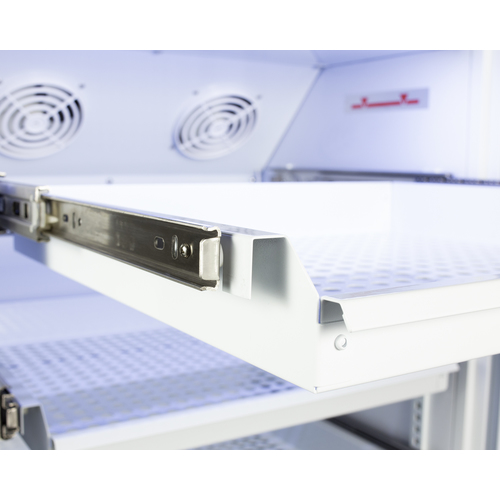

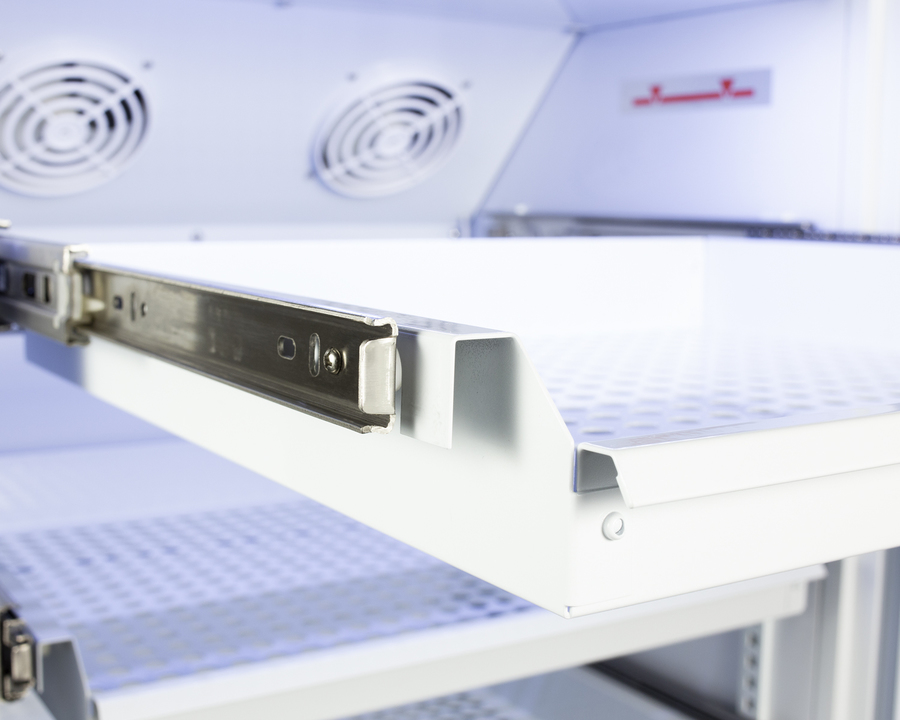

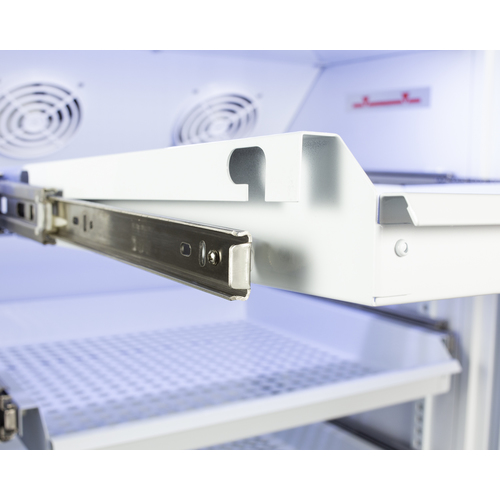

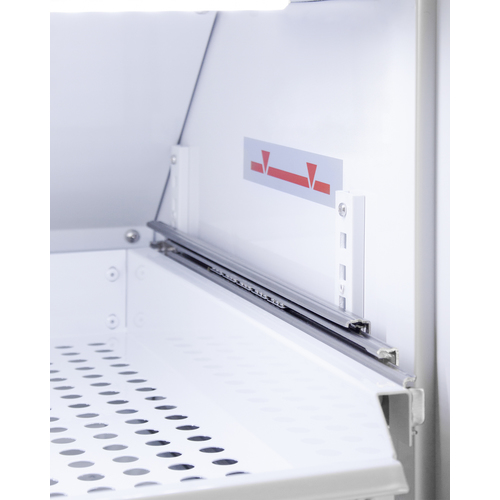

Inside, the ARS6MLDR utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. Three white powder-coated aluminum drawers provide ample storage and easy organization. Positioned on ball-bearing glides, the drawers offer full-extension for complete product access. Additionally, each drawer is removable allowing for transport of contents as needed. The drawers also lock into place for added security, while the perforated bottom ensures proper ventilation throughout the unit. LED internal lighting with an on/off rocker switch attractively illuminates the interior for easy viewing. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention.

The ARS6MLDR comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right-hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS6MLDR provides an energy-efficient solution to laboratory and life science storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, door options, and units with a combination of standard shelving and drawers are also available. Explore the full Med-Lab series at accucold.com/medlab.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
ARS6MLDR.pdf
Download
TECHNICAL DRAWING (.dwg)
ARS6PVDR_REF.__A-C_2018_.dwg
Download
MSDS INFORMATION
R600a_MSDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
