BIM44GADA

Estar commercial 0f84a2c117405e1b03d7d709b4257b0b4e1fa195edae4c1fa459461c57944b1e
Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

Includes an internal pump for more flexibility

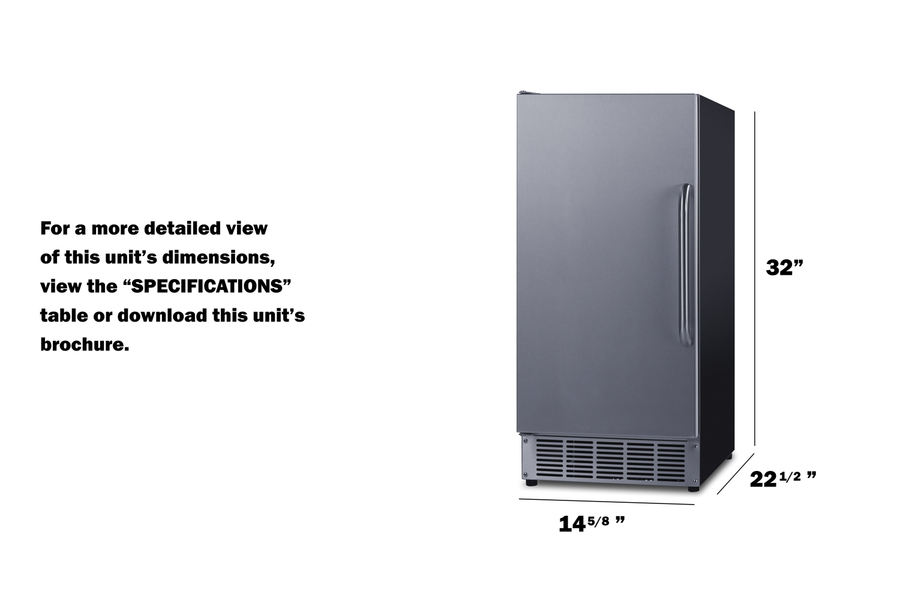

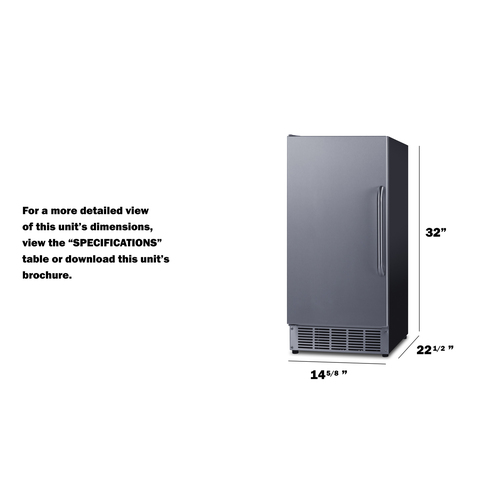

32.38" H x 14.5" W x 23.5" D

(82cm H x 37cm W x 60cm D)

OVERVIEW

  • Commercial ENERGY STAR certification
  • 32 3/8" height fits under lower ADA compliant counters
  • Automatic defrost saves on user maintenance
  • Flexible design allows built-in or freestanding use
  • Slim 15" width is perfect for wet bars
  • Stainless steel door includes professional handle
  • Commercially listed to NSF-7 standards

SPECIFICATIONS

Overview
Height of Cabinet 32.38" (82 cm)
Width 14.5" (37 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 36.75" (93 cm)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation NSF
Amps 4.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing LHD
Reversible Yes
Drain Required Yes
Daily Ice Production 50.0 lbs. (23 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 3/4" x 3/4" x 1"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.88 oz.
High Side PSI 350.0
Low Side PSI 130.0
Interior Height 18.5" (47 cm)
Interior Width 12.0" (30 cm)
Interior Depth 16.0" (41 cm)

AVAILABLE UPGRADES

Lock
L-Installed Lock
Add a single key lock to the door with the L option
Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

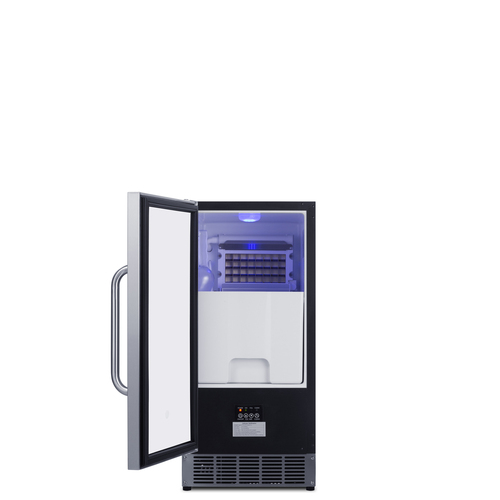

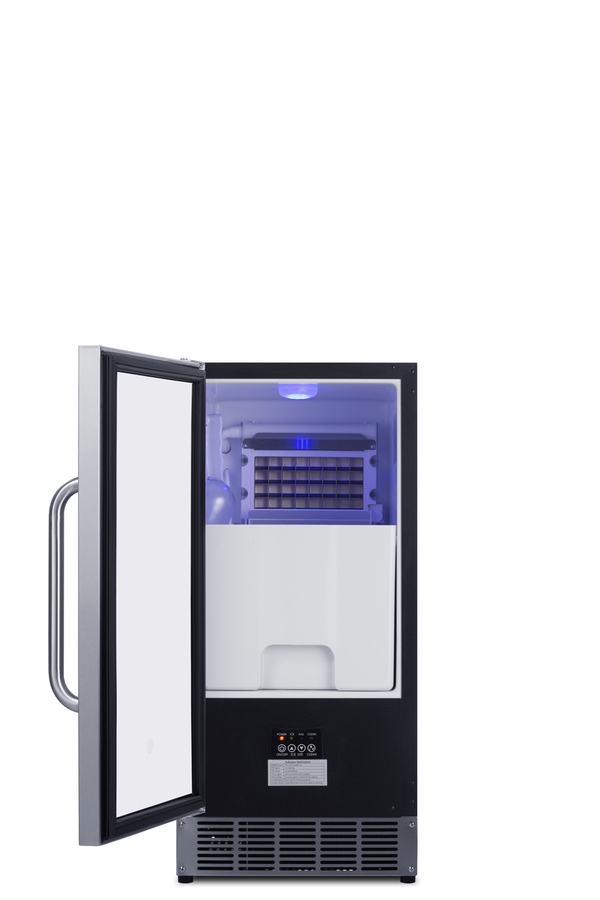

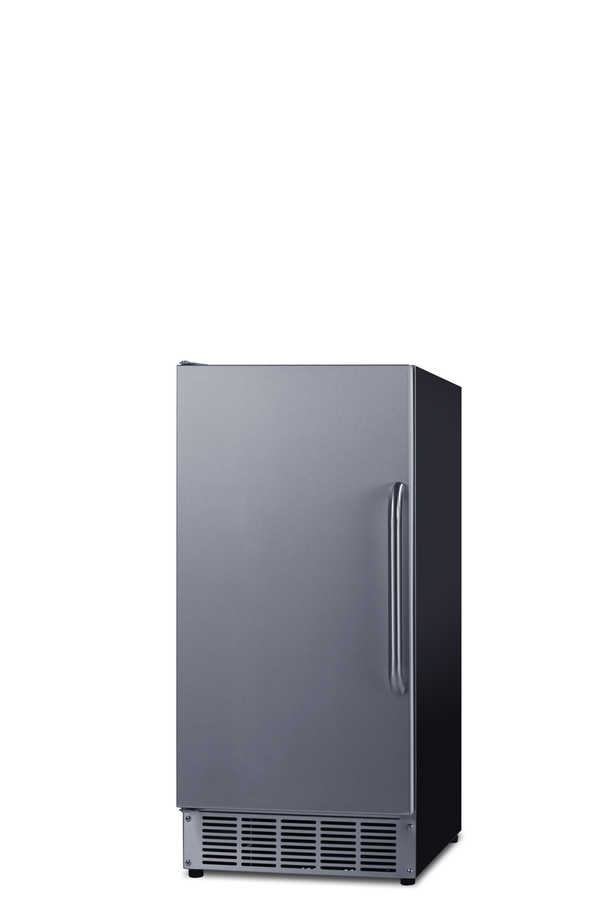

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters.

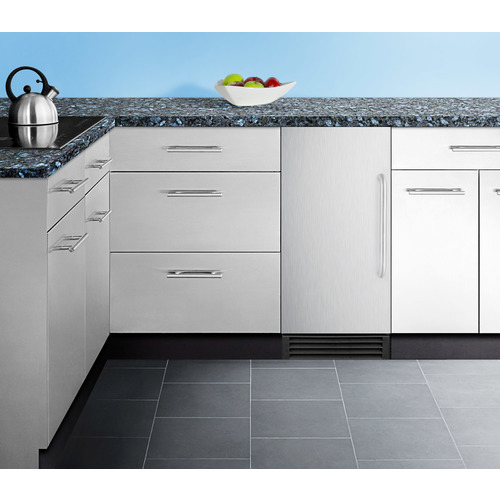

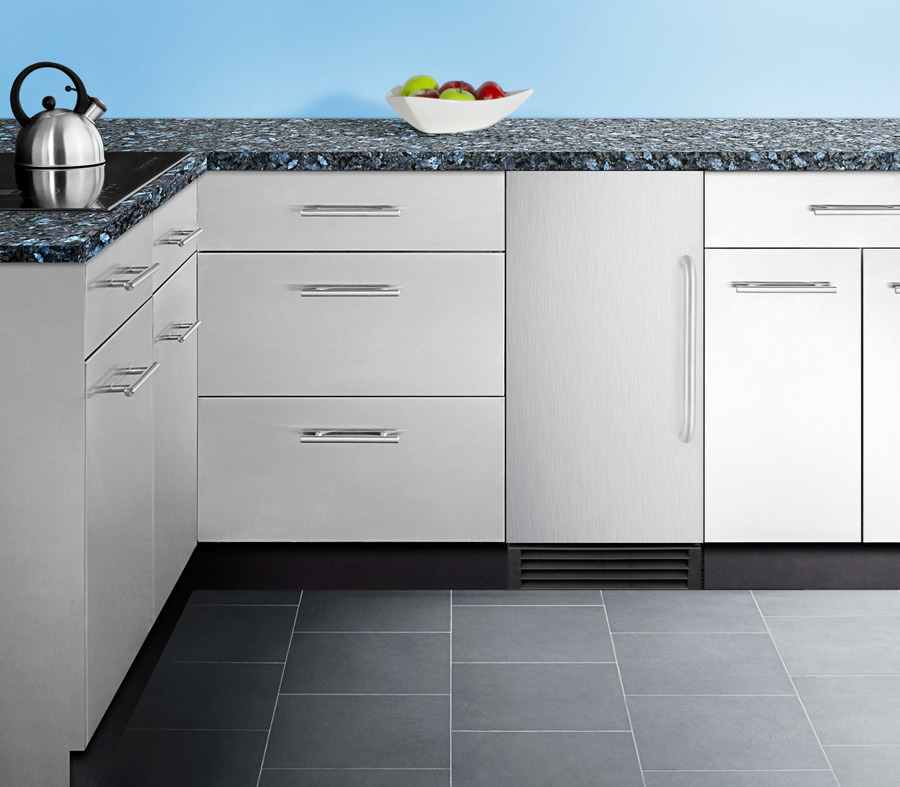

Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts. This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation.

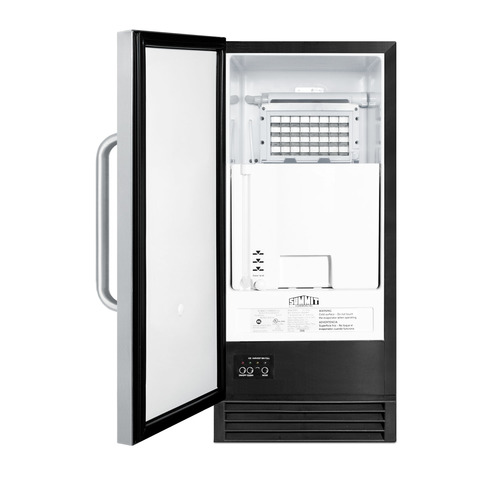

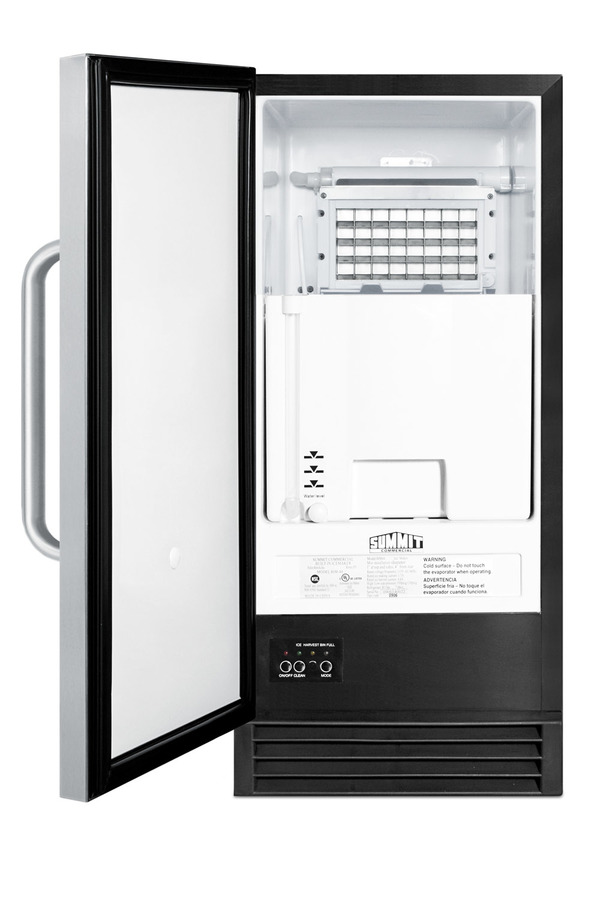

The BIM44GADA can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain.

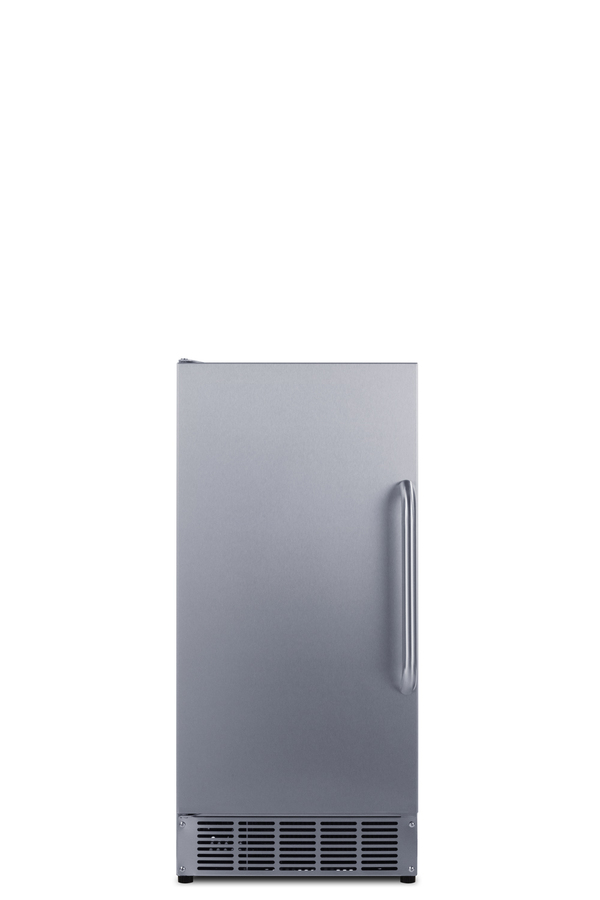

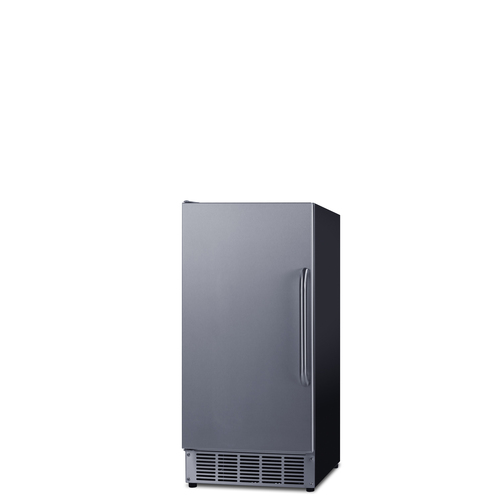

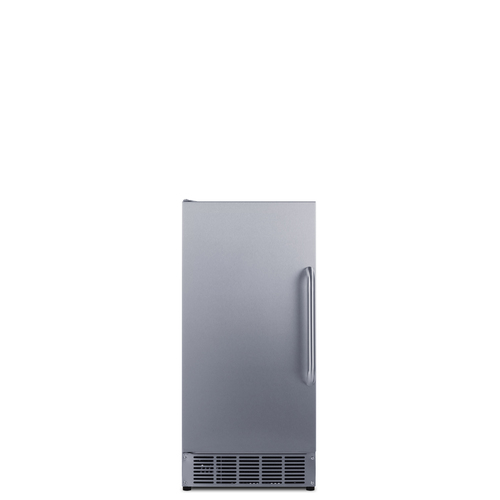

The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included.

This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.

FEATURES

ADA compliant
32 3/8" height fits under lower ADA compliant counters
ENERGY STAR certified commercial performance
Efficient performance for commercial use
Commercially approved
NSF listed for use in commercial establishments
Built-in pump
Internal pump allows more flexibility in placing the unit
Automatic defrost
Simplify appliance care by letting your icemaker defrost itself
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user
Built-in capable
Make the best use of space by installing your icemaker under the counter

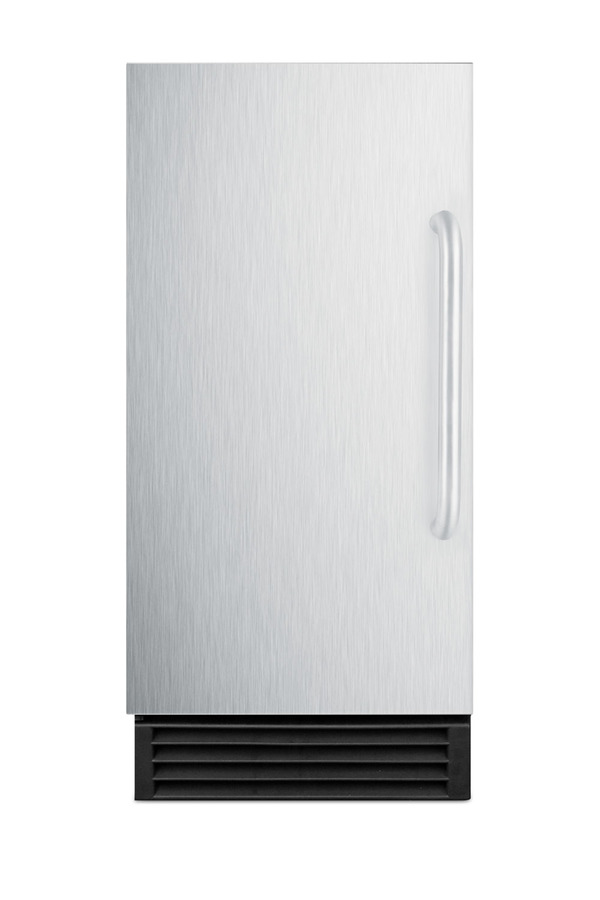

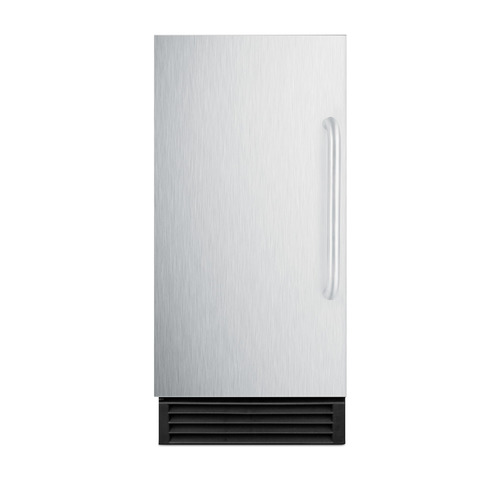

Stainless steel door
Professional styling with lasting durability
Professional towel bar handle
A curved handle in brushed stainless steel offers an easy grip

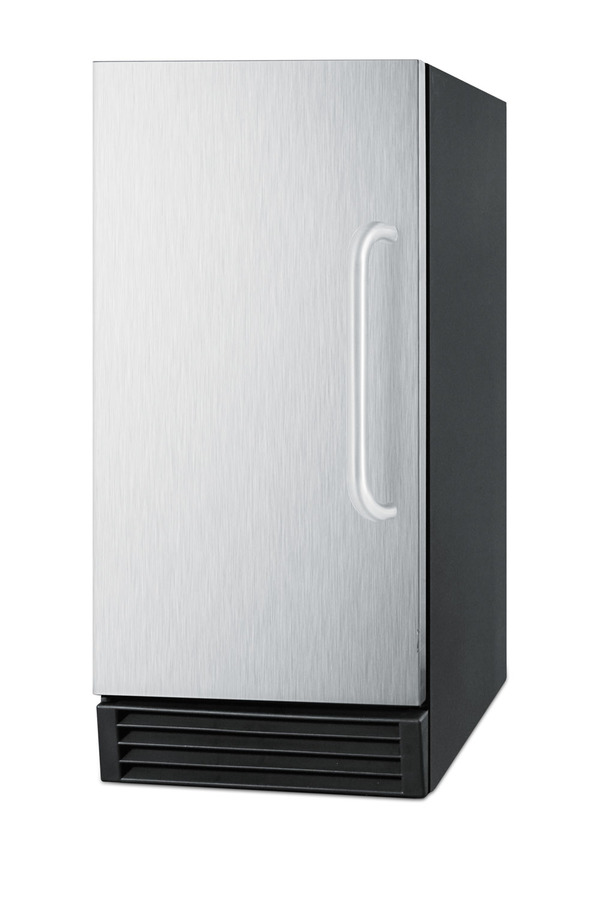

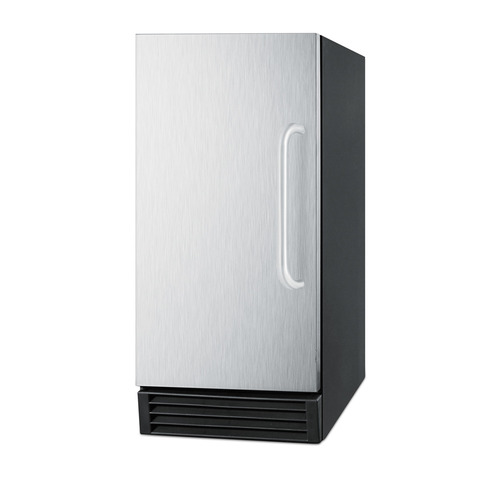

Fully finished black cabinet
Allows the icemaker to be used as a freestanding model

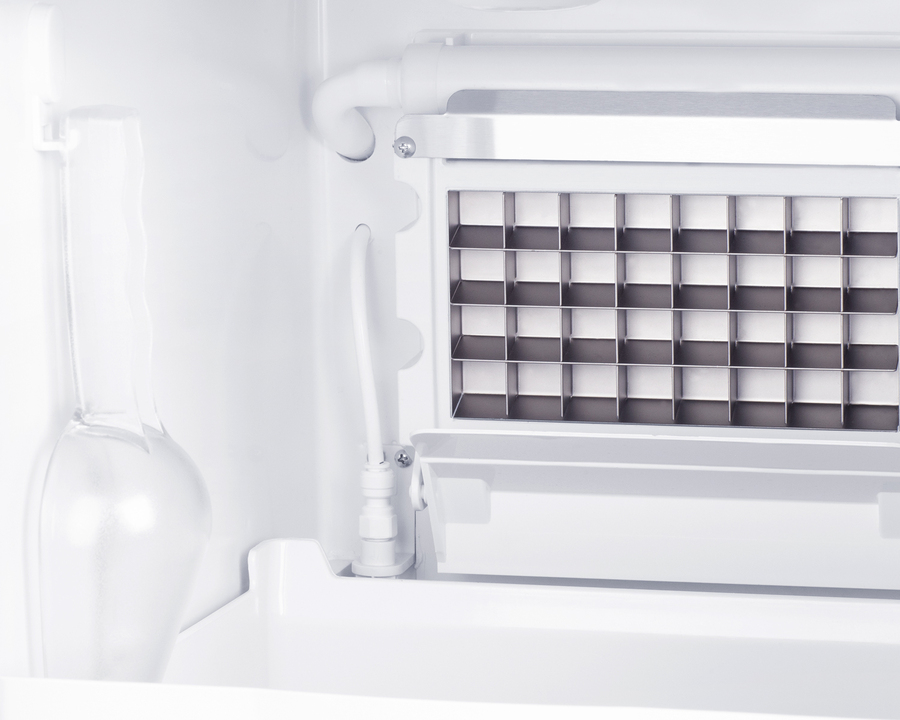

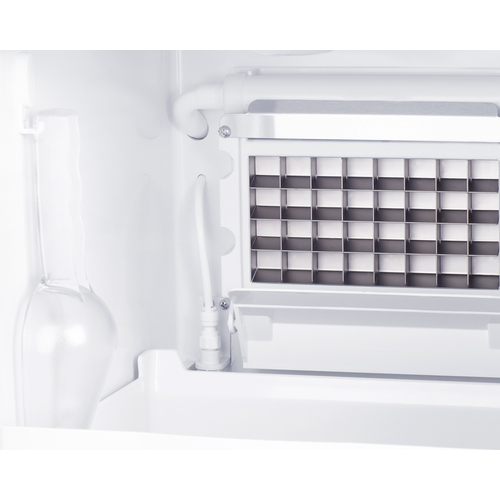

Insulated storage bin
Ice stays solid longer in this cold-protected bin
Clear ice cube production
Makes cubes sized at 3/4" x 3/4" x 1"
Ice scoop
Included for your convenience
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.38" (82 cm)
Width 14.5" (37 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 36.75" (93 cm)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation NSF
Amps 4.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing LHD
Reversible Yes
Drain Required Yes
Daily Ice Production 50.0 lbs. (23 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 3/4" x 3/4" x 1"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.88 oz.
High Side PSI 350.0
Low Side PSI 130.0
Interior Height 18.5" (47 cm)
Interior Width 12.0" (30 cm)
Interior Depth 16.0" (41 cm)

AVAILABLE UPGRADES

Lock
L-Installed Lock
Add a single key lock to the door with the L option
Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
BIM44GADA.pdf
Download
TECHNICAL DRAWING (.dwg)
BIM44GADA__ICE_MAKER__A-C_2000_.dwg
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
