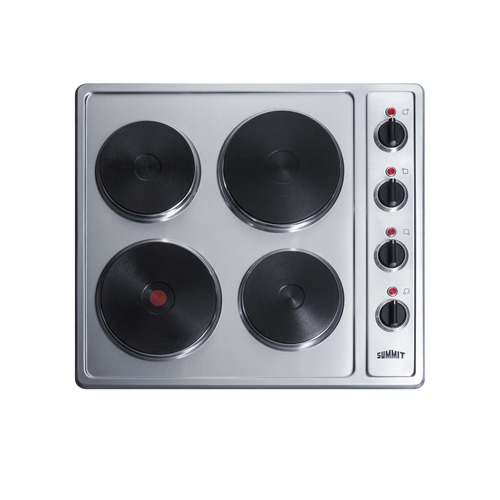

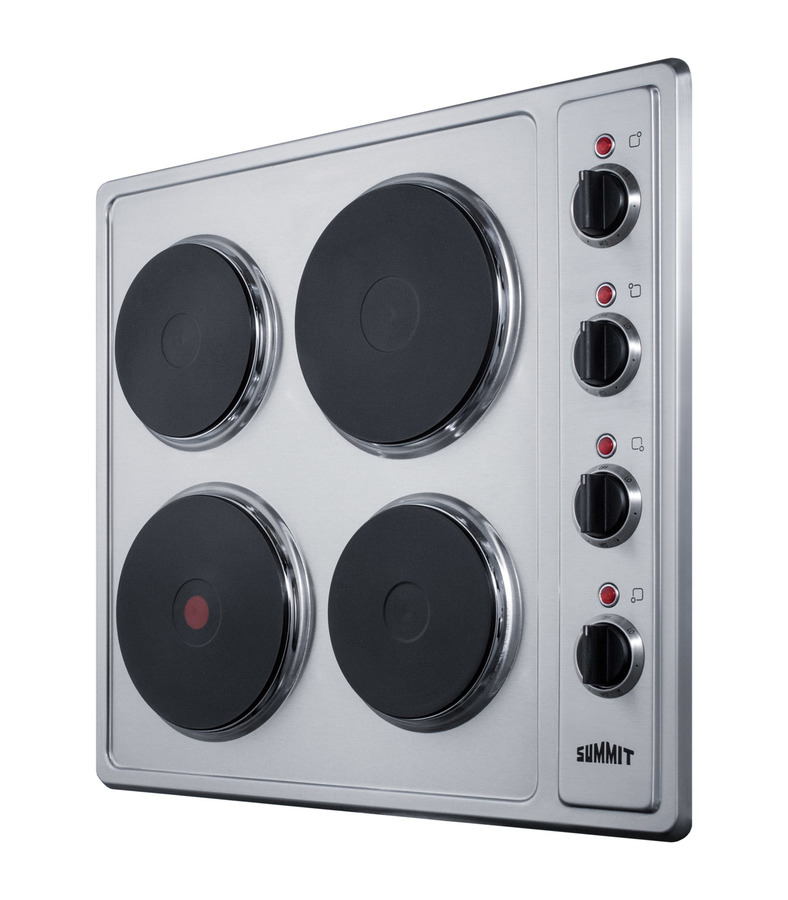

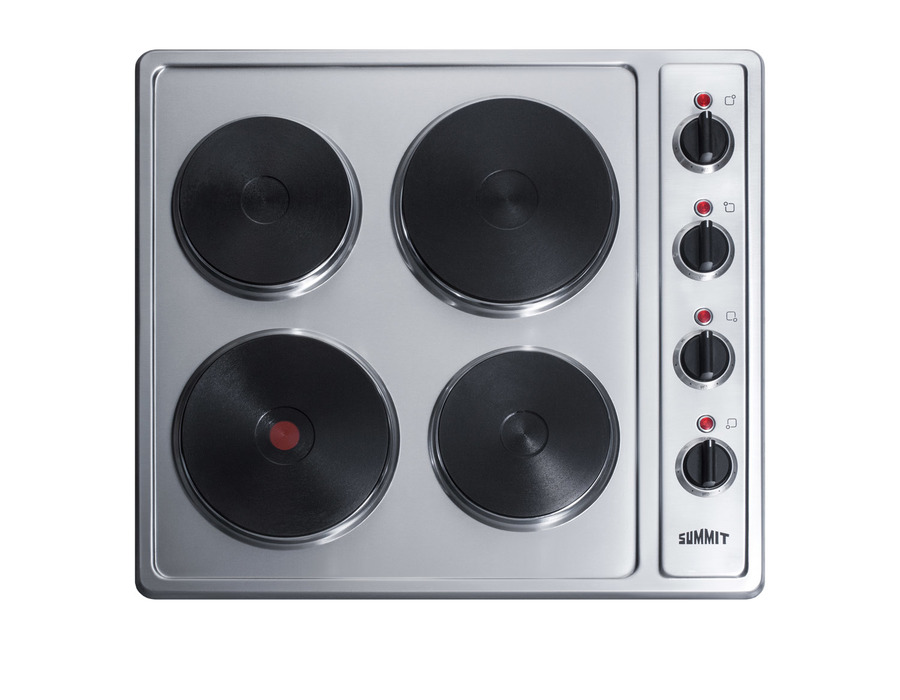

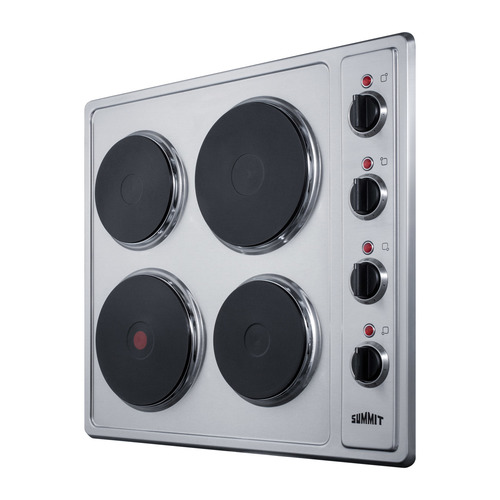

24" Wide 230V 4-Burner Solid Disk Cooktop

SKU: CSD4B24
Cast iron elements offer improved durability and more even heating
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
4.13" H x 22.75" W x 20.38" D
(10cm H x 58cm W x 52cm D)

Overview
Height of Cabinet 4.13" (10 cm)
Width 22.75" (58 cm)
Depth 20.38" (52 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 23.0
Voltage/Frequency 230 V AC/60 Hz
Weight 14.0 lbs. (6 kg)
Shipping Weight 29.5 lbs. (13 kg)
Parts & Labor Warranty 1 Year
UPC 761101056340
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Cast Iron
Number of Elements 4
Controls Dial
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 22.0" (56 cm)
Countertop Cutout Depth 19.75" (50 cm)
Power Source 230V
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 2000.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1000.0
Element #3 Size 8.0" (20 cm)
Element #3 Wattage 1500.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 1000.0
Power Cord Included No

Solid disk elements

Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience

Stainless steel finish

Surface is made from stainless steel for an attractive and easy to clean look

Durable cast iron design

Solid metal elements hold up to heavy duty use

Easier cleanup

Fully sealed cast iron elements offer easier cleanup than traditional coil elements

Two 6" elements

1000W elements accommodate most lighter cooking needs

Two 8" elements

Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans

Push-to-turn controls

Knobs require a small amount of force to help prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use

Designed for built-in installation

Fits counter cutout sizes that are 22" W x 19 3/4" D

230V operation

Professional installation required

Summit's selection of electric cooktops offers the perfect fit for every application.

Sized at 24" wide, the CSD4B24 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs.

The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety.

With its modern style and durable design, the CSD4B24 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 2-burner version, see the CSD2B230.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
