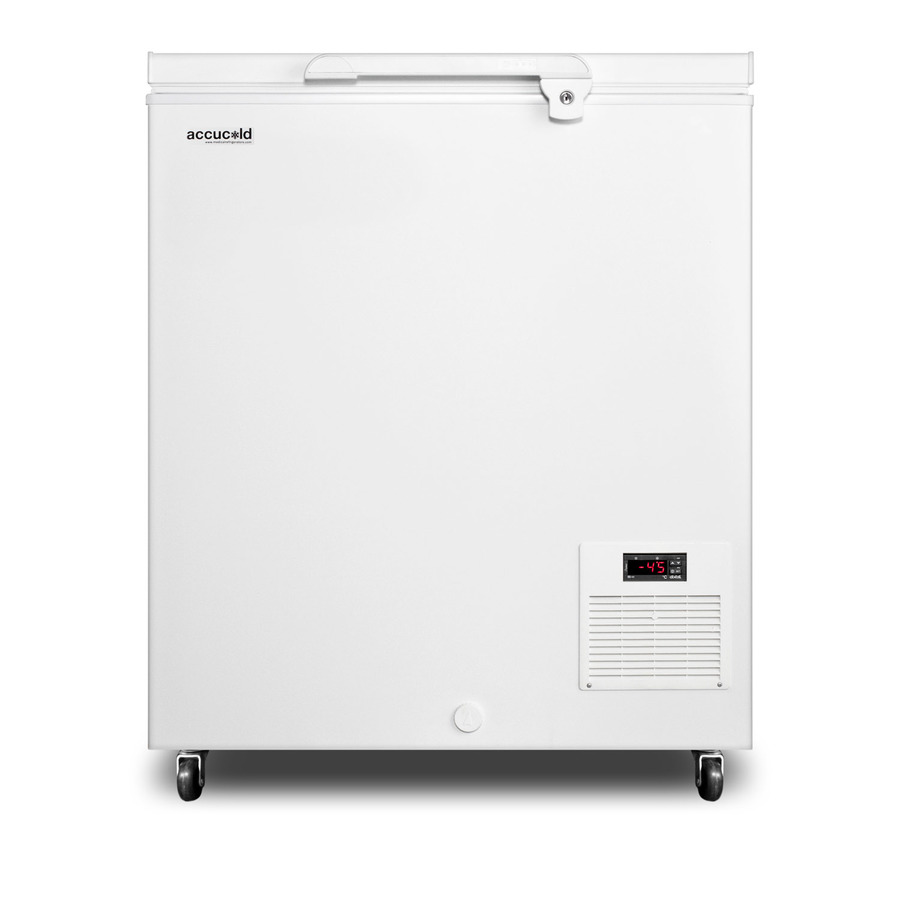

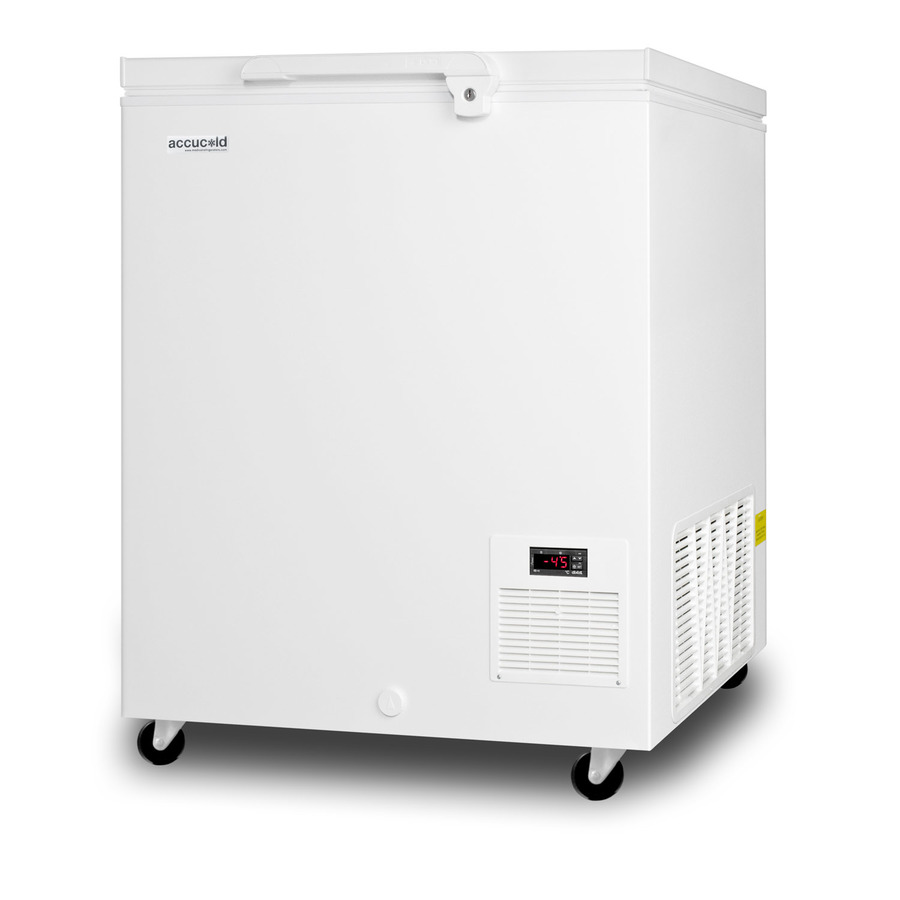

4.8 Cu.Ft. Chest Freezer

SKU: EL11LT

Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Made in Denmark with extra thick insulation for proper cold storage

33.5" H x 28.5" W x 27.25" D

(85cm H x 72cm W x 69cm D)

OVERVIEW

  • Capable of -45º C operation for select laboratory and industrial storage purposes
  • UL-S listed to NSF-7 commercial standards
  • Digital thermostat with external controls allows easy and precise temperature monitoring
  • Factory installed lock for security you can depend on
  • Extra thick 4 1/2" insulation for efficient and stable cooling
  • Counterbalanced hinges allow easier loading

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 28.5" (72 cm)
Depth 27.25" (69 cm)
Depth with Handle 28.75" (73 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 115.0 lbs. (52 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Reversible No
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 1.94 oz.
High Side PSI 342.0
Low Side PSI 174.0
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

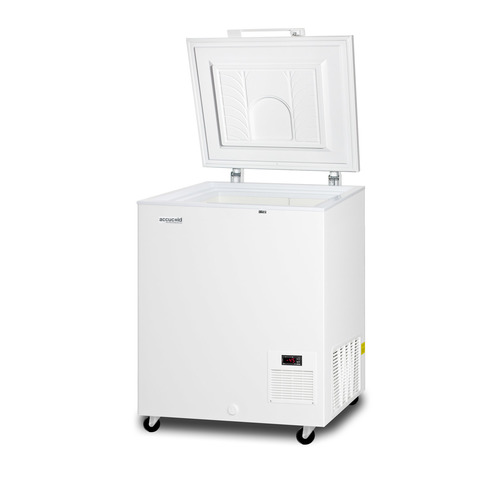

Manufactured for us in Denmark by ELCOLD, Accucold EL11LT is a -45º C capable chest freezer built with solid insulation for laboratory and life science storage applications.

This 4.8 cu.ft. chest freezer uses static manual defrost cooling to maintain constant temperature, with an externally controlled digital thermostat to ensure easy temperature monitoring. Extra thick 4 ½" thick insulation offers added efficiency and reliability. Additional features include a solid, easy-grip handle complete with factory installed lock, a sturdy set of casters, and counterbalanced hinges for comfortable loading and unloading. This unit includes a factory-installed probe hole to allow users to install their own monitoring equipment.

The EL11LT is UL-S listed to ANSI-NSF standards for commercial use and is designed to operate between -10º C and -45ºC. Additional sizes are available. Browse our website to explore more options.

FEATURES

-45º capable
Low temperature operation is ideal for a variety of laboratory, life science, and industrial applications
Commercially approved
UL-S listed to NSF/ANSI-7 standards
Extra thick insulation
4 1/2" thick walls for added efficiency and stable cooling

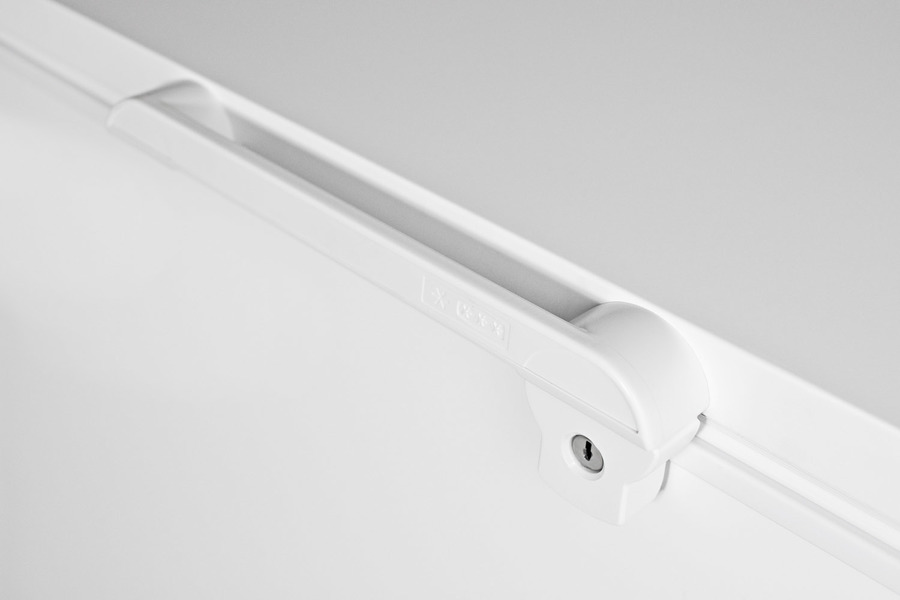

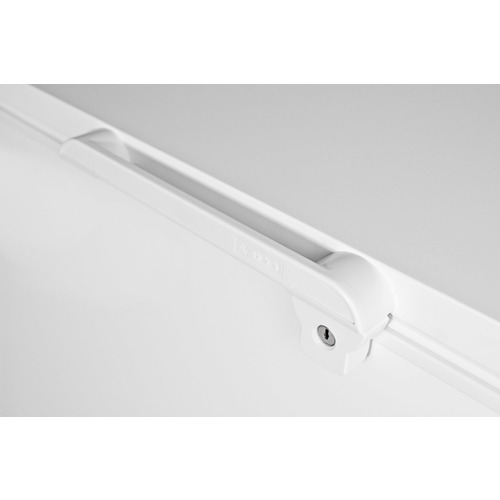

Factory installed lock
Keyed lock on the handle for reliable security

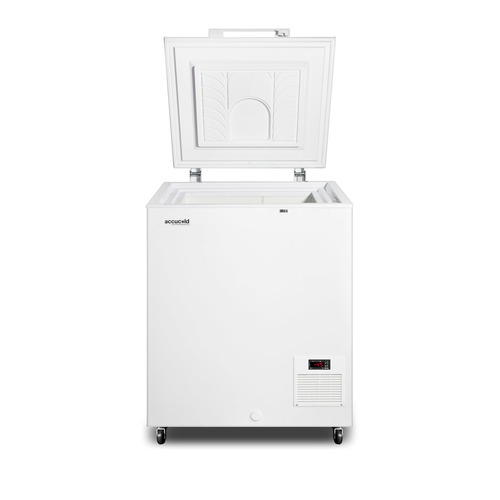

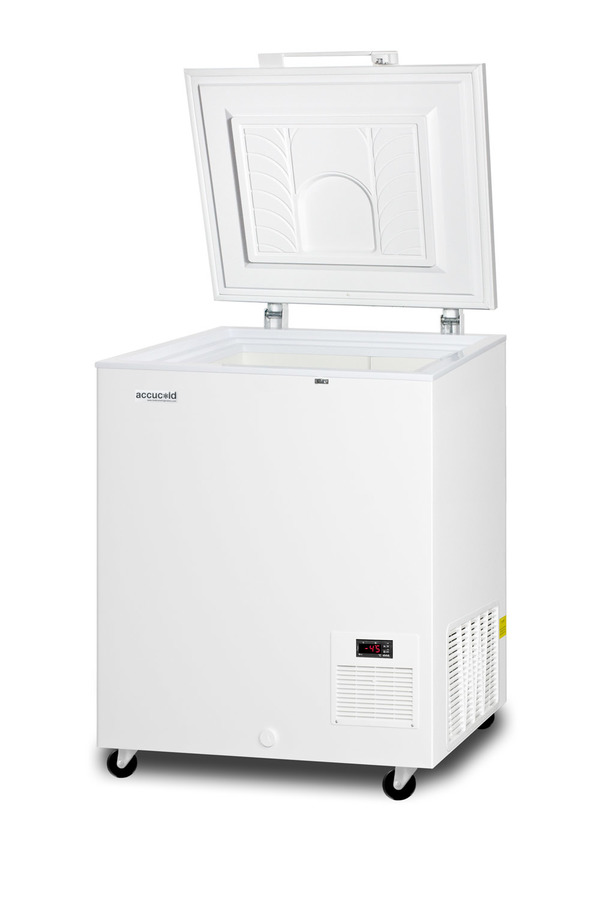

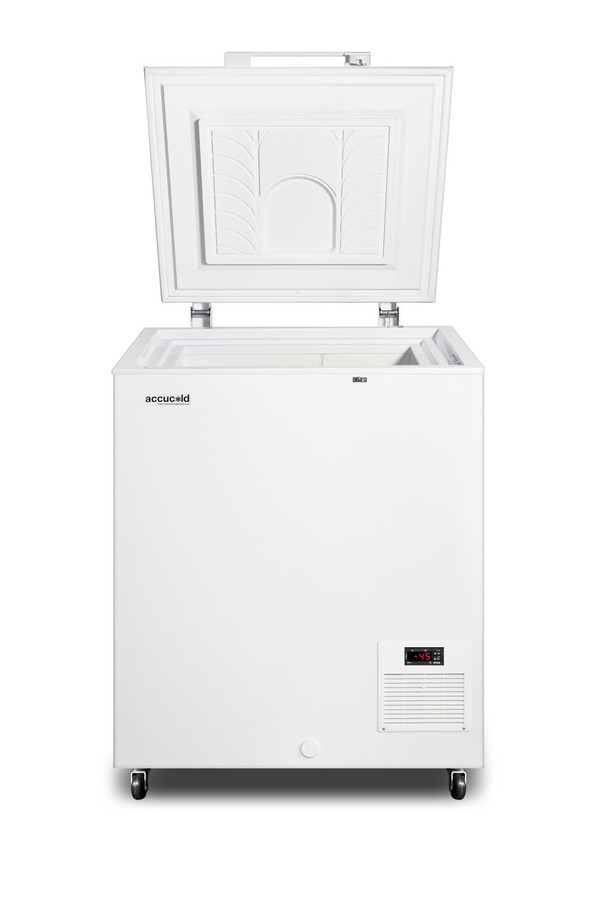

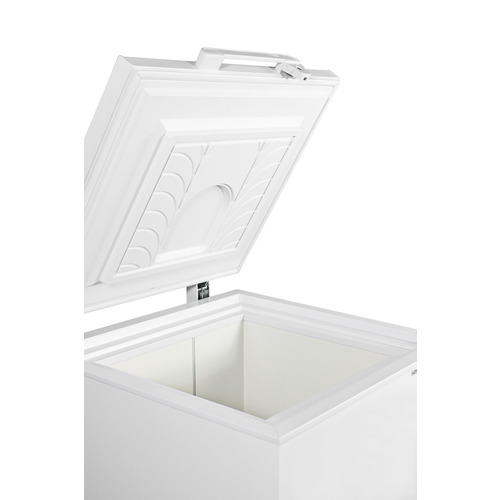

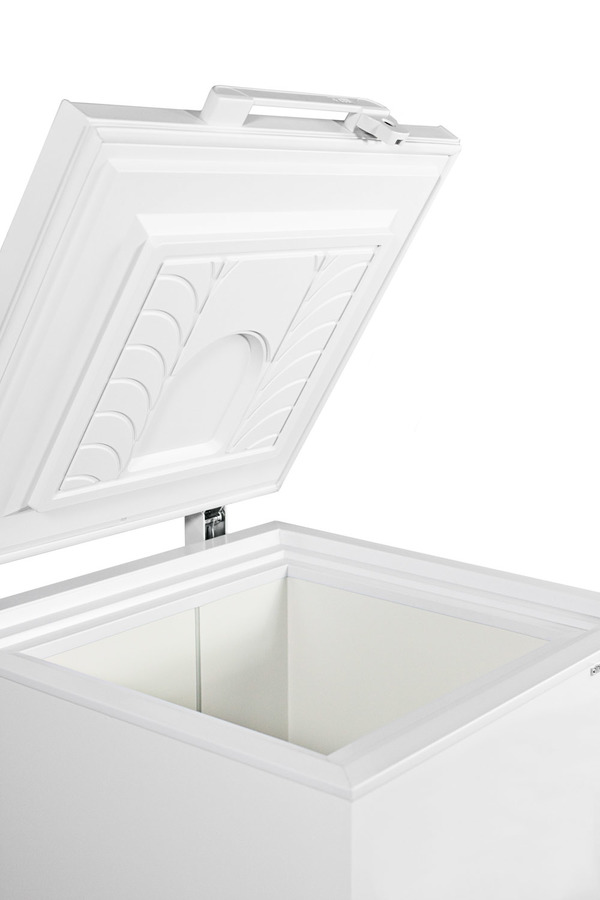

Counterbalanced hinges
Easy and safe loading and unloading with a lid that remains open when lifted past 45º angles
Casters
Four solid wheels included for optional mobility

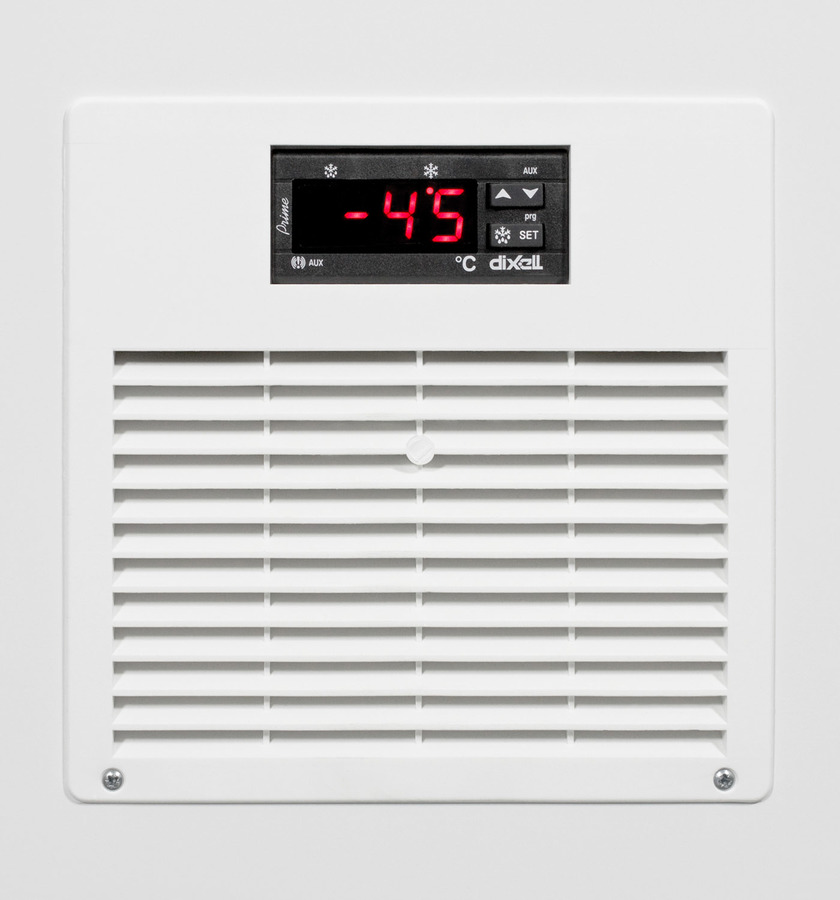

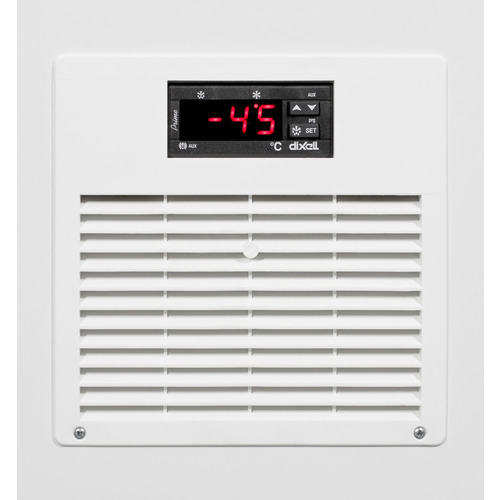

Digital thermostat
Electronic controls for precise temperature management, with temperature readout and controls externally located for added convenience

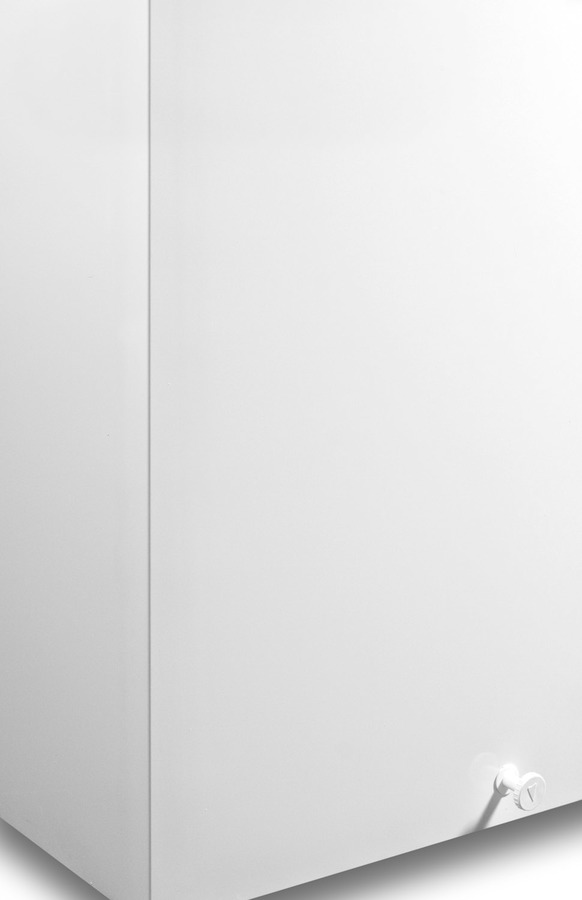

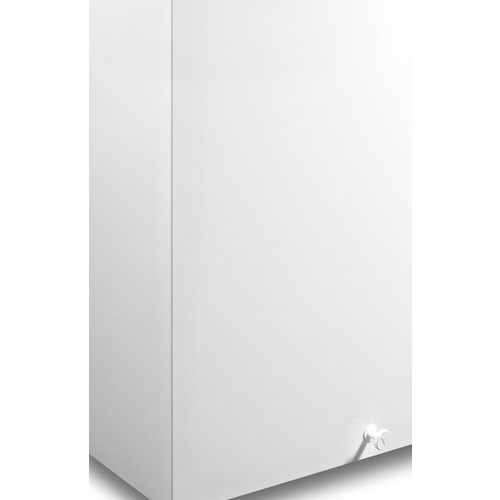

Manual defrost
Static cooling for a stable interior
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 28.5" (72 cm)
Depth 27.25" (69 cm)
Depth with Handle 28.75" (73 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 115.0 lbs. (52 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Reversible No
Thermostat Type Digital
Refrigerant Type R290a
Refrigerant Amount 1.94 oz.
High Side PSI 342.0
Low Side PSI 174.0

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
EL11LT.pdf
Download
TECHNICAL DRAWING (.dwg)
EL11LTFREEZERA-C2000.dwg
Download
MSDS INFORMATION
SDS_R290_Propane.pdf
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
