20" Wide All-Refrigerator

SKU: FF511L Matching freezer

Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Factory installed lock located towards the top of the door for convenient security

34.0" H x 19.25" W x 21.38" D

(86cm H x 49cm W x 54cm D)

OVERVIEW

  • Counter height all-refrigerator offers full 4.1 cu.ft. capacity
  • Slim 20" width is ideal for any setting
  • Factory-installed lock provides security you can count on
  • Automatic defrost ensures minimum user maintenance

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 57.0 lbs. (26 kg)
Shipping Weight 60.0 lbs. (27 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold by Summit Appliance offers a wide range of counter height all-refrigerators for general purpose storage. The FF511L Series features high performing 20" wide all-refrigerators designed for freestanding use.

The FF511L features a full 4.1 cu.ft. capacity. This all-white refrigerator includes a reversible door with an easy-to-clean flat interior liner. A factory installed lock is located at the top of the door for convenient security.

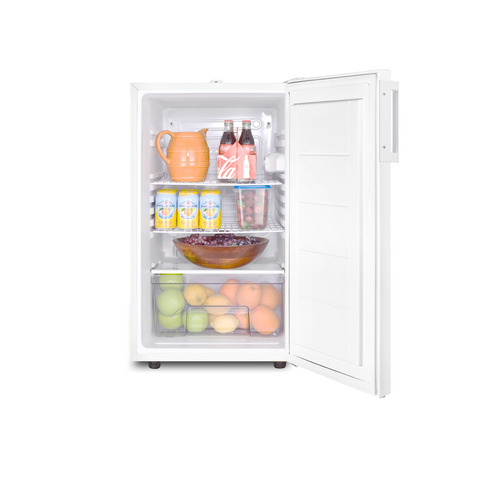

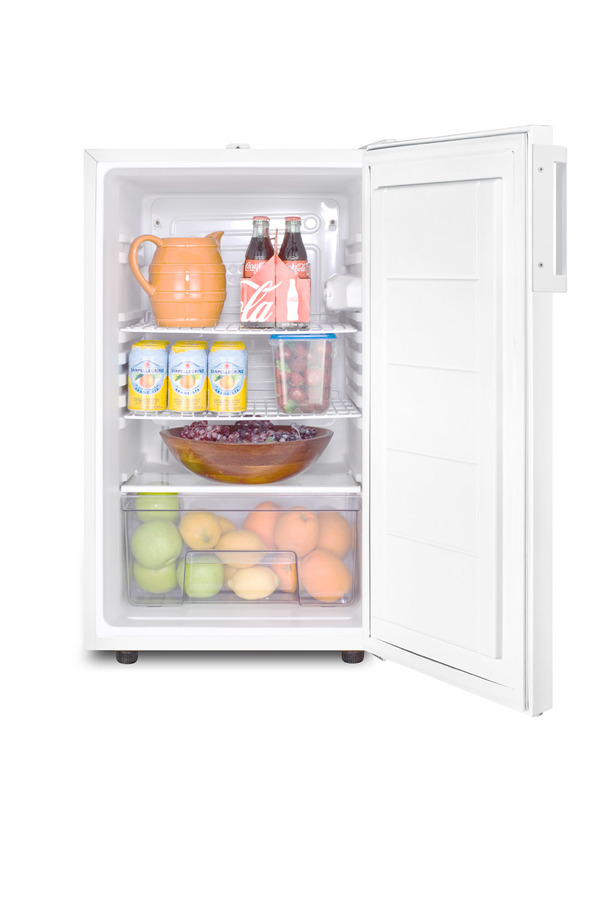

Inside, this auto defrost refrigerator includes three adjustable wire shelves. A bottom crisper drawer offers added storage options. Additional features include an adjustable thermostat and a switchable interior light.

At just 20" wide, the FF511L is ideal for any facility in need of quality cooling and can be perfectly matched with our FS407L all-freezer. This model is designed for freestanding general purpose use. For a built-in version of this model, see the FF511LBI.

FEATURES

Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Factory installed lock
Top-mounted for convenient security
Fully finished white cabinet
Allows the unit to be used freestanding
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Crisper drawer
Get the longest life and best taste out of produce by storing greens in a bottom crisper
Flat door liner
Easy to clean, with more depth for storage
Interior light
Turn the light on and off with a convenient rocker switch
Adjustable thermostat
Manage the temperature with ease and accuracy
Matching freezer available
Combine with any FS407L for a complete counter height set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 57.0 lbs. (26 kg)
Shipping Weight 60.0 lbs. (27 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.75" (17 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FF511L.pdf
Download
TECHNICAL DRAWING (.dwg)
FF511L_FF521BLREF.A-C2000.dwg
Download
MSDS INFORMATION
R134a_MSDS_T.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
