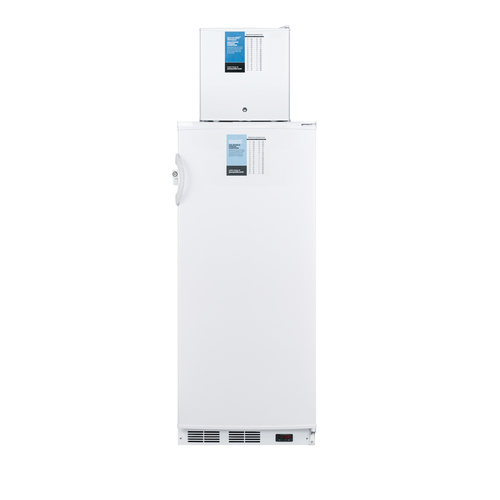

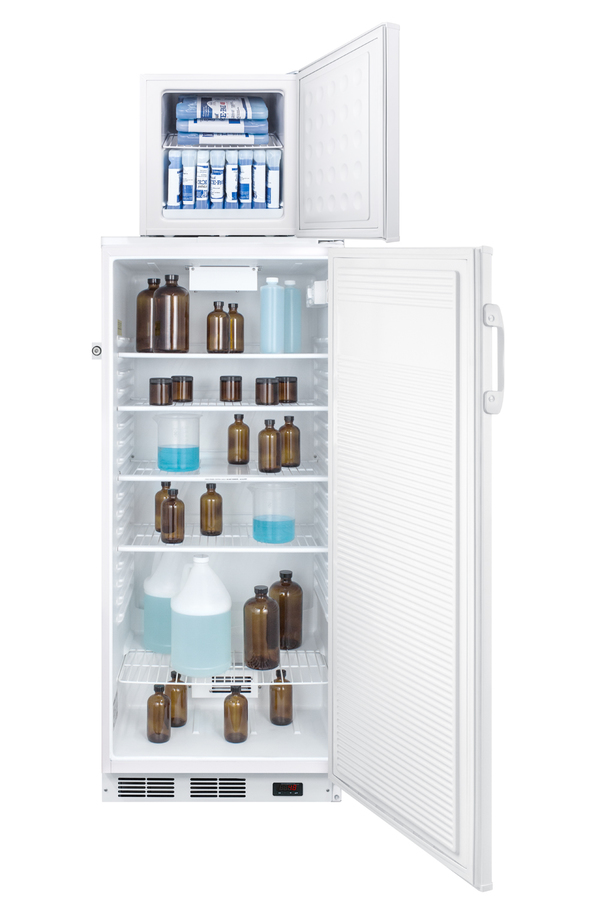

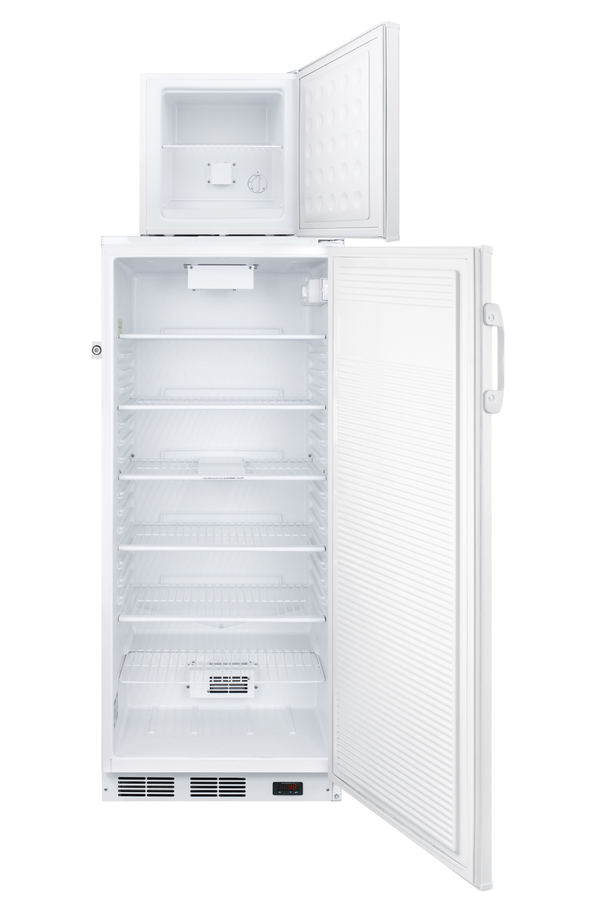

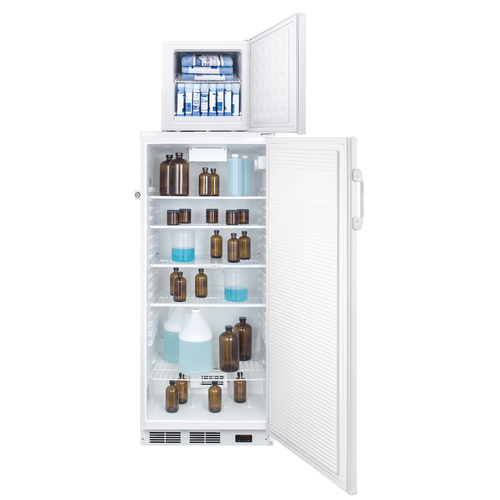

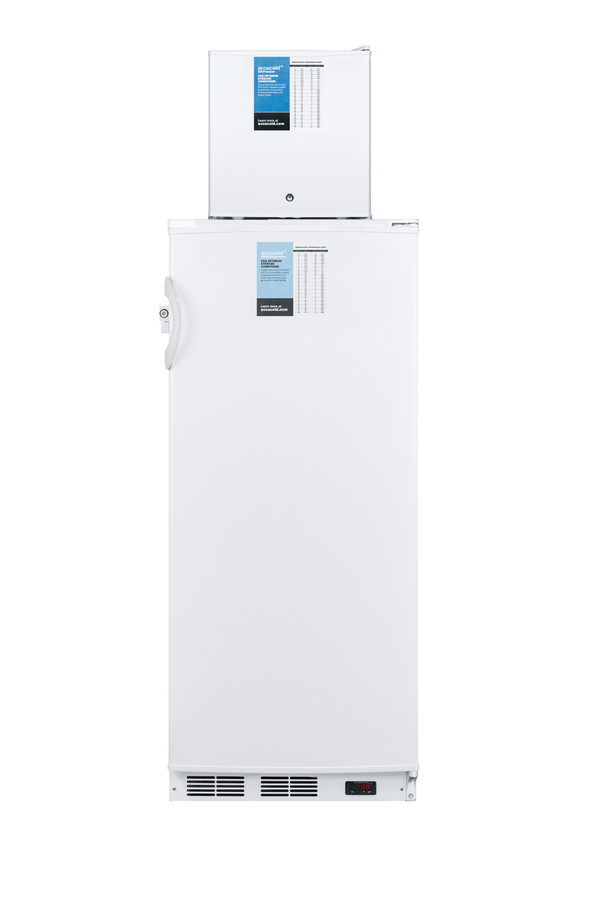

24" Wide All-Refrigerator/All-Freezer Combination

SKU: FFAR10-FS24LSTACKPRO

Stackable design allows you to maximize limited floor space while enjoying the full storage convenience of an independent refrigerator and freezer

75.5" H x 25.0" W x 23.5" D

(192cm H x 64cm W x 60cm D)

OVERVIEW

  • Separate refrigerator and freezer cooling in one slim-fitting footprint
  • Both models are equipped with factory-installed probe holes for user-provided monitoring equipment
  • Customizable design can accept additional options, including temperature alarms, data loggers, and thermometers
  • Factory installed locks provide security you can count on
  • Internal fan on auto defrost FFAR10PRO all-refrigerator with full 10.1 cu.ft. capacity
  • -20°C capable all-freezer
  • Some assembly required

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 75.5" (192 cm)
Width 25.0" (64 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 11.5 cu.ft. (326 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 48.25" (123 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Capacity 10.1 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R134a
Refrigerator - Refrigerant Amount 3.0 oz.
Freezer - Interior Height 14.38" (37 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.25" (34 cm)
Freezer - Capacity 1.4 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Thermostat Type Digital + Dial
Fan Type Interior
Refrigerant Type R134a
Freezer - Temperature Range -20º to -15ºC
Freezer - Refrigerant Type R134a
Freezer - Refrigerant Amount 1.5 oz.

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS6 6" casters
6" high NSF listed casters
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold's stackable PRO series refrigerator-freezer combinations offer space-saving cooling solutions for general purpose use.

The FFAR10-FS24LSTACKPRO combines two slim-fitting units into one compact footprint. All-refrigerator FFAR10PRO is made in Europe and features a 10.1 cu.ft. auto defrost interior with adjustable wire shelves and a flat door liner. The digital thermostat provides easy temperature management, with an internal fan to ensure even cooling from top to bottom. Compact FS24LPRO all-freezer utilizes a static manual defrost cooling system. It includes a removable wire shelf, flat door liner, and dial thermostat.

Both models include locks for added security, with two keys included for each unit. Hospital grade cords with 'green dot' plugs offer added convenience for busy facilities, ensuring the cords are not easily dislodged from the wall socket. Factory-installed probe holes are included on both units to allow users to install their own monitoring devices.

All Accucold STACKPRO units ship in three boxes and require some minor assembly upon delivery. Additional stacked combinations can be created by ordering virtually any two units with our StackRack. These units can also be customized with a variety of refrigeration options, including NIST calibrated thermometers, USB data loggers, open door alarms, and much more. To create a custom combination, contact our sales team at 718-893-3900.

*NOTE: The refrigerator's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

FEATURES

Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
FFAR10PRO all-refrigerator
10.1 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and adjustable shelving
FS24LPRO freezer
Compact manual defrost all-freezer with factory-installed probe hole
Factory installed locks
Both units are equipped with keyed locks
Access ports
Refrigerator and freezer include a 3/8" factory-installed probe hole to allow users to connect their own monitoring equipment
Hospital grade cords with 'green dot' plugs
Secure three-pronged cord for added unit safety
Flat door liner
No door shelving to offer more storage depth and better temperature stability
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Anti-tip bracket included
StackRack ships with anti-tip bracket for easy aftermarket installation
Foamed-in-place cabinets
Designed to ensure a sufficiently insulated interior
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 75.5" (192 cm)
Width 25.0" (64 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 11.5 cu.ft. (326 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 48.25" (123 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Capacity 10.1 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R134a
Refrigerator - Refrigerant Amount 3.0 oz.
Freezer - Interior Height 14.38" (37 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.25" (34 cm)
Freezer - Capacity 1.4 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Thermostat Type Digital + Dial
Fan Type Interior
Refrigerant Type R134a
Freezer - Temperature Range -20º to -15ºC
Freezer - Refrigerant Type R134a
Freezer - Refrigerant Amount 1.5 oz.

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS6 6" casters
6" high NSF listed casters
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
