24" Wide All-Refrigerator/All-Freezer Combination

SKU: FFAR10-FS30LSTACKMED2

Stacked combination offers separate refrigerator/freezer storage as recommended by the CDC

83.63" H x 24.0" W x 23.5" D

(212cm H x 61cm W x 60cm D)

OVERVIEW

  • Specially designed and featured to meet the CDC and VFC's guidelines for safe vaccine storage
  • Independent refrigerator and freezer storage in one slim-fitting footprint for space-challenged facilities
  • User-friendly front control panel keeps the thermostat and alarm in reach without having to open the door
  • High temperature alarm includes NIST calibrated external temperature readout (NIST certificate included)
  • Assembled in the USA from domestic and imported components
  • Some assembly required

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 83.63" (212 cm)
Width 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 12.1 cu.ft. (343 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 48.25" (123 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Capacity 10.1 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2ºC to 8ºC
Refrigerator - Refrigerant Type R134a
Refrigerator - Refrigerant Amount 3.0 oz.
Freezer - Interior Height 18.5" (47 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 1.8 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Freezer - Temperature Range -20º to -15ºC
Freezer - Refrigerant Type R600a
Freezer - Refrigerant Amount 0.8 oz.

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold offers innovative solutions to vaccine storage with the STACKMED2 stackable refrigerator-freezer combination series.

Sized just under 24" wide, the FFAR10-FS30LSTACKMED2 combines our full-sized FFAR10MED2 auto defrost all-refrigerator with the compact FS30LMED2 all-freezer in one slim footprint. Made in Europe, the FFAR10MED2 offers 10.1 cu.ft. of storage, with fan-forced cooling and adjustable wire shelves to ensure an even temperature distribution. The FS30LMED2 freezer utilizes static manual defrost cooling.

Both units feature front-located control panels equipped with digital thermostats and NIST calibrated thermometers with high/low temperature alarms. Calibration is done in our ISO/IEC certified laboratory. The buffered temperature probes are encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment in the rear of both units. Additional features include front locks and hospital grade cords. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

All Accucold STACKMED2 units ship in three boxes and require some minor assembly upon delivery. Additional stacked combinations can be created by ordering virtually any two units with our StackRack. These units can also be customized with a variety of refrigeration options, including NIST calibrated thermometers, USB data loggers, open door alarms, and much more. To create a custom combination, contact our sales team at 718-893-3900.

*NOTE: Thermostats come pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

FEATURES

Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Meets CDC & VFC guidelines
Designed to comply with the most current guidelines for vaccine storage
FFAR10MED2 all-refrigerator
10.1 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and adjustable shelving
FS30LMED2 all-freezer
Compact manual defrost all-freezer with digital thermostat and wire shelving

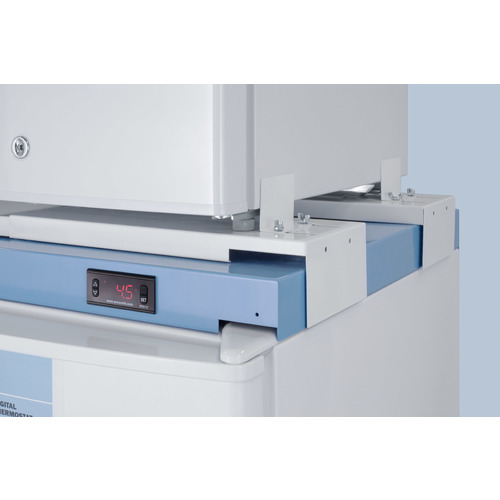

Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Digital thermostats
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Access ports
Rear-mounted 3/8" access port in both units allows users to install their own monitoring equipment
High/low temperature alarms
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarms include continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probes
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
Hospital grade cords with 'green dot' plugs
Secure three-pronged cord for added unit safety (both units)
Factory installed locks
Both models include locks for added security, with two keys included for each unit
Anti-tip bracket included
StackRack ships with anti-tip bracket for easy aftermarket installation
Foamed-in-place cabinets
Designed to ensure a sufficiently insulated interior
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door swing
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 83.63" (212 cm)
Width 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 12.1 cu.ft. (343 L)
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 48.25" (123 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.75" (45 cm)
Refrigerator - Capacity 10.1 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2ºC to 8ºC
Refrigerator - Refrigerant Type R134a
Refrigerator - Refrigerant Amount 3.0 oz.
Freezer - Interior Height 18.5" (47 cm)
Freezer - Interior Width 13.5" (34 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 1.8 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Freezer - Temperature Range -20º to -15ºC
Freezer - Refrigerant Type R600a
Freezer - Refrigerant Amount 0.8 oz.

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
