FFAR10PRO

Includes a factory-installed probe hole for user-supplied monitoring equipment

54.88" H x 25.0" W x 23.0" D

(139cm H x 64cm W x 58cm D)

OVERVIEW

  • Factory installed access port allows users to install their own monitoring equipment
  • Advanced precision with digital temperature controls
  • Ideal 24" footprint offers over 10 cu.ft. of storage in a slim fit
  • Includes a hospital grade cord with a 'green dot' plug
  • Factory installed lock provides security you can count on
  • Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet 54.5" (138 cm)
Height to Hinge Cap 54.88" (139 cm)
Width 25.0" (64 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 10.1 cu.ft. (286 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Other Energy Info 120 Volts / 60 Hz.
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 155.0 lbs. (70 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 3.0oz.
High Side PSI 290.0
Low Side PSI 70.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2 to 8ºC / 36 to 46ºF
Dimensions
Interior Height 48.0" (122 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
DTMEDF
Change thermostat to read in Fahrenheit (no charge)
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
KEY
Extra keys available for purchase
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
LockBox24
Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

Accucold's PRO Series features all-refrigerators and all-freezers designed for reliable temperature stability in institutional settings.

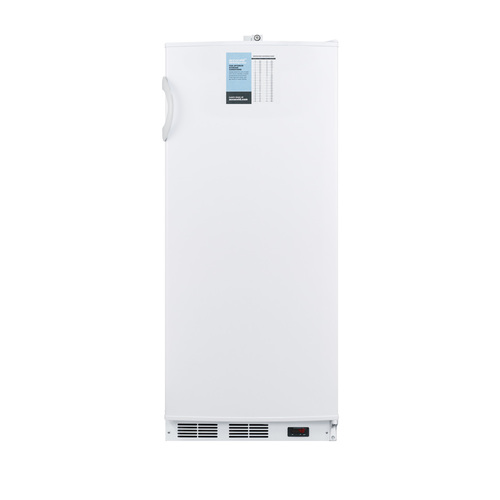

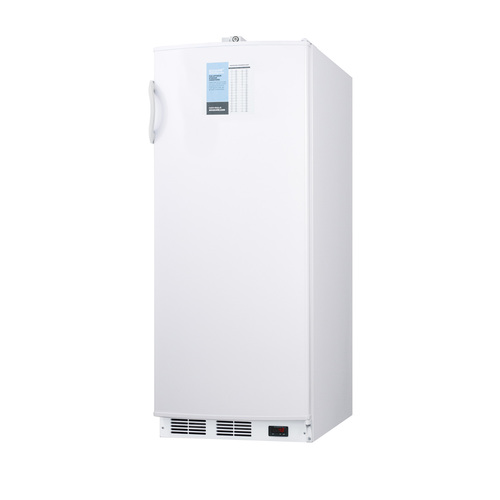

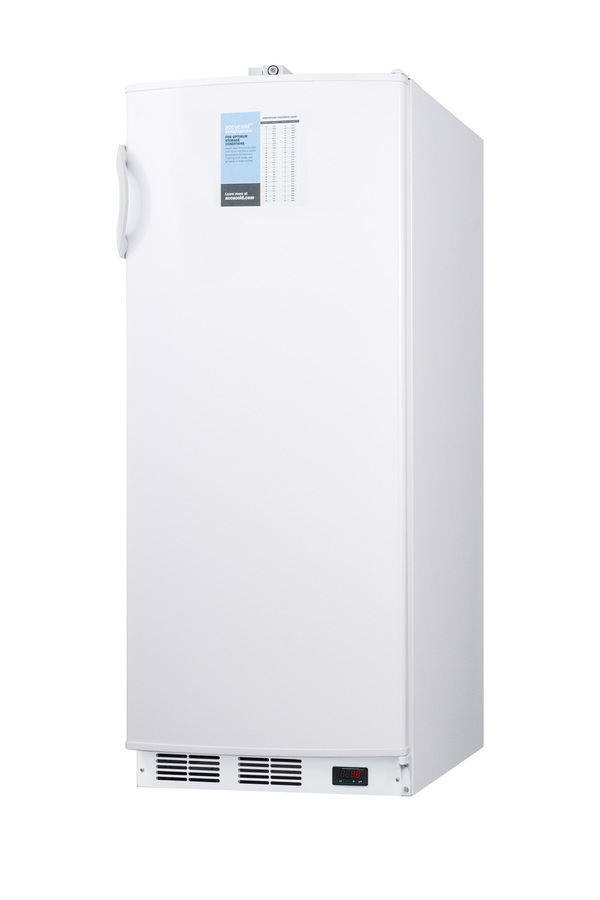

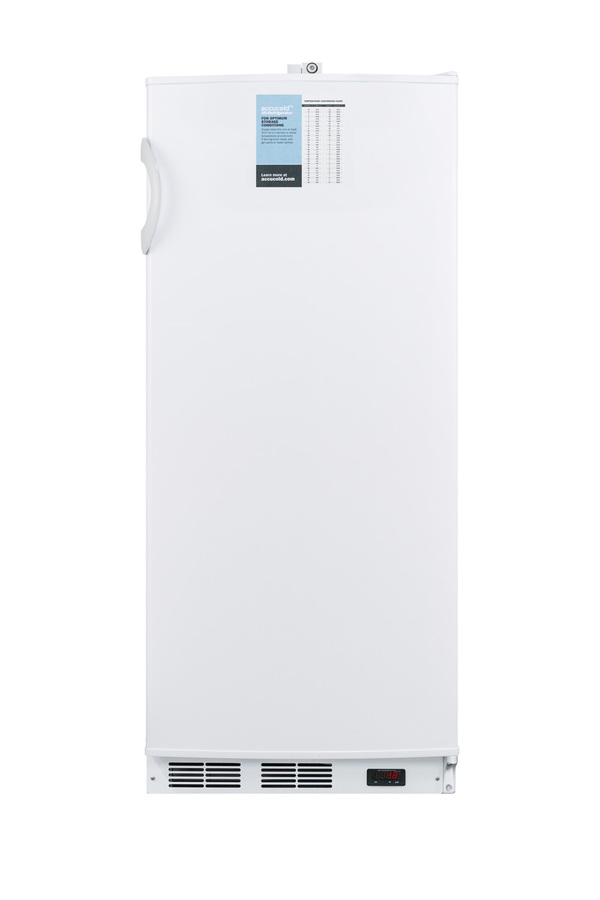

The FFAR10PRO is an upright all-refrigerator designed for use hospitals, doctors' offices, and other facilities with specific temperature needs. Made in Europe, it comes with a white exterior and fully finished cabinet for freestanding use. A hospital grade cord with a 'green dot' plug offers added safety in high traffic areas and factory-installed lock is side-mounted for convenient security. This unit includes a digital thermostat for optimum temperature precision located in the kickplate.

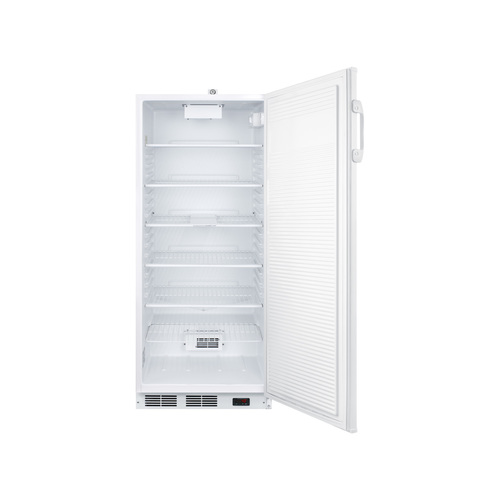

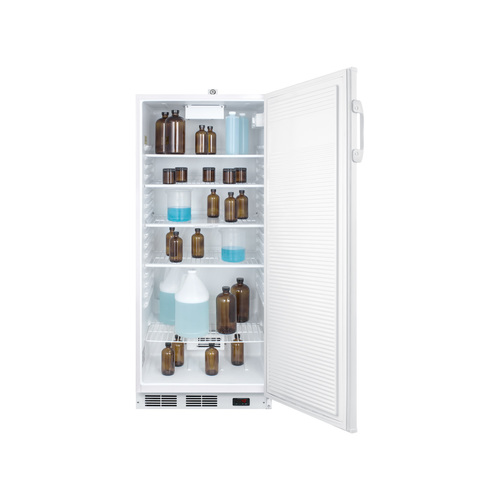

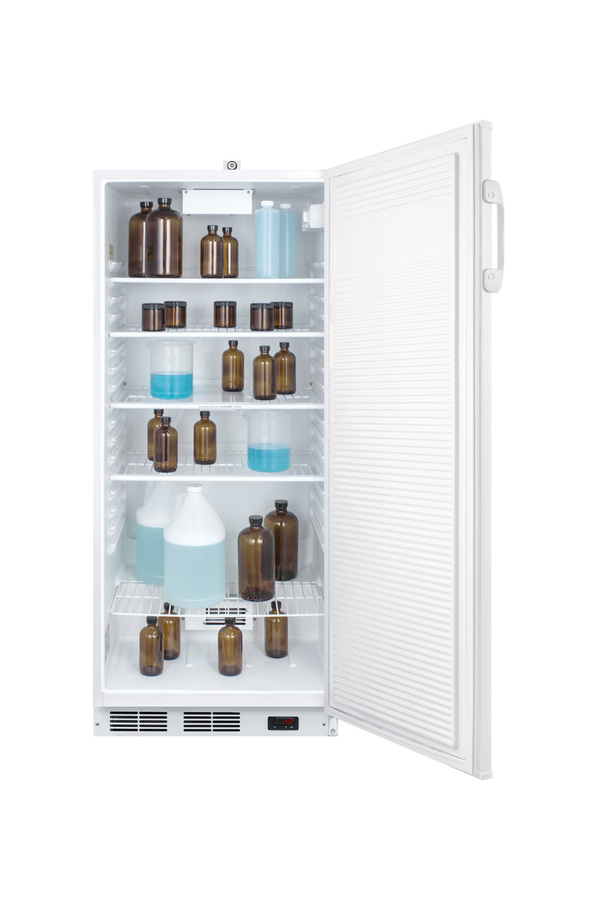

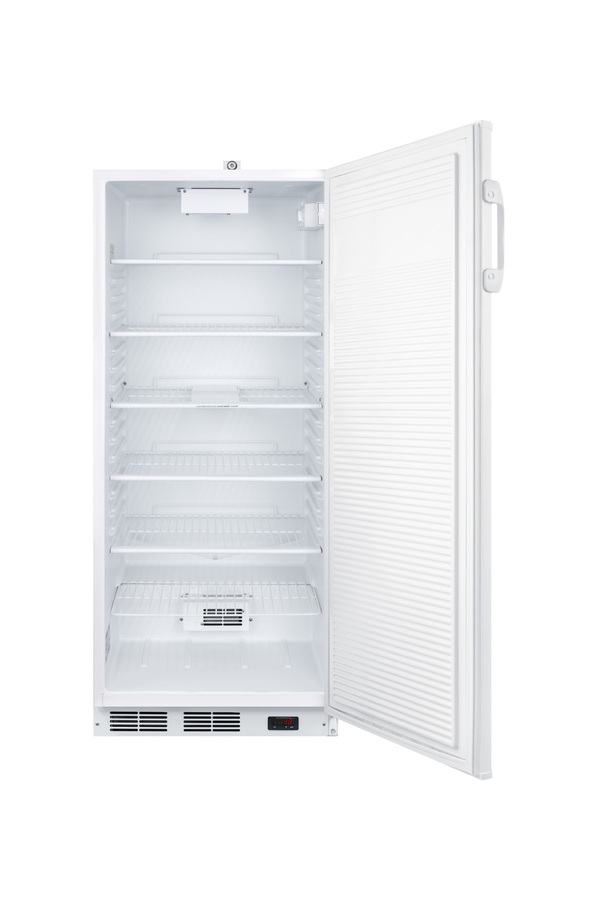

Inside, the FFAR10PRO utilizes automatic defrost operation for reduced maintenance. Two internal fans help to stabilize the 10.1 cu.ft. interior temperature from top to bottom. Adjustable wire shelves offer flexible storage, with a flat door liner that offers deeper storage space. This unit includes an interior light on an on/off rocker switch and a factory-installed probe hole for users to install their own temperature monitoring equipment.

The FFAR10PRO can be combined with a variety of locking compact freezers to create a stackable set. Additional options, including NIST calibrated temperature alarms and data loggers, can also be added. Contact our product specialists for more information.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

FEATURES

Large capacity
10.1 cu.ft. capacity in a 24" footprint
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Electronic controls ensure easy and intuitive temperature management
Access port
Pre-installed 3/8" probe hole included in the rear allows users to connect their own monitoring equipment
Factory installed lock
Top-mounted for convenient security
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Flat door liner
Easy to clean, with more depth for storage
Interior light
Turn the light on and off with a convenient rocker switch
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Fully finished white cabinet
Allows the unit to be used freestanding
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 54.5" (138 cm)
Height to Hinge Cap 54.88" (139 cm)
Width 25.0" (64 cm)
Depth 23.0" (58 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 10.1 cu.ft. (286 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Other Energy Info 120 Volts / 60 Hz.
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 150.0 lbs. (68 kg)
Shipping Weight 155.0 lbs. (70 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 3.0oz.
High Side PSI 290.0
Low Side PSI 70.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2 to 8ºC / 36 to 46ºF
Dimensions
Interior Height 48.0" (122 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
DTMEDF
Change thermostat to read in Fahrenheit (no charge)
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
KEY
Extra keys available for purchase
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
LockBox24
Interior lift-up compartment with combination lock for use in FF7 or FFAR10 models
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
