FFAR12W

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Stainless steel interior for improved sanitation

58.38" H x 23.63" W x 22.75" D

(148cm H x 60cm W x 58cm D)

OVERVIEW

  • Perfectly sized with a 24" footprint and over 10 cu.ft. of interior storage
  • Stainless steel interior ensures improved sanitation
  • Cantilevered shelving allows endless storage configurations to meet your needs
  • Added safety with a hospital grade cord and 'green dot' plug
  • Digital thermostat allows more precision in temperature control
  • Commercially listed to NSF-7 standards

SPECIFICATIONS

Overview
Height of Cabinet 58.38" (148 cm)
Width 23.63" (60 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 10.1 cu.ft. (286 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Other Energy Info 120 Volts / 60 Hz.
Amps 1.7
Weight 140.0 lbs. (64 kg)
Shipping Weight 155.0 lbs. (70 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 2º to 6ºC
Dimensions
Interior Height 50.25" (128 cm)
Interior Width 19.63" (50 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.63" (50 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HUM Humidity Sensor
Humidity sensor with min/max readout
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
KEY
Extra keys available for purchase
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
LockBoxSS
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

Accucold by Summit Appliance carries a versatile line of slim-fitting all-refrigerators designed for reliable general purpose storage.

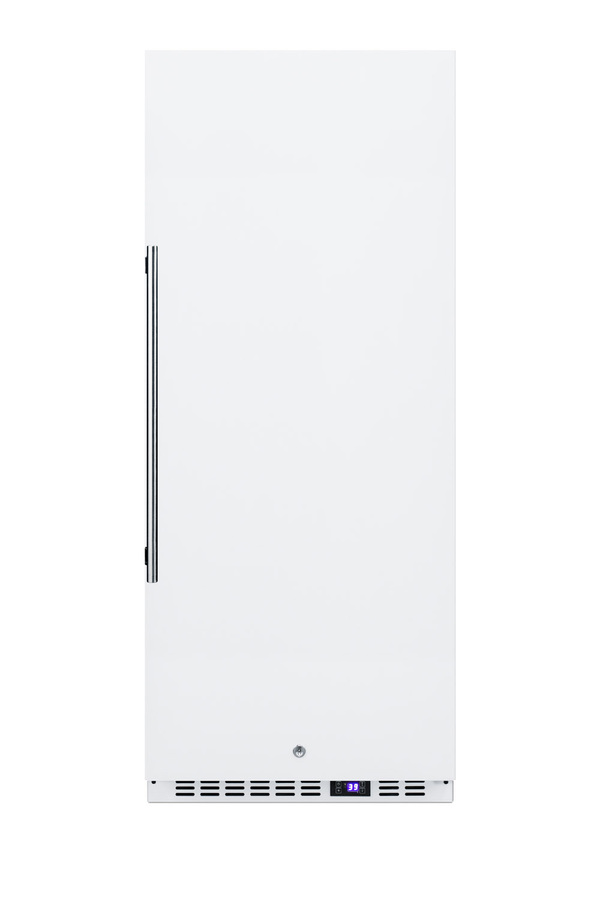

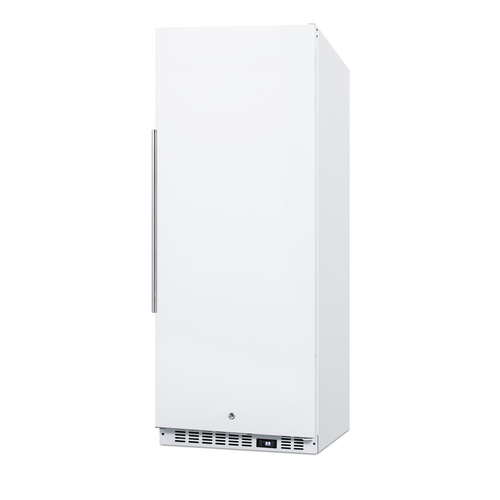

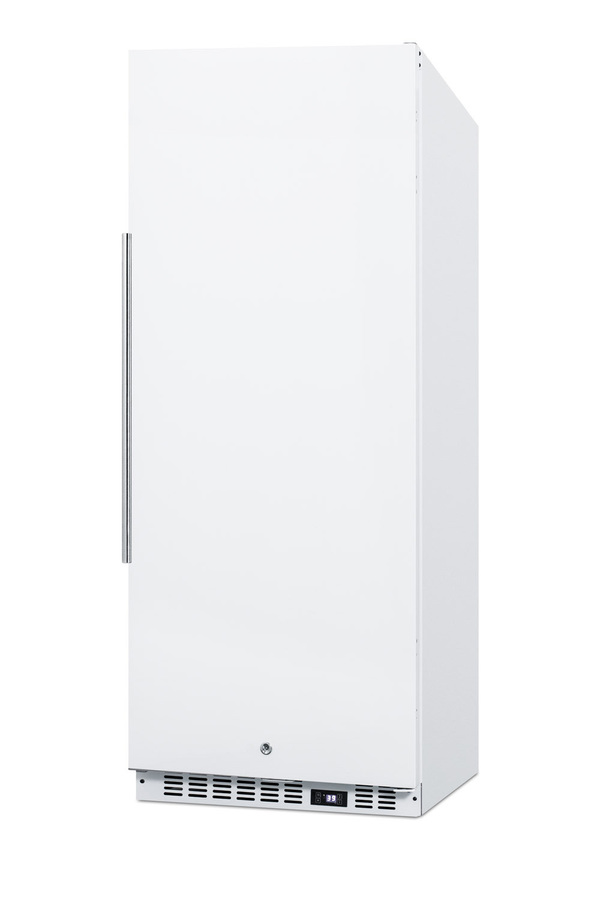

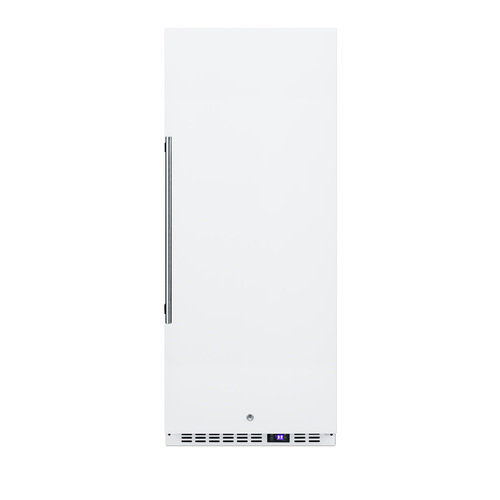

The FFAR12W is a front-opening all-refrigerator sized with a 24" footprint. It features a generous 10 cu.ft. capacity inside the automatic defrost interior. The exterior comes in a white finish with a user-reversible door and stainless steel handle. A factory installed lock offers added security and the sealed back makes the unit easy to clean. This unit includes a hospital grade cord with a 'green dot' plug. The front-breathing system and fully finished cabinet allow built-in or freestanding use.

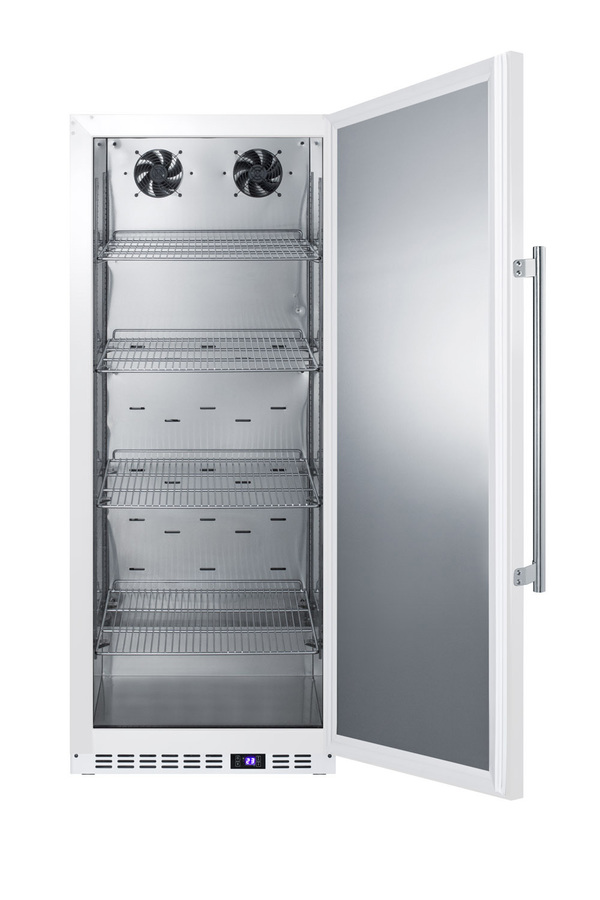

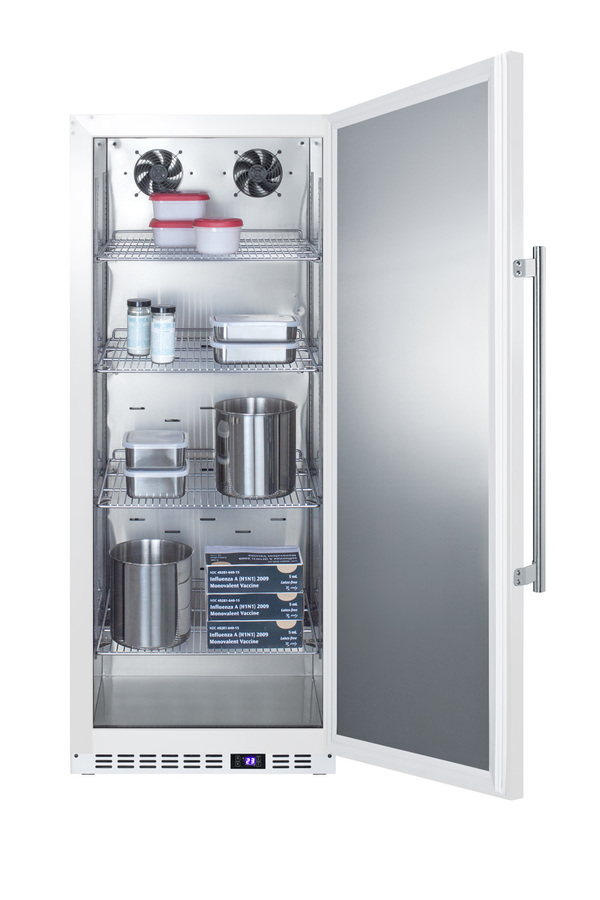

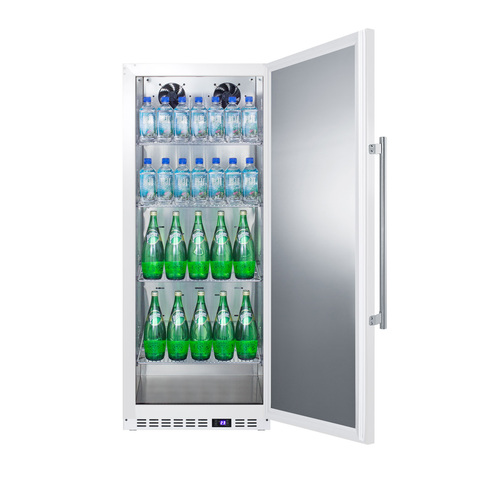

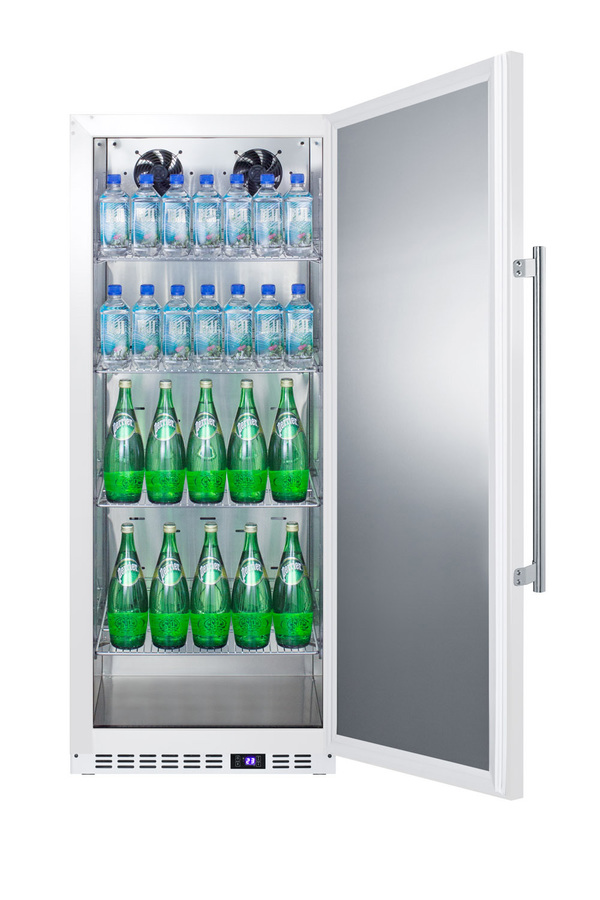

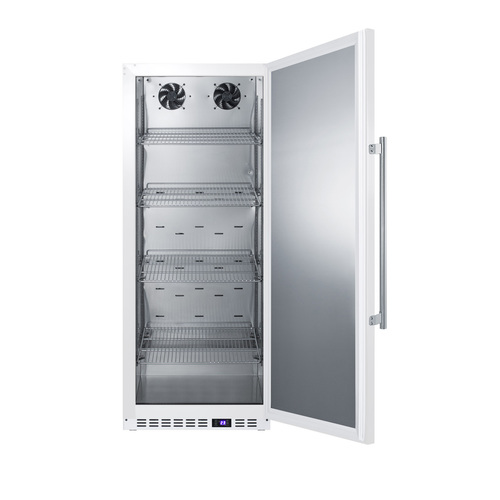

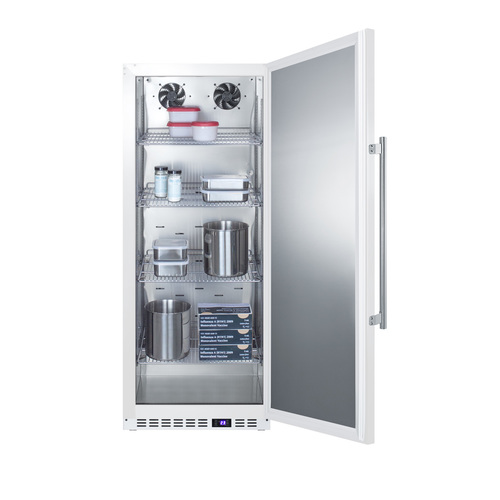

Inside, the FFAR12W features stainless steel construction on the walls, floor, and inner door liner. Four chrome shelves are included with a cantilevered system that allows you to position your storage in virtually any configuration. LED lighting offers an efficient view. A digital thermostat is installed in the unit's kickplate with settings to view in Celsius or Fahrenheit. This unit includes an open door alarm that will sound if the door is left opened for over one minute.

The FFAR12W is ETL-S listed to NSF-7 commercial sanitation standards. For this same unit with a stainless steel exterior, see the FFAR121SS.

FEATURES

Commercially approved
ETL-S listed to ANSI-NSF Standard 7
Stainless steel interior
Full construction on interior walls and floor ensures improved sanitation
Digital thermostat
Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
Cantilevered shelves
Adjustable chrome shelves can be arranged in virtually any configuration for flexible storage
Factory installed lock
Keyed lock offers convenient security
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan
Fan-forced cooling ensures even temperature distribution from top to bottom
LED lighting
Recessed LED lighting offers an energy efficient view of the interior
Reversible door
User-reversible door swing for added flexibility
Sealed back
Space-saving design offers easy cleanability
Front-breathing system
Unit can be installed built-in for added space savings
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 58.38" (148 cm)
Width 23.63" (60 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 10.1 cu.ft. (286 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Other Energy Info 120 Volts / 60 Hz.
Amps 1.7
Weight 140.0 lbs. (64 kg)
Shipping Weight 155.0 lbs. (70 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 2º to 6ºC
Dimensions
Interior Height 50.25" (128 cm)
Interior Width 19.63" (50 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.63" (50 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HUM Humidity Sensor
Humidity sensor with min/max readout
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
KEY
Extra keys available for purchase
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
LockBoxSS
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FFAR12W.pdf
Download
TECHNICAL DRAWING (.dwg)
FFAR121SS_FFAR12W_FEF.__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
