FS30L7PLUS2

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Includes a NIST calibrated thermometer with a current and high/low temperature readout

24.63" H x 18.5" W x 17.75" D

(63cm H x 47cm W x 45cm D)

OVERVIEW

  • Commercially listed to NSF-7 standards
  • Compact size is ideal for countertop use
  • NIST calibrated thermometer displays the current and high/low temperature to the nearest tenth of a degree
  • Factory installed lock provides added security
  • Designed for general purpose use in medical and scientific facilities

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL1 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

Accucold's PLUS2 Series refrigerators come specially featured for use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard refrigeration unit provides.

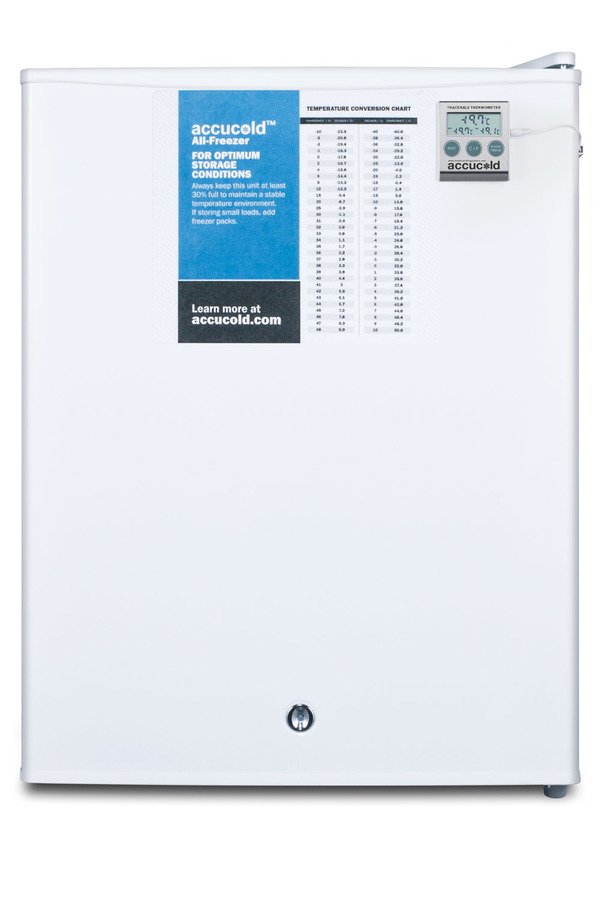

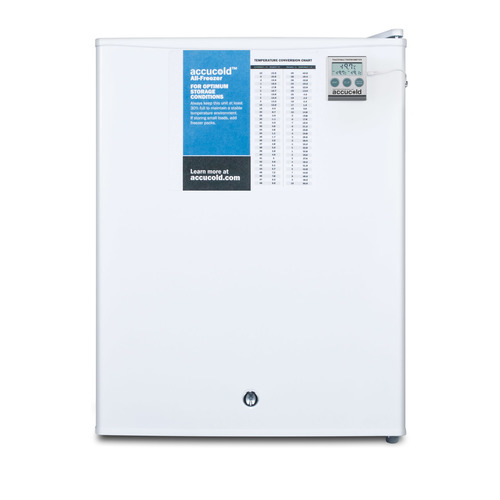

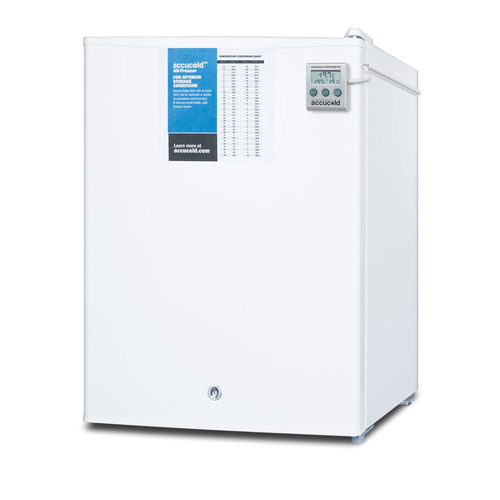

The FS30L7PLUS2 is a compact 1.8 cu.ft. all-freezer that is ETL-S listed to NSF-7 commercial standards. It comes in a white exterior. The door includes a factory-installed lock and a thermometer calibrated to NIST standards in our ISO/IEC 17025:2005 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents.  This freezer is manual defrost and operates at an average temperature of -20ºC.

With reliable construction and a convenient size, the FS30L7PLUS2 is the ideal freezer for storing select items in institutional facilities. This unit can also be ordered with more advanced medical features, including a digital thermostat, self-closing door, temperature alarm, and more.

FEATURES

Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Compact dimensions
Sized for easy use on top of counters
Manual defrost
Static cooling system for improved temperature stability
-20ºC capable
Low temperature capability ideal for certain sensitive items

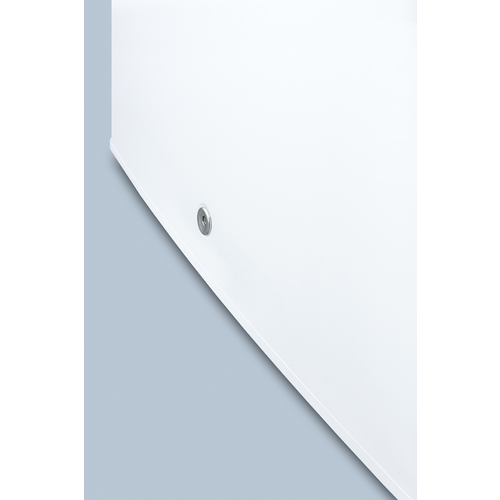

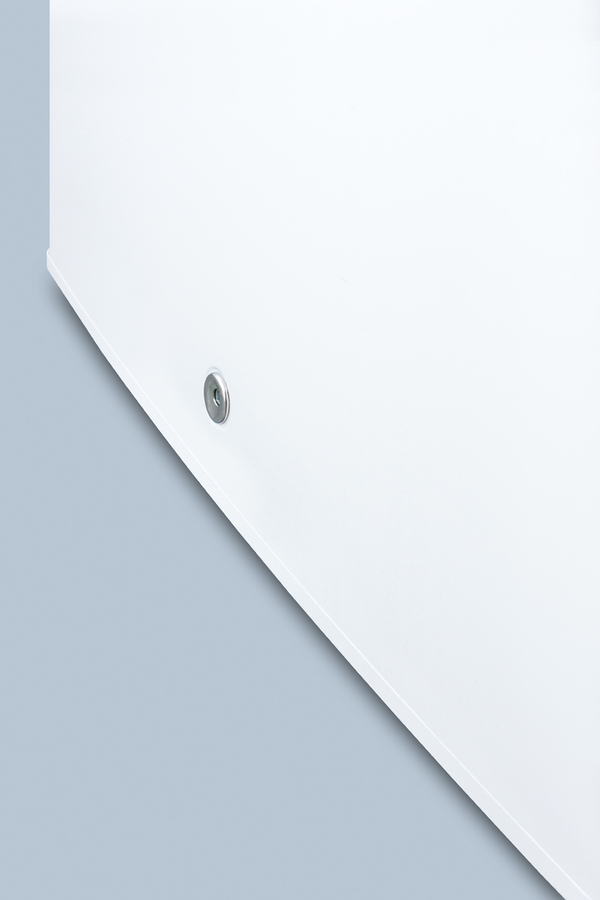

Factory installed lock
Keyed lock for a secure interior

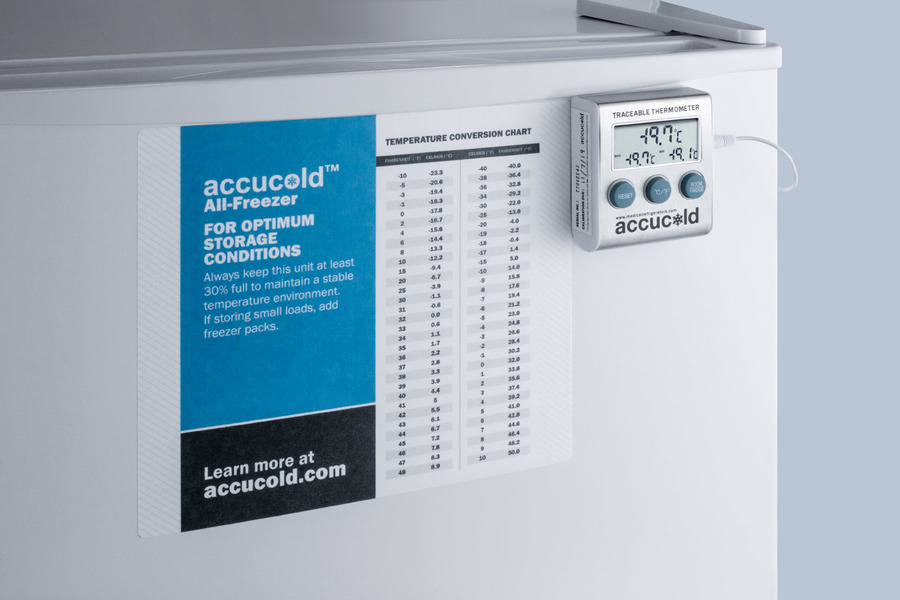

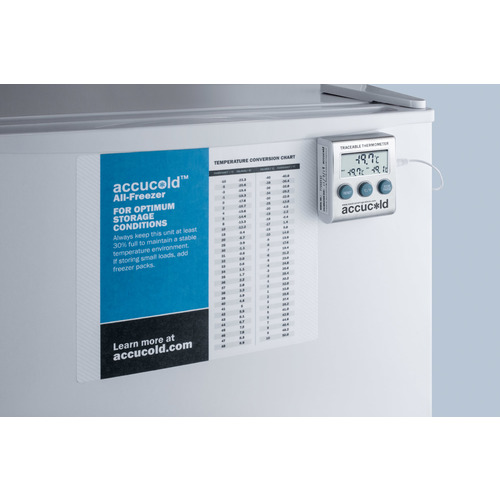

NIST calibrated thermometer
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

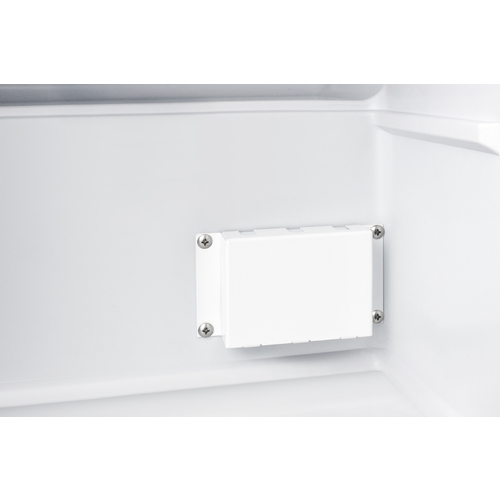

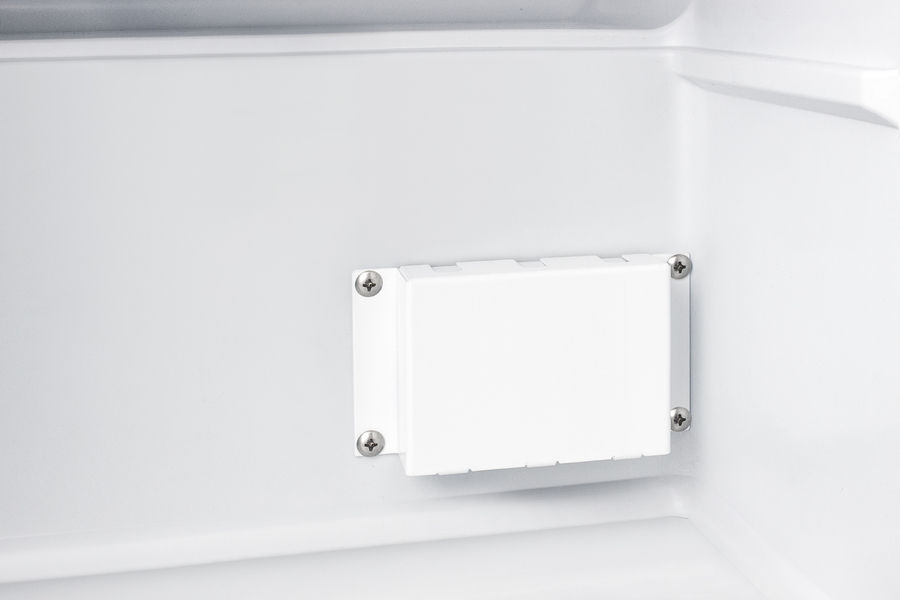

Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature

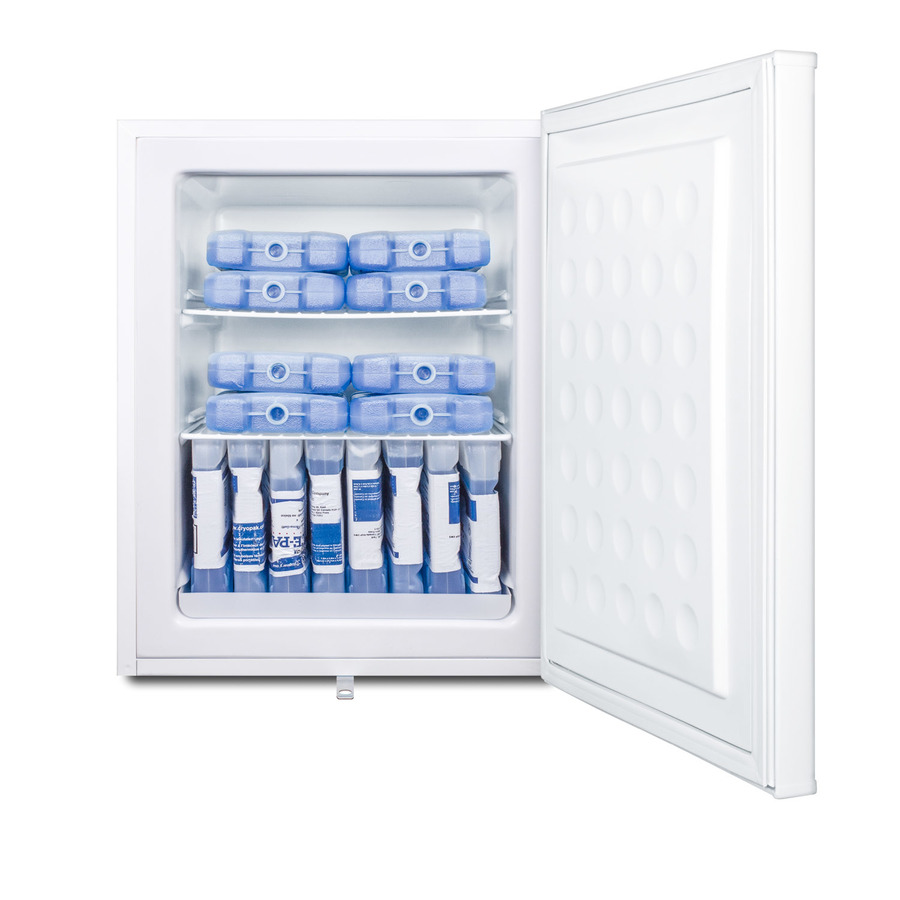

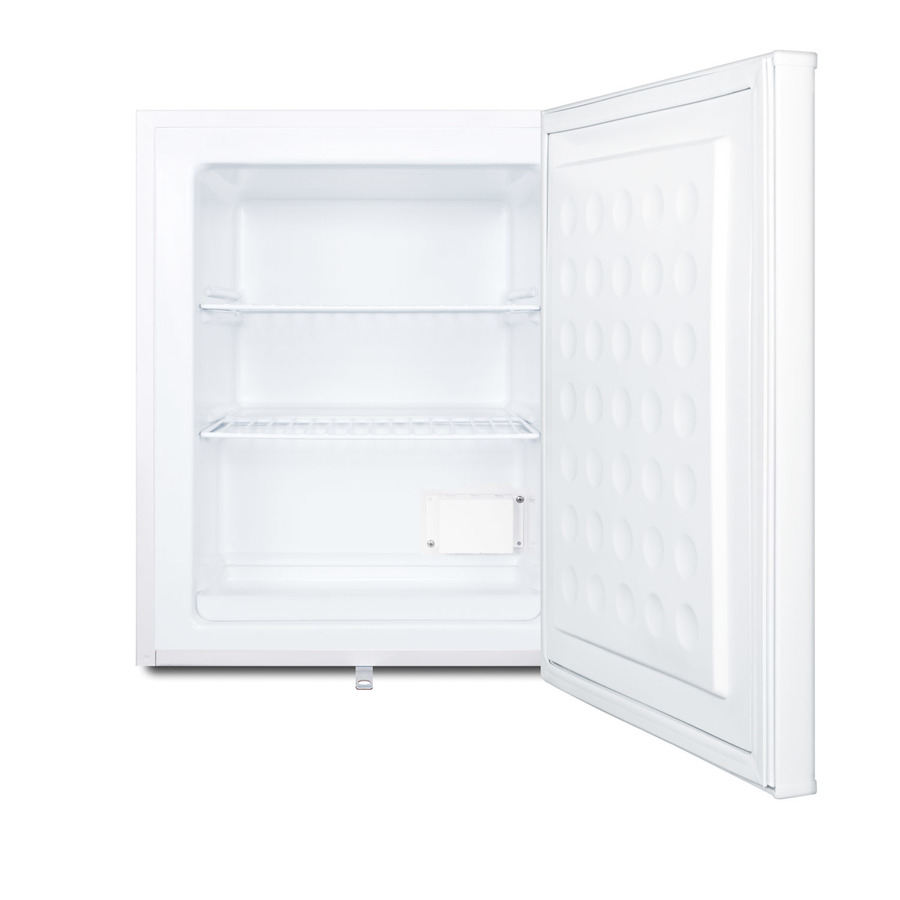

Removable shelves
Wire shelves can be removed to accommodate different sizes or for easy cleanup
Adjustable thermostat
Dial thermostat located inside the unit
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior
Fully finished cabinet
Allows the unit to be used freestanding
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL1 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
