Compact All-Freezer

SKU: FS30LMED

Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

Includes a NIST calibrated high/low temperature alarm

24.63" H x 18.5" W x 17.75" D

(63cm H x 47cm W x 45cm D)

OVERVIEW

  • Designed for general purpose use in medical and scientific facilities
  • External NIST calibrated temperature readout
  • High/low temperature alarm warns of fluctuations outside the specified temperature range
  • Compact size is ideal for countertop use
  • Includes hospital grade cord with a 'green dot' plug
  • Factory installed lock provides added security
  • Designed to operate at -20ºC

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold by Summit Appliance offers MED series all-freezers with a stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

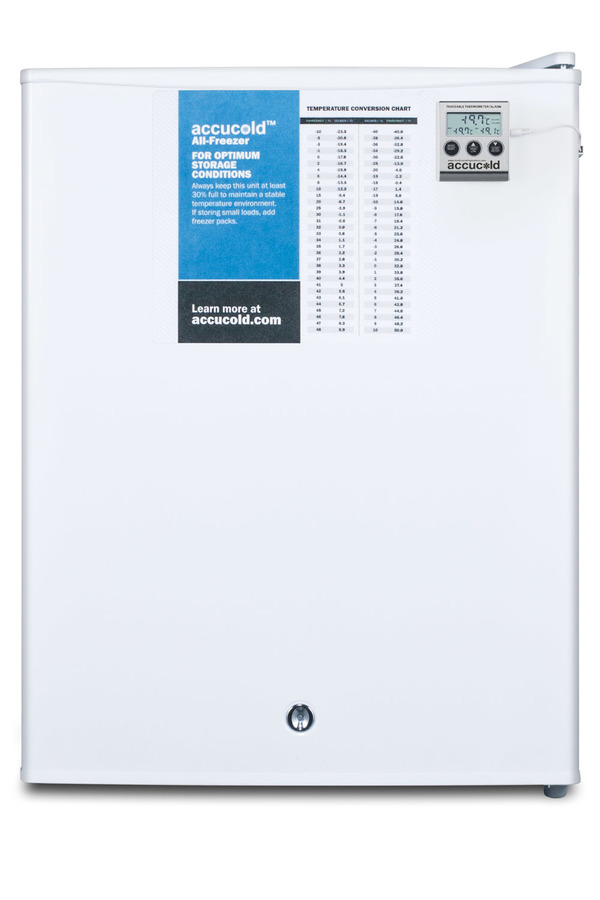

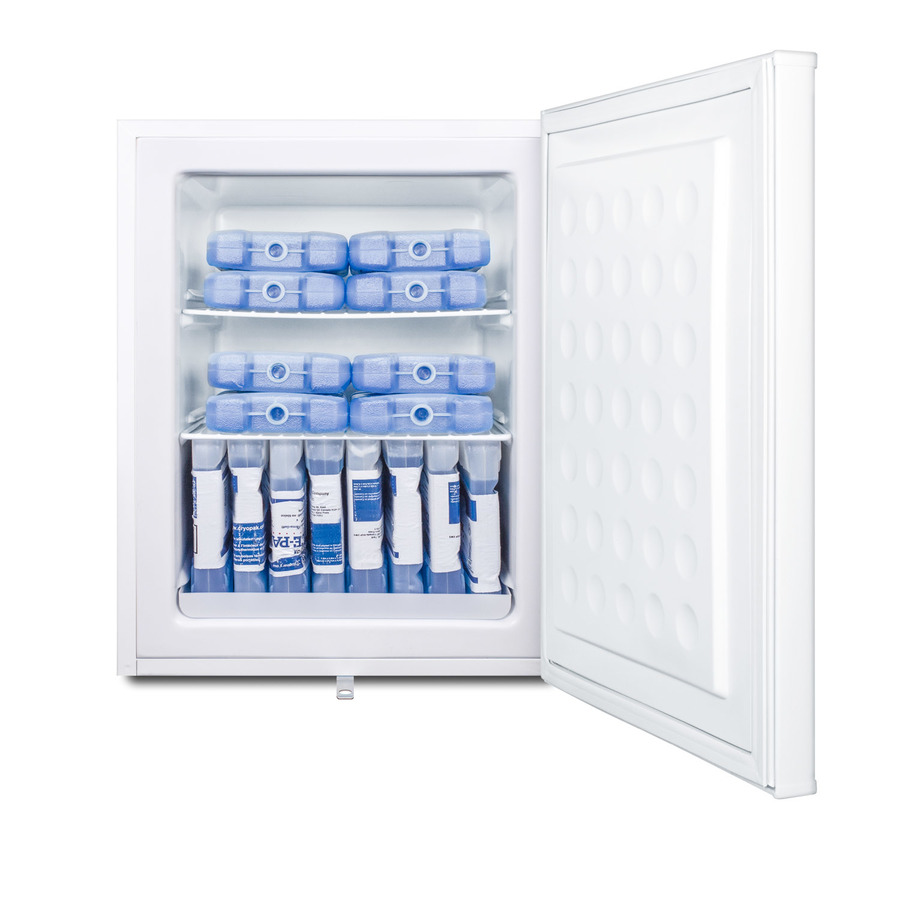

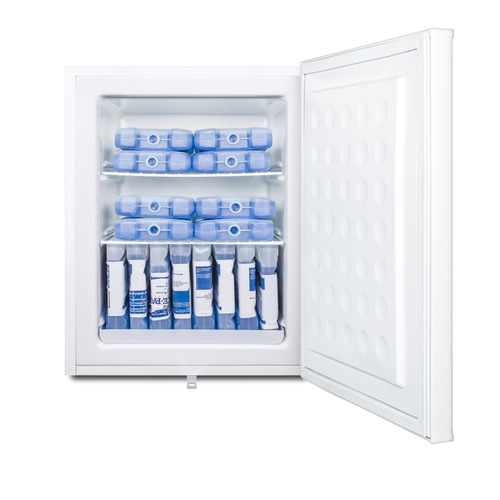

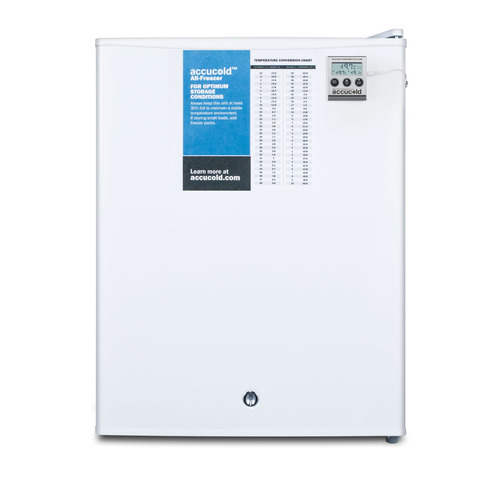

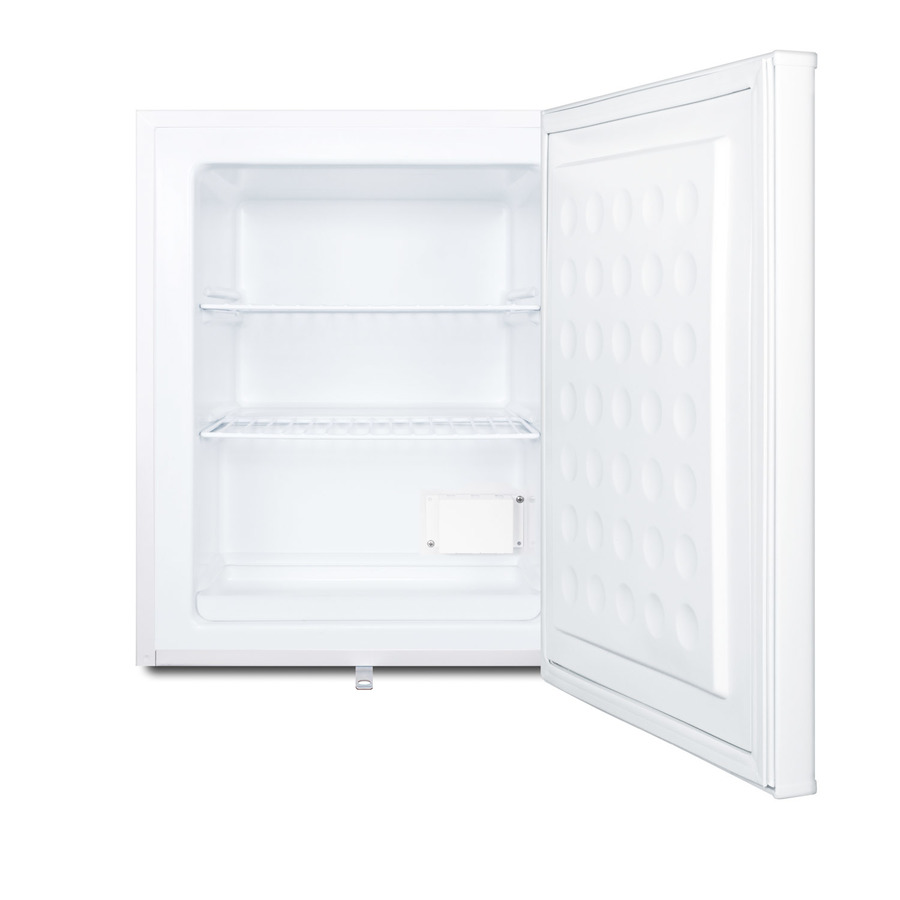

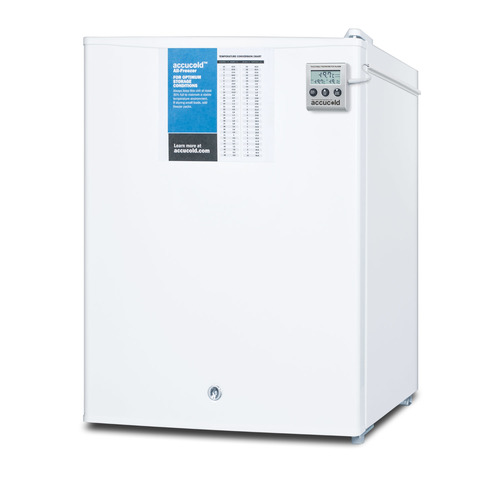

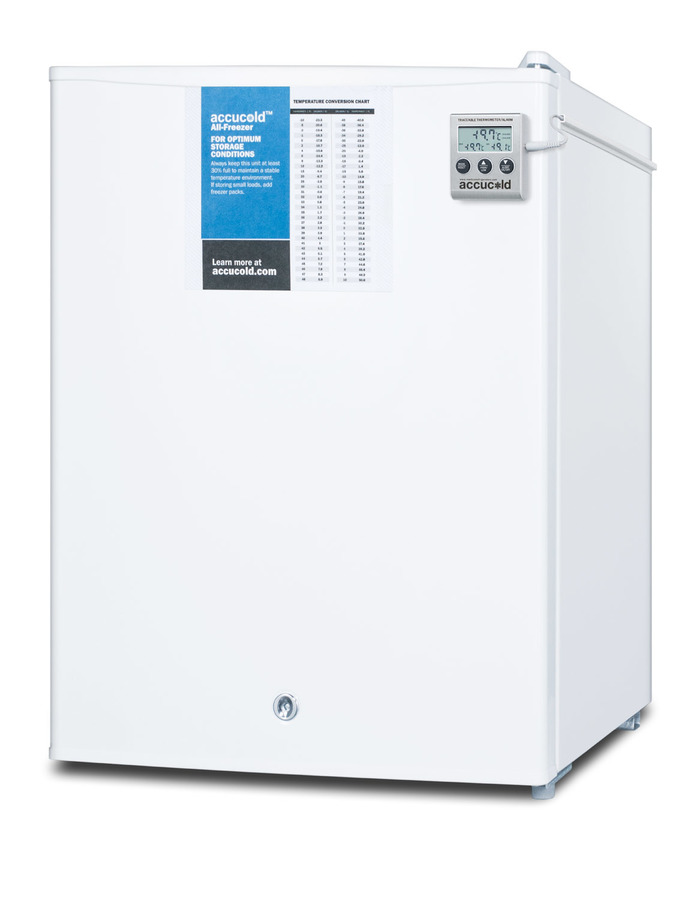

The FS30LMED is a compact 1.8 cu.ft. all-freezer designed for countertop use. The door includes a front lock and high temperature warning alarm that also displays the current and high/low temperatures. The interior includes removable wire shelves for optimum circulation and a one-piece interior liner to ensure easy cleanup. The dial thermostat is located inside the unit. This freezer is manual defrost and operates at an average temperature of -20ºC. A hospital grade 'green dot' cord is included.

With reliable construction and a convenient size, the FS30LMED is the ideal freezer for storing select items in institutional facilities.

FEATURES

Compact dimensions
Sized for easy use on top of counters
Manual defrost
Static cooling system for improved temperature stability
Temperature alarm
High/low temperature alarm audibly warns when interior is out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
-20ºC capable
Low temperature capability ideal for certain sensitive items
Factory installed lock
Keyed lock for a secure interior
Adjustable thermostat
Dial thermostat located inside the unit
Removable shelves
Wire shelves can be removed to accommodate different sizes or for easy cleanup
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FS30LMED.pdf
Download
TECHNICAL DRAWING (.dwg)
FS30L_FREEZERA-C2000.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
Download
MSDS INFORMATION
R600a_AO.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
