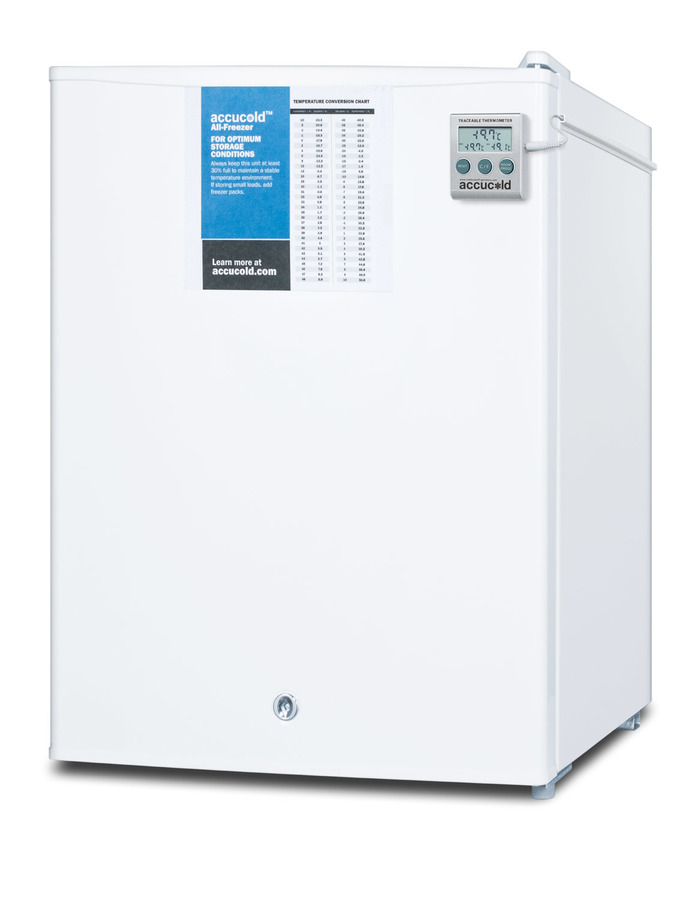

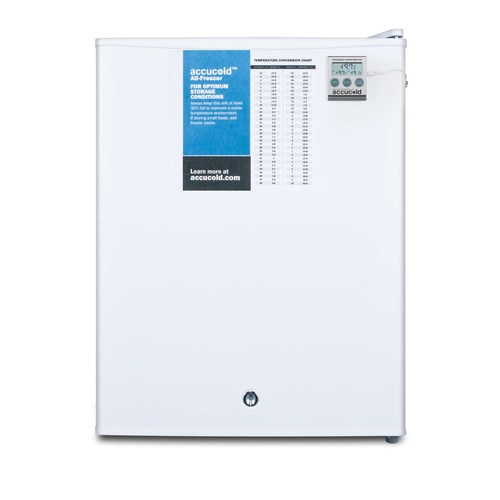

Compact All-Freezer

SKU: FS30LPLUS2 Matching refrigerator

Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

Includes a NIST calibrated thermometer with a current and high/low temperature readout

24.63" H x 18.5" W x 17.75" D

(63cm H x 47cm W x 45cm D)

OVERVIEW

  • Compact size is ideal for countertop use
  • NIST calibrated thermometer displays the current and high/low temperature to the nearest tenth of a degree
  • Factory installed lock provides added security
  • Designed for general purpose use in medical and scientific facilities

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Exterior
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

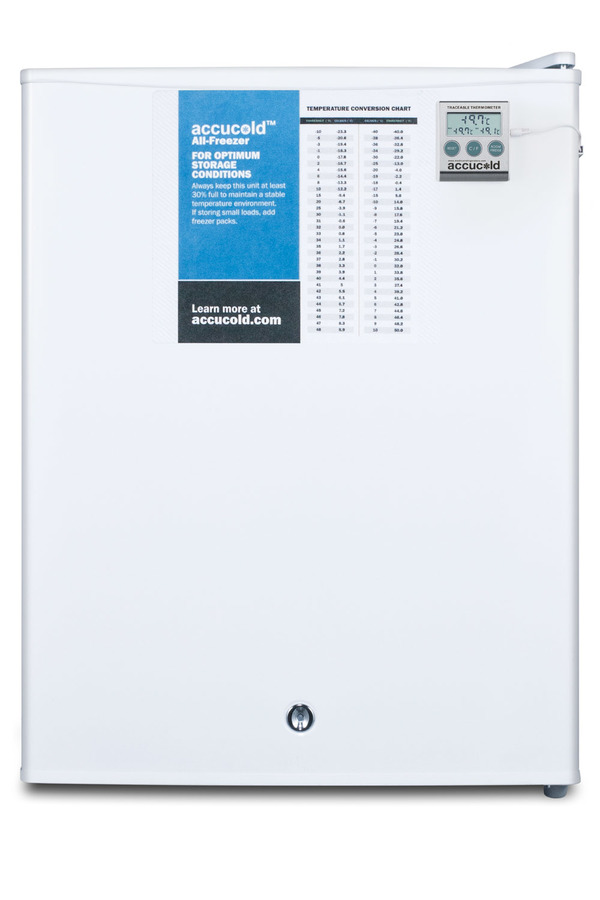

The FS30LPLUS2 is a compact 1.8 cu.ft. all-freezer designed for countertop use. It comes in a white exterior. The door includes a factory-installed lock and a thermometer calibrated to NIST standards in our ISO/IEC 17025:2005 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents. This freezer is manual defrost and operates at an average temperature of -20ºC.

With reliable construction and a convenient size, the FS30LPLUS2 is the ideal freezer for storing select items in institutional facilities. This unit can also be ordered with more advanced medical features, including a digital thermostat, self-closing door, temperature alarm, and more.

Accucold's PLUS2 series refrigerators are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up.

FEATURES

Compact dimensions
Sized for easy use on top of counters

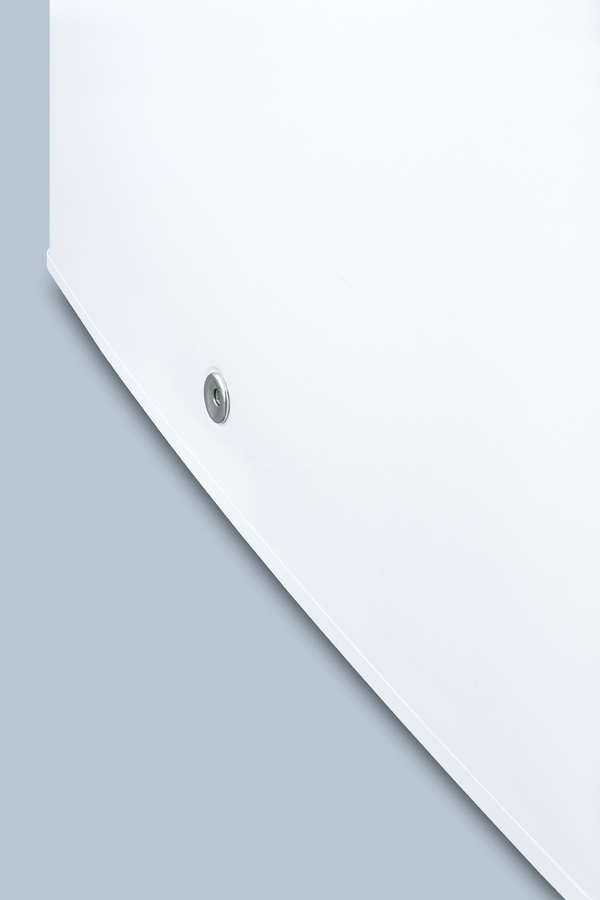

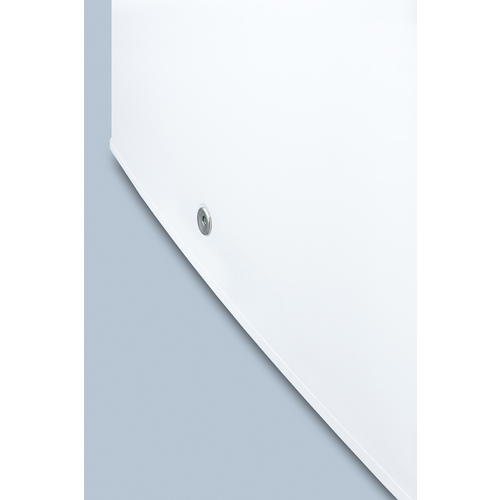

Factory installed lock
Keyed lock for a secure interior

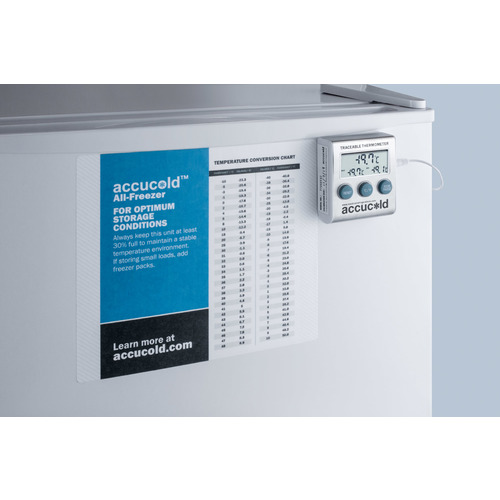

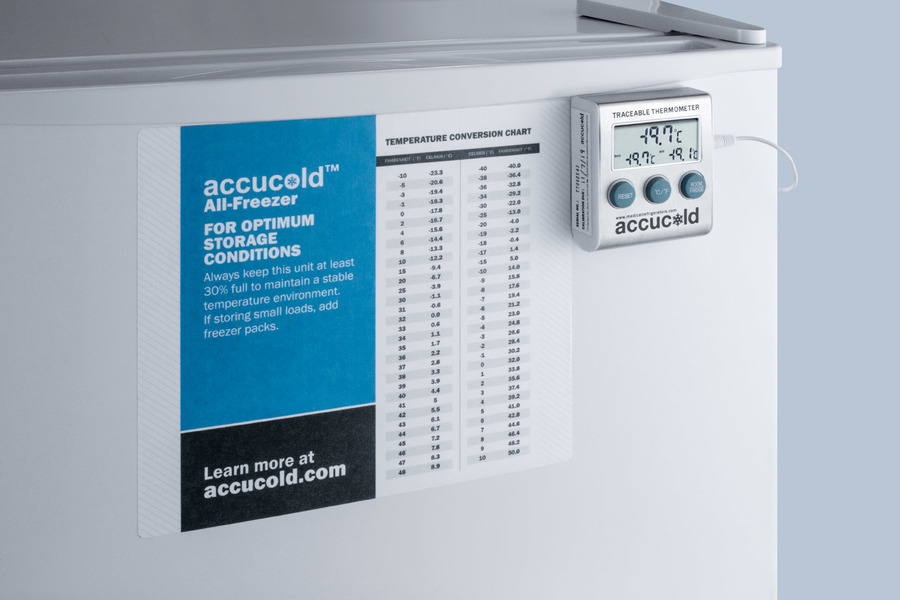

NIST calibrated thermometer
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

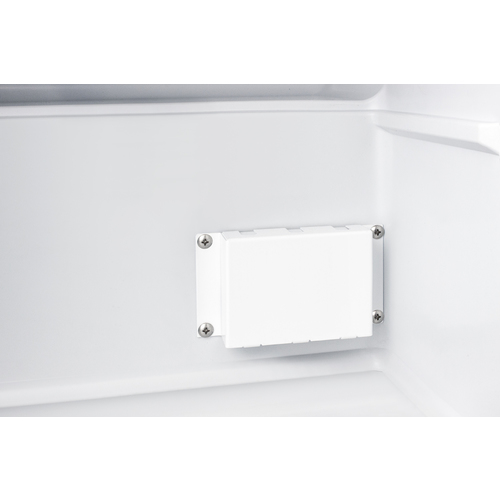

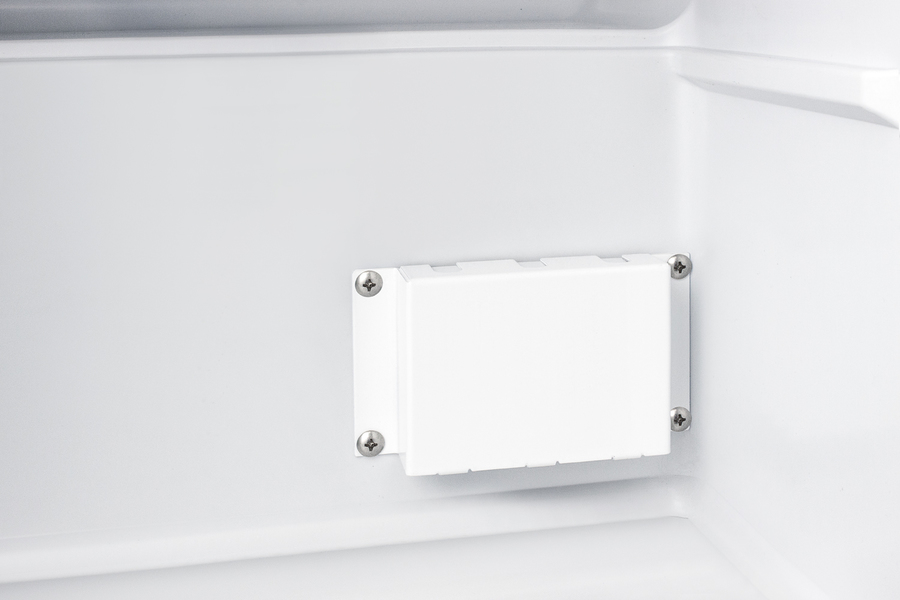

Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature
Manual defrost
Static cooling system for improved temperature stability
-20ºC capable
Low temperature capability ideal for certain sensitive items

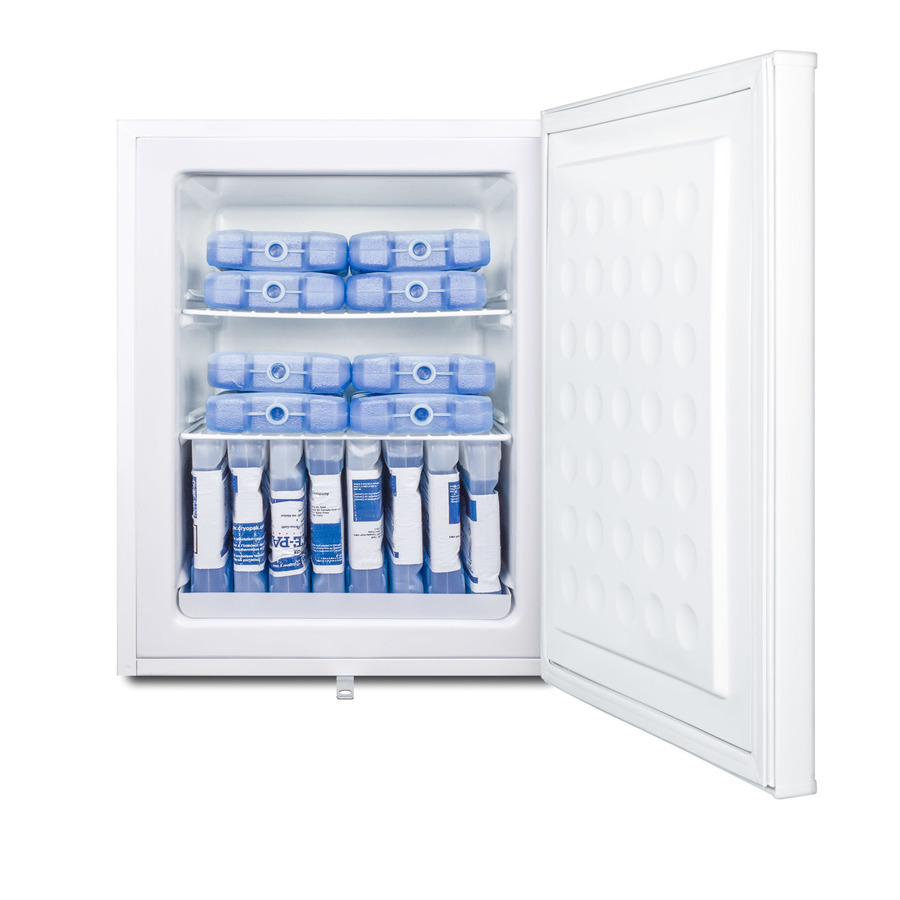

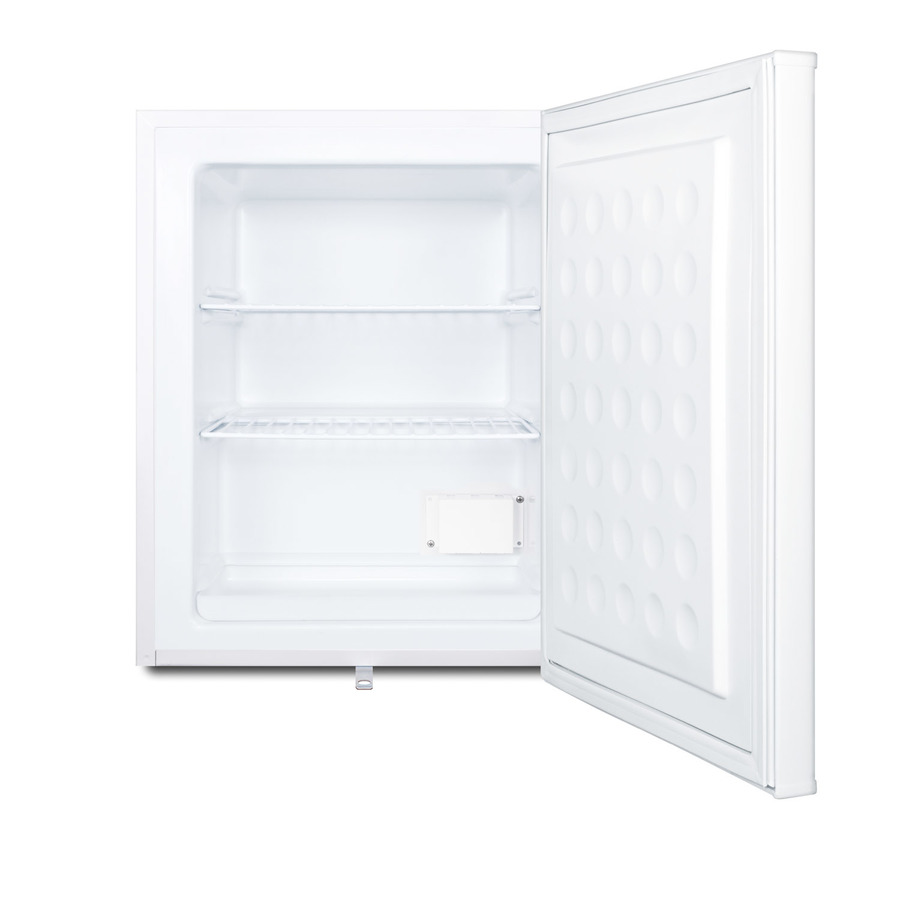

Wire shelving
Convenient storage with a wire design that helps ensure even temperature distribution
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Adjustable thermostat
Dial thermostat located inside the unit
Fully finished cabinet
Allows the unit to be used freestanding
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Exterior
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FS30LPLUS2.pdf
Download
TECHNICAL DRAWING (.dwg)
FS30L_FREEZERA-C2000.dwg
Download
MSDS INFORMATION
R600a_AO.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
