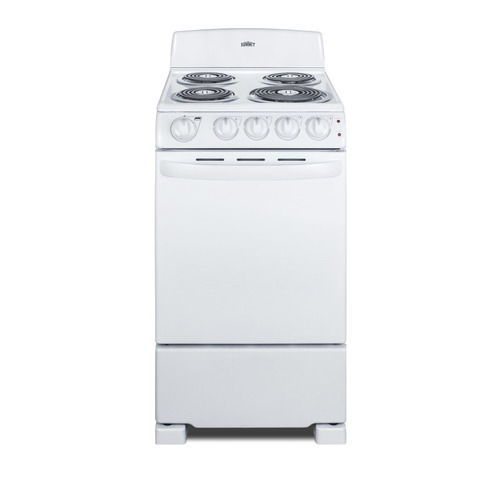

20" Wide Electric Coil Range
Next day shipping
(105cm H x 51cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 41.5" (105 cm) |
| Width | 20.0" (51 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 26.13" (66 cm) |
| Depth with door at 90° | 43.25" (110 cm) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | UL |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 125.0 lbs. (57 kg) |
| Shipping Weight | 137.5 lbs. (62 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101058283 |
|
Electric Range
|
|
| Oven Capacity | 2.3 cu.ft. (65 L) |
| Cooktop Surface | Metal |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 8.0" (20 cm) |
| Element #1 Wattage | 2400.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1250.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1250.0 |
| Element #4 Size | 6.0" (15 cm) |
| Element #4 Wattage | 1250.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 15.0" (38 cm) |
| Oven Interior Width | 16.0" (41 cm) |
| Oven Interior Depth | 17.5" (44 cm) |
| Power Source | 220V |
| Broiler Location | Inside Oven |
FEATURES
Perfectly sized for apartments and smaller home kitchens
Broiler is located inside the oven, making it easier to use
High backing prevents stovetop contents from splashing up or boiling over and staining back walls

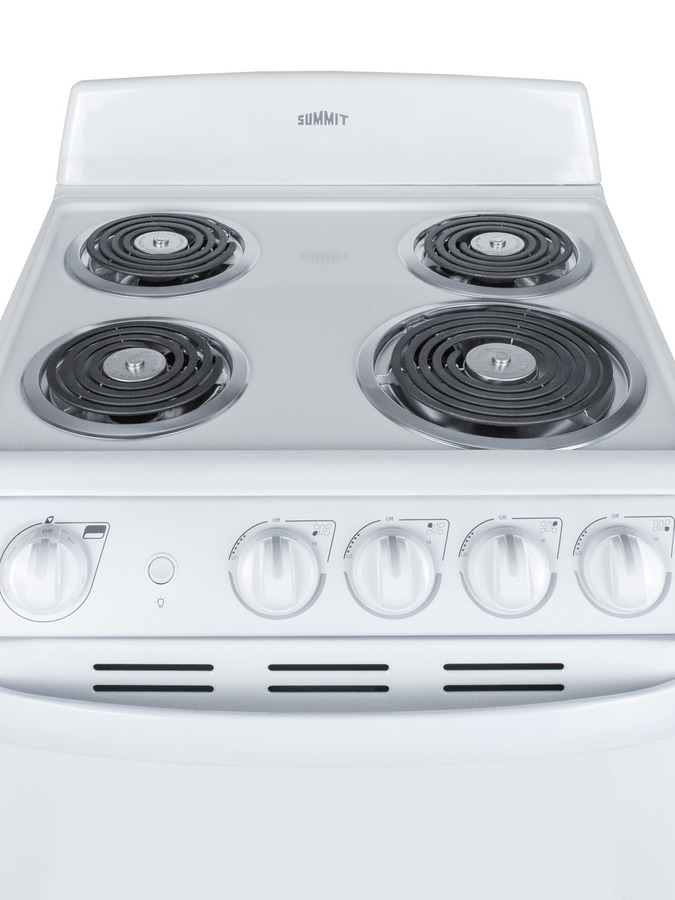

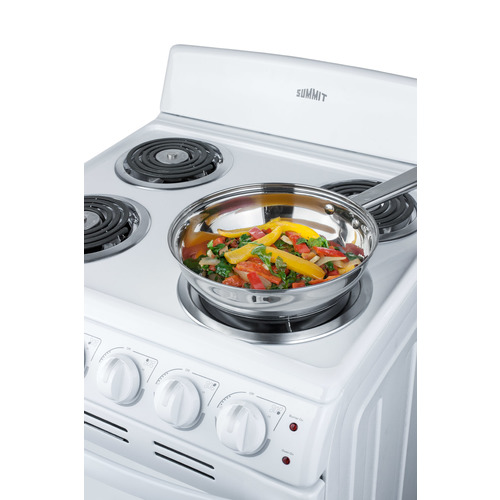

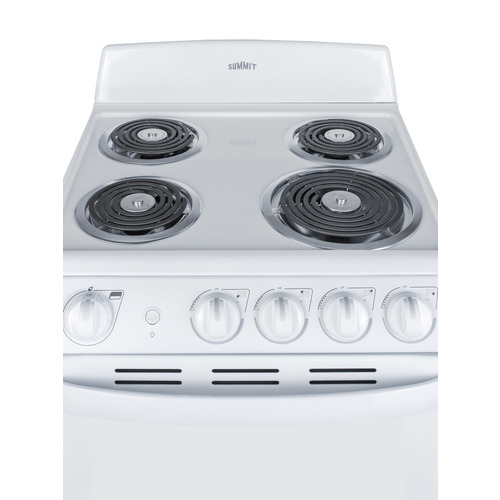

Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs

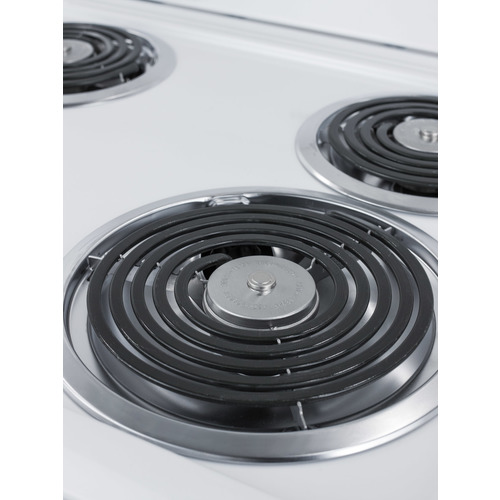

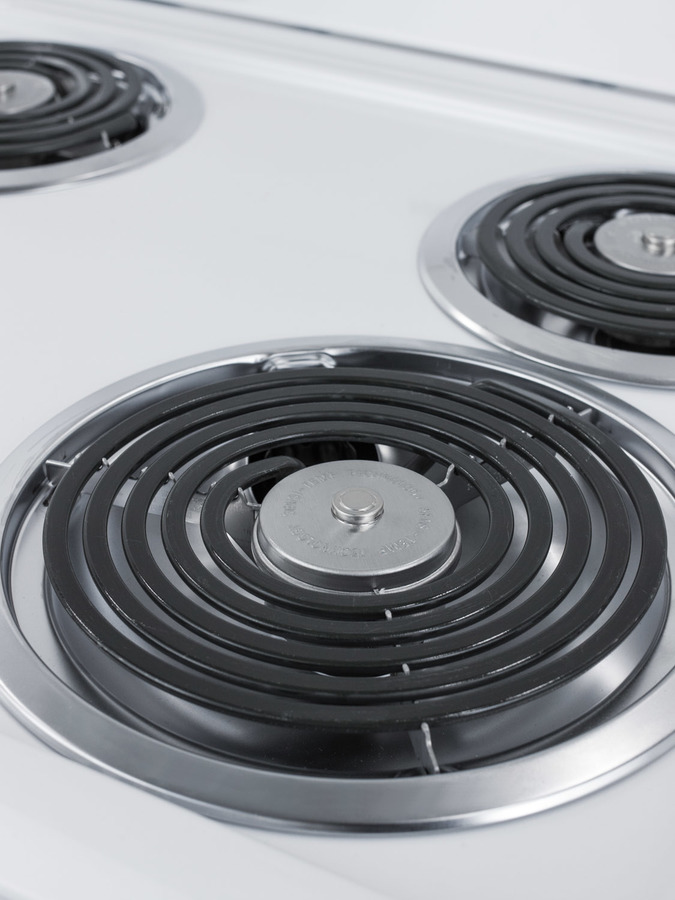

Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking

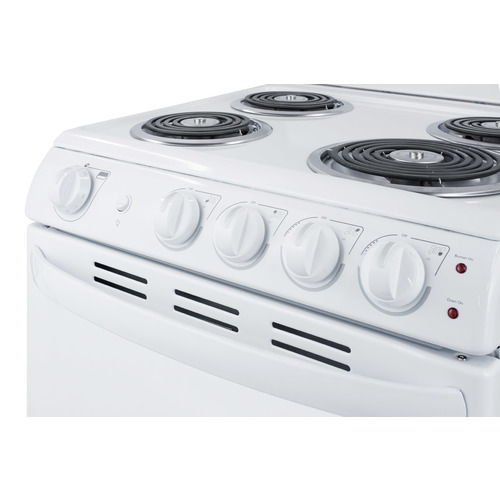

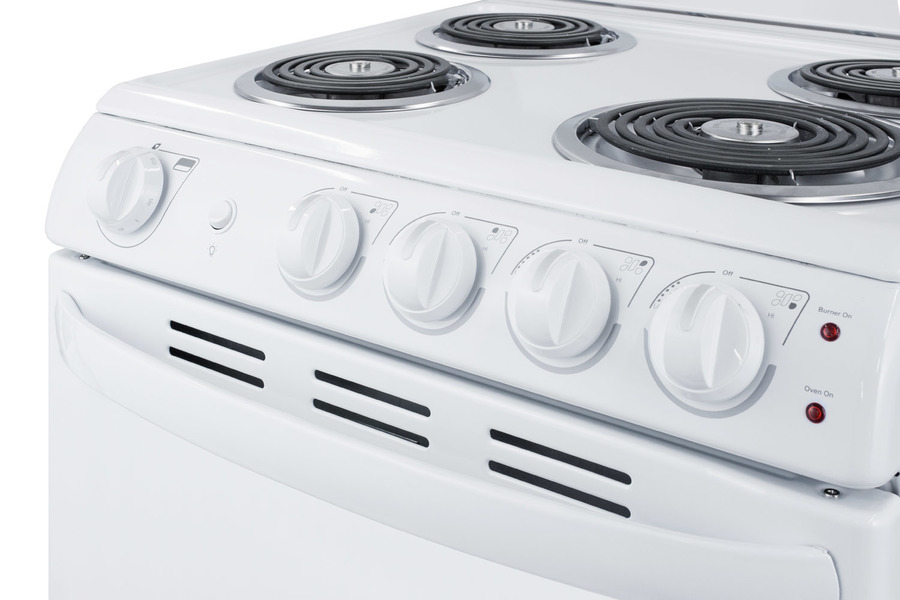

Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
Each element includes a removable chrome pan for easier cleaning
Fully finished white cabinet constructed from steel
White-on-white design for an attractive look ideal for any kitchen
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Sliding racks will stay in your oven with special brake mechanism
To prevent accidents, knobs require a small amount of force when turning
Upfront controls and easy-to-operate knobs offer easier accessibility
Compatible with standard 40 amp 3 or 4-wire range cords
DESCRIPTION
SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 20" wide fits. Made in North America, the RE203W is a 220V electric range designed for 20" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the oven is in use. The RE203W features a large 2.3 cu.ft. oven made from durable porcelain, with two adjustable racks and a two-piece broiler pan. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The RE203W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and quality design, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 24" wide choices, browse our website. Note: this item replaces the RE201W.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
