SCFM232

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

UL-S listed to NSF-7 standards for commercial use

32.0" H x 83.25" W x 31.5" D

(81cm H x 211cm W x 80cm D)

OVERVIEW

  • Commercially approved for use in foodservice establishments
  • Manual defrost operation and static cooling system
  • Added security with a factory installed lock
  • Seamless interior liner simplifies clean-up
  • 24.8 cu.ft. interior with three removable baskets

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 83.25" (211 cm)
Depth 31.5" (80 cm)
Capacity 24.8 cu.ft. (702 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 3.1
Voltage/Frequency 115 V AC/60 Hz
Weight 220.0 lbs. (100 kg)
Shipping Weight 230.0 lbs. (104 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing Lift-Up
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 11.99oz.
High Side PSI 360.0
Low Side PSI 140.0
Interior Light Yes
Temperature Range -10 to 10°F
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 76.88" (195 cm)
Interior Depth 23.5" (60 cm)

AVAILABLE UPGRADES

Exterior
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

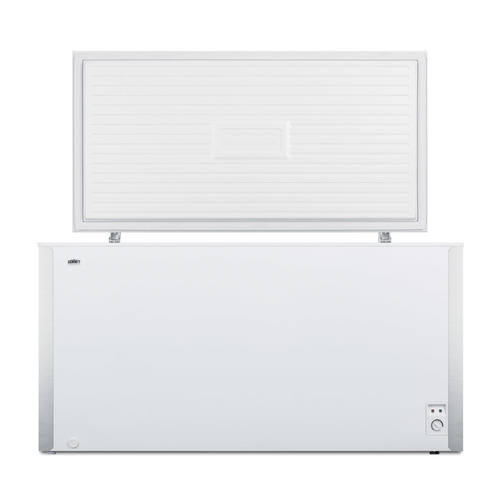

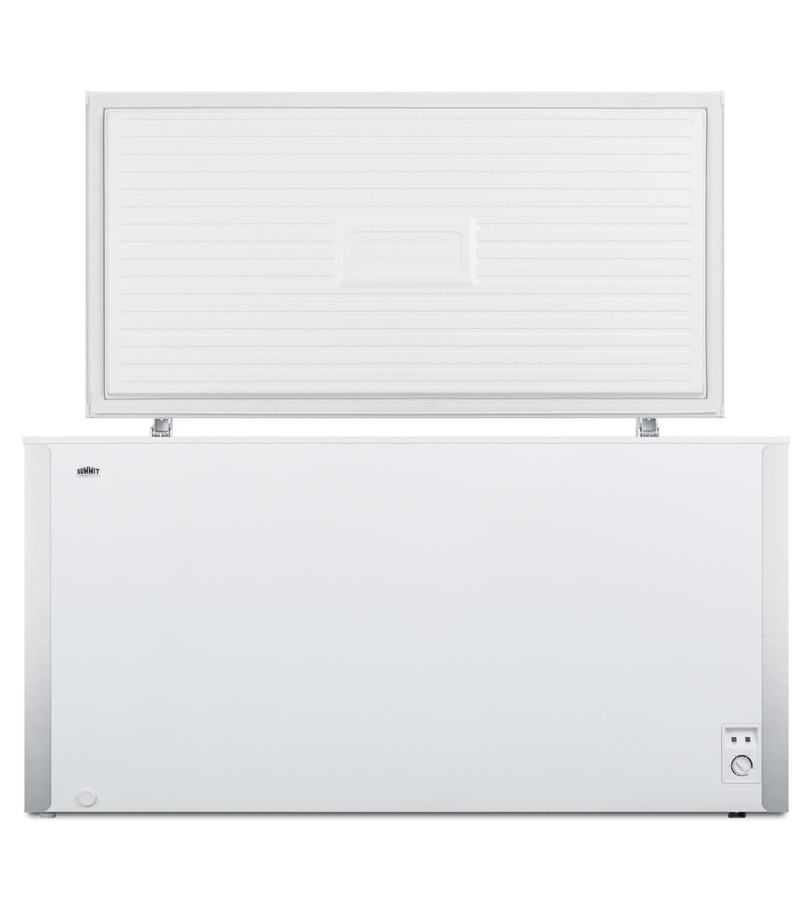

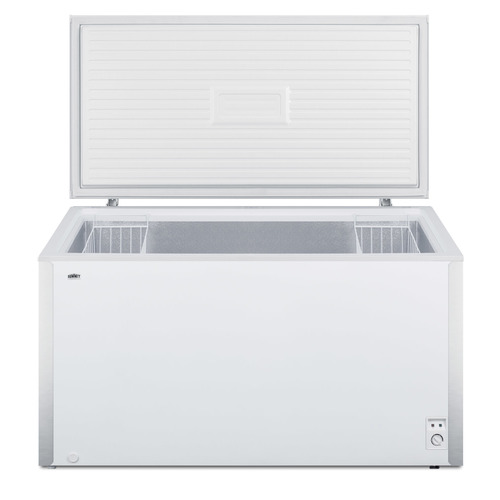

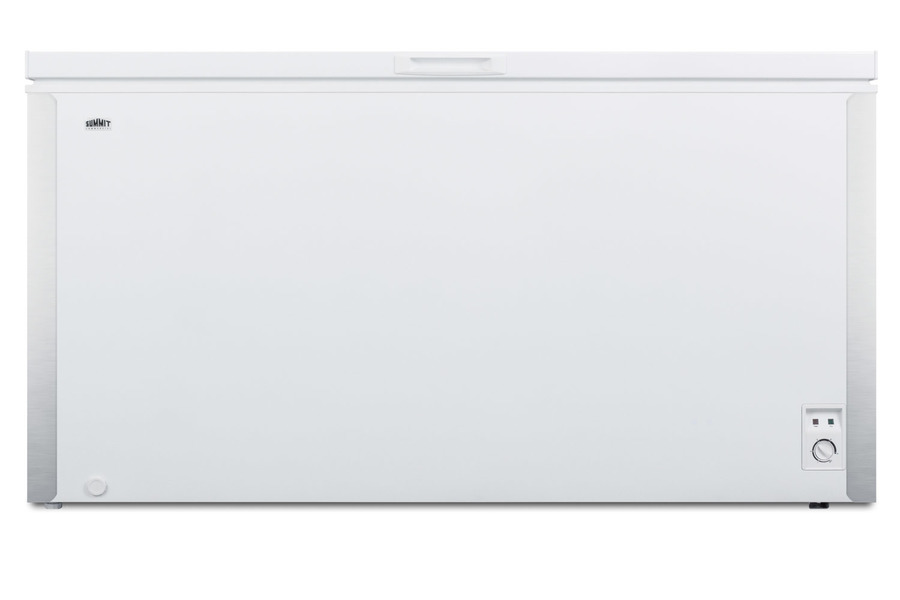

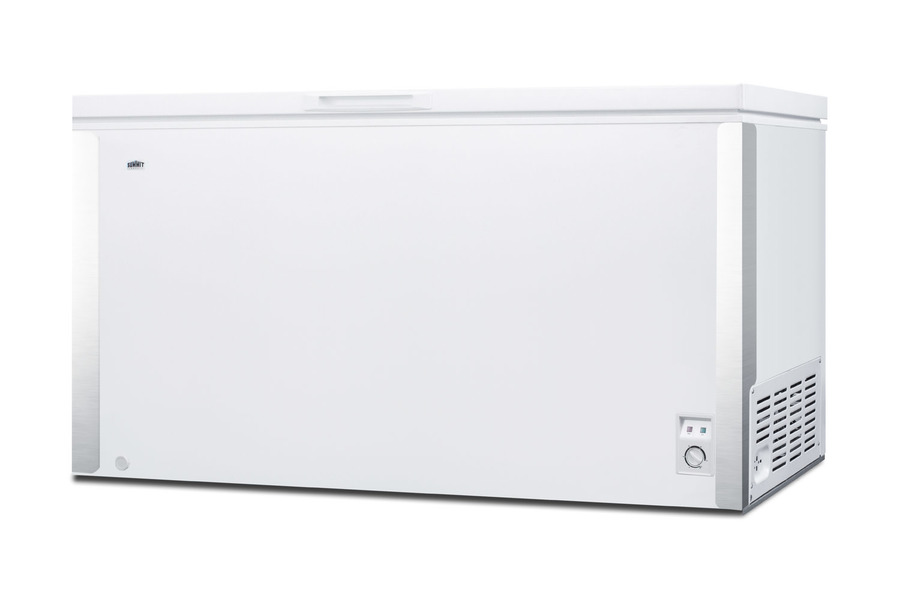

The SCFM232 is UL-S listed to NSF-7 standards for commercial use. It comes in a white finish with stainless steel corner protectors factory installed on the exterior to ensure protection in high traffic areas. The handle includes a factory installed lock for added security. The seamless interior offers nearly 25 cu.ft. of storage capacity, with two removable plastic baskets for added convenience. This unit utilizes static manual defrost operation and includes a defrost drain.

In addition to this unit, SUMMIT COMMERICAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards.

NOTE: This unit may differ from images displayed.

FEATURES

Large capacity
Nearly 25 cu.ft. of interior storage
Commercially approved
UL-S listed to ANSI-NSF Standard 7 for commercial use
Factory installed lock
Keyed lock on the handle offers added security
Manual defrost operation
Static cooling system
One piece interior liner
Seamless interior ensures easier cleanup

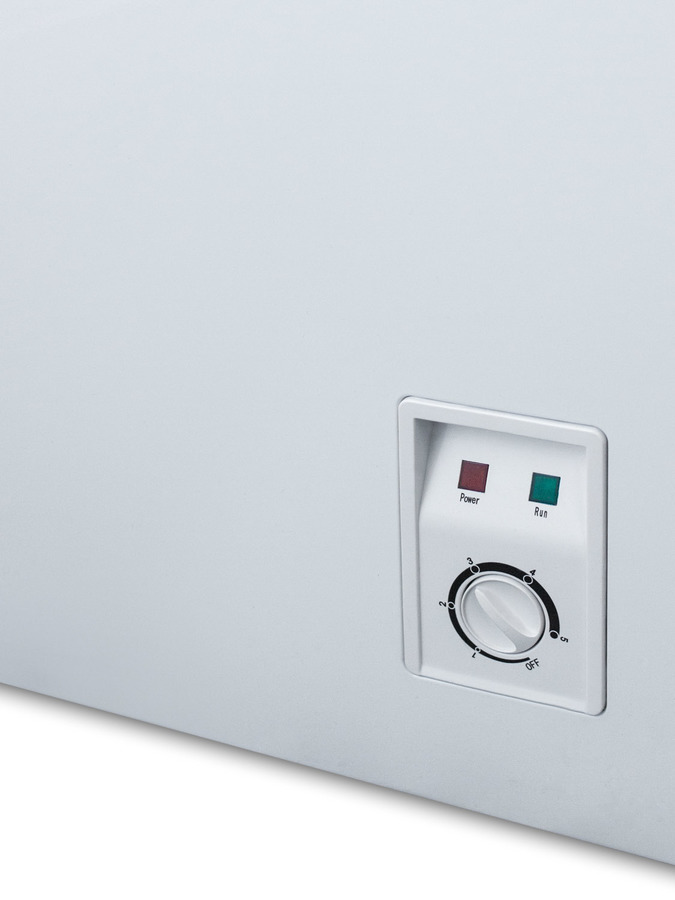

Adjustable thermostat
Dial thermostat for easy temperature management

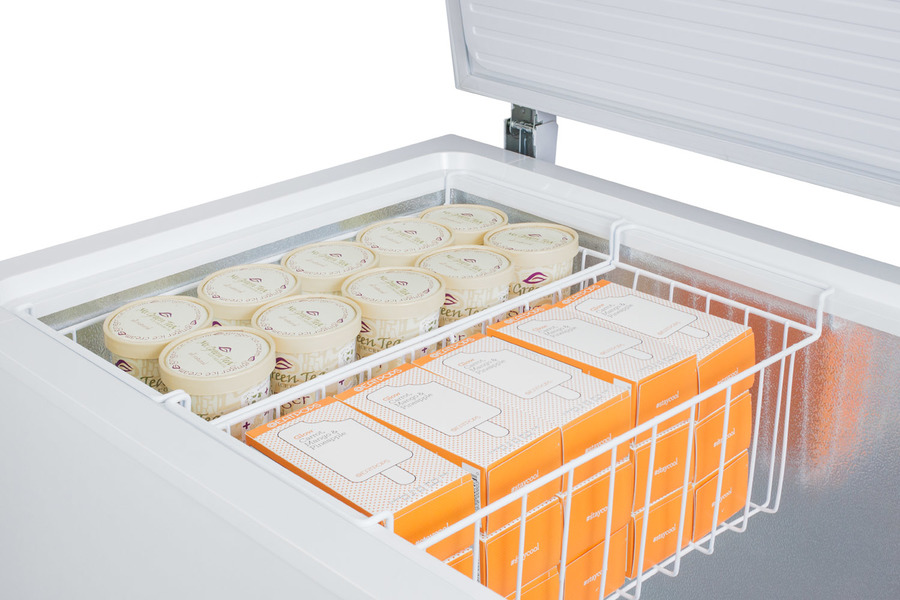

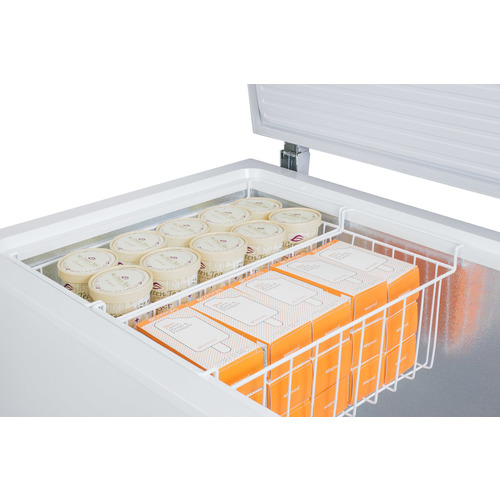

Storage baskets
Two removable plastic baskets offer convenient storage
Interior light
Lid includes a light for easier viewing when loading

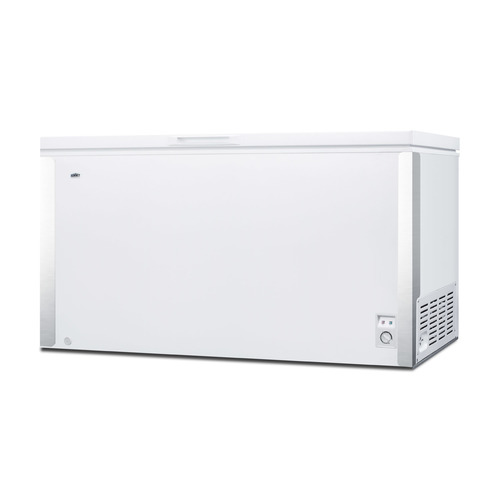

Stainless steel front corner protectors
External "bumpers" are factory installed to protect the unit's front corners from dents

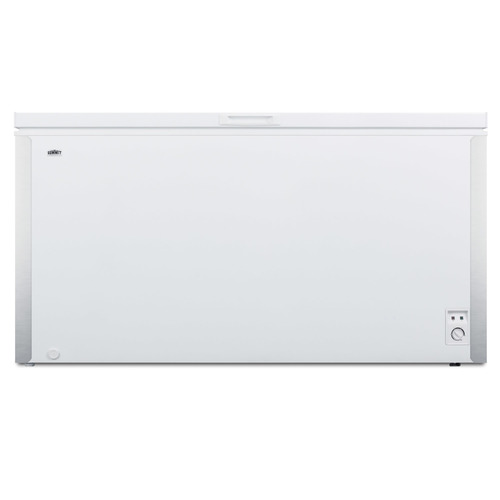

White exterior
Textured white finish fits well in any establishment
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 83.25" (211 cm)
Depth 31.5" (80 cm)
Capacity 24.8 cu.ft. (702 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 3.1
Voltage/Frequency 115 V AC/60 Hz
Weight 220.0 lbs. (100 kg)
Shipping Weight 230.0 lbs. (104 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing Lift-Up
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 11.99oz.
High Side PSI 360.0
Low Side PSI 140.0
Interior Light Yes
Temperature Range -10 to 10°F
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 76.88" (195 cm)
Interior Depth 23.5" (60 cm)

AVAILABLE UPGRADES

Exterior
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security

DOWNLOADS

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
