SCFM62

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

UL-S listed to NSF-7 standards for commercial use

32.0" H x 38.5" W x 22.13" D

(81cm H x 98cm W x 56cm D)

OVERVIEW

  • Commercially approved for use in foodservice establishments
  • Stainless steel corner guards help protect the exterior from dents and bumps
  • Manual defrost operation and static cooling system
  • Hammered aluminum interior offers added durability for long-lasting use
  • 7 cu.ft. interior with removable basket

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 38.5" (98 cm)
Depth 22.13" (56 cm)
Capacity 7.0 cu.ft. (198 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing Lift-Up
Interior Height 24.5" (62 cm)
Interior Width 33.0" (84 cm)
Interior Depth 15.0" (38 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.94 oz.
Wheels 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 8.0" (20 cm)
Compressor Step Depth 8.0" (20 cm)
Temperature Range -30 to -12ºC/-22 to 10.4ºF

AVAILABLE UPGRADES

Exterior
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Lock
L-Installed Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

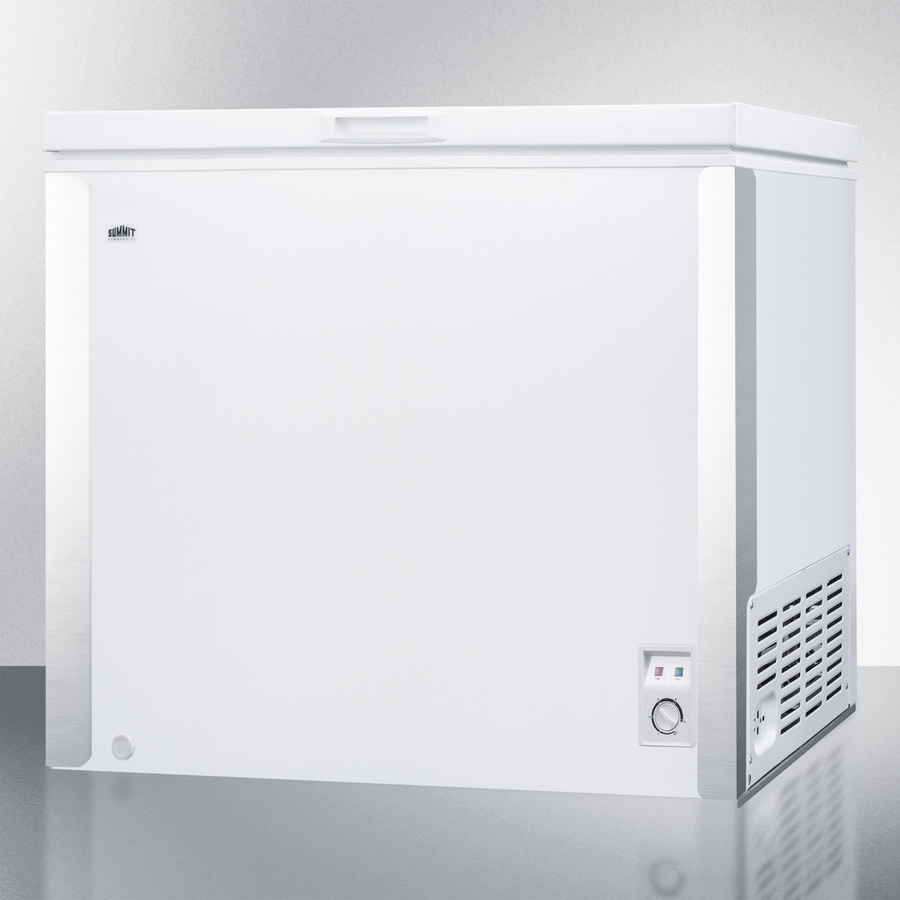

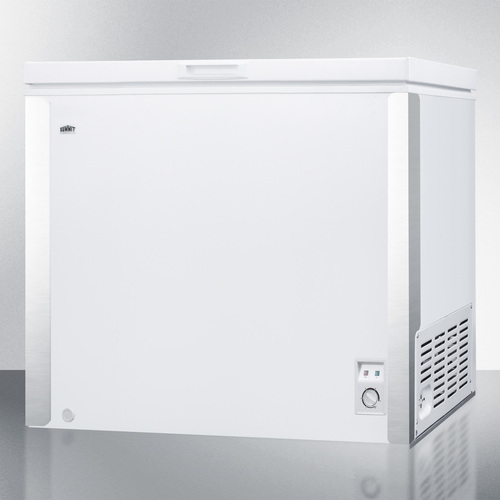

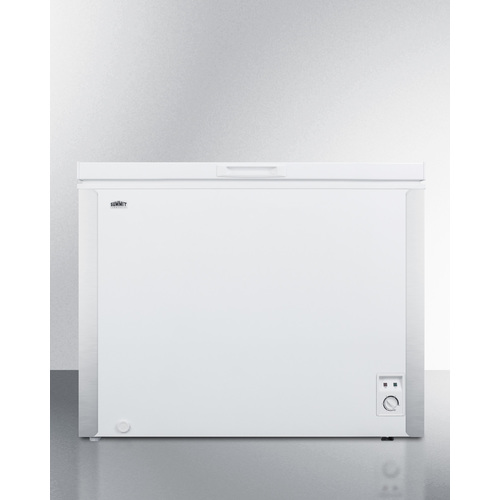

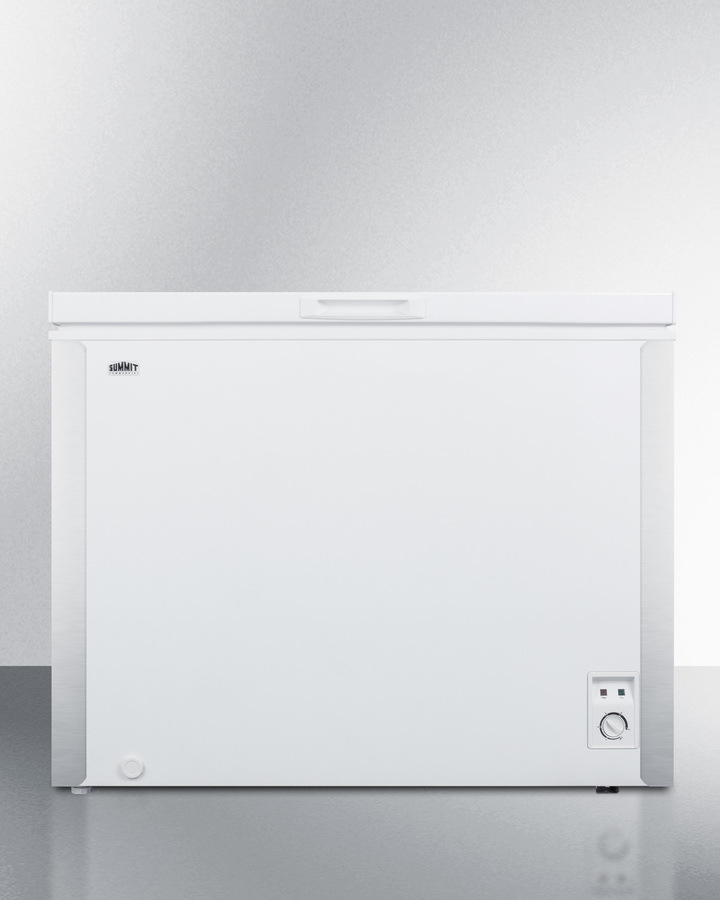

The SCFM62 is UL-S listed to NSF-7 standards for commercial use. It comes in a white finish with stainless steel corner guards factory installed on the exterior to ensure added protection in high traffic areas. The lid includes a pocket handle for convenient lifting and no added depth. The right side includes two wheels to make it easier to move when cleaning. The dial thermostat is located in the front, with indicator lights for the power and compressor. This unit is equipped with a right angle plug for added space savings.

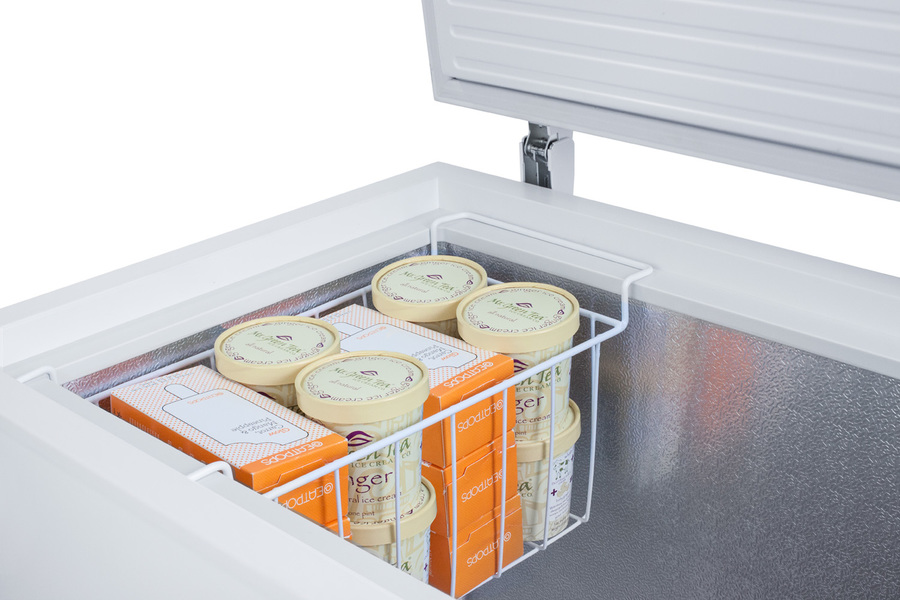

Inside, the SCFM62 features a hammered aluminum floor and walls for added durability. We include a removable wire basket to help organize your storage. Static manual defrost offers added efficiency, with a front drain for easier defrosting.

In addition to this unit, SUMMIT COMMERCIAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards. Browse our website for more options.

FEATURES

Commercially approved
UL-S listed to ANSI-NSF Standard 7 for commercial use
Hammered aluminum interior
Solid construction ensures lasting durability
Manual defrost operation
Static cooling system for efficient storage
Stainless steel corner protectors
External "bumpers" are factory installed to protect the unit's corners from dents

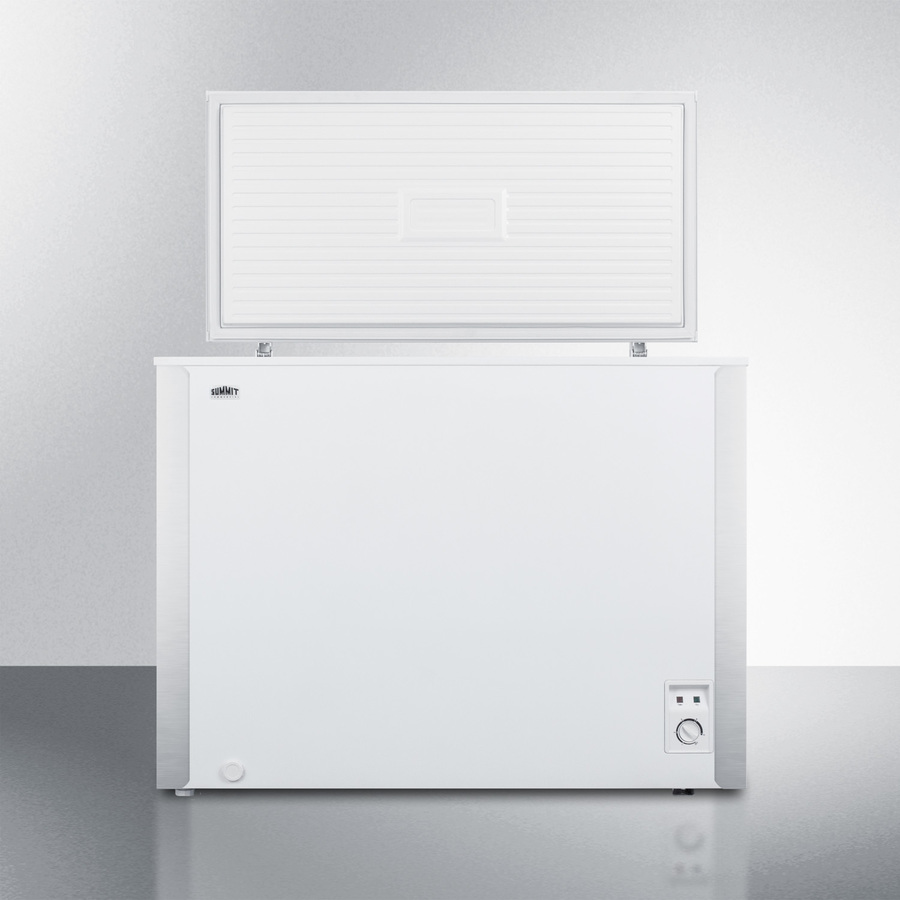

Counterbalanced hinges
Lid will stay opened when lifted past a certain point, making it easier to load and unload the interior
Pocket handle
Space-saving pocket handle makes it easy to open the lid without adding extra depth to the unit
Adjustable thermostat
Dial thermostat for easy temperature management

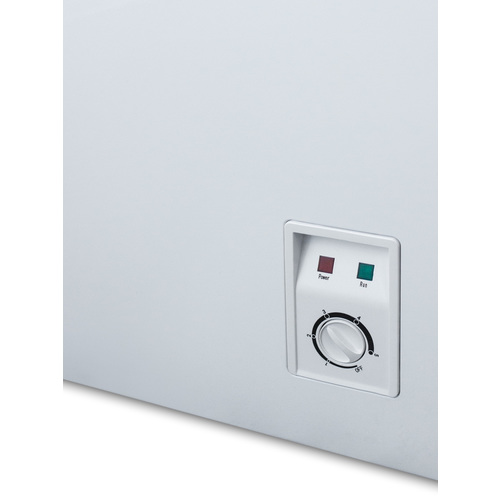

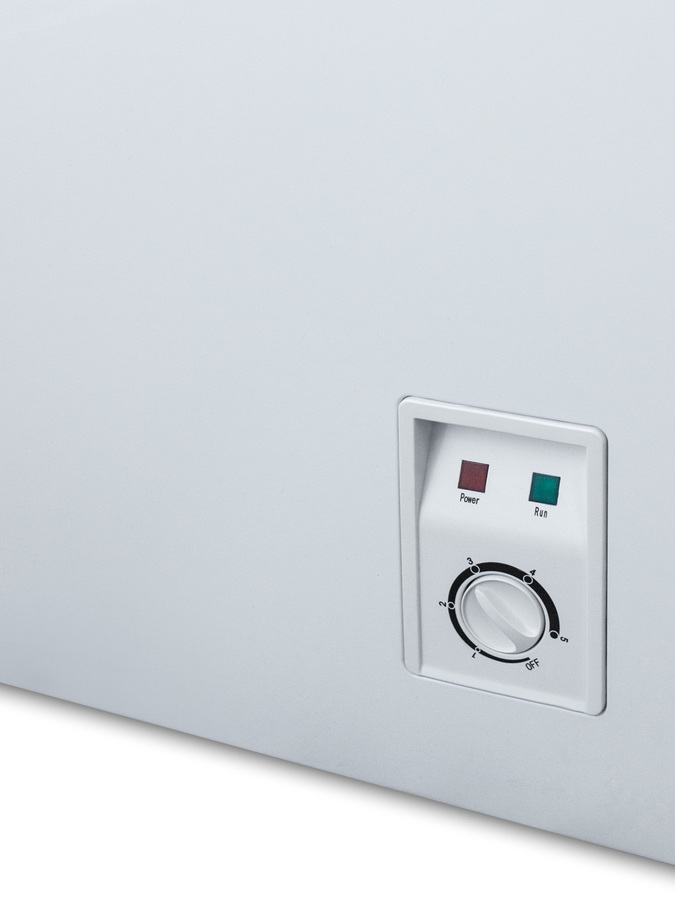

Indicator lights
Externally located thermostat includes an indicator light to show that the power is connected and a second for when the compressor is running

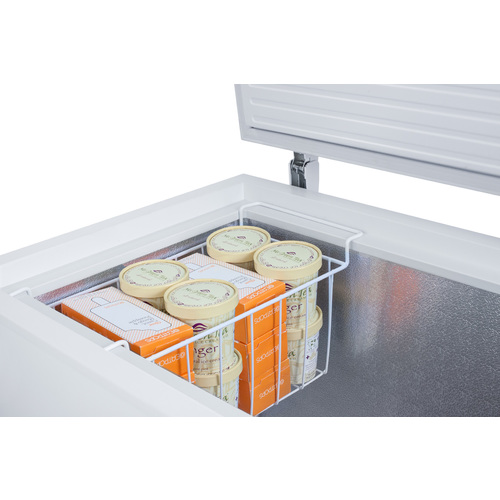

Storage basket
Removable basket offers convenient storage
Right angle cord
Flat plug design won't protrude in the wall, offering added space savings
Defrost drain
Front-located drain makes it easier to defrost when needed
White exterior
Classic white finish fits well in any establishment
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 38.5" (98 cm)
Depth 22.13" (56 cm)
Capacity 7.0 cu.ft. (198 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing Lift-Up
Interior Height 24.5" (62 cm)
Interior Width 33.0" (84 cm)
Interior Depth 15.0" (38 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.94 oz.
Wheels 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 8.0" (20 cm)
Compressor Step Depth 8.0" (20 cm)
Temperature Range -30 to -12ºC/-22 to 10.4ºF

AVAILABLE UPGRADES

Exterior
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Lock
L-Installed Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SCFM62.pdf
Download
TECHNICAL DRAWING (.dwg)
SCFM62__FREEZER__A-C_2010_.dwg
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
