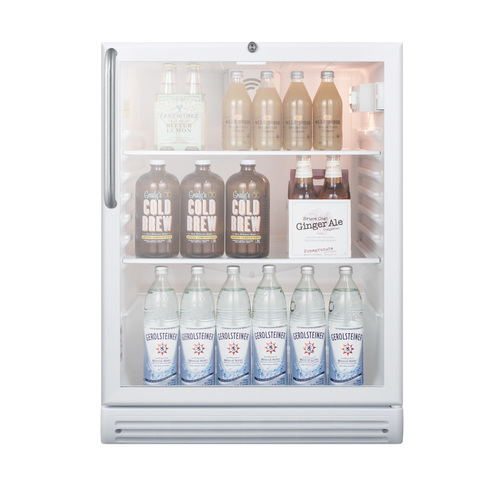

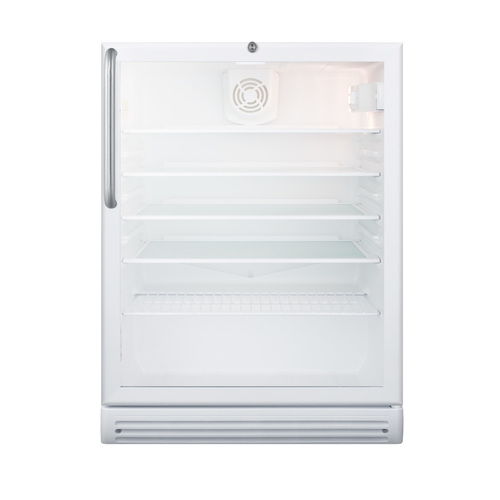

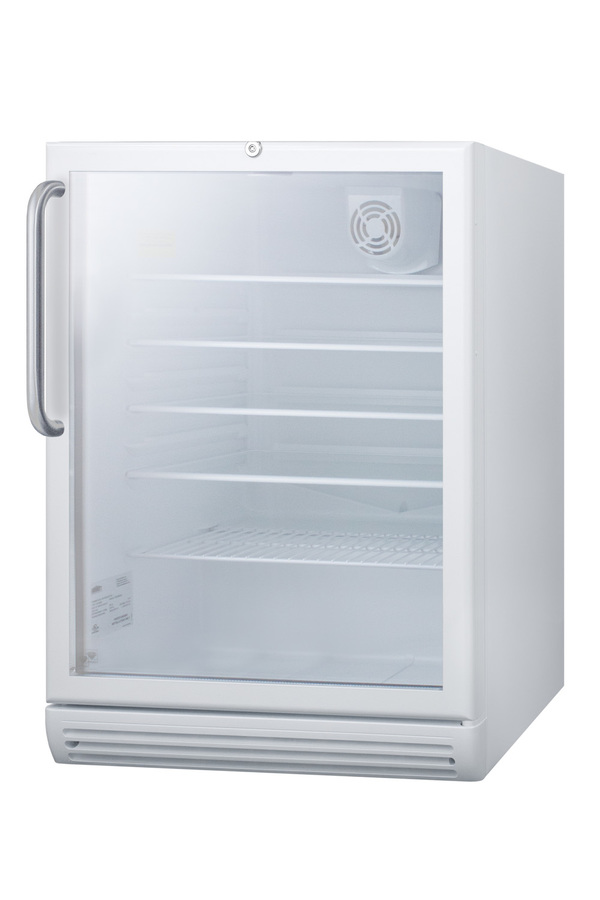

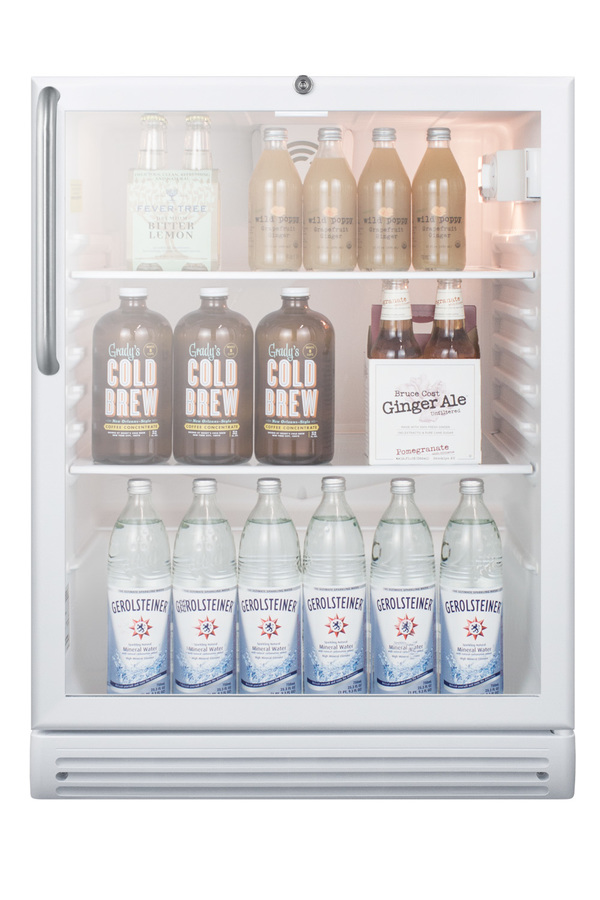

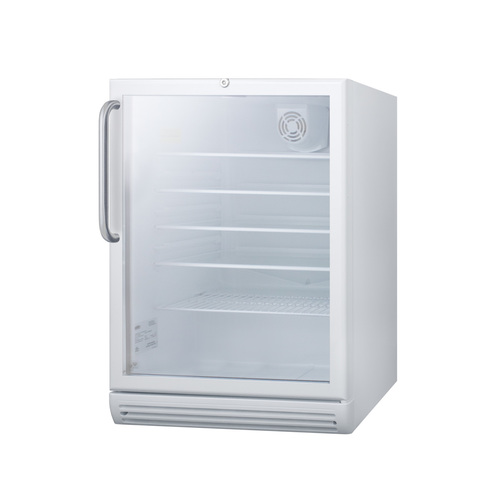

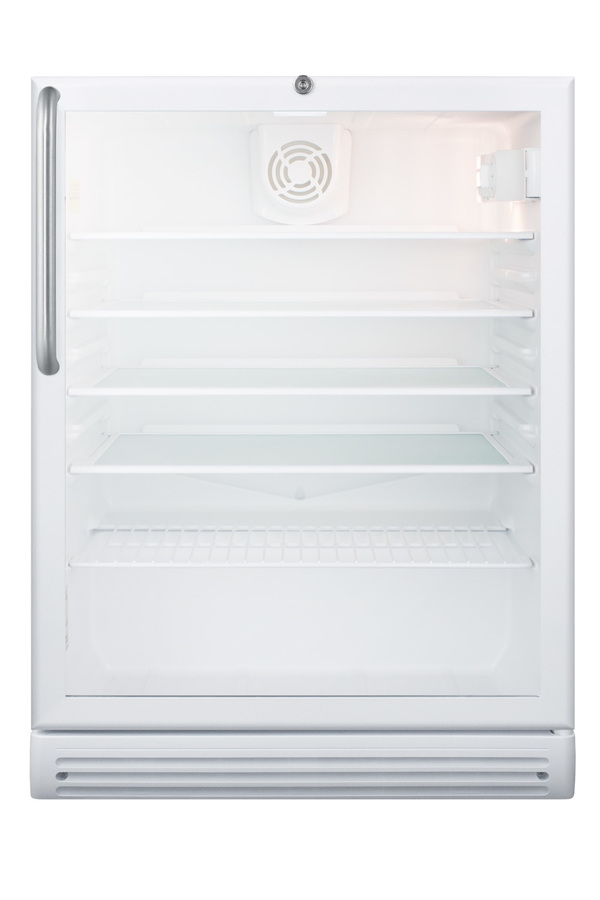

24" Wide Beverage Center, ADA Compliant

SKU: SCR600GLTBADA

Made in Europe with a double pane tempered glass door for reliable storage in ADA compliant commercial settings

DISCONTINUED- REPLACED BY SCR600BGLTBADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.38" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.63" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	131.5 lbs. (60 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101064475
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.67oz.
High Side PSI	124.0
Low Side PSI	30.0
Level Legs Qty	2
Interior Light	Yes
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Interior

LockBox24 - Interior locking compartment

Exterior

CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish	Red DT - Digital thermostat for red wine Upgrade to a digital thermostat with a warmer temperature range (48ºF to 65ºF) to best store red wine
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Handle

HH Add a stainless steel handle with sleek 14mm diameter placed horizontally across the top	HV Add a stainless steel handle with sleek 14mm diameter placed vertically on the side
SH Add a full door-length handle with curved towel bar design in brushed stainless steel	TB - Stainless steel towel bar style handle Install a 12" handle with curved towel bar design in brushed stainless steel
TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

ADA Compliant

32" height allows use in settings following ADA guidelines for lower counter height

Factory installed lock

Keyed lock for added security, with two keys included

Double pane tempered glass door

Heat resistant design provides clear view to promote impulse buys

Professional towel bar handle

Curved handle in brushed stainless steel for a professional look

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling helps to maintain a more evenly cooled interior

White interior finish

Interior offers more visibility with a brighter look

Adjustable glass shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat

Hidden evaporator

SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling

One piece interior liner

Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

Adjustable thermostat

Dial thermostat for easy and intuitive temperature management

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL's freestanding SCR600GLADA Series features 32" high beverage refrigerators designed and manufactured in Europe for quality storage and presentation in commercial establishments following ADA guidelines for lower counter height.

Sized just under 24" wide and deep, the SCR600GLTBADA offers a generous 5.5 cu.ft. of storage capacity. At 32" high, this unit is perfect for applications with lower ADA compliant counters. The door features double pane tempered glass for added protection, with a stainless steel handle in a curved towel bar style. The factory-installed front lock is located towards the top of the door for easier access. This unit comes with a white cabinet finish and is designed for freestanding use. For a built-in version, see the SCR600GLBITBADA.

Inside, the SCR600GLTBADA includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.

The SCR600GLTBADA is ETL-S listed to NSF-7 commercial standards. Additional handle styles are available.

BROCHURE
SCR600GLTBADA.pdf

USE & CARE
SCR600BGL_manual_rvsd_112917.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
