24" Wide All-Freezer, ADA Compliant

SKU: VT65ADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

-30ºC capable operation, with a high/low temperature alarm and digital controls

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

Commercially listed to NSF-7 standards and meets UL-471
Precise temperature control with a digital thermostat
Factory installed lock provides security you can count on
Capable of operating at -30º C
Three slide-out freezer drawers help contents maintain stable temperature, even with an open door

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	105.0 lbs. (48 kg)
Estimated Time to Ship	5 to 7 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.76 oz.
Interior Drawers	Yes
Drawers Qty	3
Temperature Range	-20ºC to -30ºC

AVAILABLE UPGRADES

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
LHD - Left hand door swing Door reversal to left hand swing	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key Extra keys available for purchase	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

KEYPAD

Battery-powered keypad door lock installed for keyless security

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold medical all-freezers offer low temperature storage in a perfectly sized footprint.

The VT65ADA is an upright all-freezer sized with a 24" footprint. At 32" high, it is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. A factory installed keyed lock offers added security. The digital thermostat is located in the kickplate so that users can manage the temperature without opening the door. A NIST calibrated high/low temperature alarm is also included.

Inside, the VT65ADA utilizes static manual defrost operation to maintain stable temperature. This unit can reach temperatures as low as -30ºC. Three slide-out basket drawers offer convenient storage while minimizing temperature fluctuations when the door is open.

This unit is UL-S listed to NSF-7 and UL-471 commercial standards.

FEATURES

Commercially approved
UL-S listed to NSF-7 commercial standards and meets UL commercial standard 471

Built-in capable
Front-breathing system allows the unit to be used built-in

ADA compliant
32" height allows installation under lower ADA compliant counters

-30º C (-22º F) capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

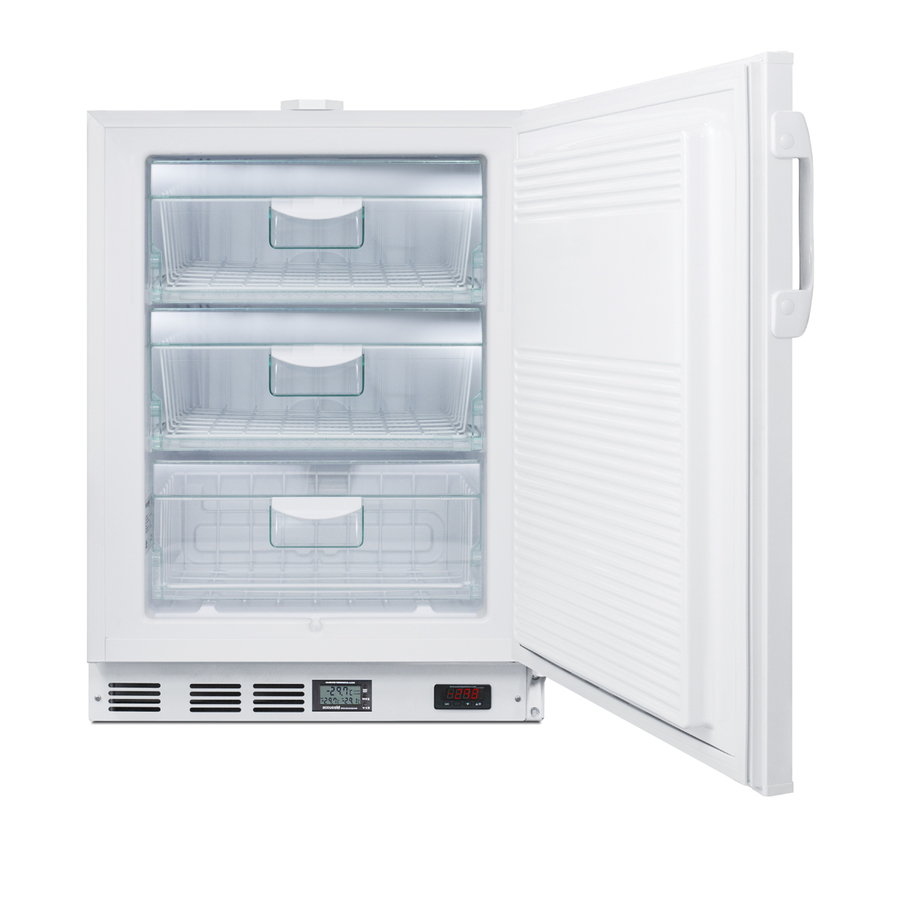

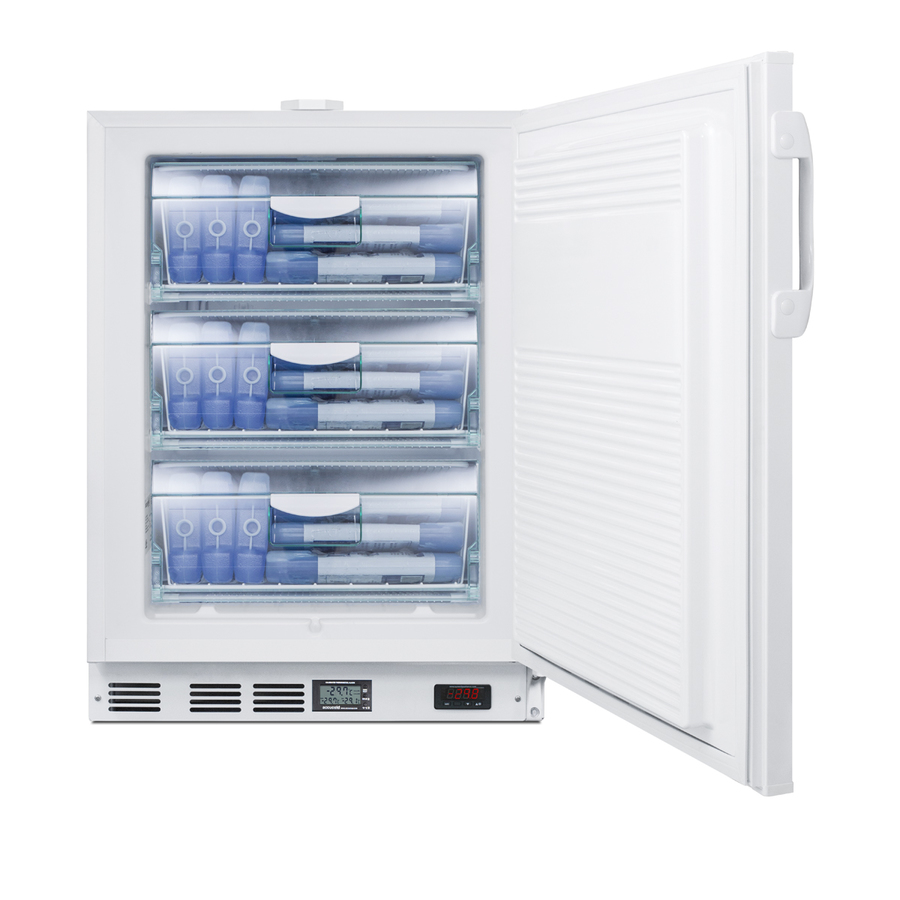

Three slide-out drawers
Conveniently organize your items while keeping the temperature stable when the door is opened

Factory installed lock
Keyed lock offers convenient security

Digital thermostat
Electronic controls for precise temperature management

Alarm with temperature display
Provides external temperature readout and includes programmable alarm to warn of temperature variations

Manual defrost
No temperature fluctuations with an energy efficient manual defrost system

100% CFC free
Environmentally friendly design using R404a and without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	105.0 lbs. (48 kg)
Estimated Time to Ship	5 to 7 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.76 oz.
Interior Drawers	Yes
Drawers Qty	3
Temperature Range	-20ºC to -30ºC

AVAILABLE UPGRADES

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
LHD - Left hand door swing Door reversal to left hand swing	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key Extra keys available for purchase	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

KEYPAD

Battery-powered keypad door lock installed for keyless security

DOWNLOADS

BROCHURE
VT65ADA.pdf

MSDS INFORMATION
R134a_safety_list.pdf

USE & CARE
Accucold_EQTemp_Specialty_Manual_Engl_French_080117.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
