VT65ML7BIADA

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

-25°C energy efficient medical grade freezer

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • 32" height allows installation under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use
  • Factory installed lock provides security you can count on
  • -25º C operation for safe storage of temperature sensitive materials
  • Three slide-out freezer drawers help contents maintain stable temperature, even with an open door
  • 24" footprint allows flexible placement inside any space-challenged facility
  • ETL-S listed to NSF-7 commercial standards

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 1 Year
Freezer
Door Swing RHD
Reversible Yes
Crisper Finish Opaque
Crisper Cover Glass
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Glass
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SS Hinges
Stainless steel top and bottom hinges
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM - Humidity sensor
Humidity sensor with min/max readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold VT65M7BIADA commercially approved medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.

The 32” high VT65ML7BIADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and reversible door, with a factory installed lock for added security. It is ETL-S listed to NSF-7 commercial standards.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Keep contents secure with a front lock on the door
-25º capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

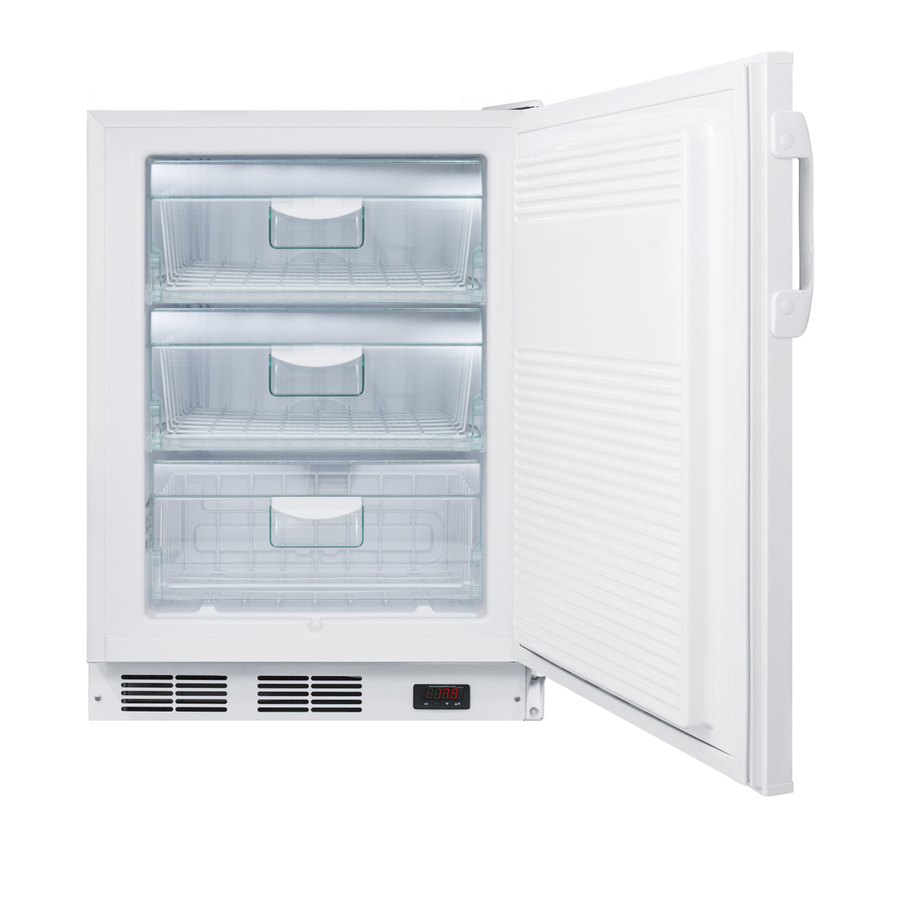

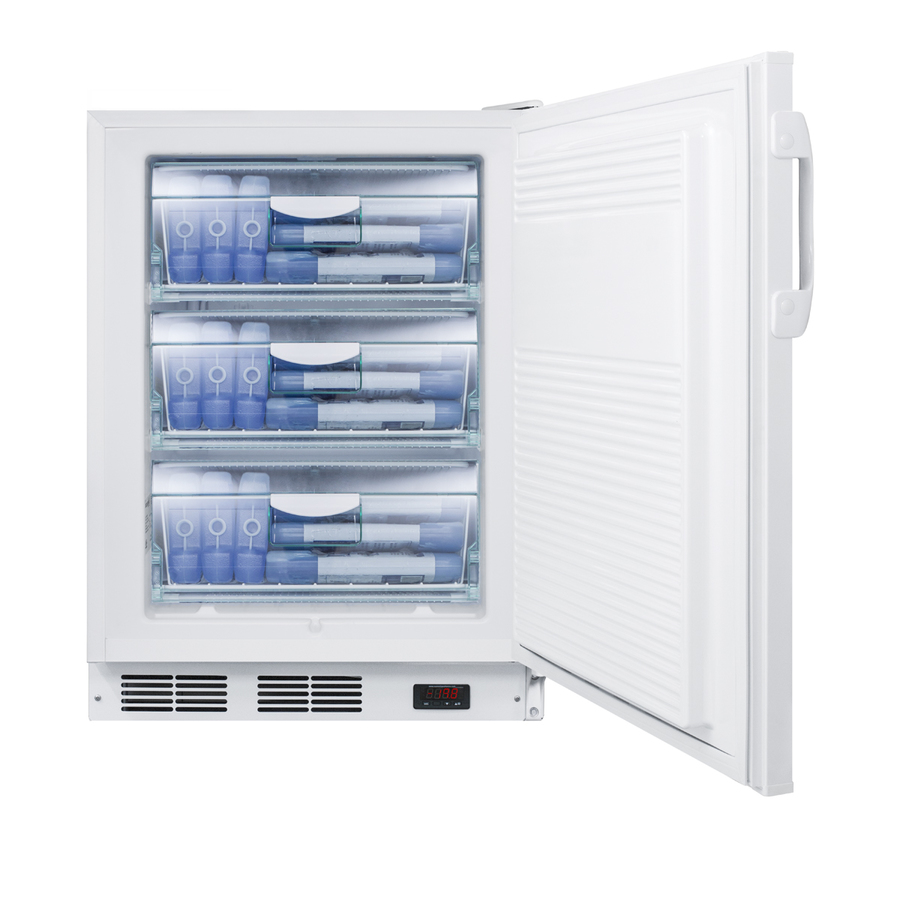

Three slide-out drawers
Conveniently organize your items while keeping the temperature stable when the door is opened
Manual defrost
Static cooling system for improved temperature stability
Reversible door
Keep placement options flexible with a reversible door swing that is easy to switch when your arrangement changes
One piece interior liner
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Digital thermostat
Electronic controls located in the front kickplate for easy and intuitive temperature management
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 1 Year
Freezer
Door Swing RHD
Reversible Yes
Crisper Finish Opaque
Crisper Cover Glass
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Glass
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SS Hinges
Stainless steel top and bottom hinges
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM - Humidity sensor
Humidity sensor with min/max readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
