VT65MLBI

-25°C energy efficient medical grade freezer

33.5" H x 23.63" W x 23.5" D

(85cm H x 60cm W x 60cm D)

OVERVIEW

  • Factory-installed lock provides security you can count on
  • -25º C operation for safe storage of temperature sensitive materials
  • Flexible design allows built-in or freestanding use
  • Perfectly sized to fit under counters and in tight 24 inch spaces

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height
6" high leveling legs
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SS Hinges
Stainless steel top and bottom hinges
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM - Humidity sensor
Humidity sensor with min/max readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

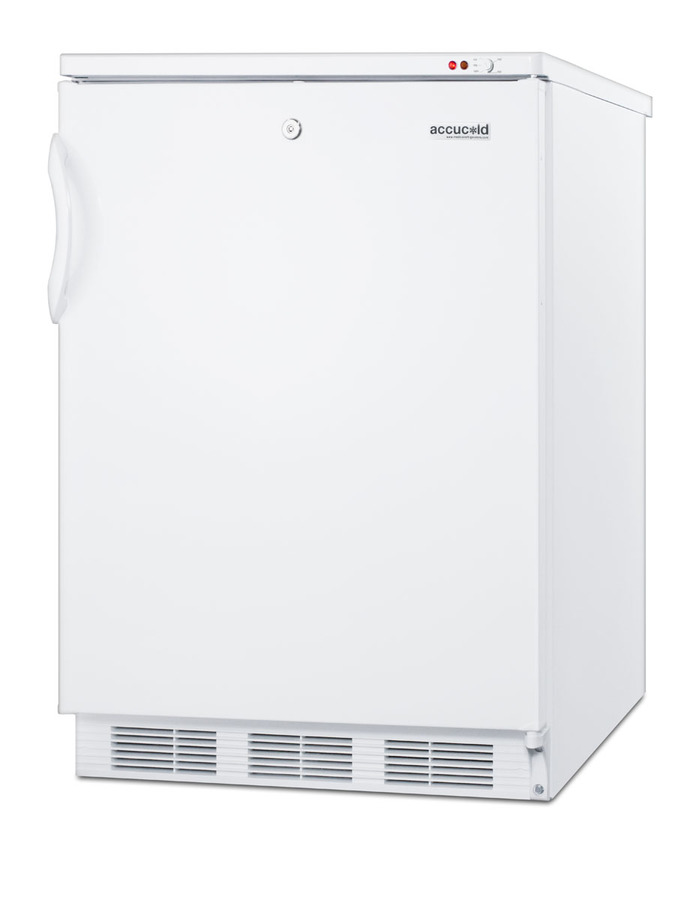

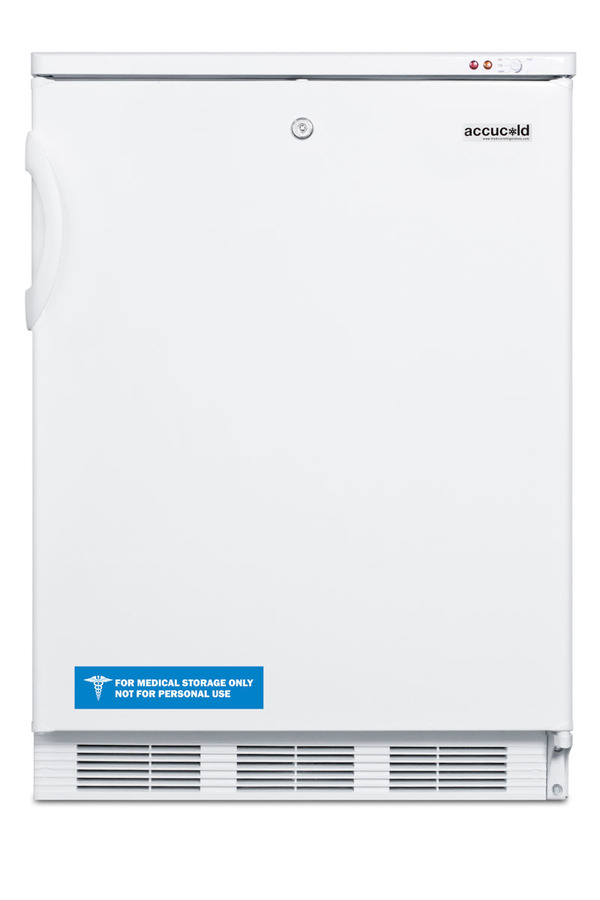

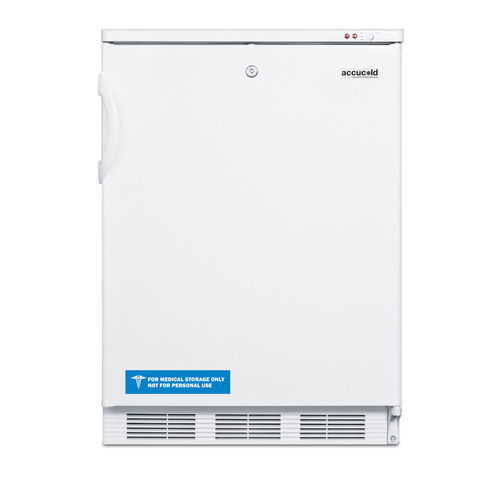

Accucold VT65MBI medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under counters.

The 24” wide VT65MLBI can be used built-in or freestanding, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and reversible door, with a factory installed lock for added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

FEATURES

Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Fully finished white cabinet
Allows the unit to be used freestanding
Height Adjustable
Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Factory installed lock
Keep contents secure with a key lock on the door
-25º C capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
Manual defrost
No temperature fluctuations with an energy efficient manual defrost system

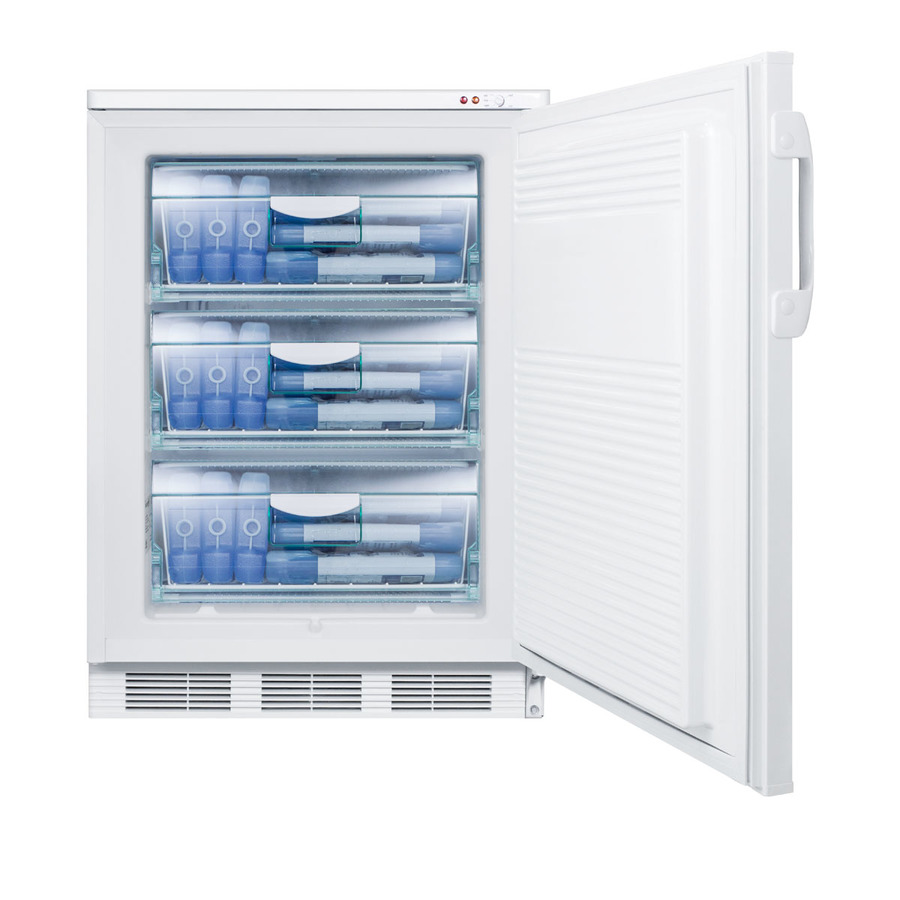

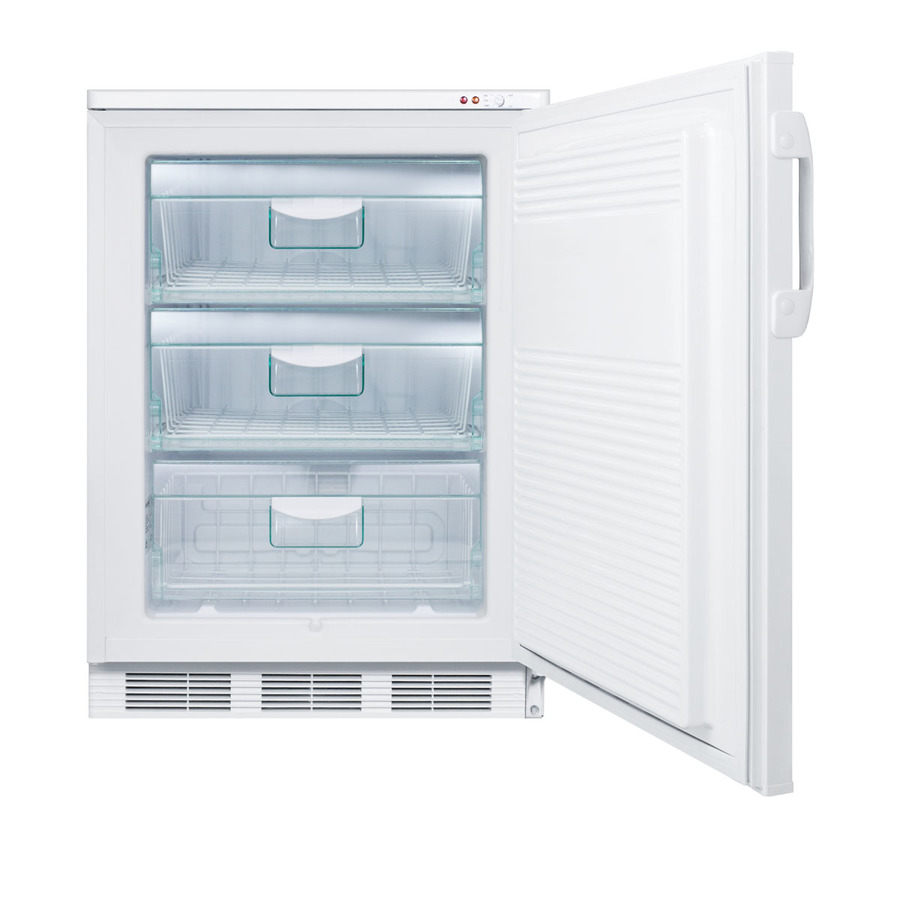

Three removable storage baskets
Conveniently organize your items while keeping the temperature stable when the door is opened
No internal fans
Static cooling system
Adjustable thermostat
Manage the interior temperature with ease and accuracy
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height
6" high leveling legs
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SS Hinges
Stainless steel top and bottom hinges
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM - Humidity sensor
Humidity sensor with min/max readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
