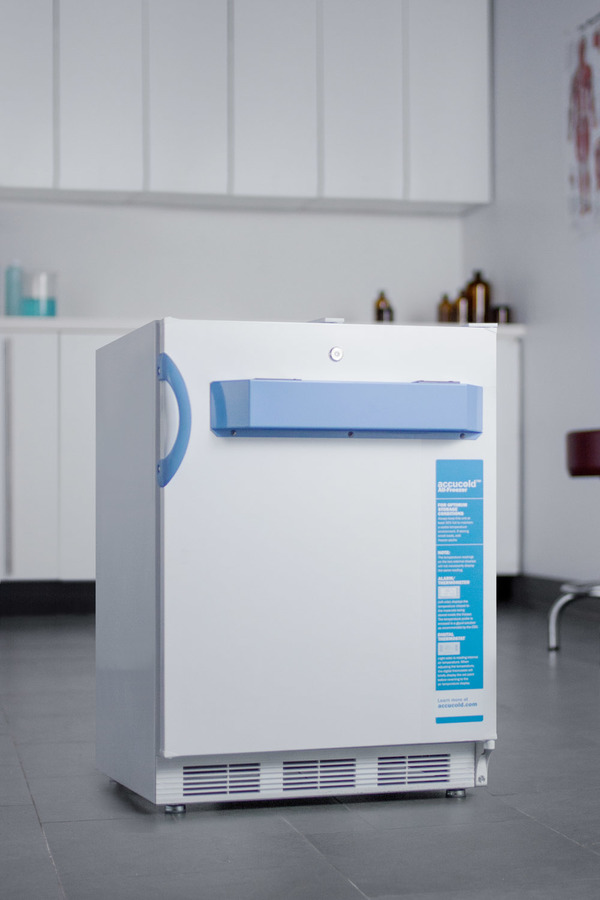

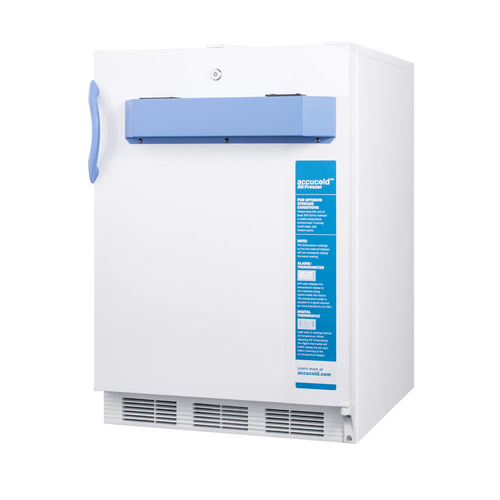

24" Wide Built-In All-Freezer, ADA Compliant

SKU: VT65MLBI7MED2ADA Matching refrigerator

Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Designed and constructed to meet strict CDC and VFC freezer guidelines

32.38" H x 23.63" W x 23.63" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • Sized at 32" high for installation under lower ADA compliant counters
  • Specially designed and featured to meet the CDC and VFC's guidelines for safe vaccine storage

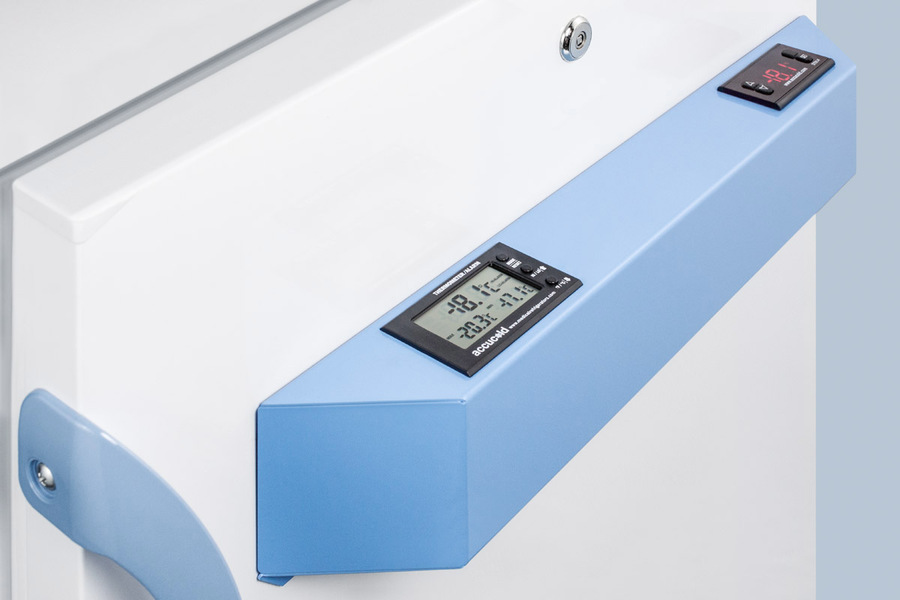

  • User-friendly front control panel keeps the thermostat and alarm in reach without having to open the door
  • Assembled in the USA from domestic and imported components
  • Capable of operating at -25º C for long-term preservation of temperature sensitive materials

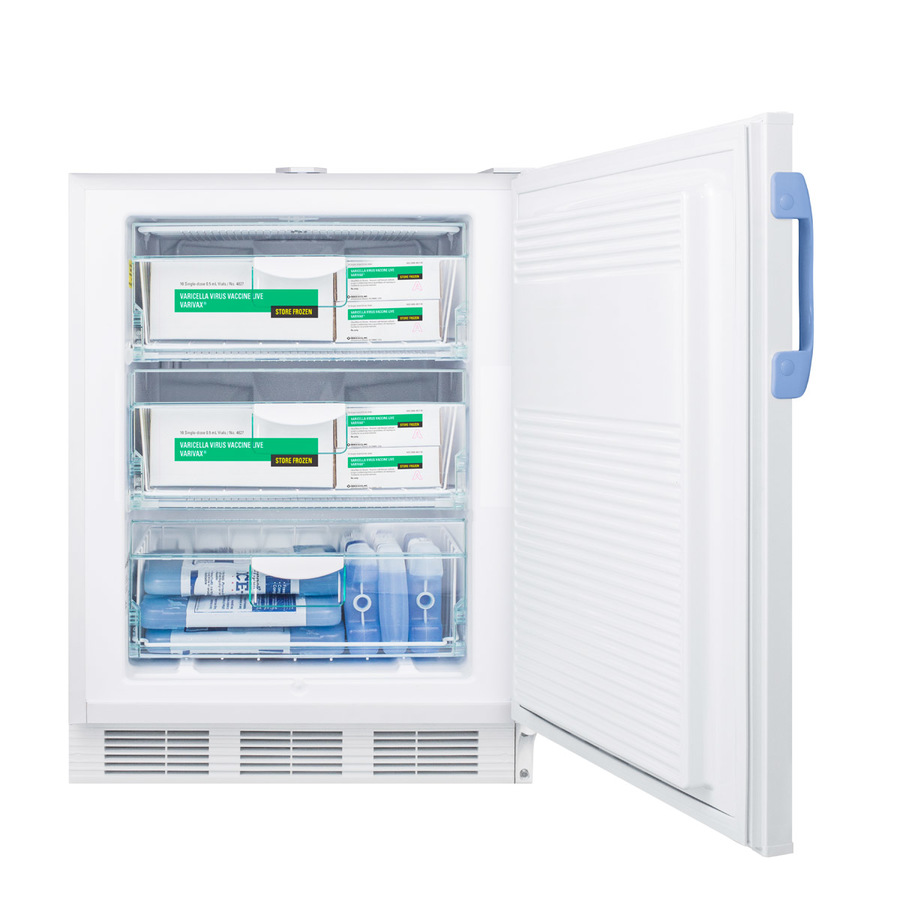

  • Interior drawers ensure stored items are not exposed to room temperature when the door is open
  • Commercially listed to NSF-7 standards
  • High temperature alarm includes NIST calibrated external temperature readout (NIST certificate included)
  • Flexible design allows built-in or freestanding use in 24" spaces

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.76 oz.
High Side PSI 235.0
Low Side PSI 88.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

The VT65MLBI7MED2ADA is a commercially listed all-freezer sized in a convenient 24" footprint and 32" height. The front breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet in white also enables freestanding use. This unit is  designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door or bending down to the floor. The front keyed lock is located towards the top of the door for added convenience. A hospital grade 'green dot' cord offers added safety in high traffic environments.

As recommended by the CDC and VFC programs, the VT65MLBI7MED2ADA is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each VT65MLBI7MED2ADA ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

The VT65MLBI7MED2ADA features a 3.2 cu.ft. interior capacity and extra thick walls for reliable insulation. Slide-out baskets with clear plastic fronts allow users to view stored contents without exposing them to room temperature every time the door is opened. This low temperature freezer is designed to operate between -20ºC to -30ºC, an ideal temperature for certain vaccines, samples, and other sensitive medical materials. It has a flat door liner as recommended by the CDC.

All MED2 series units are assembled in the USA from domestic and imported components. The VT65MLBI7MED2ADA can be paired with a matching all-refrigerator (FF7LBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.


FEATURES

Reliable temperature stability
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
ADA compliant design
32" height allows installation under lower ADA compliant counters
Built-in capable
Front-breathing design allows built-in installation under counters
-25º C/-13º F capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Commercial design
ETL-S listed to ANSI-NSF Standard 7 for facilities with commercial requirements
Digital thermostat
Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Manual defrost
Static cooling system for reduced temperature fluctuations
Hospital grade cord and plug
Secure three-pronged cord for added unit safety
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

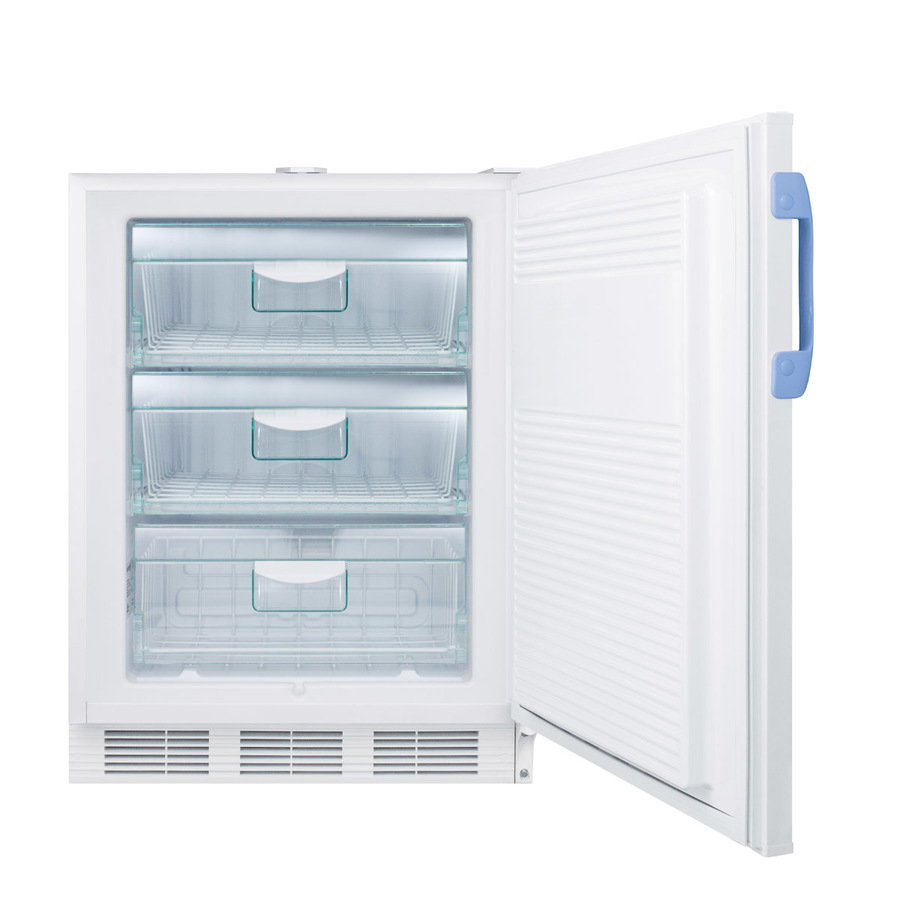

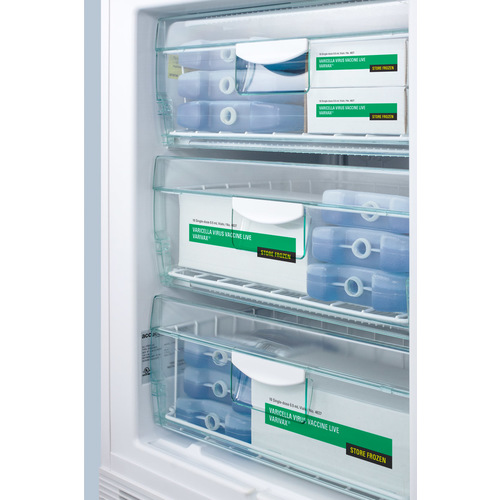

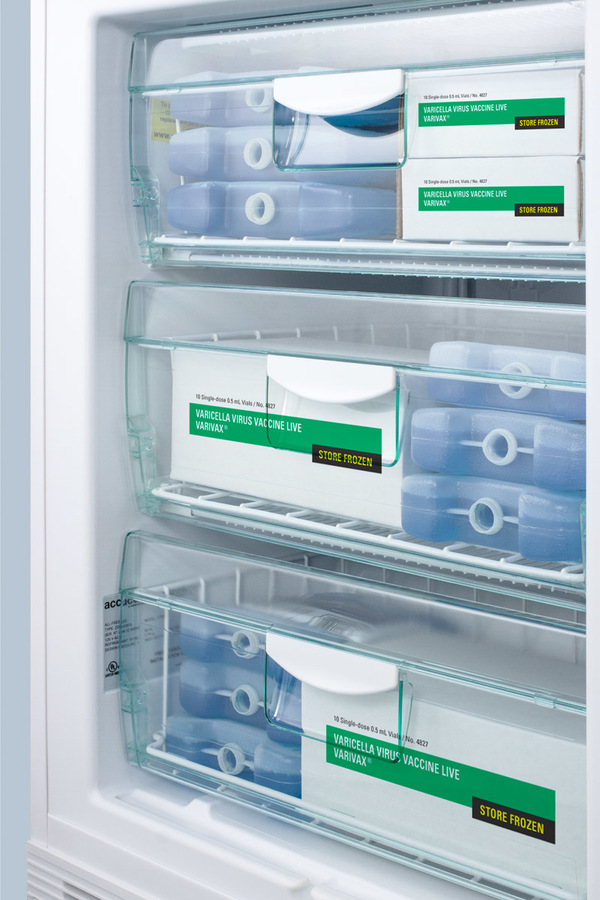

Three slide-out drawers
Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Fully finished white cabinet
Allows the unit to be used freestanding
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching refrigerator available
Pair with the FF7LBIMED2ADA to create a complete set
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.76 oz.
High Side PSI 235.0
Low Side PSI 88.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase

DOWNLOADS

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
