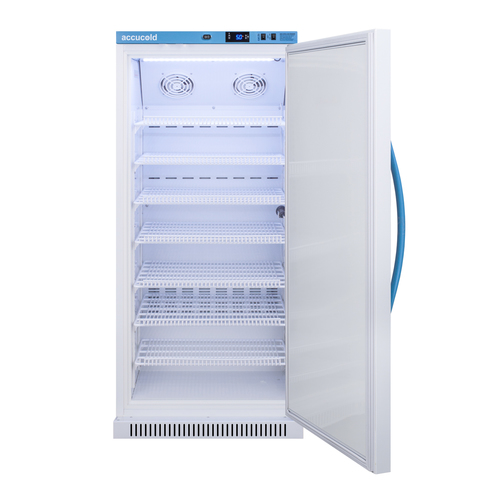

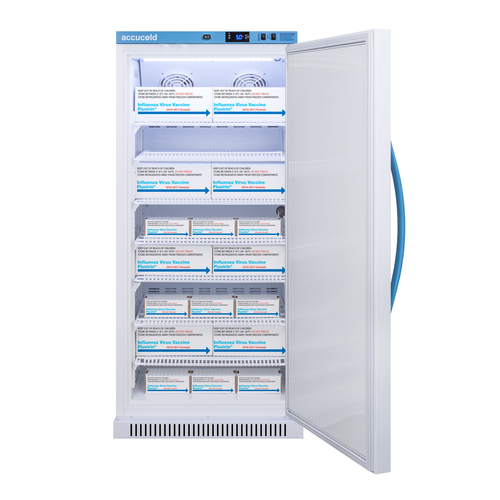

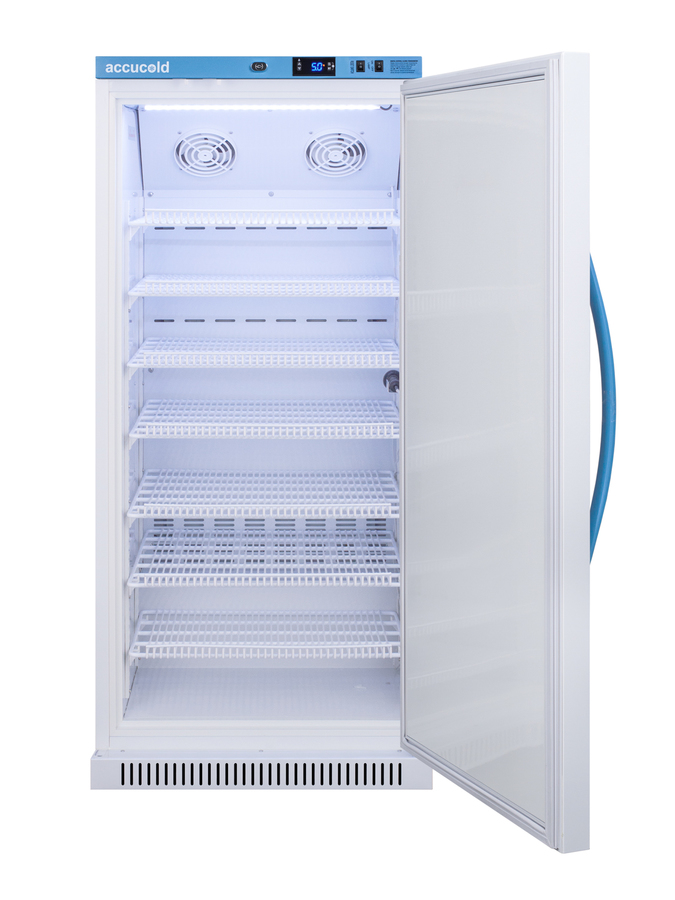

8 Cu.Ft. Upright Vaccine Refrigerator

SKU: ARS8PVDL2B

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a NIST calibrated data logger included

50.0" H x 23.38" W x 24.38" D

(127cm H x 59cm W x 62cm D)

OVERVIEW

  • NIST calibrated DDL included for accurate temperature logging
  • Intelligent microprocessor digital temperature controller

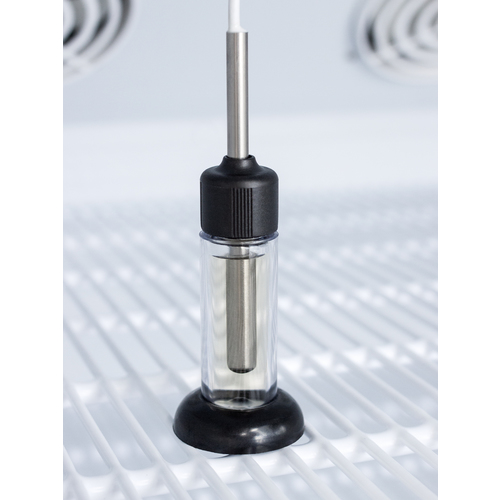

  • Improved temperature accuracy with a separate temperature probe for continuous product readout to simulate stored product temperature
  • Additional sensor reads interior air temperature for superior temperature control
  • Adjustable operating control range from +2 °C to +8°C (+35.6 ° F to +46.4° F)
  • Digital display of the min/max temperature (updated in 15 minute increments)
  • Temperature viewable in Celsius or Fahrenheit to the nearest degree
  • Audible/visual alarms for high/low temperature excursions
  • Optimized forced air cooling for excellent temperature stability and uniformity with rapid recovery after door openings and product loading

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 50.0" (127 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 46.5" (118 cm)
Capacity 8.0 cu.ft. (227 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 170.0 lbs. (77 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 7
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.73oz.
Interior Light Yes
Temperature Range 2 to 8ºC
Dimensions
Interior Height 41.25" (105 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Interior
LockBoxSS - Interior locking compartment
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

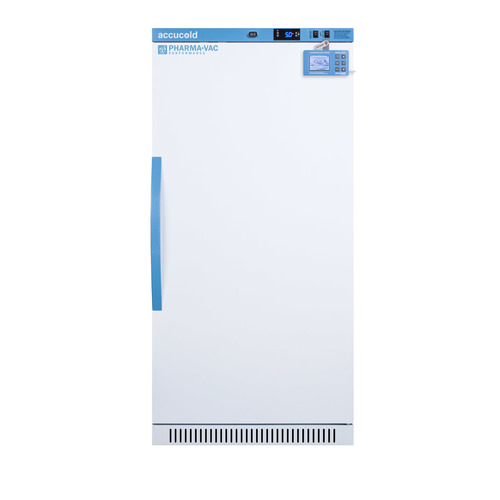

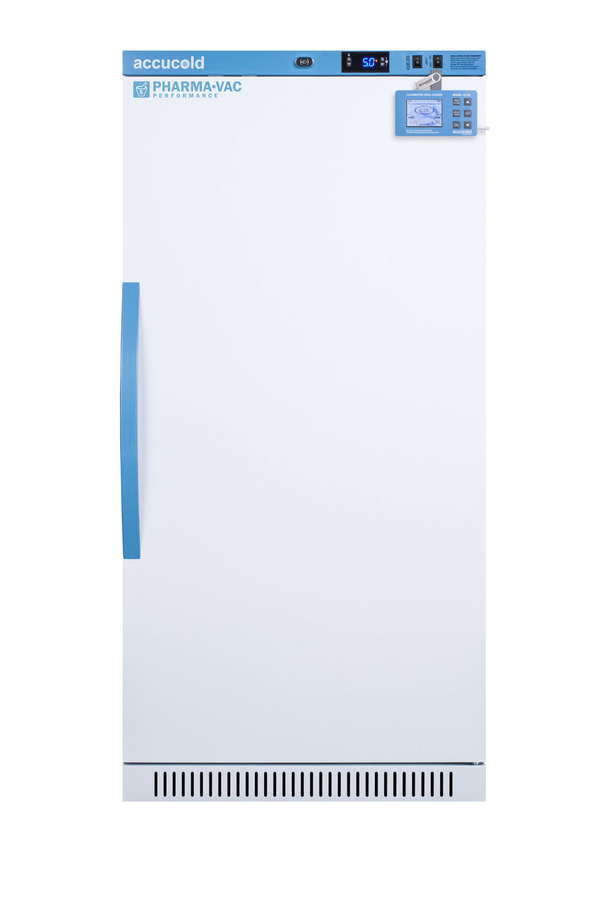

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines.

The ARS8PVDL2B is an 8 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. This refrigerator includes a high/low temperature alarm, as well as a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port.

We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC and VFC for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 certified laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.)

Inside, the ARS8PVDL2B utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with two internal fans ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. We include seven shelves, more than competitor products providing to maximize interior shelving storage area. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The ARS8PVDL2B comes in a white cabinet finish with a blue accented control panel and easy-grip handle. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS8PVDL2B provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

Note: The DL2B data logger adds 1 1/2" to the depth of the upper right hand corner of the door (not included in the listed specifications on this page).

FEATURES

Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
+/-1ºC Variation
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +8ºC

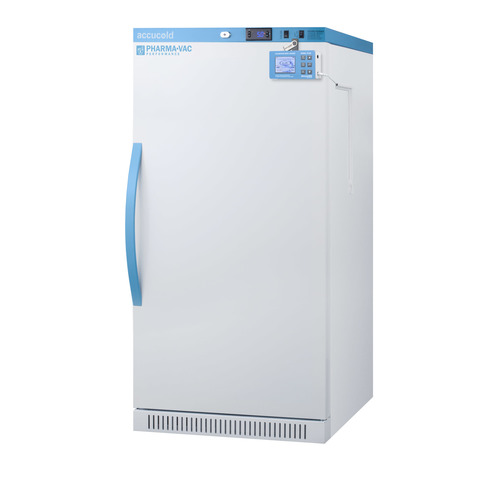

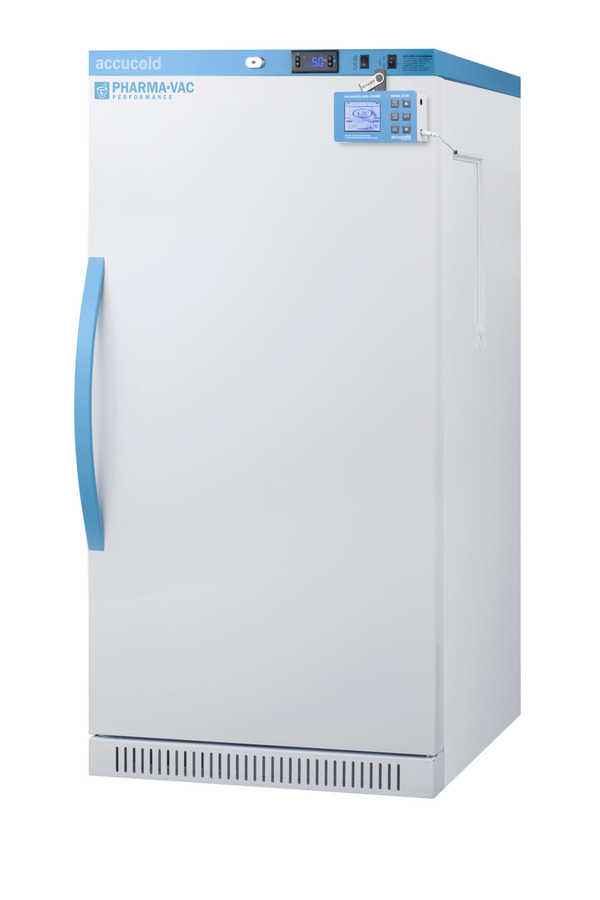

Digital data logger (DDL) included
Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our webiste
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range

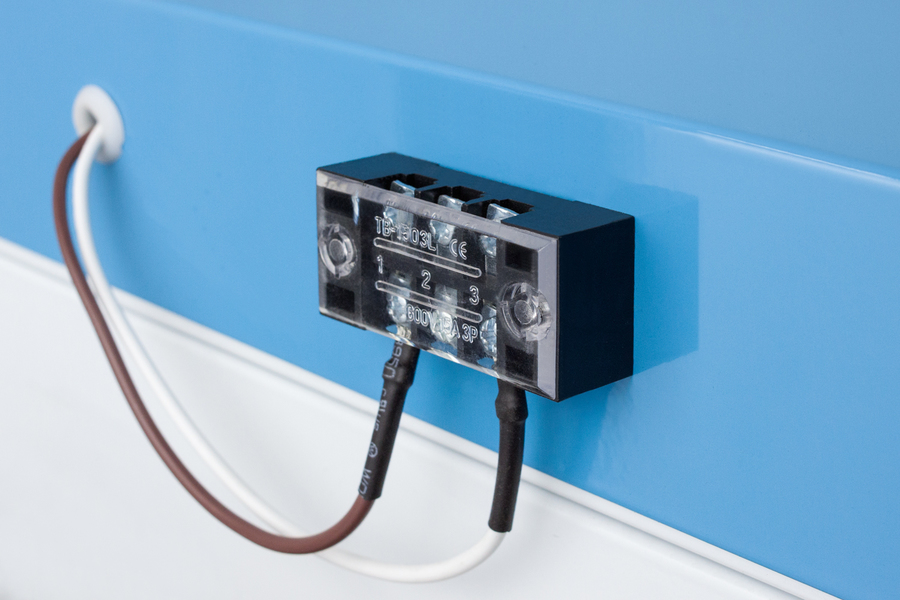

Remote alarm contacts
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

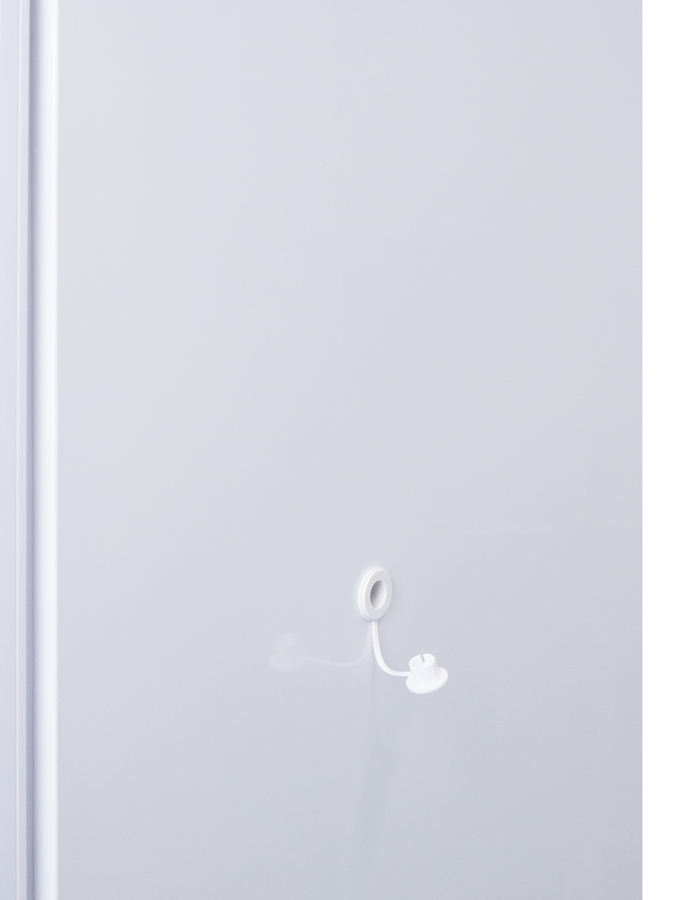

Access port
Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Open door alarm
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm
Audible and visual alarm warns if the sensor is disrupted
Password protection
Control panel requires password entry to adjust the parameters beyond the set point

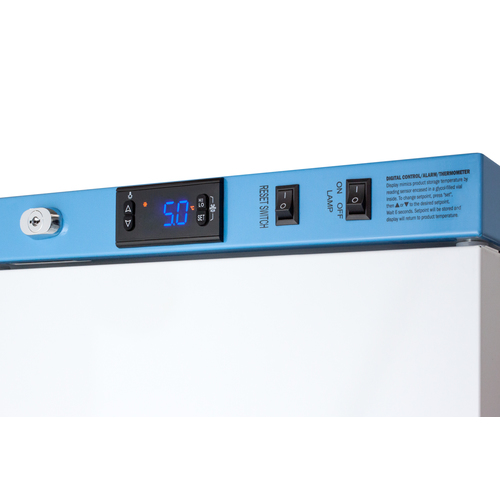

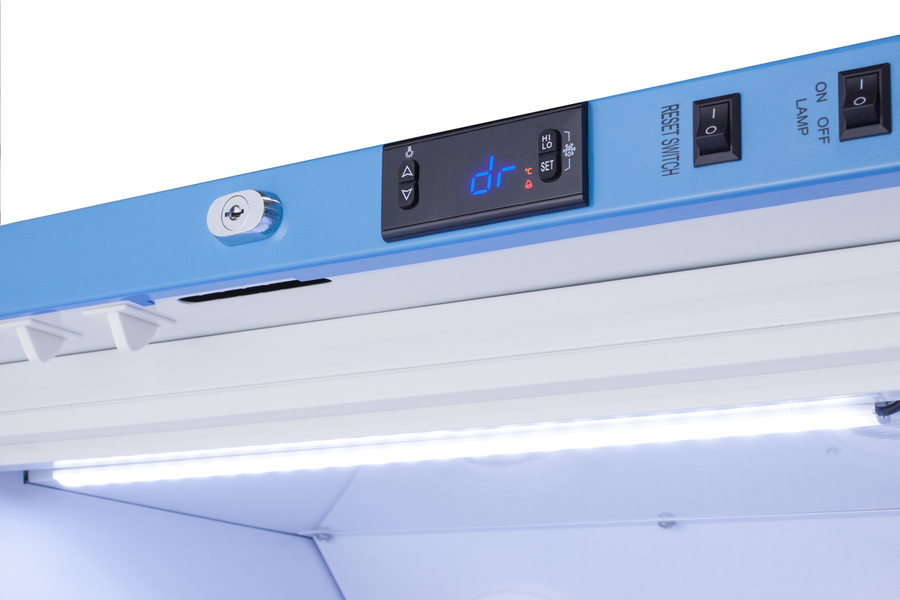

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

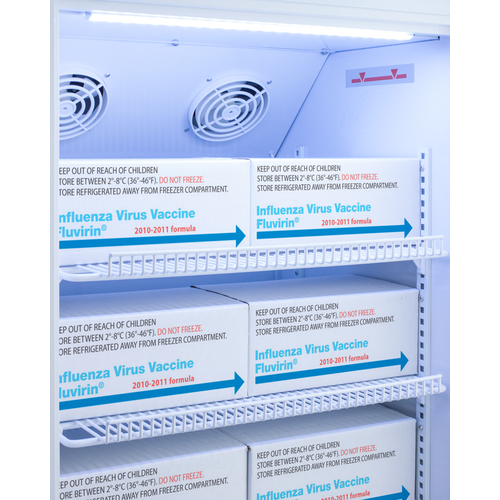

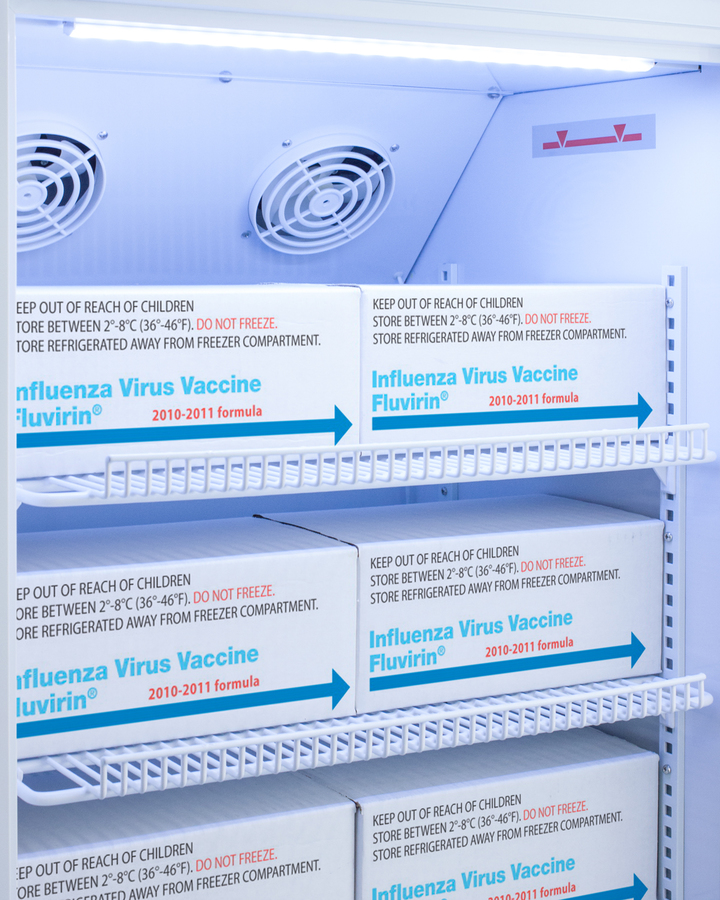

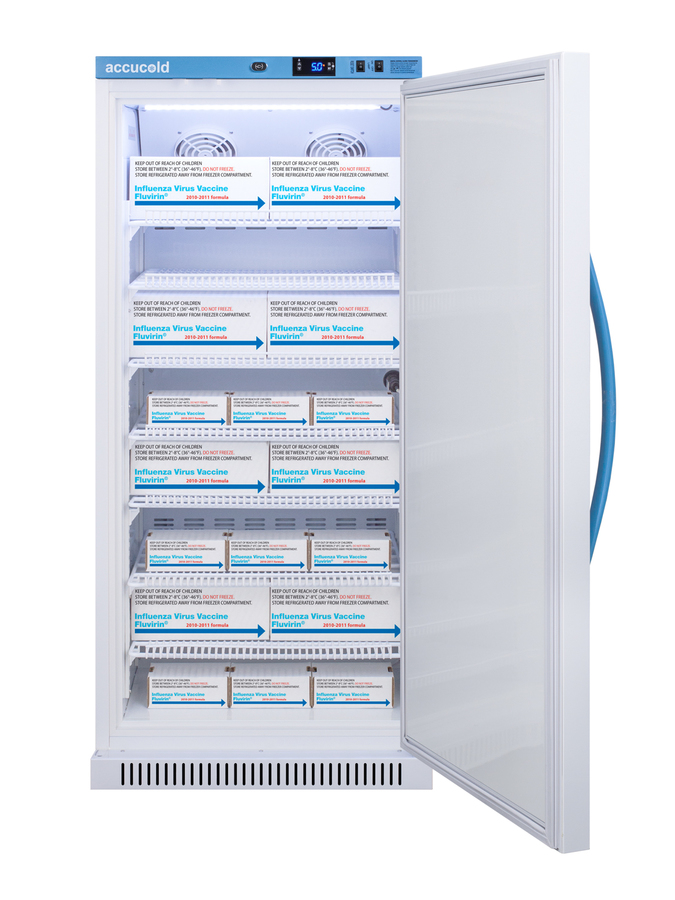

Adjustable plastic-coated wire shelves for improved circulation
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Durable interior
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Interior light
Energy efficient LED lighting with internal on/off switch
Self-closing door
Helps to ensure stored contents aren't overexposed to ambient temperature

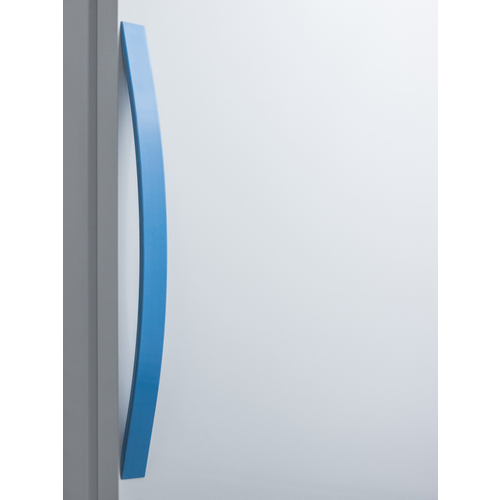

Easy-grip handle
17 1/2" long handle in blue finish for easy accessibility
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Extended warranty
2 years parts and labor/5 years compressor
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Additional choices
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
Versatile design
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 50.0" (127 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 46.5" (118 cm)
Capacity 8.0 cu.ft. (227 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 170.0 lbs. (77 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 7
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.73oz.
Interior Light Yes
Temperature Range 2 to 8ºC
Dimensions
Interior Height 41.25" (105 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Interior
LockBoxSS - Interior locking compartment
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
