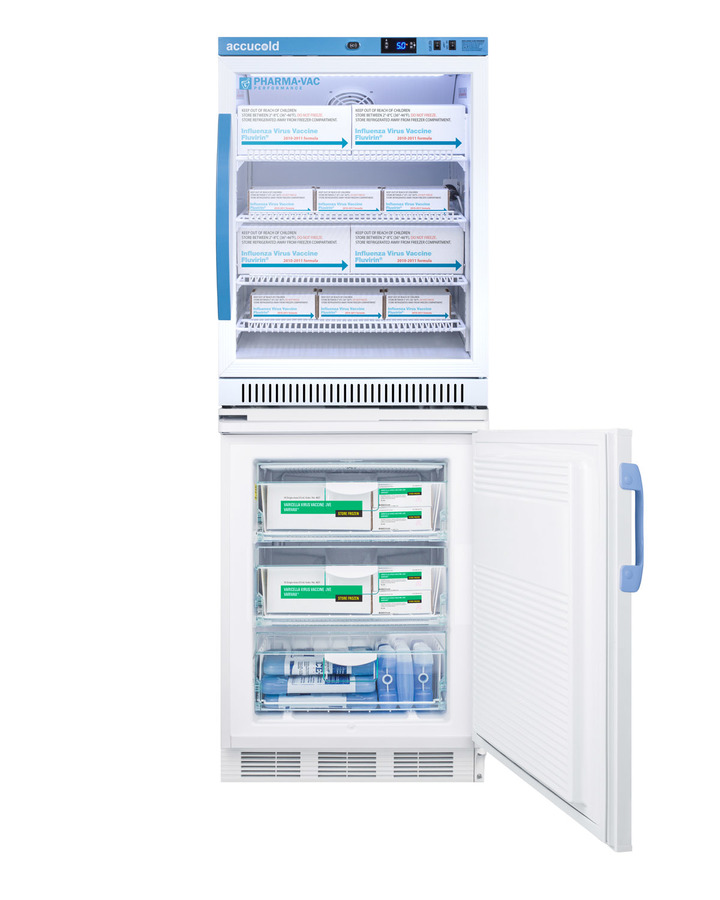

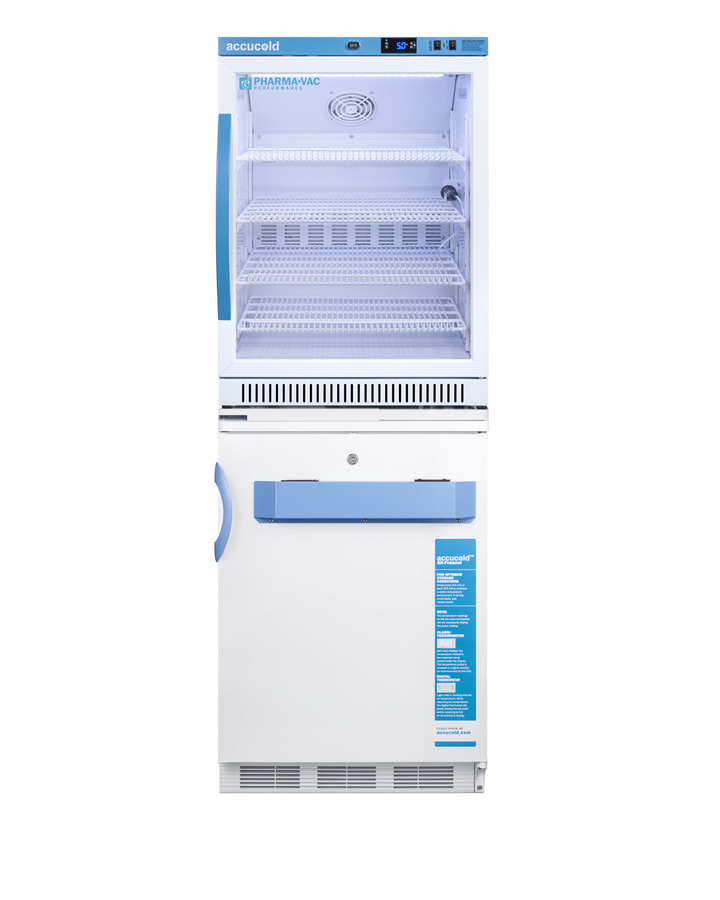

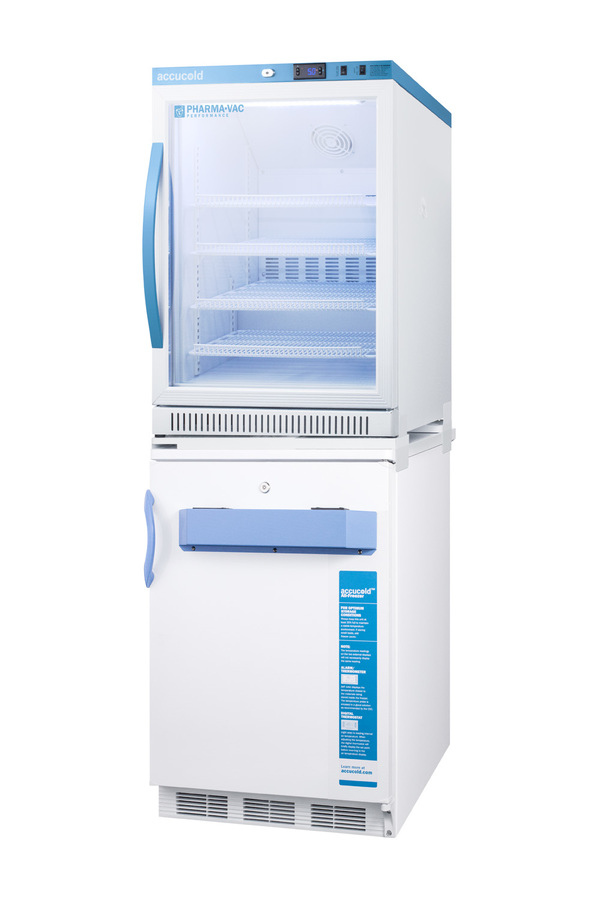

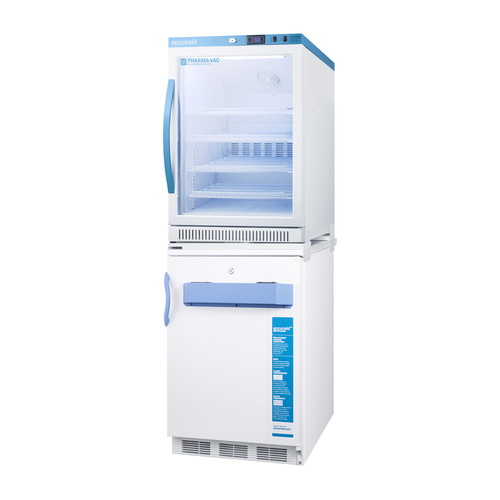

24" Wide All-Refrigerator/All-Freezer Combination

SKU: ARG6PV-VT65MLSTACKMED2

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

68.0" H x 23.63" W x 24.38" D

(173cm H x 60cm W x 62cm D)

OVERVIEW

  • Independent refrigerator and freezer storage in one slim-fitting footprint for space-challenged facilities
  • Intelligent microprocessor digital temperature controller for optimum temperature management

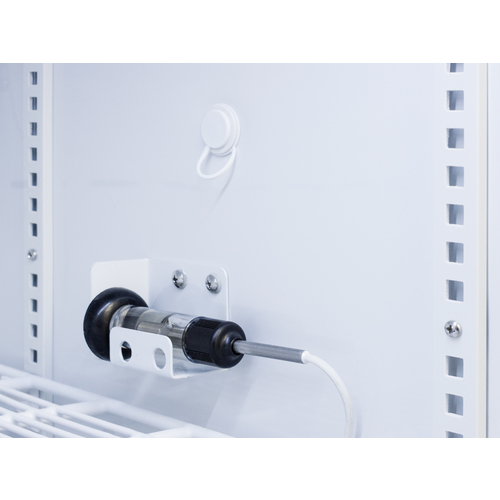

  • Improved temperature accuracy with a separate temperature probe for continuous product readout to simulate stored product temperature
  • Digital display of the min/max temperature in both units
  • Temperature viewable in Celsius or Fahrenheit to the nearest degree
  • Audible/visual alarms for high/low temperature excursions
  • Some assembly required

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 68.0" (173 cm)
Width 23.63" (60 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Capacity 9.2 cu.ft. (261 L)
Door Glass
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 24.5" (62 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 6.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.66 oz.
Freezer - Interior Height 24.25" (62 cm)
Freezer - Interior Width 17.63" (45 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Capacity 3.2 cu.ft
Thermostat Type Digital
Fan Type Interior
Freezer - Temperature Range -12º to -25ºC
Freezer - Refrigerant Type R134a
Freezer - Refrigerant Amount 2.76 oz.

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines.

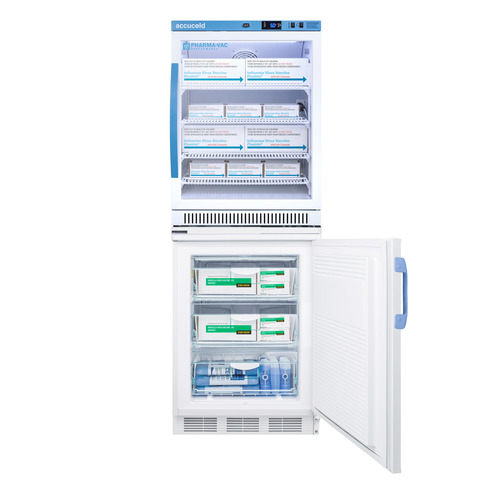

Sized just under 24" wide, the ARG6PV-VT65MLSTACKMED2 combines the 6 cu.ft. ARG6PV auto defrost all-refrigerator with VT65MLBIMED2 all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.

Refrigerator ARG6PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8ºC. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices.

Inside, the ARG6PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The refrigerator is designed to be stacked on top of the VT65MLBIMED2, a -25ºC all-freezer that utilizes manual defrost operation. The freezer includes three slide-out plastic storage drawers to better protect the contents from warmer ambient temperature when the door is opened. The digital control panel includes a NIST calibrated thermometer that provides a continuous display of the current and high/low temperature. This unit is also equipped with a temperature alarm and access port to accept additional monitoring equipment.

Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal. The refrigerator has a self-closing door for added protection in high traffic settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.

FEATURES

Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
+/-1ºC Variation (refrigerator)
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -20º to -15ºC (freezer)

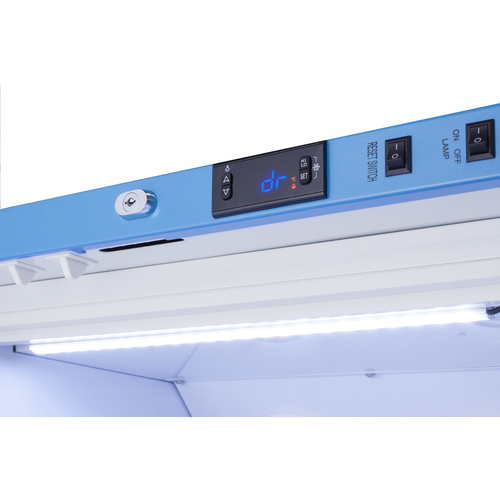

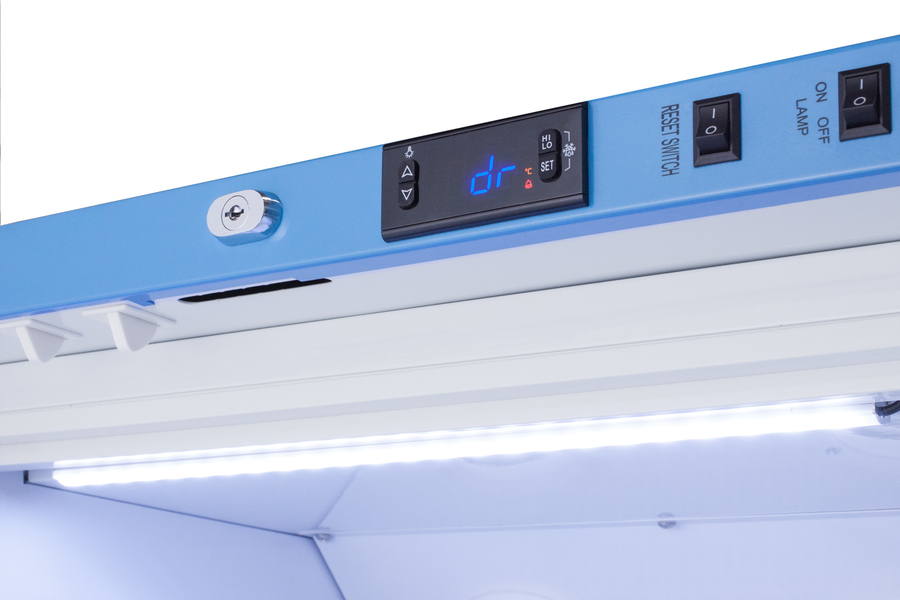

Temperature alarms
Visual and audible alarms alert if the interior temperature rises or falls out of set range

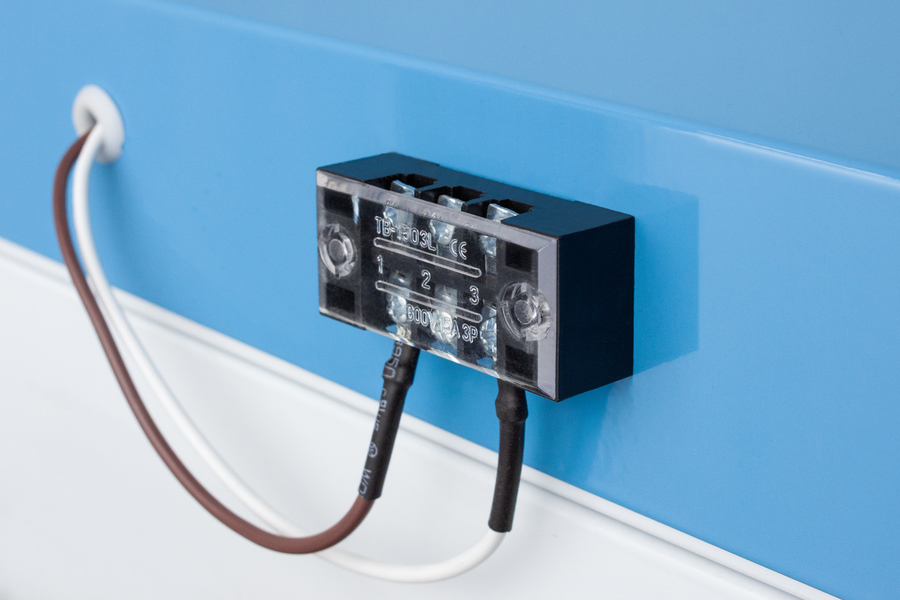

Remote alarm contacts (refrigerator)
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost (refrigerator)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Manual defrost (freezer)
Static cooling system for reduced temperature fluctuations
Access ports
Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Open door alarm (refrigerator)
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm (refrigerator)
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm (refrigerator)
Audible and visual alarm warns if the sensor is disrupted
Password protection (refrigerator)
Control panel requires password entry to adjust the parameters beyond the set point
Microprocessor control panels
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display (refrigerator)
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed locks
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

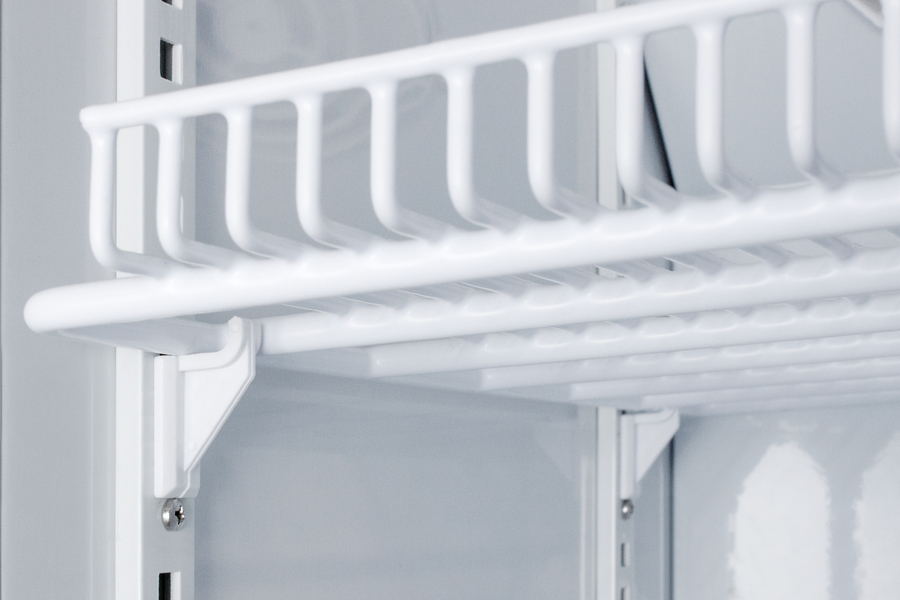

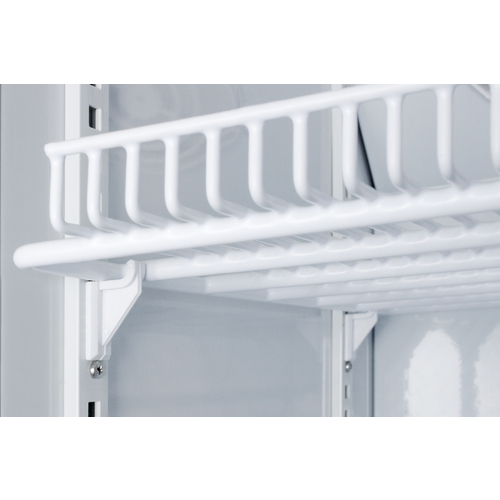

Adjustable plastic-coated wire shelves for improved circulation
Designed to accommodate a variety of sizes for flexible storage
Interior light (refrigerator)
Energy efficient LED lighting with internal on/off switch
Self-closing door (refrigerator)
Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Extended warranty
2 years parts and labor/5 years compressor
Eco-Friendly (refrigerator)
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Versatile design (refrigerator)
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 68.0" (173 cm)
Width 23.63" (60 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Capacity 9.2 cu.ft. (261 L)
Door Glass
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 24.5" (62 cm)
Refrigerator - Interior Width 20.0" (51 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Capacity 6.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8ºC
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.66 oz.
Freezer - Interior Height 24.25" (62 cm)
Freezer - Interior Width 17.63" (45 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Capacity 3.2 cu.ft
Thermostat Type Digital
Fan Type Interior
Freezer - Temperature Range -12º to -25ºC
Freezer - Refrigerant Type R134a
Freezer - Refrigerant Amount 2.76 oz.

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
