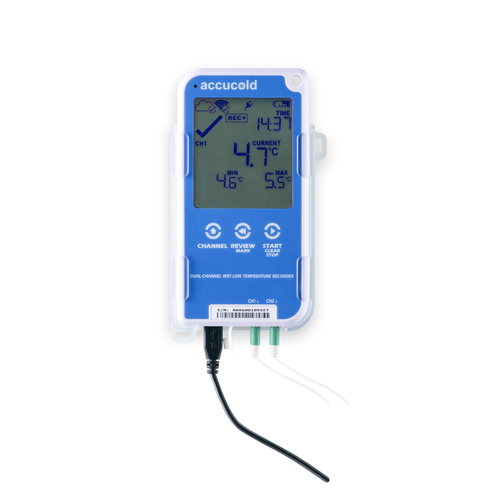

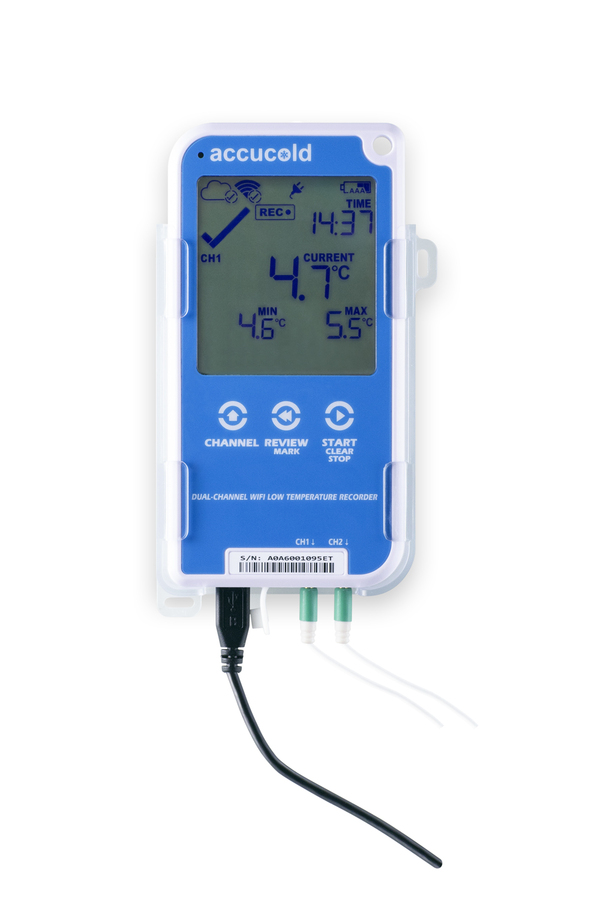

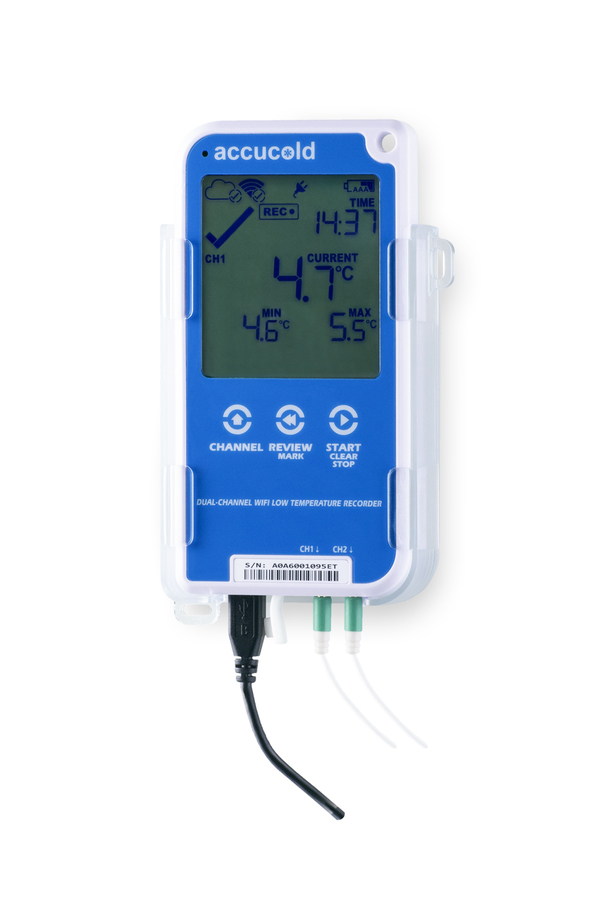

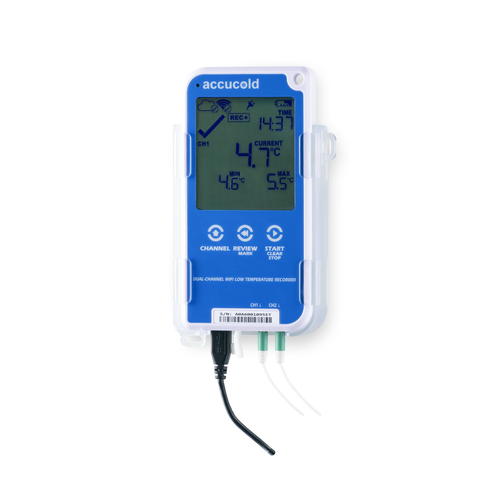

WiFi Enabled Dual Channel Digital Data Logger (DDL)

SKU: DL22BWIFIKIT
Cloud monitoring solution provides instant data access and alert notifications to ensure you never miss a critical event
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
3.5" H x 7.25" W x 3.25" D
(9cm H x 18cm W x 8cm D)

Overview
Height of Cabinet 3.5" (9 cm)
Width 7.25" (18 cm)
Depth 3.25" (8 cm)
Voltage/Frequency 115 V AC/60 Hz
Weight 3.0 lbs. (1 kg)
Parts & Labor Warranty 1 Year
UPC 761101146744

WiFi/Bluetooth Enabled Dual Channel Data Logger

Real-time monitoring with a fully enabled system to alert via the cloud

-90°C to +40°C Operating Range

Wide range to accommodate a variety of storage applications

Supports CDC guidelines recommending a "digital data logger"

Calibrated design and temperature display helps facilities meet CDC and VFC guidelines for monitoring vaccine storage

Large storage capacity

Sttores up to 32,000 readings (16,000 per channel)

Secure data collection

Meets FDA21 CFR Part 11

User-friendly design

Free intuitive software for convenient logging

Premium software tier

Optional 2-year program includes email, text, and call options

Real-time data

Temperature readings are updated to the cloud in real time

Temperature alarm

Audible and visual alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range

External readout

Logger provides a continuous readout of the current and high/low temperatures to the nearest tenth of a degree

Continous temperature display

Large screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout in Celsius or Fahrenheit to the nearest tenth of a degree

User-set logging interval

Users can program the timing interval for data logging, with a wide range of anywhere between 30 seconds and 18 hours

Reliable logging

Rated temperature reading accuracy: Better than ±0.5°C for -20°C to +10°C; Better than ±0.7°C for -50°C to -20°Cand +10°C to +30°C; Better than ±1°C for -80°C to -50°C and +30°C to +40°C; Better than ±1.8°C for -90°C to -80°C

Non-breakable buffer bottle with glass beads

Temperature sensor is enclosed inside a pharma-grade non-breakable bottle filled with glass beads

NIST calibrated digital data logger (DDL)

Unit is calibrated to NIST standards and ships with a 2-year certificate

Plug and cable included

Ships with a micro USB cable and wall plug

Backup battery system

Includes (2) AAA batteries and a CR2032 battery to maintain logging in the event of power loss

Easy installation

Mounting bracket and adhesive strips included to help position and stabilize the logger on any surface

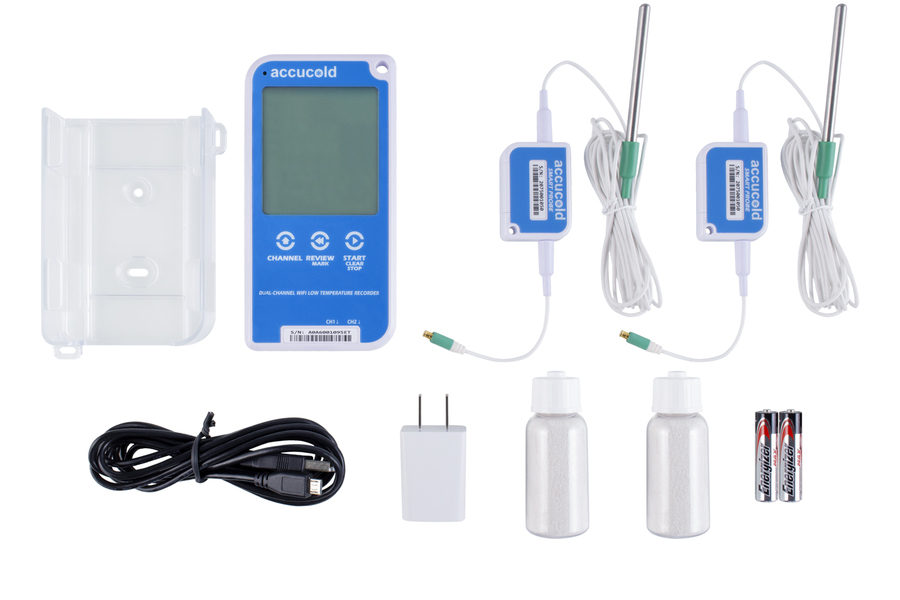

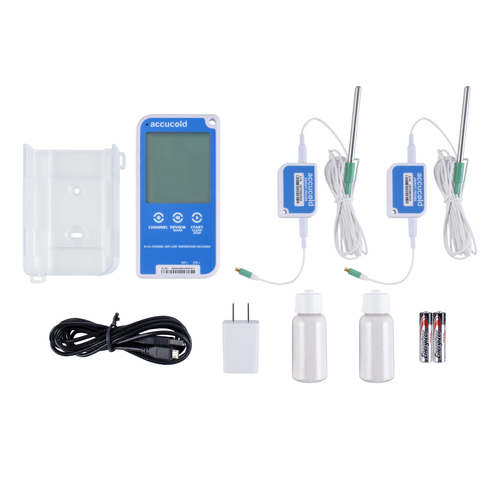

NOTE: The D22BWIFIKIT is for aftermarket installation. It ships in a single box with the following items included: temperature logger, calibrated smart probe, certificate of NIST calibration, 115V wall plug, micro USB cable, buffer bottle, wall-mount case, (2) AAA batteries, and a CR2032 backup battery.

Accucold brings true convenience and trusted reliability to temperature logging with the DL22BWIFIKIT digital data logger (DDL). With a NIST calibrated probe and large display, this data logger offers all the features needed for accurate and convenient temperature monitoring in a cloud-based system compatible with WiFi or Bluetooth. The basic data plan allows you to set up 2 email addresses for temperature alerts. Through LogTag Online (LTO), you can upgrade the logger with a 12-month paid subscription that includes unlimited email addresses, SMS alerts, and WhatsApp notifications (note: maximum of 25/month for use outside the U.S.). The mobile app enables access of the paid account to record, store, and share logger data, as well as to receive alarm notifications and to view readings without a computer. Data is uploaded to the cloud in real time for immediate notifications. Reports can easily be downloaded to your device

Designed for easy use with virtually any refrigerator or freezer, the DL22BWIFIKIT lets you set your own recording intervals (configurable from 30 seconds to 18 hours) for logging that meets your specific logging needs. This digital data logger can store up to 32,000 readings (16,000 per channel). Temperature accuracy is better than ±0.5°C when measuring between -20°C to +10°C, ±0.7°C for -50°C to -20°C and +10°C to +30°C, better than ±1°C for -80°C to -50°C and +30°C to +40°C, and better than ±1.8°C for -90°C to -80°C measurements.

This logger includes a mounting case with adhesive for sturdy but removable connection to your cold storage equipment. The smart calibrated probe connects to a non-breakable buffer bottle filled with glass beads. It is powered by a 115V wall plug and micro USB cable (included). We include a set of AAA batteries as the backup source, allowing you to continue to log readings in the event of a power outage.

With its flexible programming capabilities and user-friendly interface, the DL22BWIFIKIT creates an easy and reliable solution to temperature logging. By providing a detailed and accurate temperature record, this DDL meets CDC and VFC recommendations for logging and monitoring vaccine storage.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
