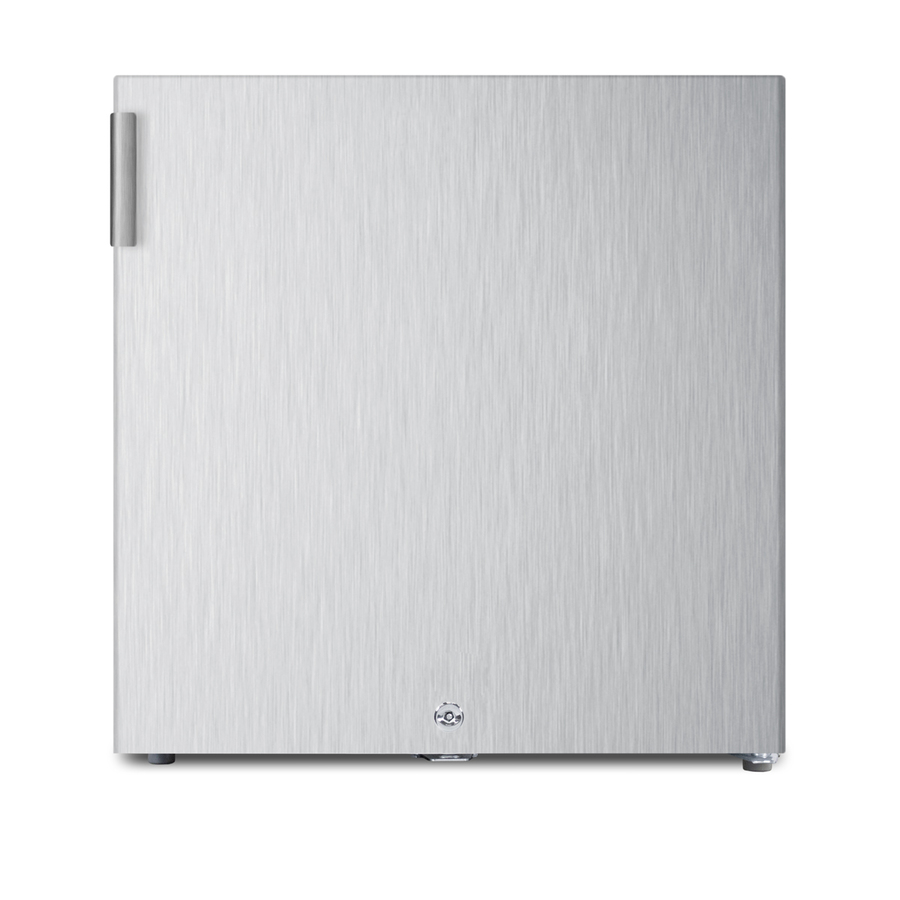

FS24LCSS

FS24LCSS

Compact size for countertop use

20.0" H x 18.75" W x 17.75" D

(51cm H x 48cm W x 45cm D)

OVERVIEW

  • Compact "cube" size is ideal for use on top of counters
  • Stainless steel wrapped exterior
  • Factory installed lock provides security you can count on
  • Designed for general purpose use in medical and scientific facilities
  • Reversible door offers flexible placement

SPECIFICATIONS

Overview
Height of Cabinet 19.75" (50 cm)
Height to Hinge Cap 20.0" (51 cm)
Width 18.75" (48 cm)
Depth 17.75" (45 cm)
Depth with Handle 18.5" (47 cm)
Depth with door at 90° 34.75" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 41.0 lbs. (19 kg)
Shipping Weight 65.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEY
Extra keys available for purchase
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

ACCUCOLD by SUMMIT Appliance offers a quality line of general purpose all-freezers designed for reliable cold storage in medical, scientific, and laboratory facilities.

The FS24LCSS is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. The dial thermostat is located inside. This unit has a flat door liner as recommended by the CDC.

The FS24LCSS comes in a fully wrapped stainless steel exterior. The reversible door  includes a factory installed lock. This model can also be customized with a variety of upgrades, including a digital thermostat, temperature alarm, data logger, and more. For a similar refrigerator, see the FFAR24LCSS.

FEATURES

Compact size
Convenient "cube" shape is ideal for use on top of counters
Stainless steel wrapped exterior
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting durability
Factory installed lock
Keyed lock for a secure interior
Manual defrost
Static cooling system
One-piece interior liner
Seamless interior for easier cleanup
Removable shelf
Includes one wire shelf for easier storage
Reversible door
User reversible door swing for added flexibility
Adjustable thermostat
Dial thermostat for easy temperature management
Flat door liner
Designed to comply with CDC guidelines
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 19.75" (50 cm)
Height to Hinge Cap 20.0" (51 cm)
Width 18.75" (48 cm)
Depth 17.75" (45 cm)
Depth with Handle 18.5" (47 cm)
Depth with door at 90° 34.75" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 41.0 lbs. (19 kg)
Shipping Weight 65.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Lock
KEY
Extra keys available for purchase

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FS24LCSS.pdf
Download
TECHNICAL DRAWING (.dwg)
FS24LCSSFREEZERA-C2000.dwg
Download
USE & CARE
FS24LManual.pdf
Download
MSDS INFORMATION
R134a_AO.pdf
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
