Compact All-Freezer

SKU: FS24L

Compact size for countertop use, with a front lock for added security

Estimated Time to Ship:

Next day shipping

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

20.0" H x 18.5" W x 17.63" D
(51cm H x 47cm W x 45cm D)

Overview
Nominal Height	20.0" (51 cm)
Height of Cabinet	19.63" (50 cm)
Height to Hinge Cap	20.0" (51 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.63" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.4 cu.ft. (40 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	31.0 lbs. (14 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101033792
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
High Side PSI	110.0
Low Side PSI	70.0
Level Legs	2
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	DLPWF - Factory installed NIST calibrated wireless environmental temperature monitoring device NIST calibrated wireless environmental temperature monitoring device for cloud-based data management

Handle

TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection	AMHandle - Antimicrobial handle Antimicrobial coated stainless steel handle to reduce germ spread

Compact size

Convenient "cube" shape is ideal for use on top of counters

Factory installed lock

Keyed lock for a secure interior

Manual defrost

Static cooling system

One-piece interior liner

Seamless interior for easier cleanup

Removable shelf

Includes one wire shelf for easier storage

Reversible door

User reversible door swing for added flexibility

Adjustable thermostat

Dial thermostat for easy temperature management

Flat door liner

Designed to comply with CDC guidelines

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

ACCUCOLD by SUMMIT Appliance offers a quality line of general purpose all-freezers designed for reliable cold storage in medical, scientific, and laboratory facilities.

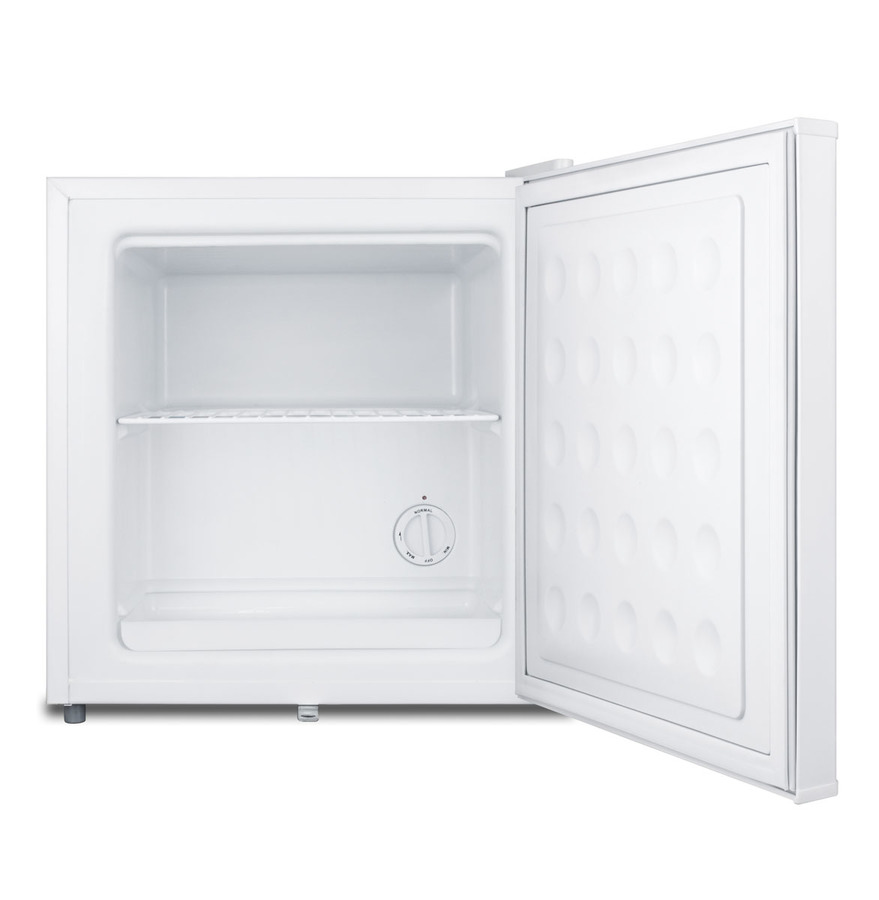

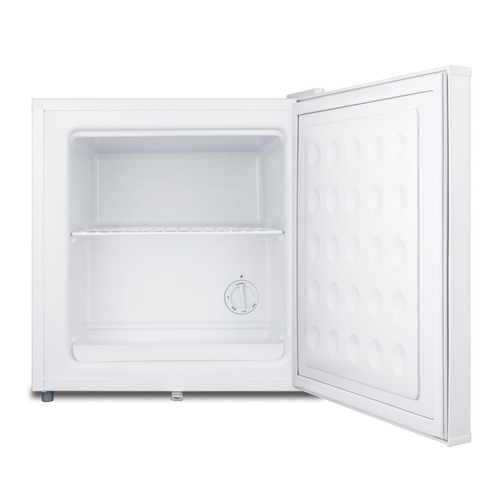

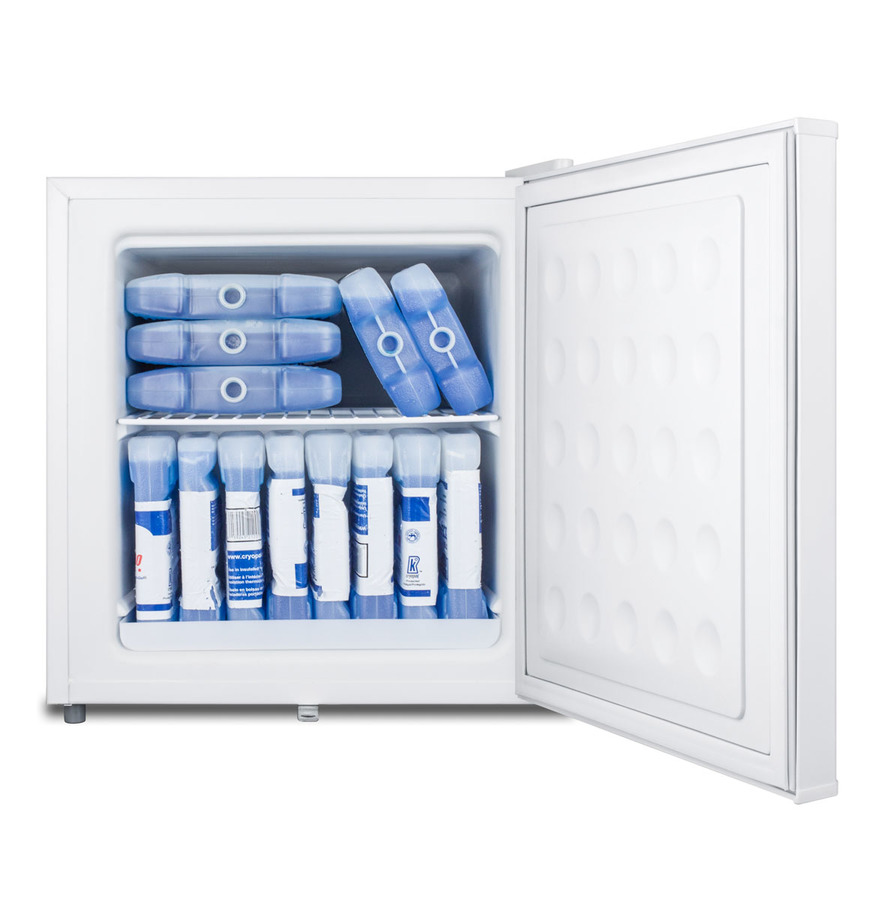

The FS24L is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. The dial thermostat is located inside. This unit has a flat door liner as recommended by the CDC.

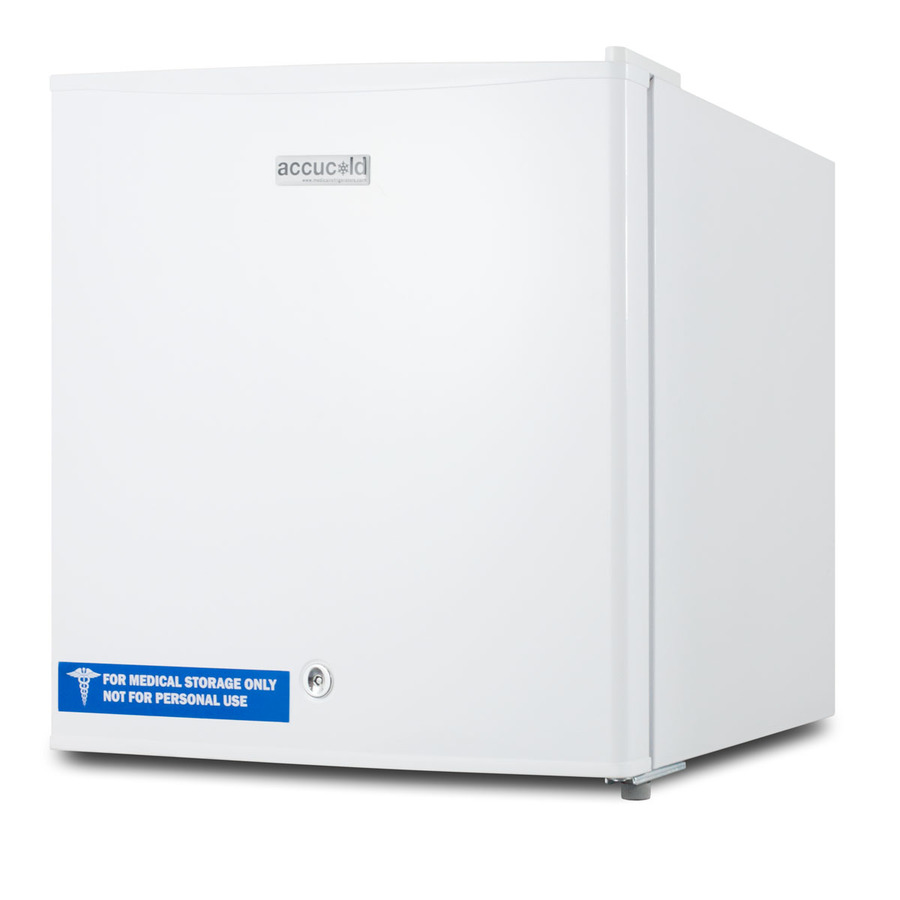

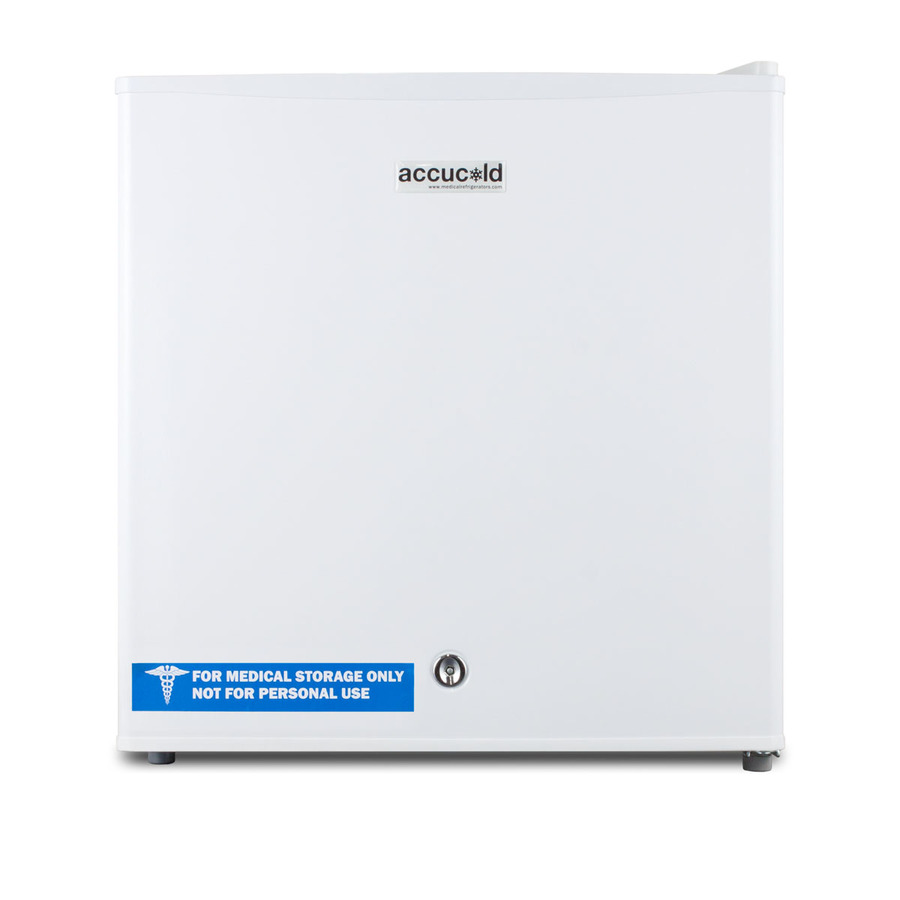

The FS24L includes a factory installed lock for added security, with a reversible door that offers more convenience when placing the unit. This model can also be customized with a variety of upgrades, including a digital thermostat, temperature alarm, data logger, and more.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
FS24L.pdf

TECHNICAL DRAWING (.dwg)
FS24LFREEZERA-C2000.dwg

REVIT MODEL
Qf_Summit_FS24L_Compact_All-Freezer.rfa

USE & CARE
FS24L_R600a_Use_and_Care_06.2021.pdf

ACCUCOLD CATALOG
Accucold_Cold_Storage_Solutions_Catalog.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
