FS30LPRO Matching refrigerator 1fb6556d9b0cb2e64cec9dc4031ce73c627b001b680e10e944813b0725db703e

Factory-installed probe hole accommodates user-provided monitoring equipment

24.63" H x 18.5" W x 17.75" D

(63cm H x 47cm W x 45cm D)

OVERVIEW

  • Compact size is ideal for countertop use
  • Factory installed access port allows users to install their own monitoring equipment
  • -20°C capable with manual defrost operation
  • Includes a hospital grade cord with a 'green dot' plug
  • Convenient security with a factory installed keyed lock

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Exterior
TT - Installed thermometer

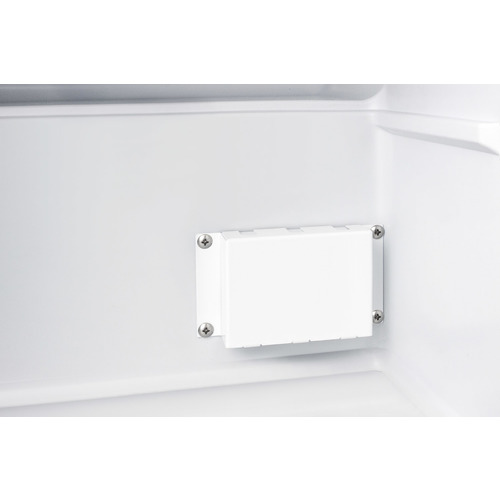

ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
TH - Installed thermometer
Add a solar powered thermometer with external temperature readout
DL2 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold's PRO Series features all-refrigerators and all-freezers designed for reliable temperature stability in institutional settings.

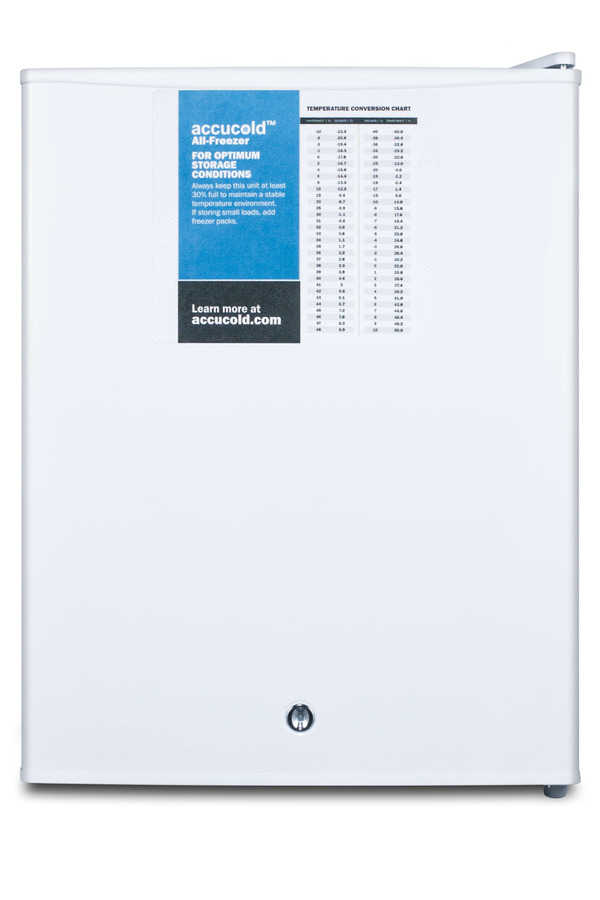

The FS30LPRO is a compact all-freezer for use in hospitals, doctors' offices, and other facilities with specific temperature needs. We include a factory-installed lock for keyed security. A hospital grade cord with a 'green dot' plug offers added safety in high traffic areas. This unit has a digital thermostat mounted on top of the cabinet to allow users to modify the temperature without opening the door.

This manual defrost -20ºC capable unit features four removable interior drawers with clear fronts, ideal for keeping contents protected from ambient temperature when the door is opened. It has a flat door liner as recommended by the CDC and VFC. An access port is installed in the rear to allow users to install their own temperature monitoring equipment.

The FS30LPRO can be paired with a matching all-refrigerator (model FF28LWHPRO). Additional options, including NIST calibrated temperature alarms and data loggers, can also be added. Contact our product specialists for more information.

FEATURES

Compact dimensions
Sized for easy use on top of counters

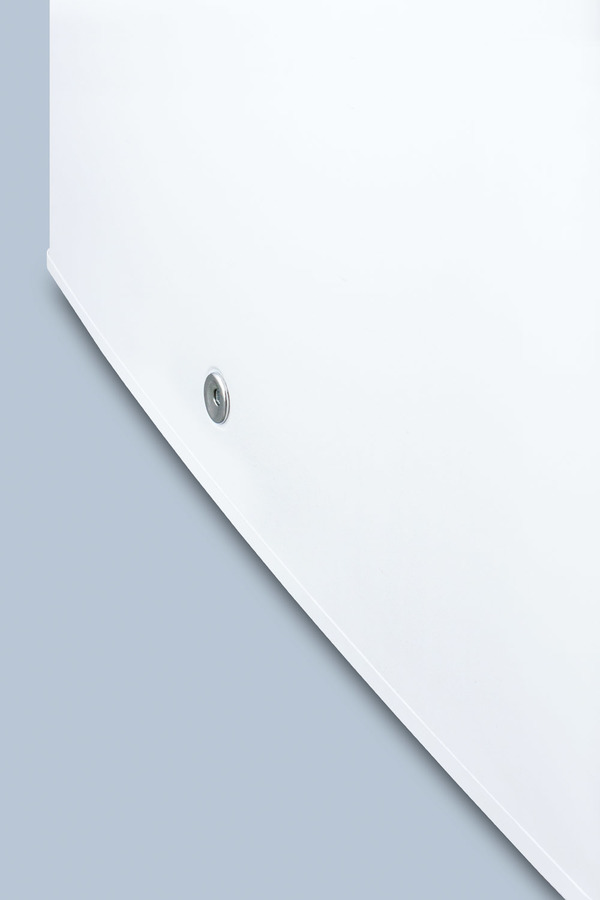

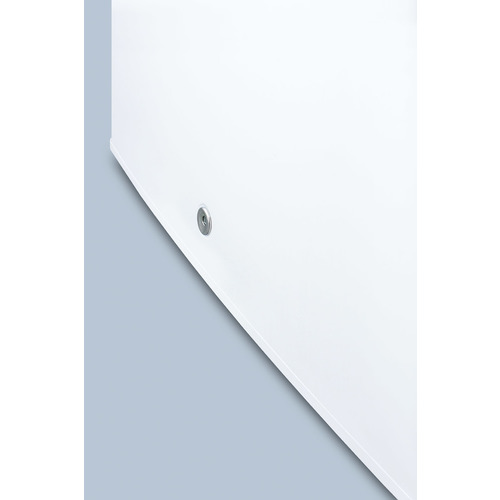

Factory installed lock
Keyed lock for a secure interior
Manual defrost
Static cooling system for improved temperature stability
-20ºC capable
Low temperature capability ideal for certain sensitive items
Access port
Includes a factory installed probe hole for users to install their own monitoring equipment

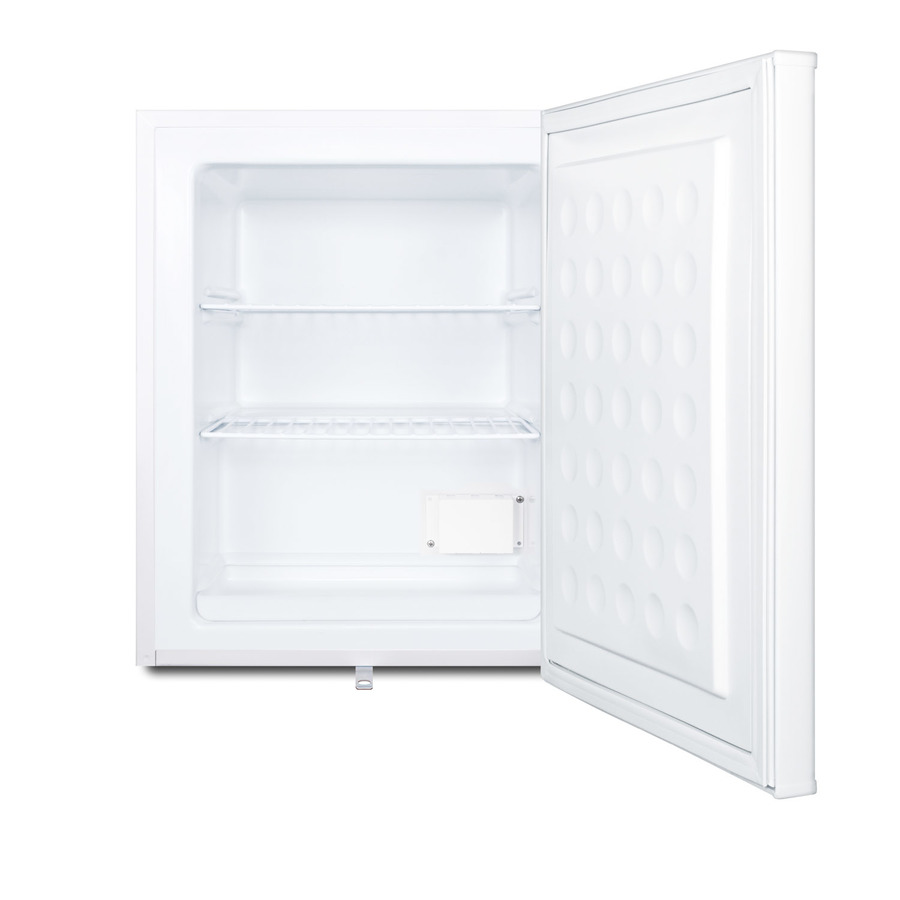

Removable shelves
Wire shelves can be removed to accommodate different sizes or for easy cleanup
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Adjustable thermostat
Dial thermostat located inside the unit
Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Fully finished cabinet
Allows the unit to be used freestanding
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Exterior
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
TH - Installed thermometer
Add a solar powered thermometer with external temperature readout
DL2 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FS30LPRO.pdf
Download
TECHNICAL DRAWING (.dwg)
FS30L_FREEZERA-C2000.dwg
Download
MSDS INFORMATION
R600a_AO.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
