1.4 Cu.Ft. Vaccine Freezer

SKU: AFZ1PV
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
Out of Stock; ETA:

05/31/2024

22.25" H x 18.5" W x 23.25" D
(57cm H x 47cm W x 59cm D)

Overview
Height of Cabinet 22.25" (57 cm)
Width 18.5" (47 cm)
Width with Door Open 18.88" (48 cm)
Depth 23.25" (59 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 42.5" (108 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 73.0 lbs. (33 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101106632
Freezer
Door Swing RHD
Reversible Yes
Interior Height 16.5" (42 cm)
Interior Width 15.25" (39 cm)
Interior Depth 15.75" (40 cm)
Shelf Type Wire
Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R290a
Refrigerant Amount 0.85 oz.
High Side PSI 280.0
Low Side PSI 130.0
Compressor Step Height 8.25" (21 cm)
Compressor Step Width 15.25" (39 cm)
Compressor Step Depth 4.25" (11 cm)
Temperature Range -30 to -10ºC

Exterior
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator

Performance Series freezer

Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Adjustable temperature

Intuitive controls let you adjust the interior temperature between -30°C to -10ºC

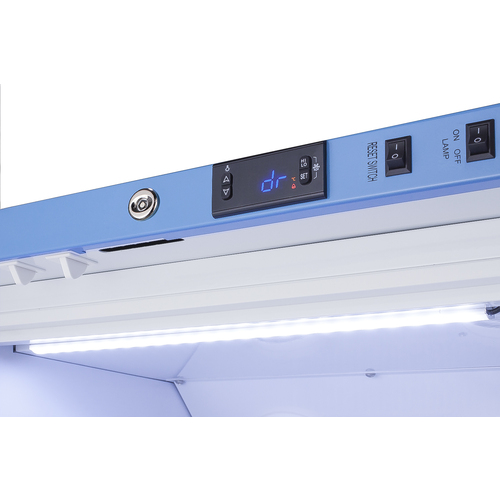

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

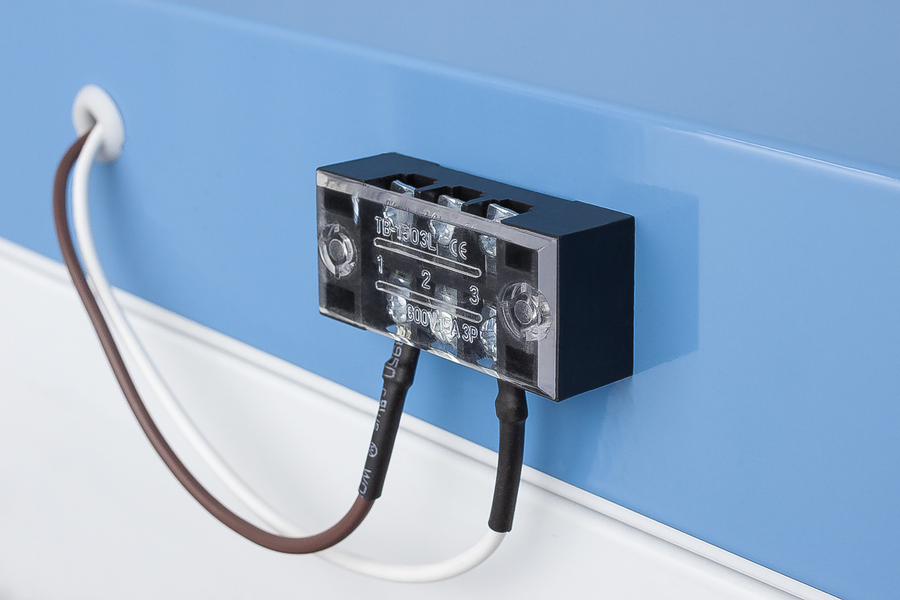

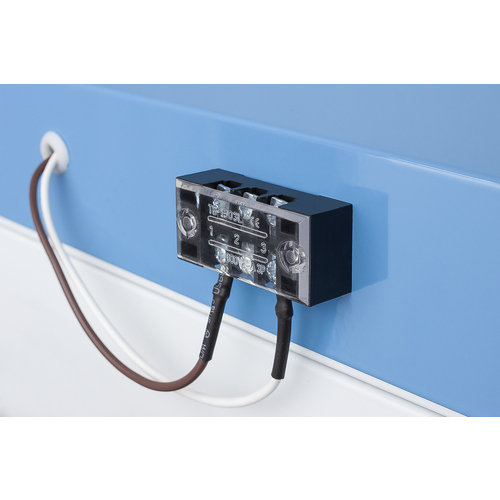

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Manual defrost operation

Static cooling system for an efficient and stable interior

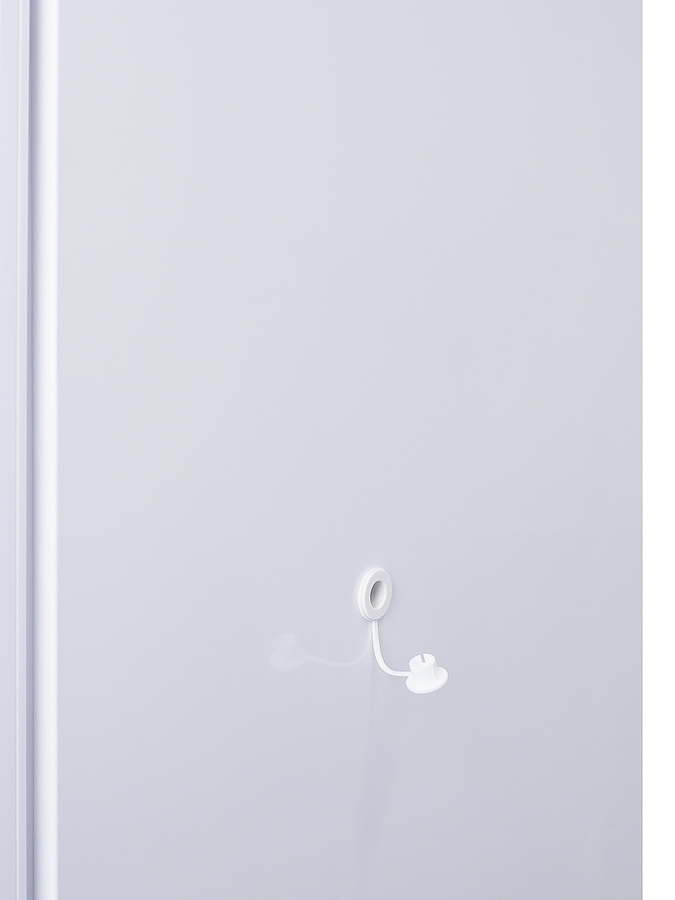

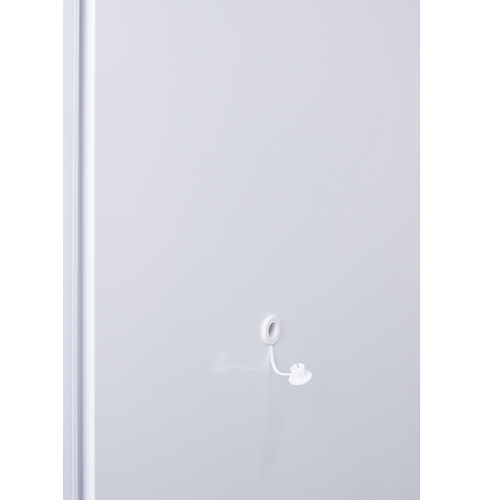

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

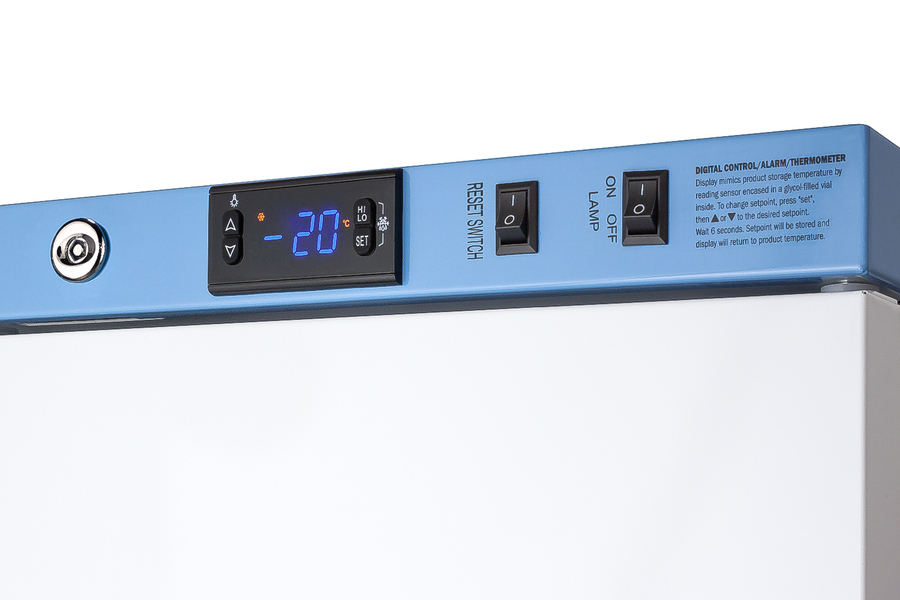

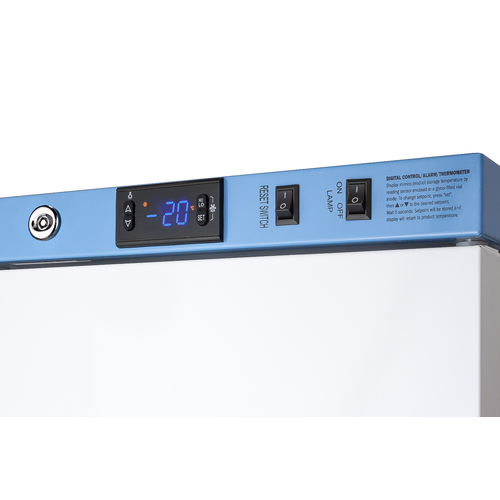

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

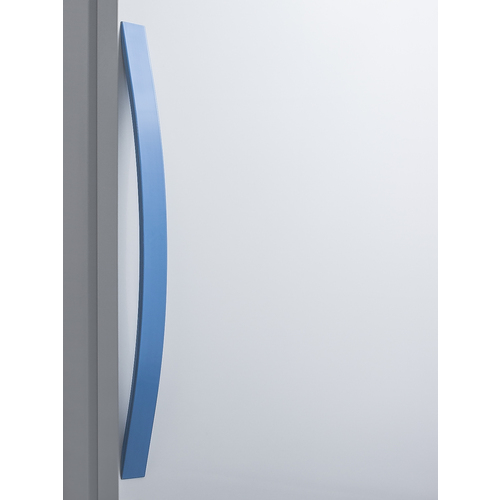

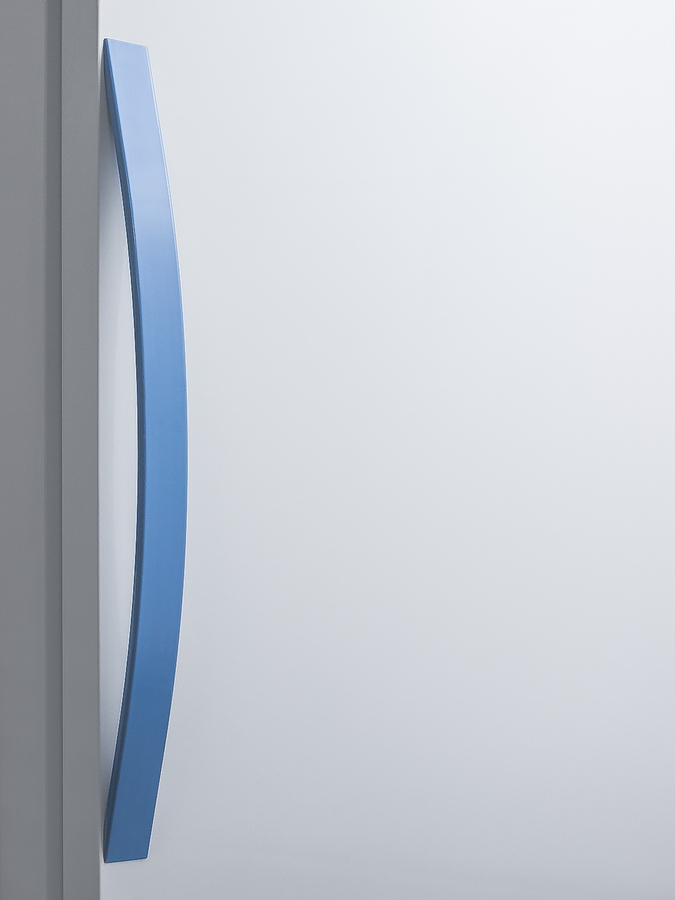

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

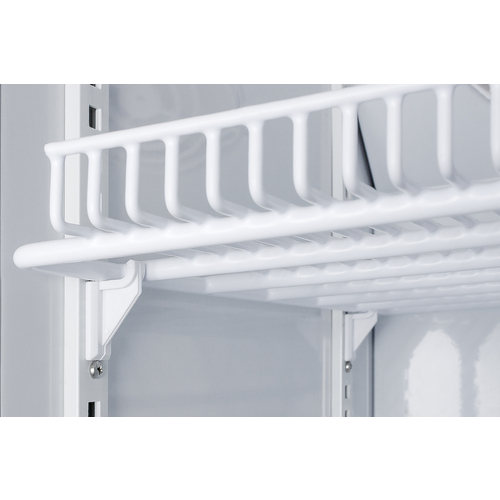

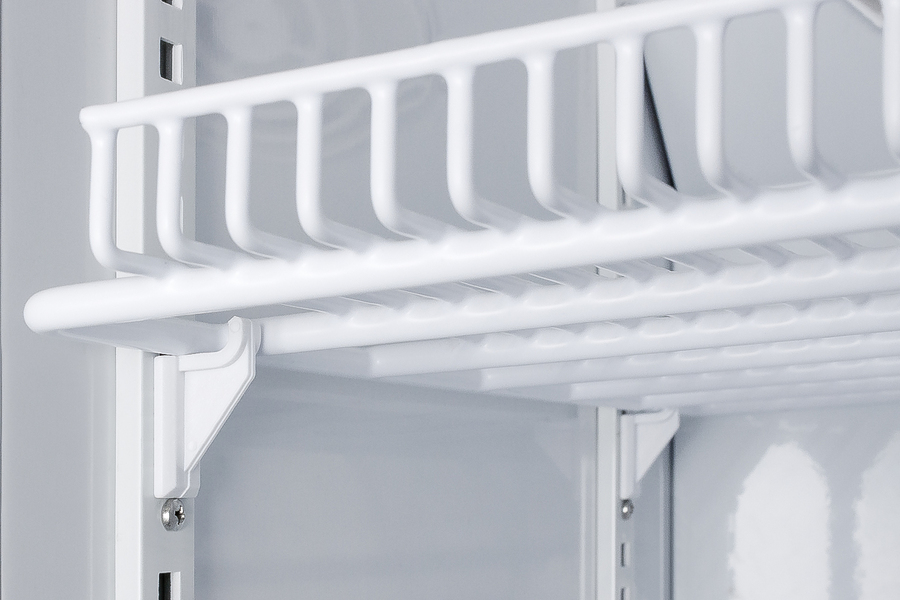

Adjustable plastic-coated wire shelves for improved circulation

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings

Reversible door

User-reversible door swing for added flexibility

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet

Allows the unit to be used freestanding

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Matching refrigerator

Pair with Accucold ARS2PV (solid door) or ARG2PV (glass door) as a stackable or side-by-side set

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

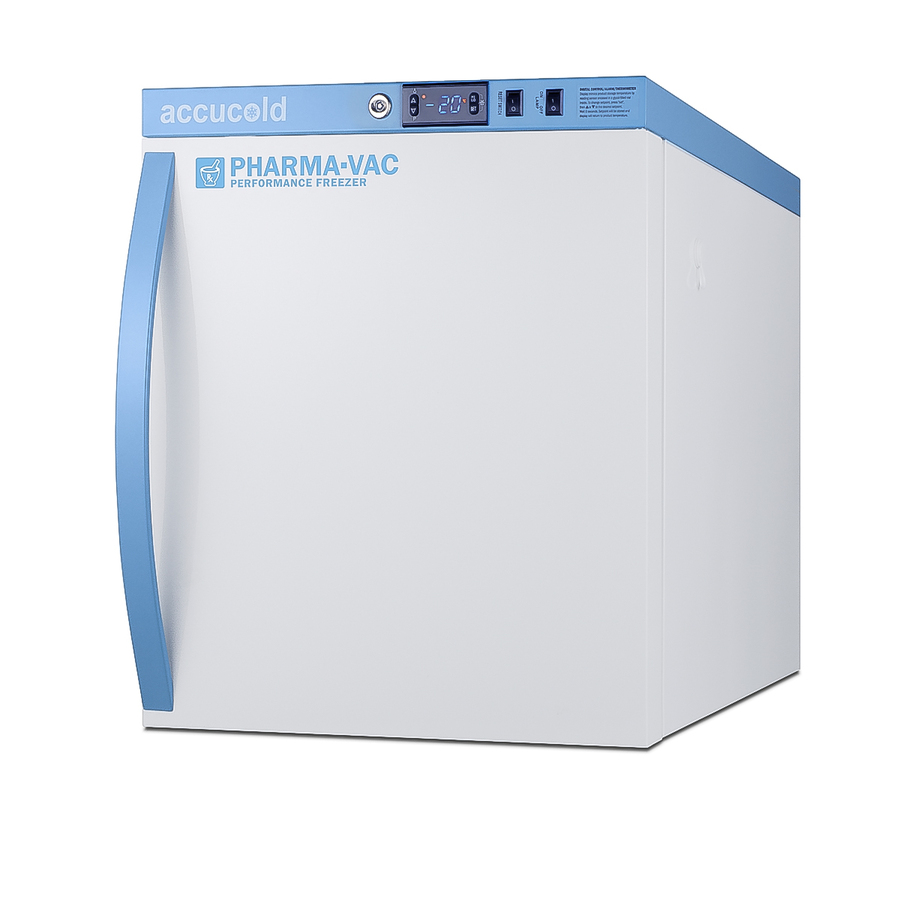

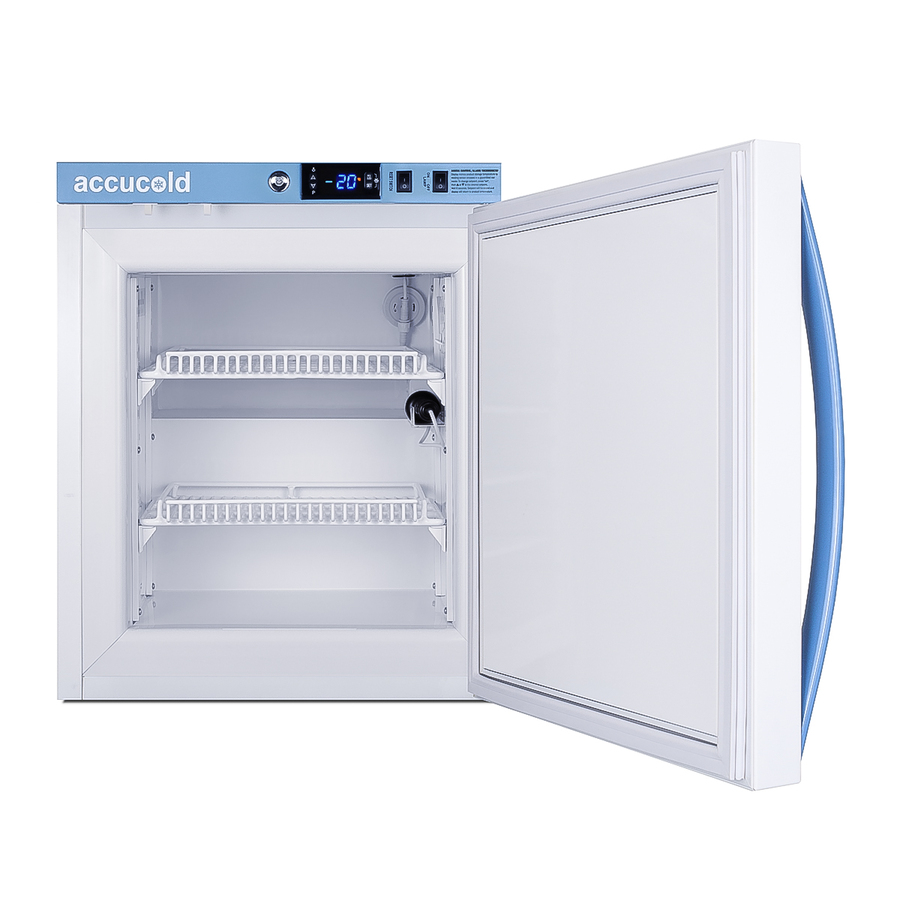

Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines.

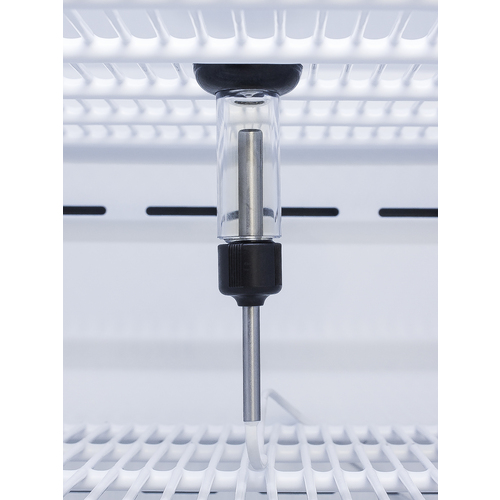

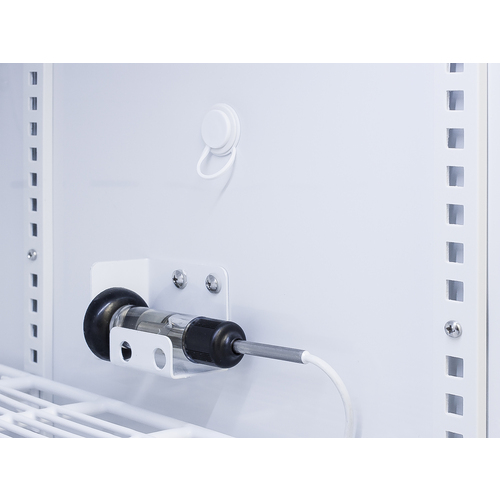

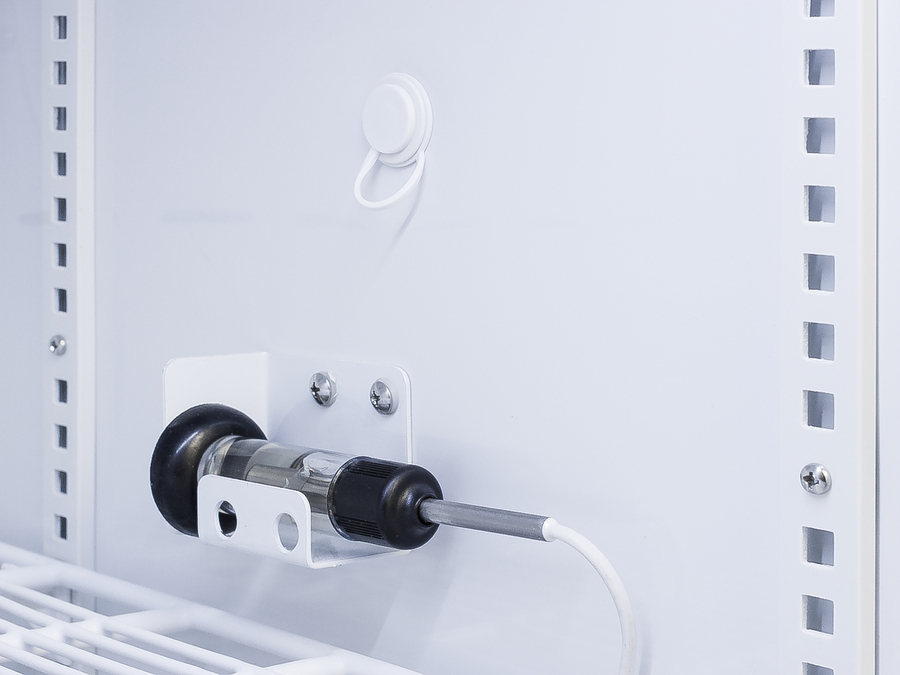

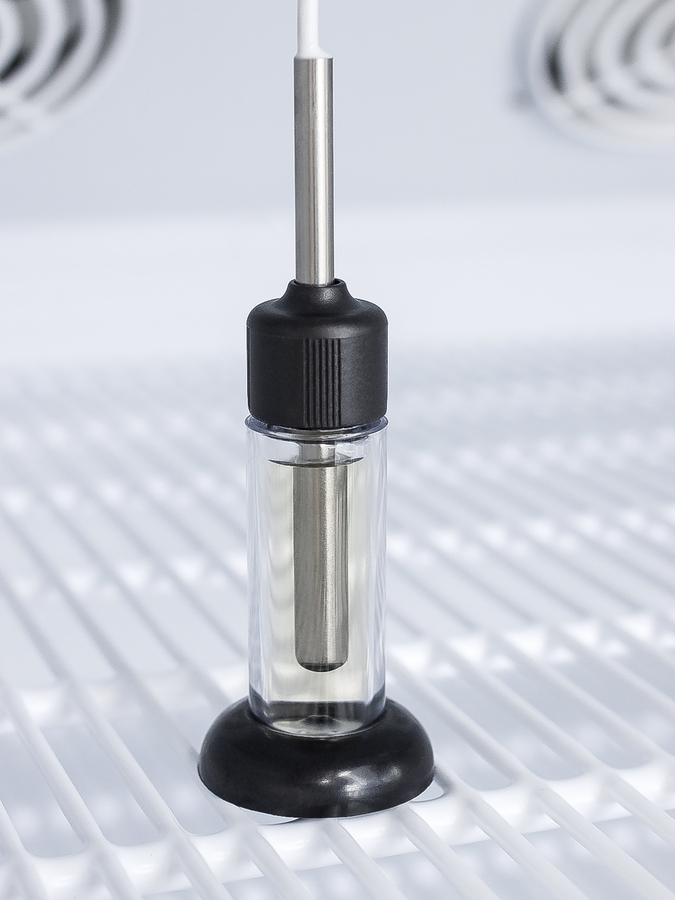

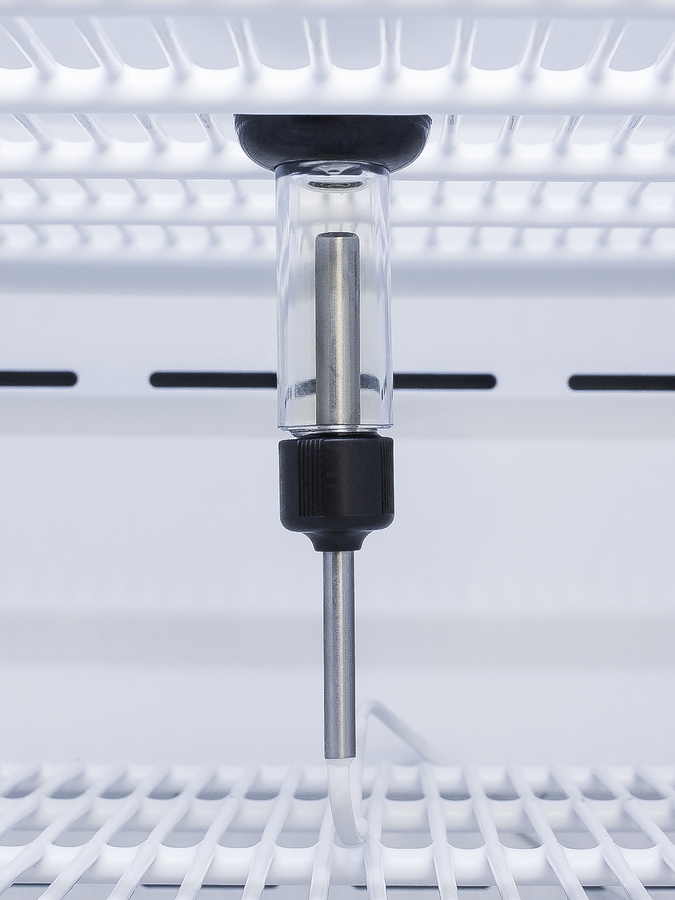

The AFZ1PV is a 1.4 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

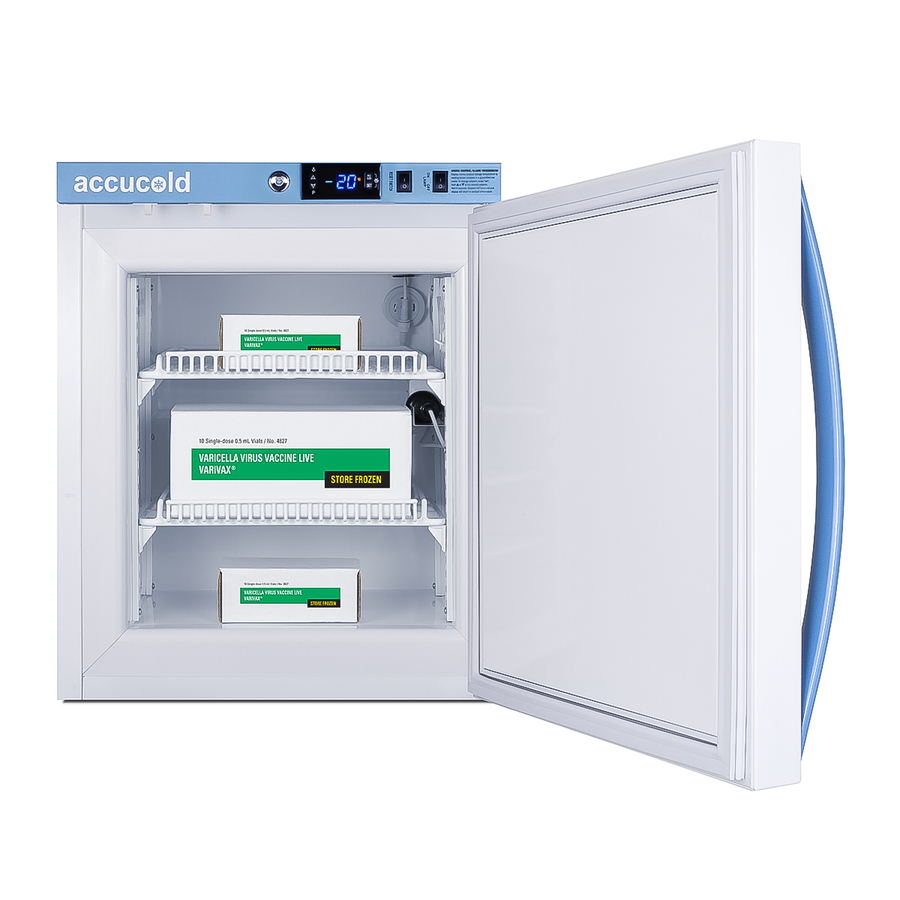

Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.

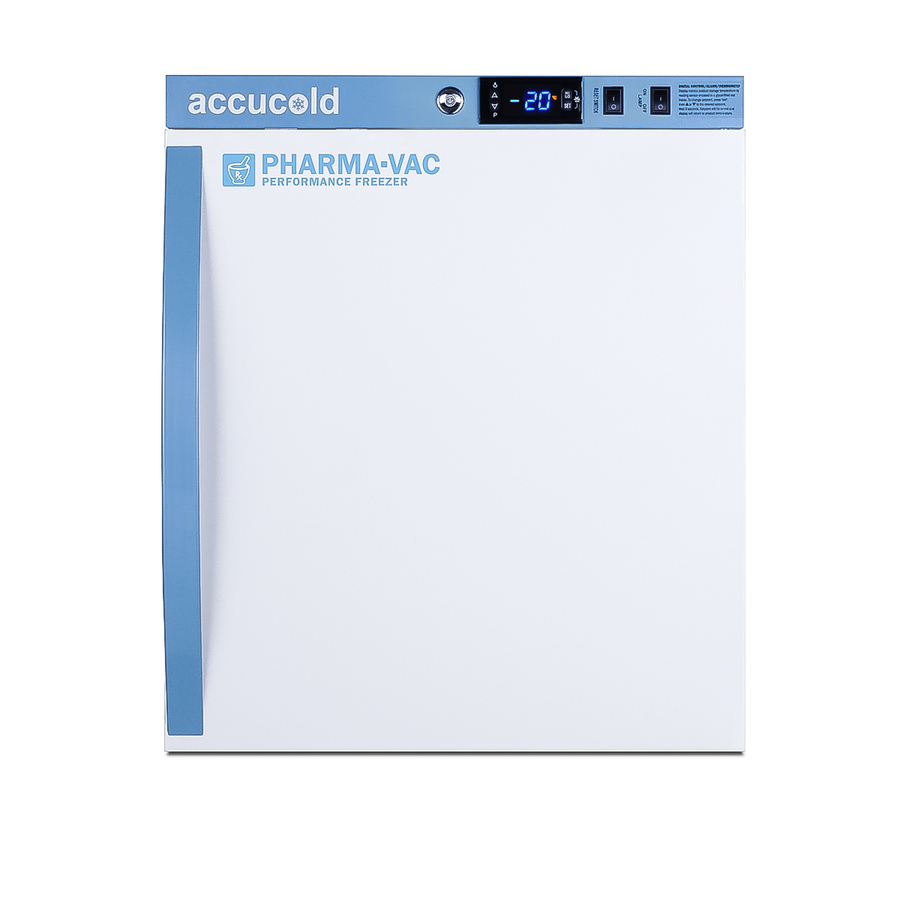

The AFZ1PV comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, Accucold Performance series freezers provide an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as matching refrigerators, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
AFZ1PV.pdf
Download
TECHNICAL DRAWING (.dwg)
AFZ1PV.dwg
Download
ASSEMBLY DRAWING
AFZ1PV-Assembly.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
