24" Wide Built-In All-Freezer

SKU: VT65MLBIVAC Matching refrigerator

-25°C energy efficient medical grade freezer

33.5" H x 23.63" W x 23.63" D

(85cm H x 60cm W x 60cm D)

OVERVIEW

  • Medical grade design conforms with CDC guidelines for vaccine storage
  • Capable of operating at -25º C for long-term preservation of temperature sensitive materials
  • Interior drawers ensure stored items are not exposed to room temperature when the door is open
  • Digital thermostat allows more precision in temperature control
  • High/low temperature alarm includes NIST calibrated temperature readout of the interior
  • Flexible design allows built-in or freestanding use in 24" spaces
  • Self-closing door and hospital grade plug protect unit in high traffic areas
  • Access port with contact allows users to install their own monitoring equipment

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Legs to raise unit height
6" high leveling legs
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Made in Europe, the VT65MLBIVAC is a front-breathing all-freezer designed for built-in installation under counters, with a fully finished cabinet that also allows freestanding use. The 3.2 cu.ft. interior offers static cooling for stable results. Four slide-out storage baskets with clear plastic fronts ensure that stored items are not exposed unnecessarily to room temperature. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the VT65MLBIVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. An access port with a contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.

The VT65MLBIVAC can be paired with the FF7LBIVAC all-refrigerator for a matching set. For this unit in a 32" ADA compliant height, see the VT65MLBIVACADA. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.

FEATURES

Slim undercounter dimensions
24" footprint is ideal for use under the counter
Built-in capable
Front-breathing design allows built-in installation under counters
-25º C/-13º F capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Digital thermostat
Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree
Self-closing door
Door closes automatically when opened at angles less than 90º
Access port with contact
Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
Hospital grade cord and plug
Secure three-pronged cord for added unit safety
Factory installed lock
Keyed lock offers added security
Manual defrost
Static cooling system for reduced temperature fluctuations

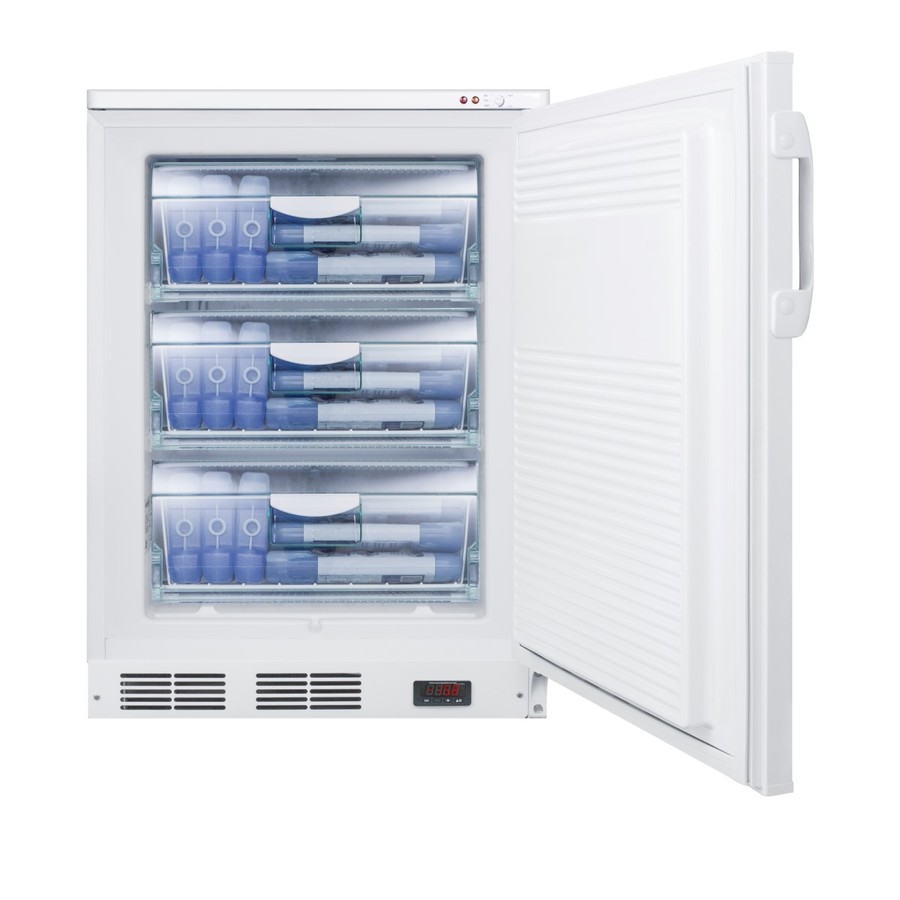

Three slide-out drawers
Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Fully finished white cabinet
Allows the unit to be used freestanding
Height Adjustable
Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
Factory reversible door
Standard unit ships RHD but can be ordered LHD
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Legs to raise unit height
6" high leveling legs
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
VT65MLBIVAC.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
Download
MSDS INFORMATION
R134a_safety_list.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
