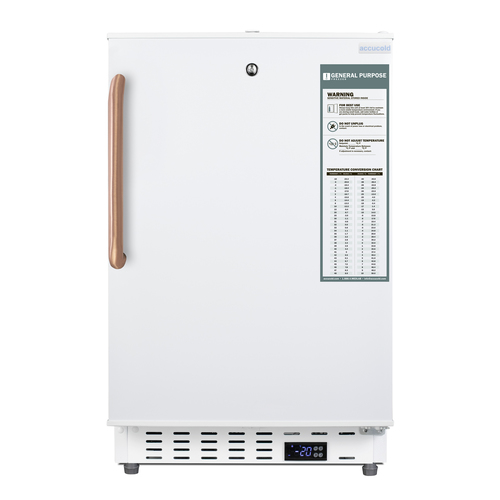

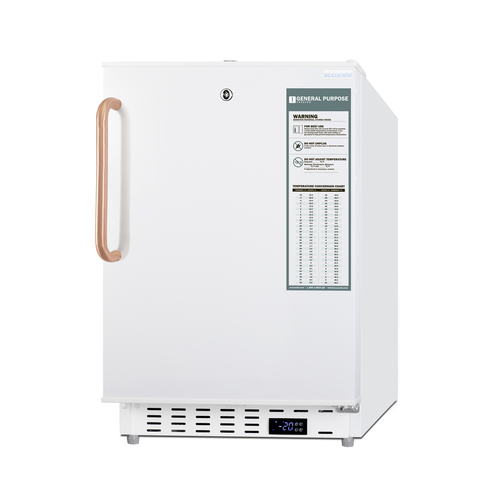

20" Wide Built-In Vaccine All-Freezer, ADA Compliant

SKU: ADA305AFTBC

Slim-fitting ADA compliant undercounter freezer ideal for providing extra storage to small-spaced medical settings, with a pure copper handle for added protection from bacteria

Estimated Time to Ship: 3 to 5 days
How to Buy
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.0" H x 19.75" W x 22.5" D

(81cm H x 50cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.47 cu.ft. (70 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077741
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Shelf Type Drawers
Shelf Qty 3
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.34 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -25° to -15°C

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Exterior
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
CAS6 6" casters
6" high NSF listed casters
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

ADA compliant design
32" height allows easy installation under lower ADA compliant counters
-25°C capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Commercially approved
Meets ETL-S to NSF-7 standards for use in commercial settings
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

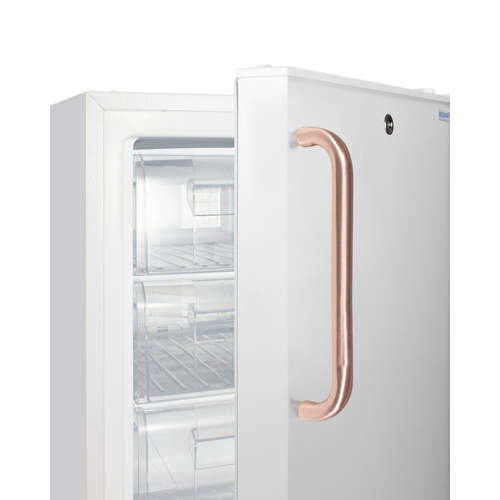

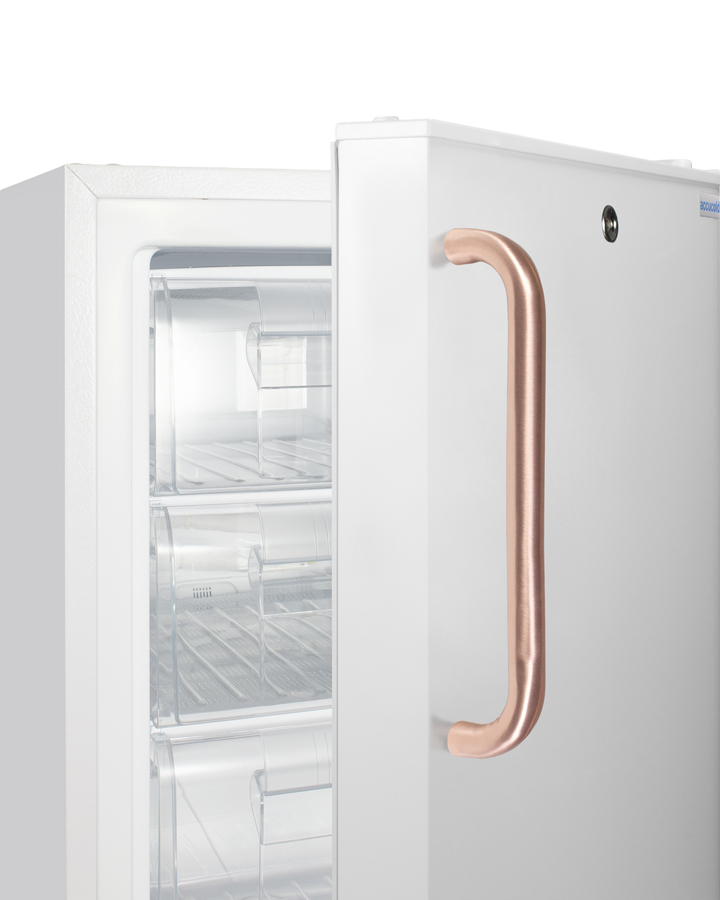

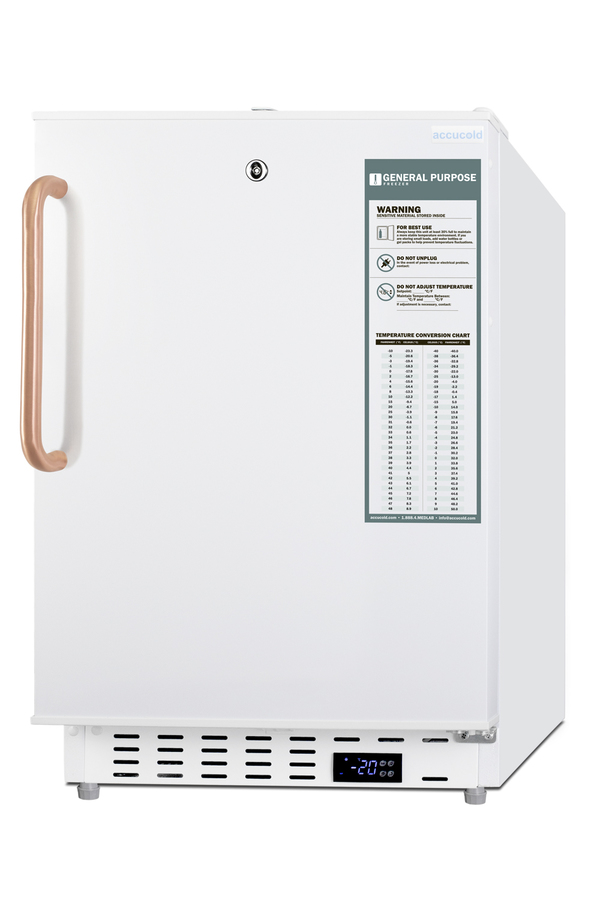

Copper handle
Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

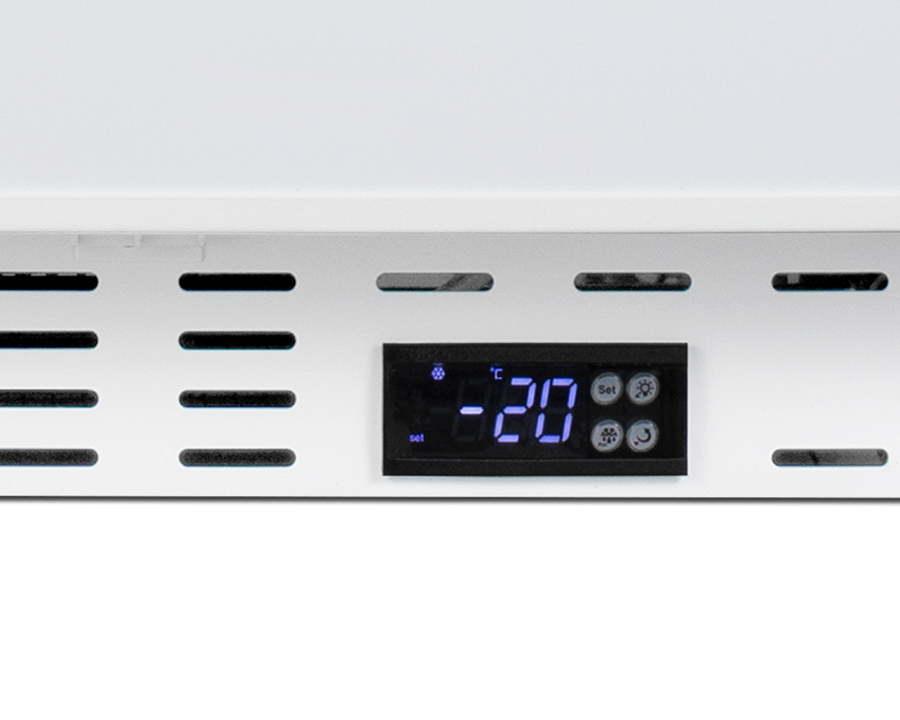

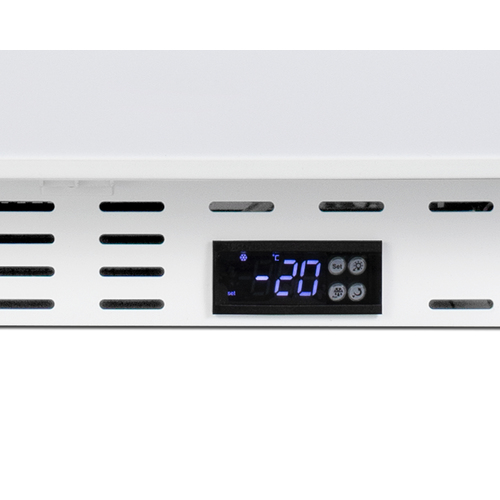

Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

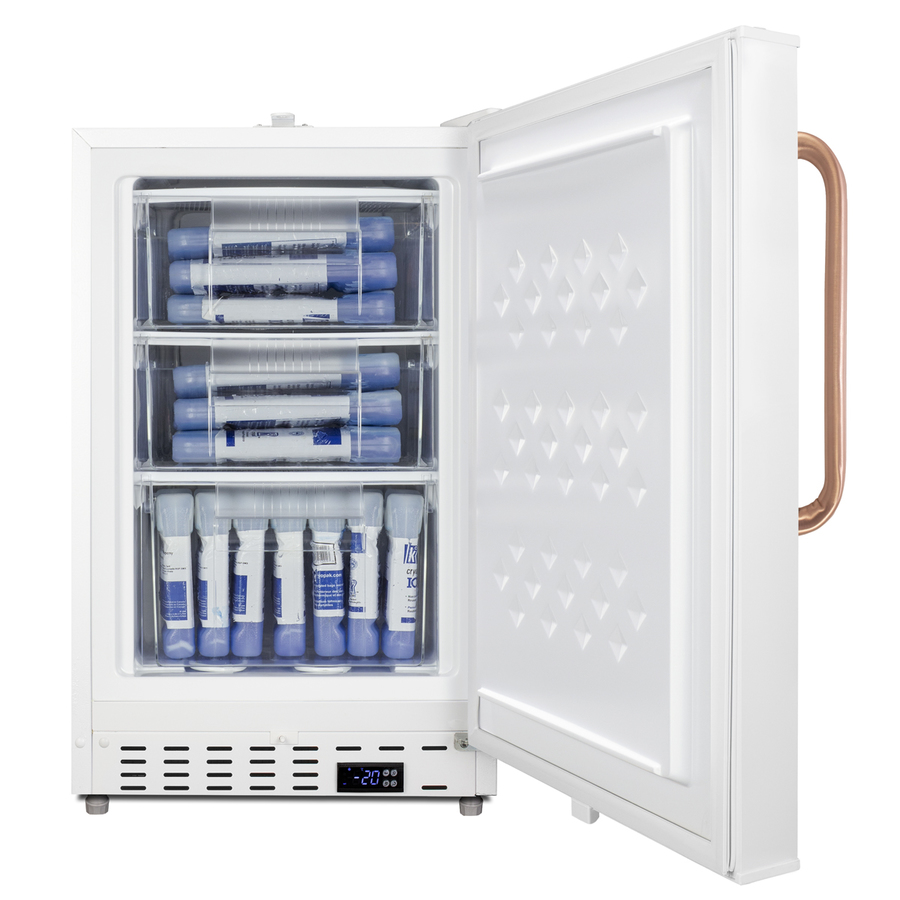

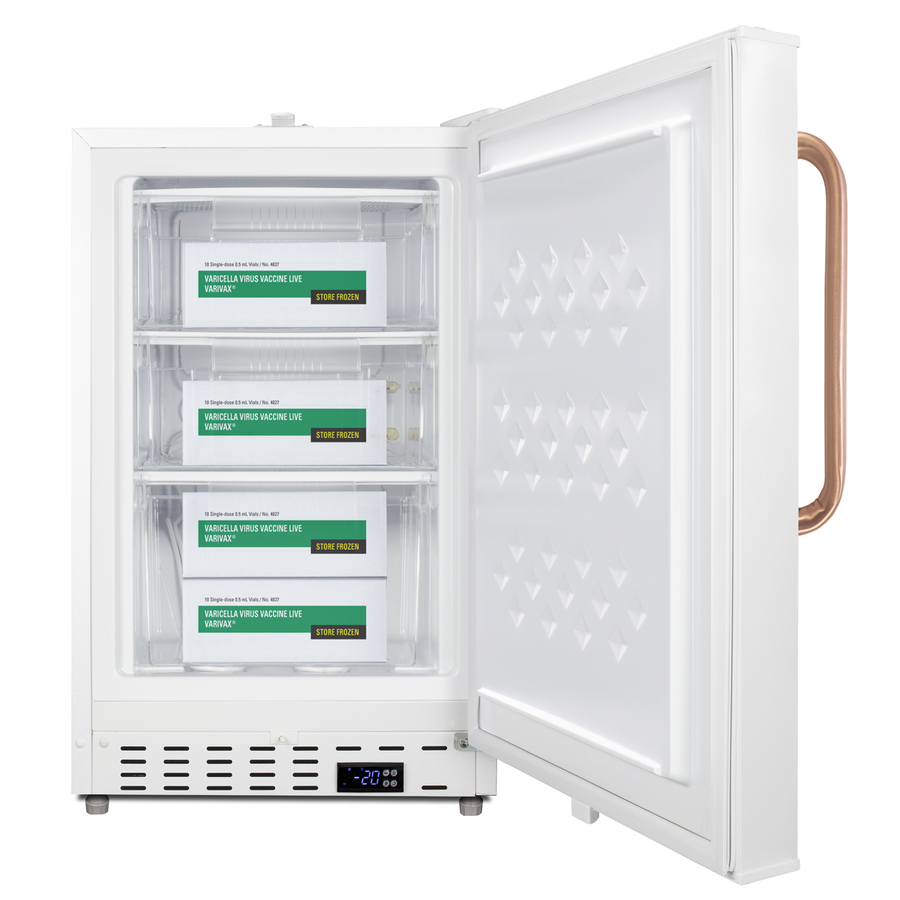

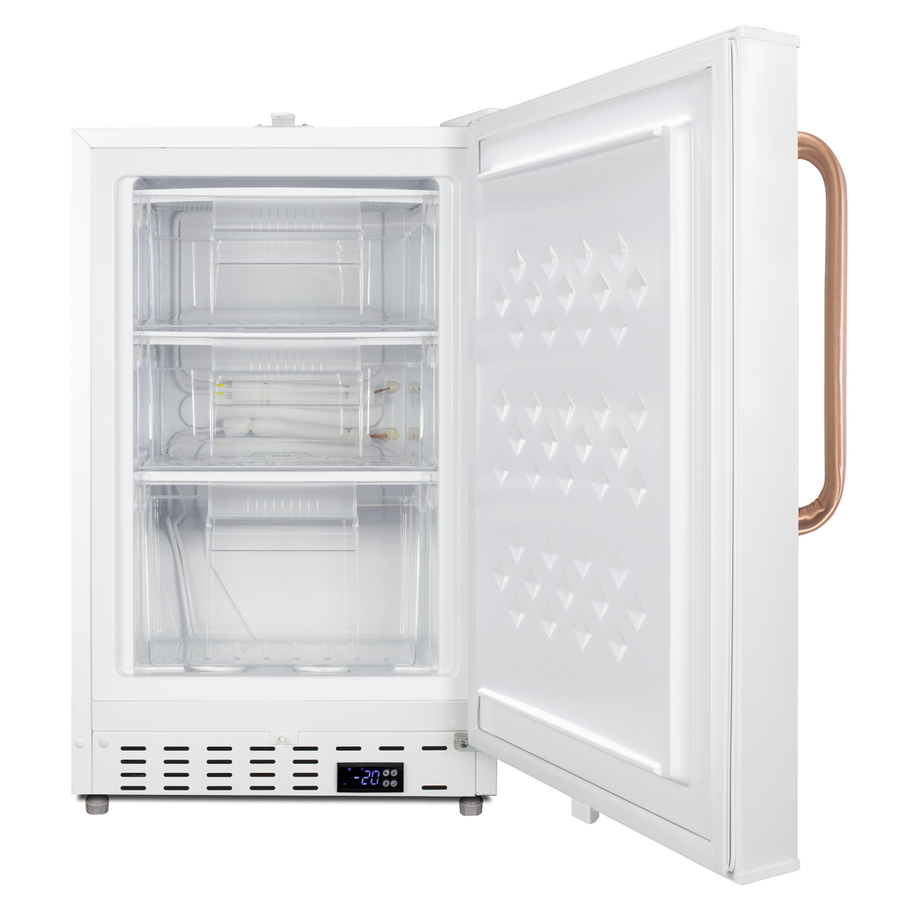

Basket shelves
Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute

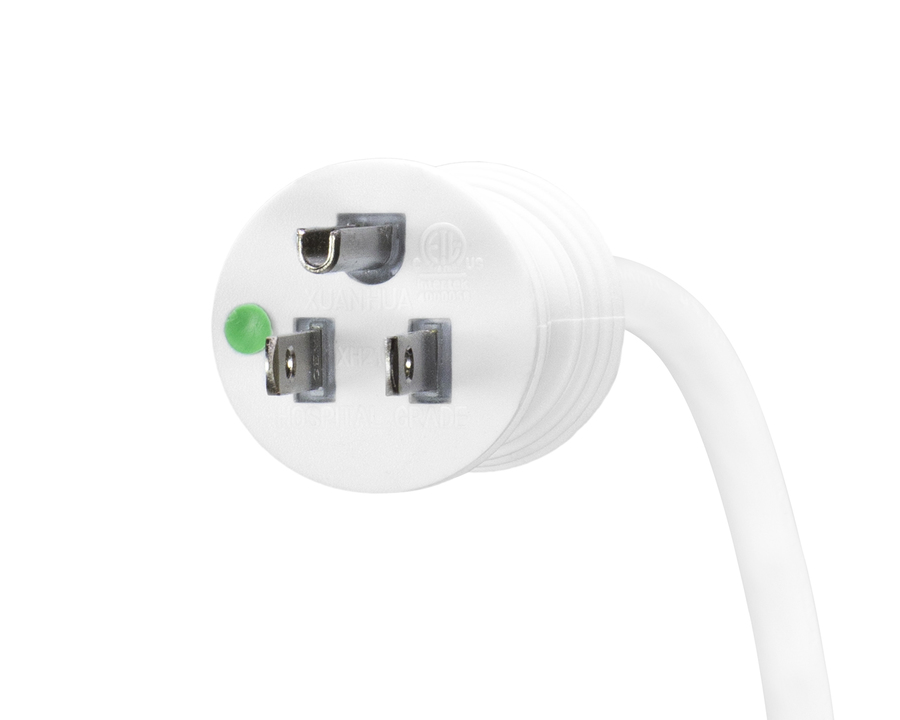

Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
More temperature stability with an energy efficient manual defrost system
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
No internal fans
Temperature remains more stable with a static cooling system
Sealed back
Space-saving design that offers easier cleanability
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching all-refrigerator
This unit can be paired with the ADA404REFTBC all-refrigerator for a complete set
Fully finished white cabinet
Allows the unit to be freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DESCRIPTION

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.

The ADA305AFTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

The ADA305AFTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

Inside, the ADA305AFTBC can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.

Sized at just under 20" wide, the ADA305AFTBC is ETL-S listed to NSF-7 commercial standards. With its slim dimensions, commercial construction, and user-friendly features, it makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFTBC all-refrigerator.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.


SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.47 cu.ft. (70 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077741
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Shelf Type Drawers
Shelf Qty 3
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.34 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -25° to -15°C

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Exterior
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
CAS6 6" casters
6" high NSF listed casters
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
