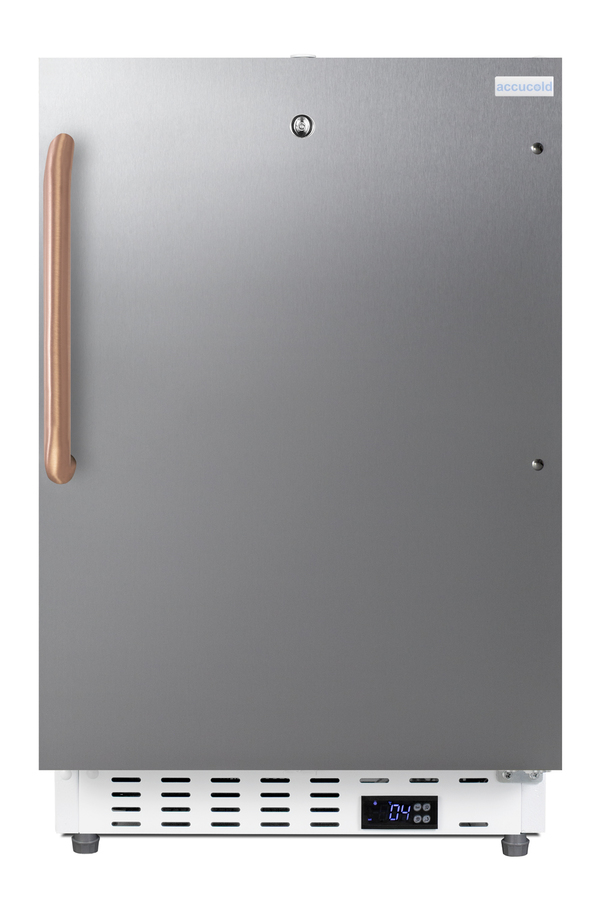

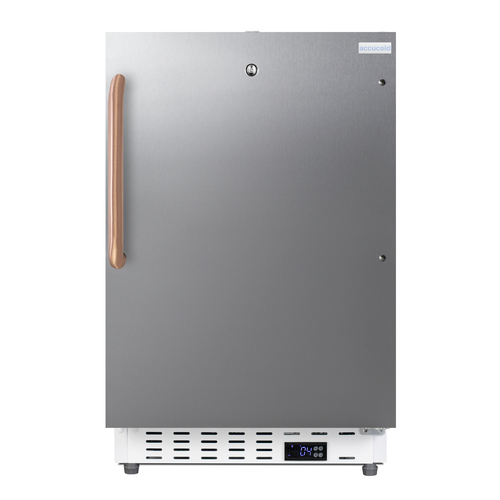

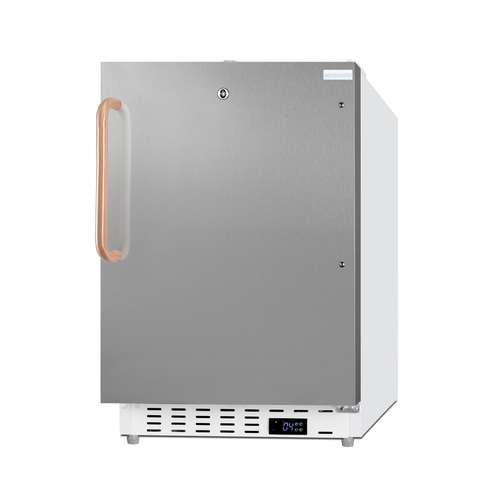

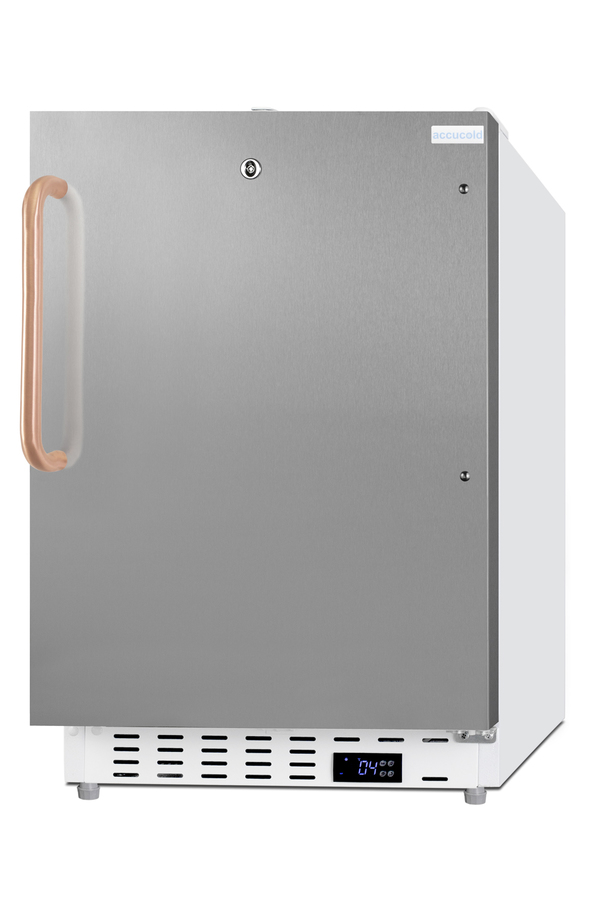

21" Wide Built-In Healthcare All-Refrigerator, ADA Compliant

SKU: ADA404REFSSTBC
Slim-fitting ADA compliant undercounter refrigerator ideal for providing extra storage to small-spaced settings, with a pure copper handle for added protection from bacteria
Estimated Time to Ship:

3 to 5 days

32.0" H x 20.25" W x 22.5" D
(81cm H x 51cm W x 57cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.32 cu.ft. (94 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 69.0 lbs. (31 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077758
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 4
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 2 to 8°C
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

2 to 8º operation

Designed to safely store select pharmaceuticals and other materials with strict temperature requirements

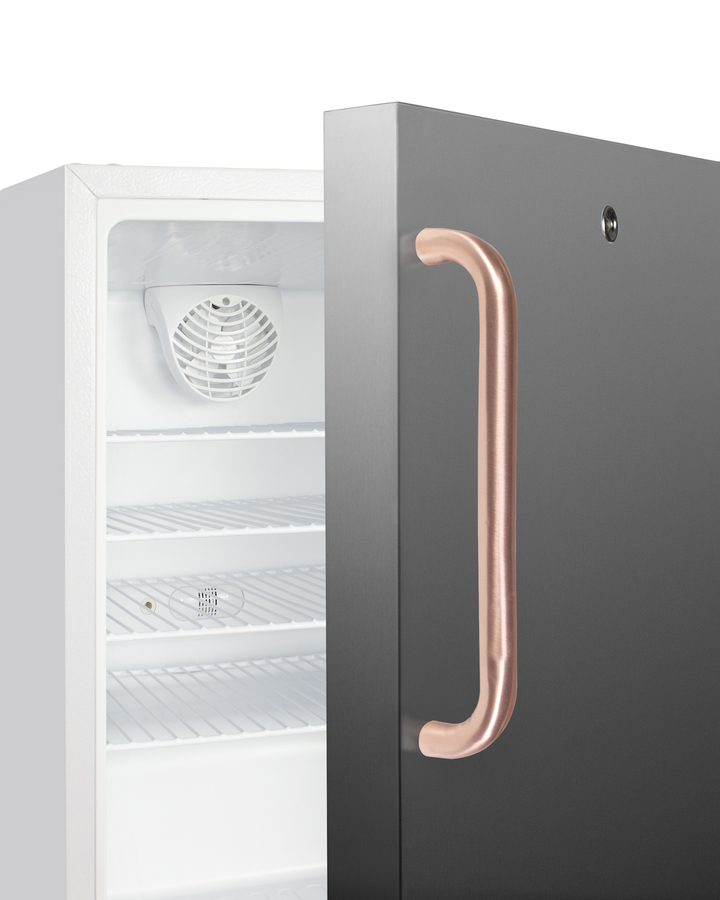

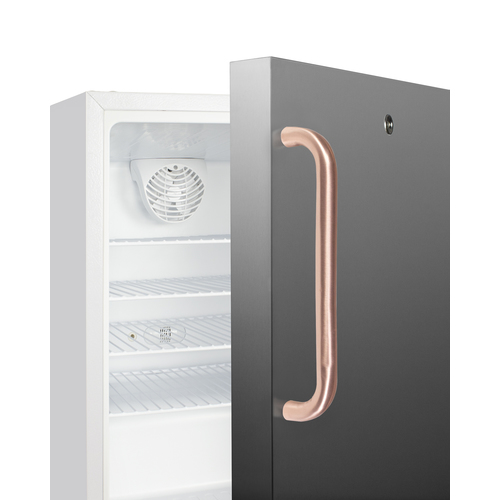

Copper handle

Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

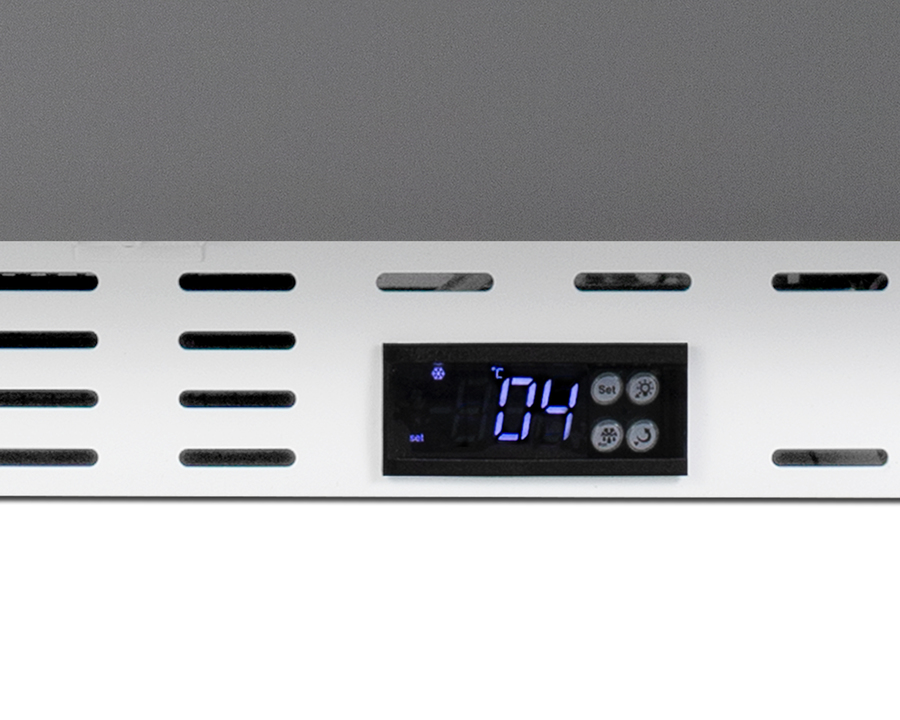

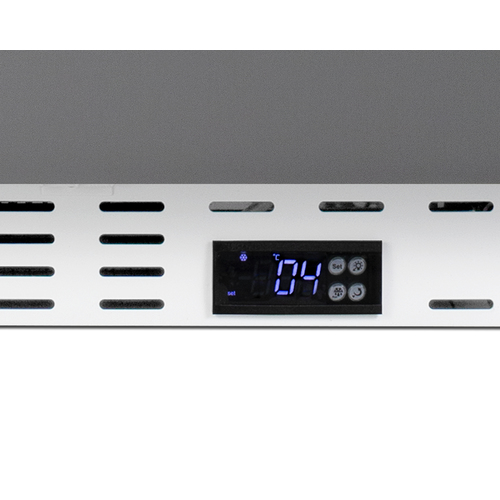

Adjustable digital thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

Adjustable wire shelves

Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior

3" thick door

Improved insulation for an efficient performance

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

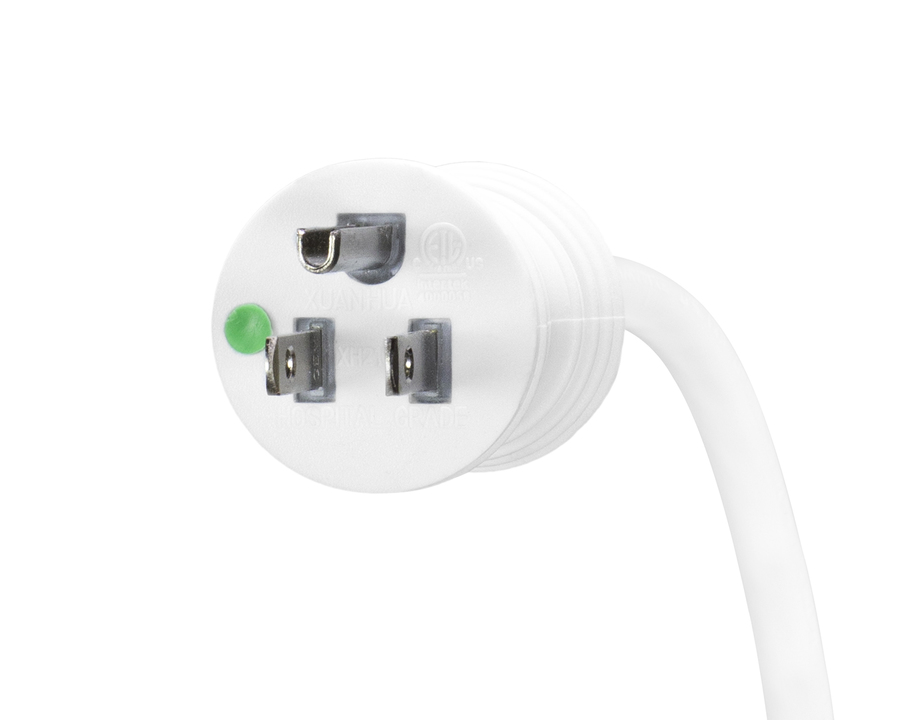

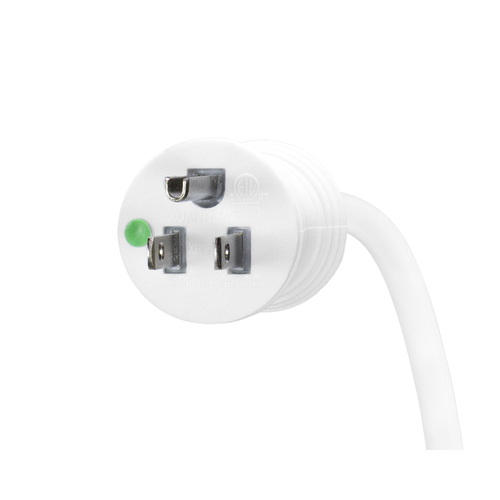

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Automatic defrost

Reduced user maintenance with an auto defrost system

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible stainless steel door

User-reversible stainless steel door for added flexibility to best accommodate your setting

Sealed back

Space-saving design that offers easier cleanability

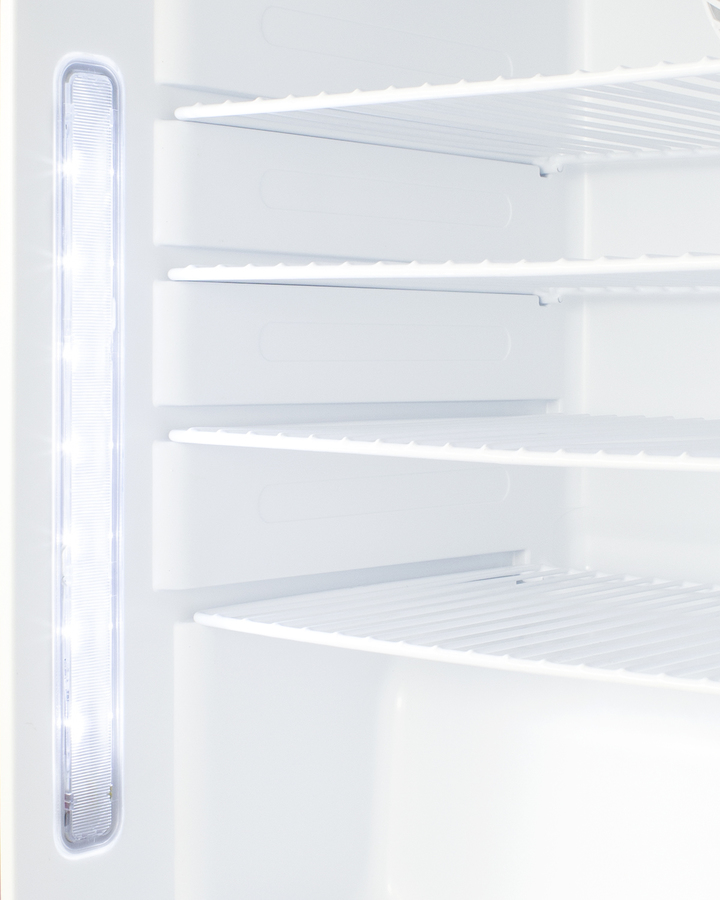

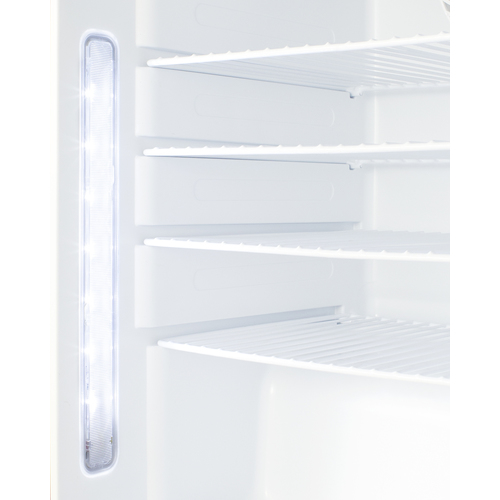

Interior light

Front-located LED light ensures entire interior is lit when door opens

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching all-freezer

This unit can be paired with the ADA305AFSSTBC all-freezer for a complete set

Fully finished white cabinet

Allows the unit to be freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ADA404REFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.

The ADA404REFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

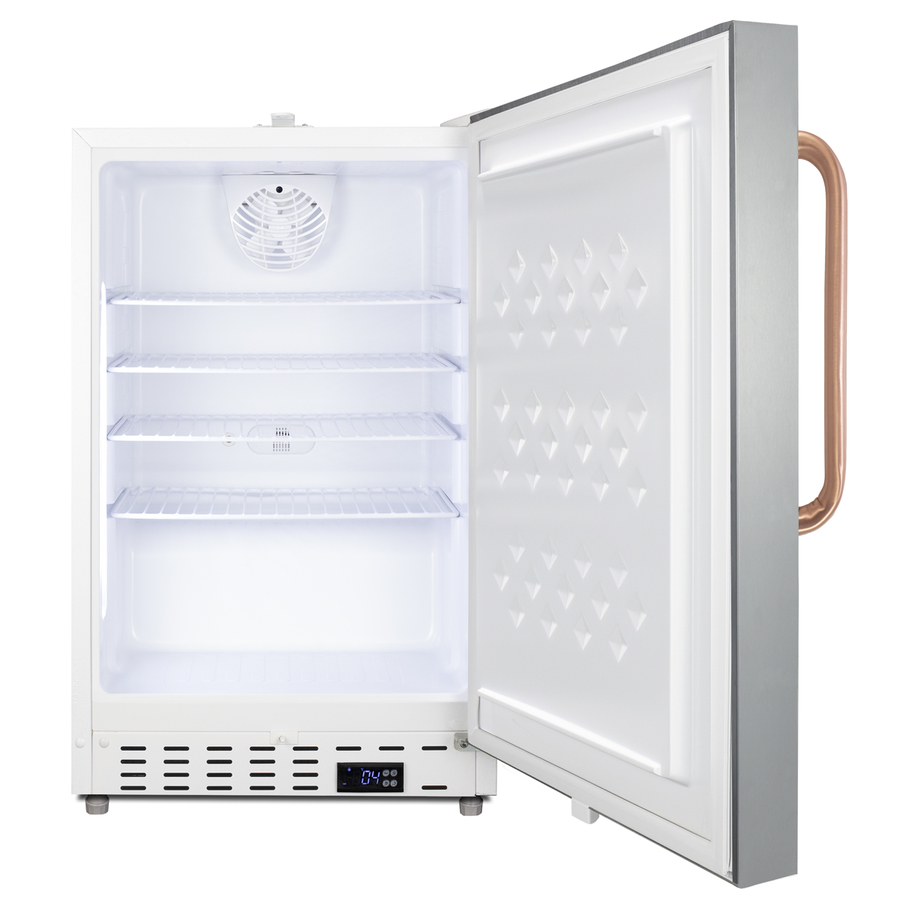

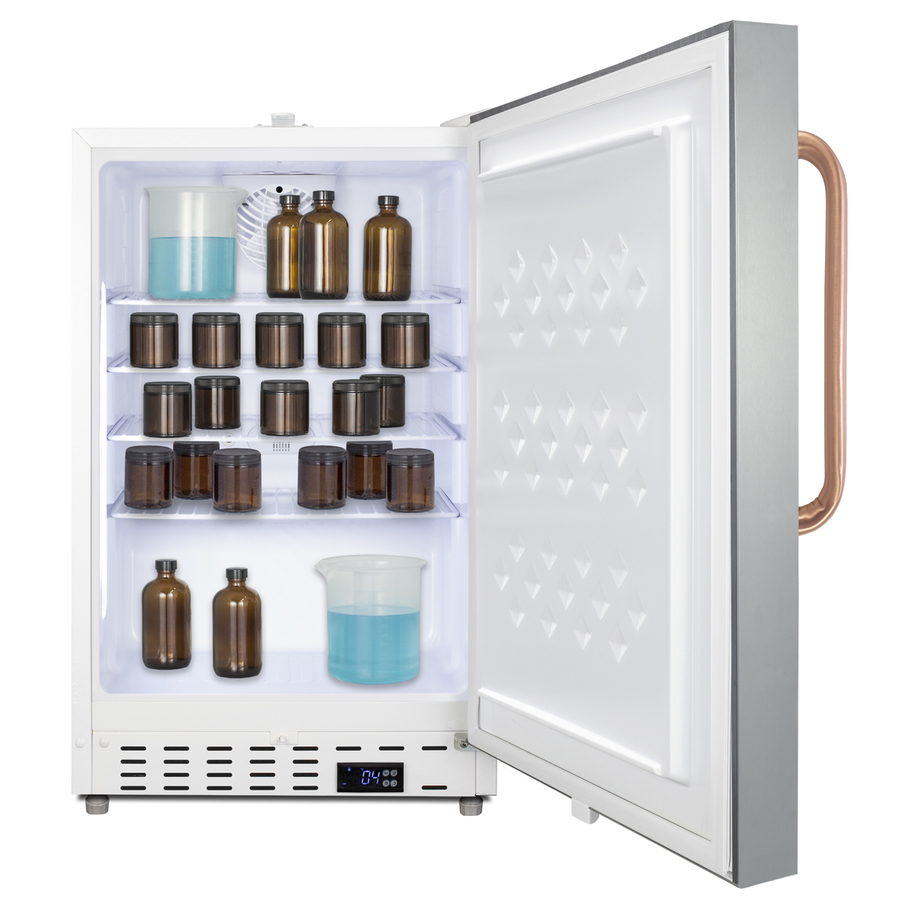

Inside, the ADA404REFSSTBC is designed to operate between +2°C and +8°C as recommended for the storage of select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.

Sized at just under 21" wide, the ADA4040REFSSTBC makes an ideal choice for various facilities. For a complete set, pair this unit with the matching -20ºC ADA305AFSSTBC all-freezer.




This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]
