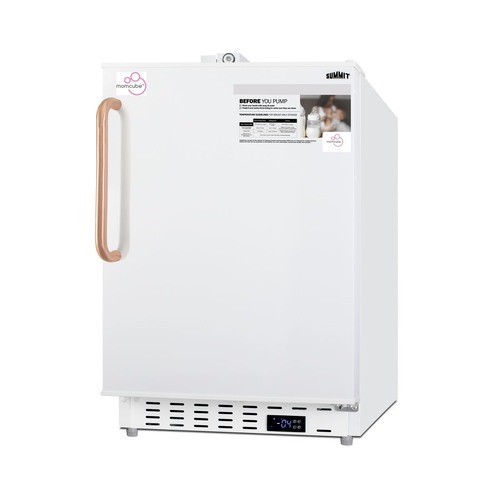

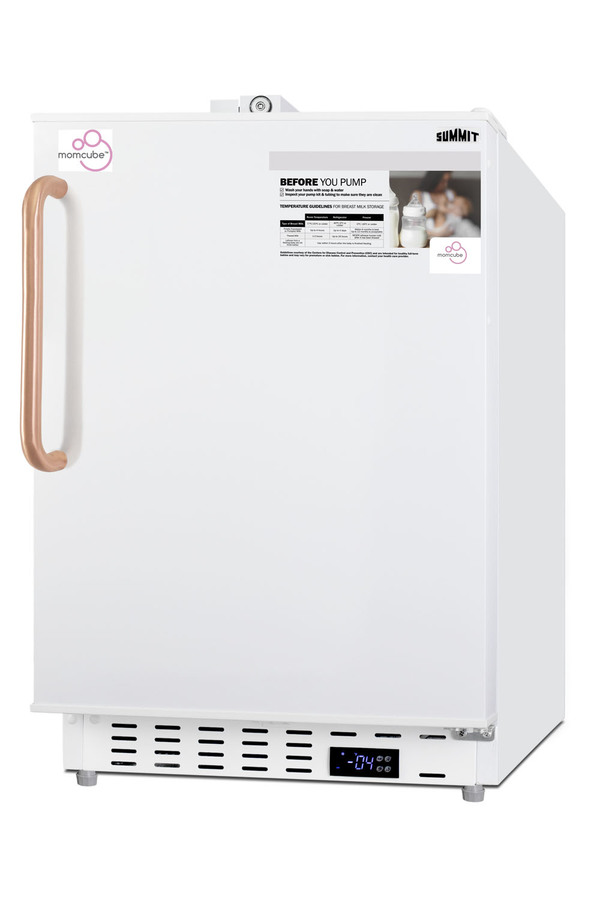

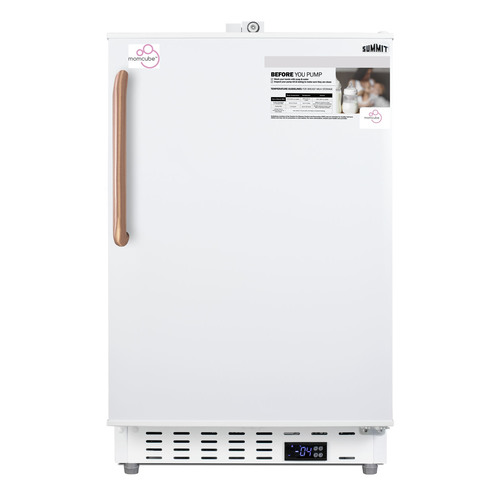

20" Wide Built-In MOMCUBE™ All-Freezer

SKU: ALFZ36LMCTBC
Slim-fitting MOMCUBE™ all-freezer ideal for long-term breast milk storage and complete with an antimicrobial copper handle
Estimated Time to Ship:

3 to 5 days

32.88" H x 19.75" W x 22.5" D
(84cm H x 50cm W x 57cm D)

Overview
Height of Cabinet 32.88" (84 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 266.0kWh/year
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101077260
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Shelf Type Wire
Shelf Qty 3
Full Door Shelves 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.83 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Wheels 2
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -13 to 5ºF
Sound Level 33.1 dBa

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish

Designed for breast milk storage

MOMCUBE™ series is designed for the safe storage of frozen breast milk as recommended by the CDC guidelines

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

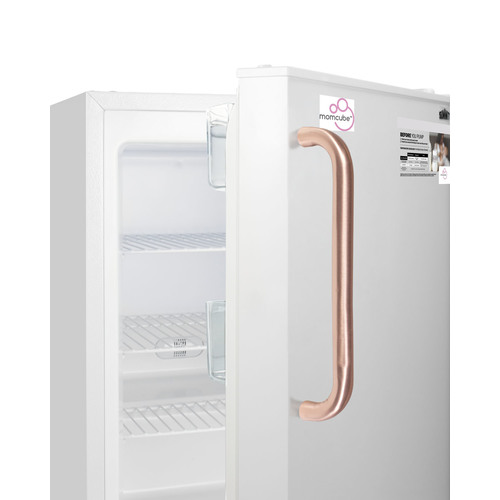

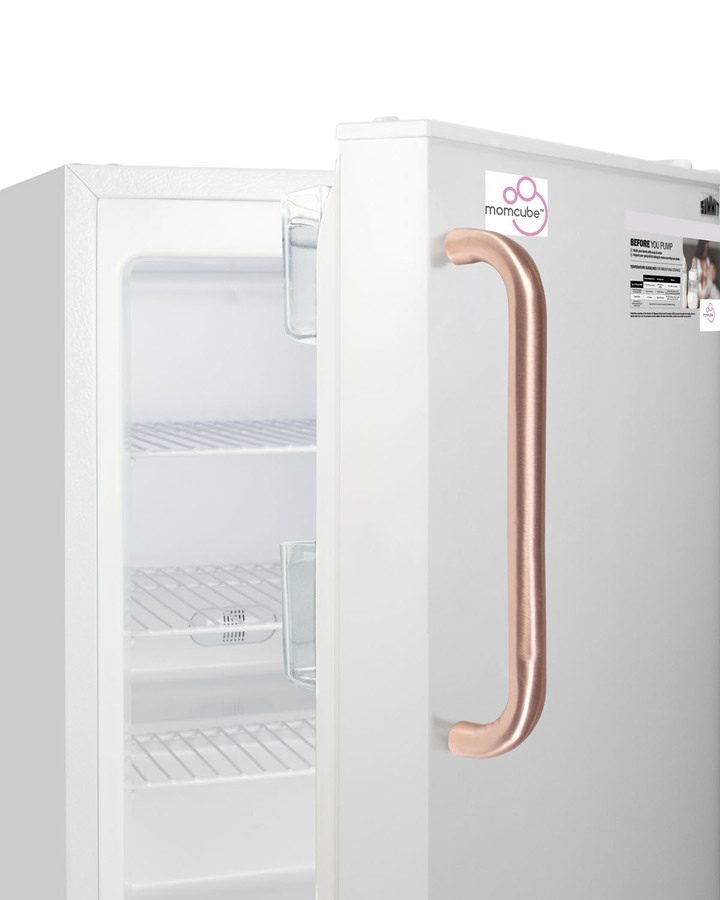

Copper handle

Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness

Top-mounted lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

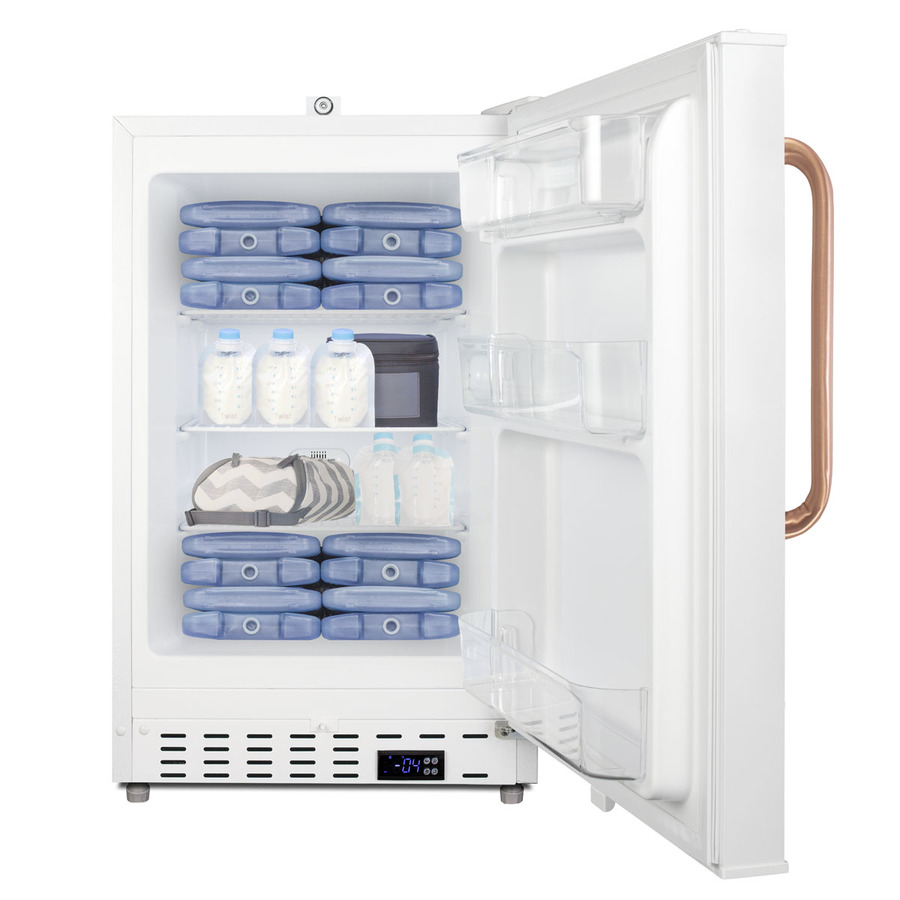

Adjustable shelves

Three adjustable wire shelves for optimal storage of breast milk, ice packs, or similar nursing-related items in the 2.68 cu.ft. interior

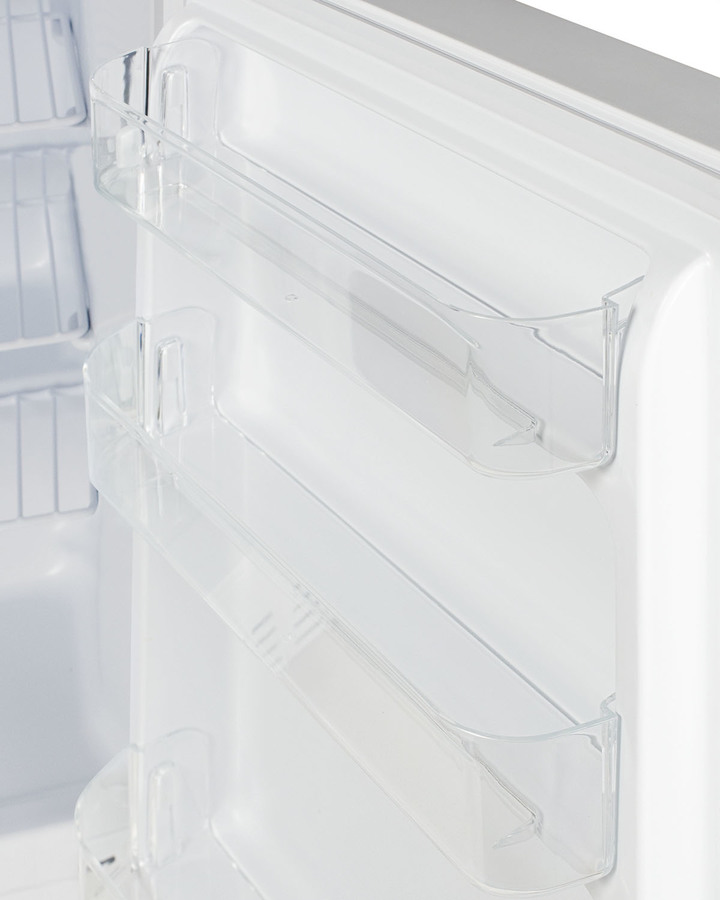

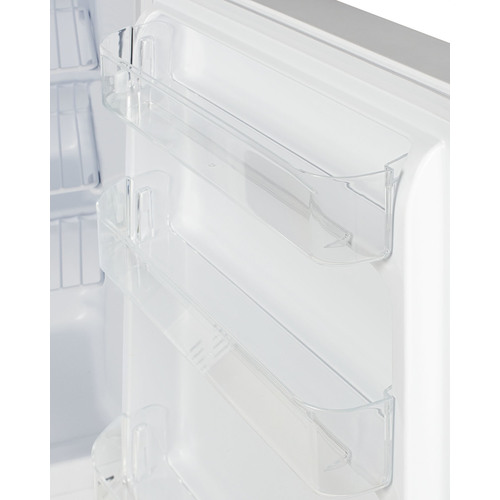

Door shelves

Three removable door racks for additional storage of larger items

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

More temperature stability with an energy efficient manual defrost system

Fully finished white cabinet

Allows the unit to be used freestanding

Extended warranty

2-year parts and labor / 5-year compressor

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a quality selection of MOMCUBE™ all-freezers designed for reliable long-term storage of breast milk in residential settings, with advanced features for user convenience.

The ALFZ36LMCTBC is a MOMCUBE™ all-freezer with a flexible design that can be built-in under counters or used freestanding. Sized just under 20" wide, it's perfect for homes, offices, and other settings in need of extra storage space for nursing mothers. The door is 3" thick for efficient insulation. A factory-installed keyed lock located toward the top provides convenient security as needed. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

The ALFZ36LMCTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

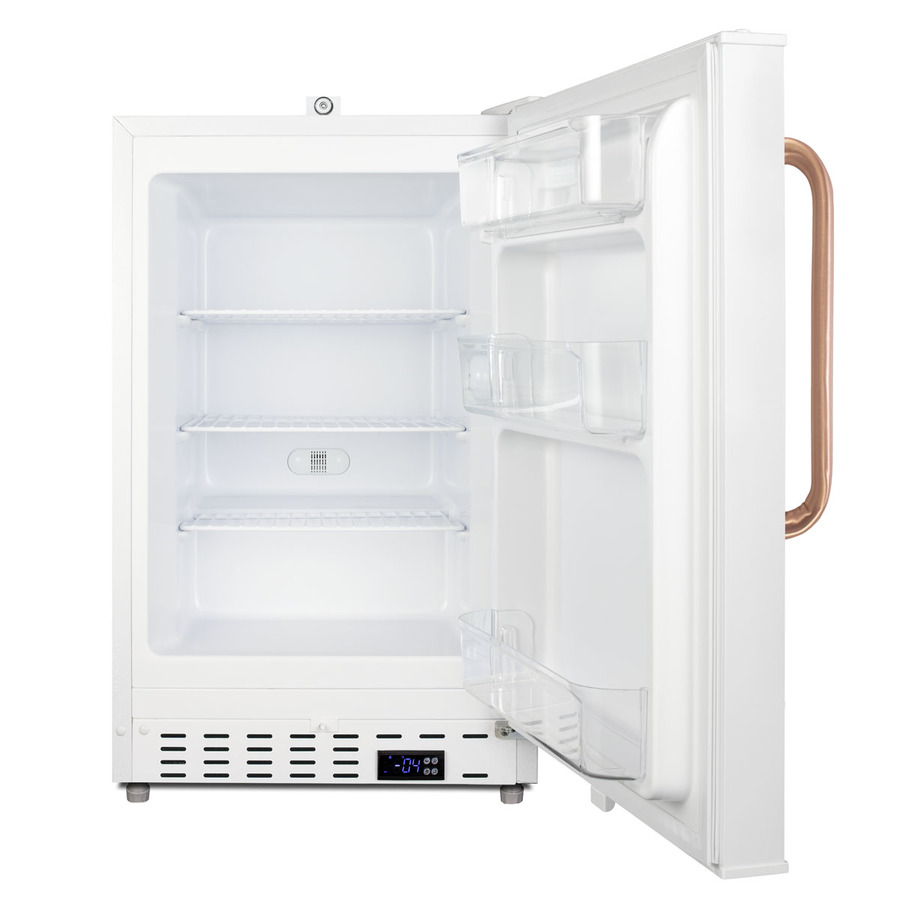

Inside, the ALFZ36LMCTBC features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves afford optimal storage options for mothers storing ice packs, milk, or similar nursing-related items. Three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

With its convenient size and user-friendly features, the ALFZ36LMCTBC is the perfect solution for nursing mothers seeking dependable long-term breast milk storage in the home. For a non-locking version, see the ALFZ36MC.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]
