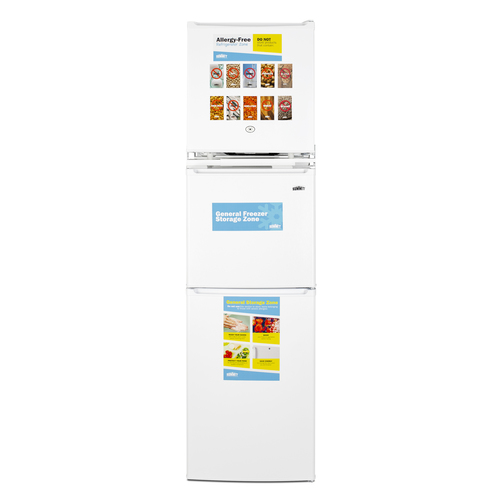

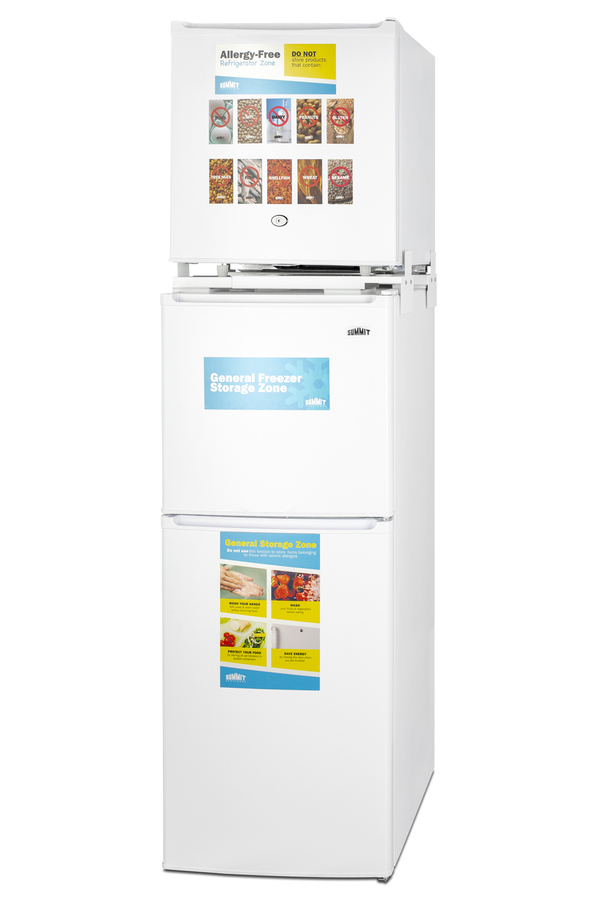

19" Wide Allergy-Free Refrigerator/General Purpose Refrigerator-Freezer Combination

SKU: AZRF7W
Allergy-free and general purpose storage options for user safety and convenience
Estimated Time to Ship:

5 to 7 days

67.5" H x 18.75" W x 22.75" D
(171cm H x 48cm W x 58cm D)

Overview
Height of Cabinet 67.0" (170 cm)
Height to Hinge Cap 67.5" (171 cm)
Width 18.75" (48 cm)
Depth 22.75" (58 cm)
Depth with Handle 22.75" (58 cm)
Depth with door at 90° 35.0" (89 cm)
Capacity 6.5 cu.ft. (184 L)
Defrost Type Frost-Free/Automatic
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.9
Voltage/Frequency 115 V AC/60 Hz
Weight 173.0 lbs. (78 kg)
Shipping Weight 183.0 lbs. (83 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076010
Refrigerator-Freezer
Door Swing RHD
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Capacity 5.6 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 13.5" (34 cm)
Freezer - Interior Width 14.0" (36 cm)
Freezer - Interior Depth 12.25" (31 cm)
Freezer - Capacity 1.1 cu.ft
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Thermostat Type Digital + Dial
Fan Type Interior
Level Legs 2
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.5" (17 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

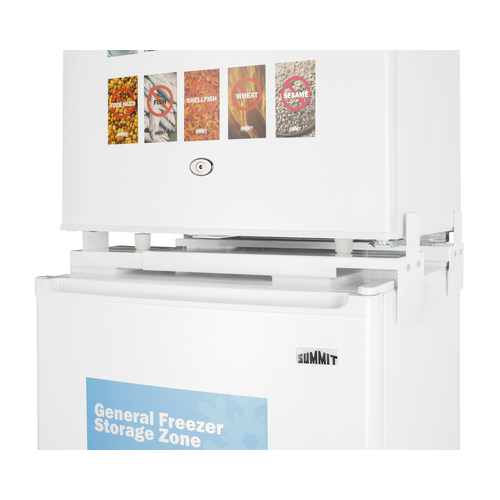

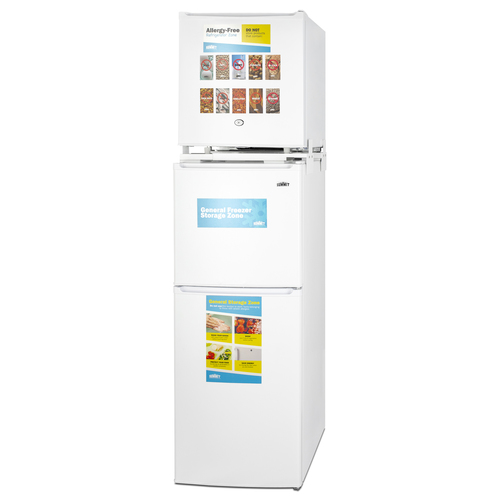

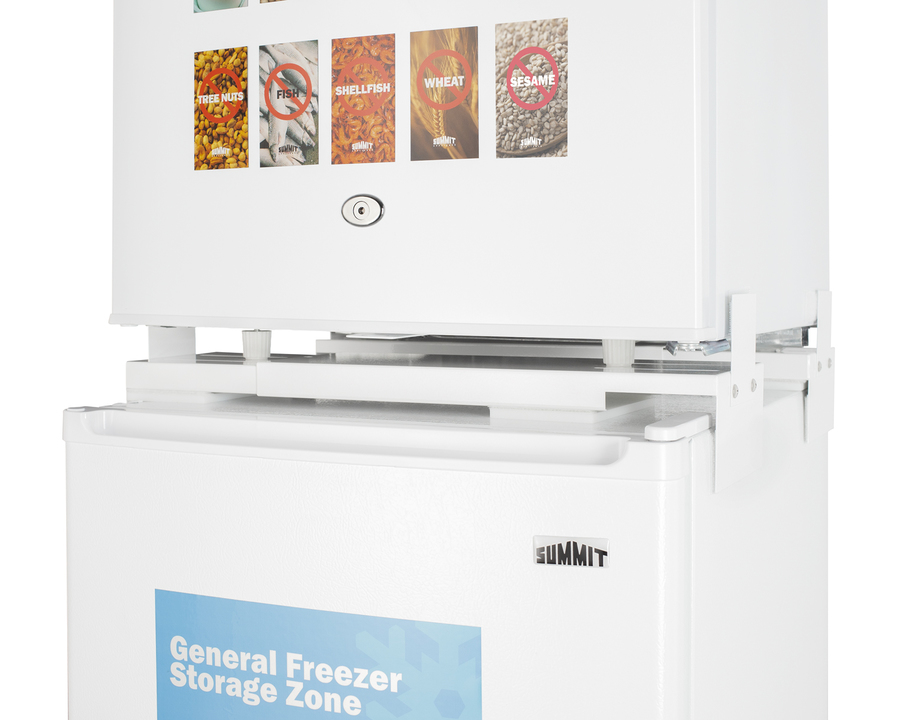

Stacked all-refrigerator/refrigerator-freezer combination

Summit FFAR23L locking all-refrigerator securely installed on top of FF711ES refrigerator-freezer to provide separate storage as needed

Compact dimensions

Slim-fitting 19" wide design perfect for space-challenged environments

No assembly required

Unit ships in one box and comes fully assembled for added user convenience

ENERGY STAR certified (refrigerator-freezer)

ENERGY STAR certified performance ensures an energy efficient performance and savings on your utility bill

No-frost operation

Minimal user maintenance with the top all-refrigerator’s automatic defrost operation and the lower refrigerator-freezer’s frost-free operation

Front-mounted lock (all-refrigerator)

Keyed lock helps to secure the “allergy-free” all-refrigerator for user convenience and added peace-of-mind

Allergy-specific magnets

Ships with a pack of 10 allergy-specific magnets to denote which foods can and cannot be stored in the “allergy-free refrigeration zone.” They include: “NO PEANUTS,” “NO TREE NUTS,” “NO SHELLFISH,” “NO WHEAT,” “NO FISH,” “NO SOY,” “NO DAIRY,” “NO EGGS,” "NO SESAME," and “NO GLUTEN’

Adjustable dial thermostat

Each unit has an adjustable interior thermostat for easy temperature management

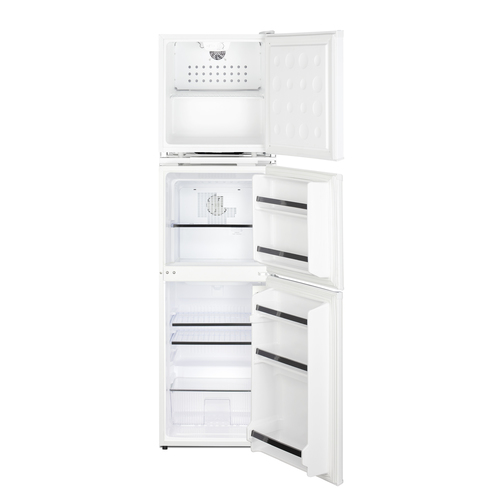

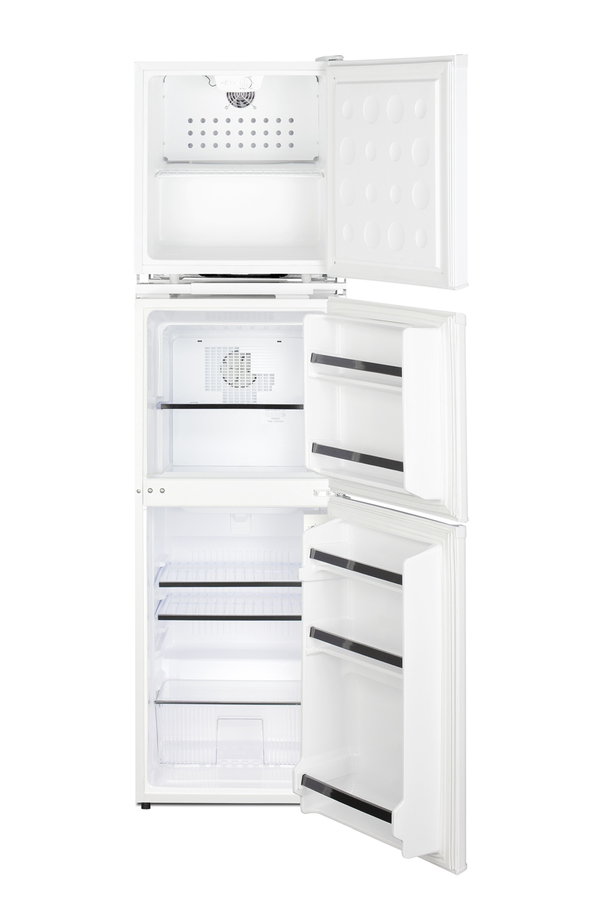

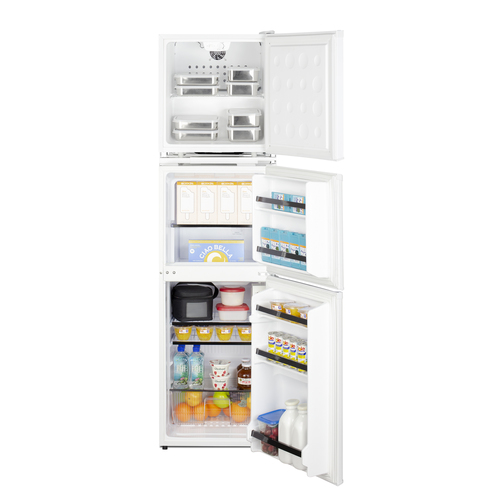

Wire shelving

The top all-refrigerator has a removable wire half-shelf while the bottom refrigerator-freezer has two adjustable wire shelves allowing for a variety of storage options

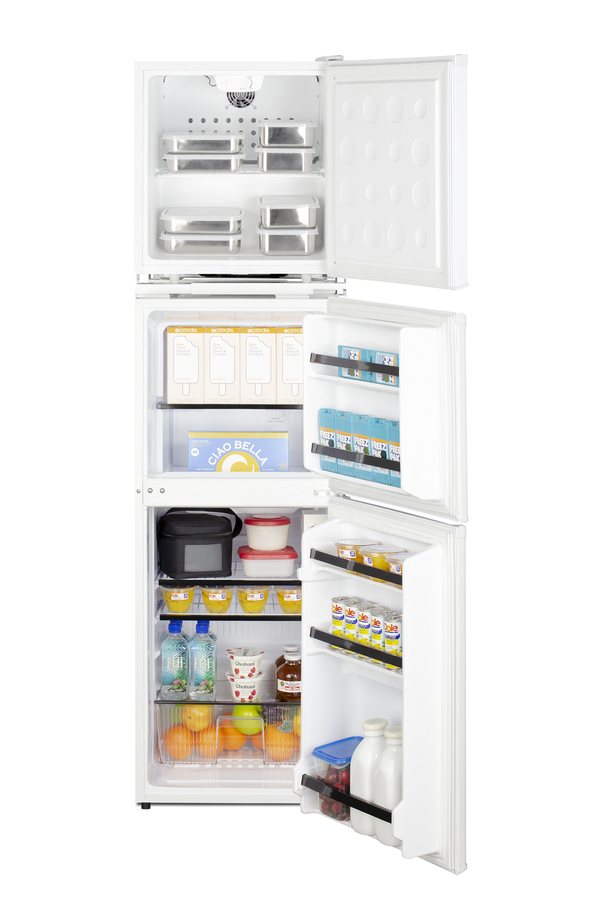

Door storage (refrigerator-freezer)

Store taller bottles and other items right on the door for convenient access

Crisper drawer (refrigerator-freezer)

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Sealed back (all-refrigerator)

Helps to save space while also making for easier cleaning of the unit

Flat-door liner (all-refrigerator)

Allows the interior to store deeper items for user convenience while providing better temperature stability

User-reversible doors (refrigerator-freezer)

User-reversible door swing for added flexibility in unit placement

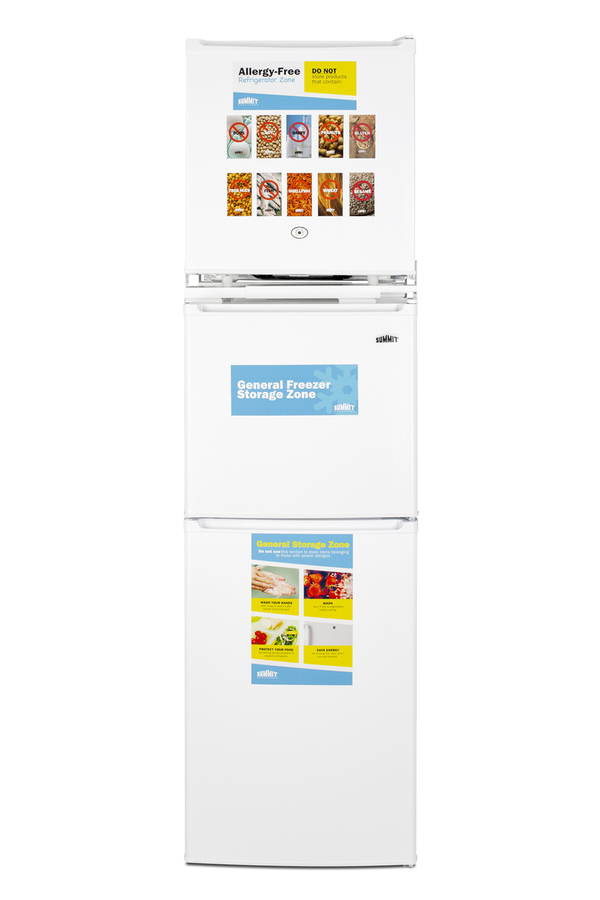

Usage stickers

Ships with affixed usage stickers for “ALLERGY-FREE REFRIGERATION ZONE,” “GENERAL FREEZER ZONE,” and “GENERAL STORAGE ZONE”

Pre-installed power cords included

The all-refrigerator comes with a hospital grade 'green dot' plug for added safety in high traffic areas; the refrigerator-freezer comes with a right-angle cord for added depth savings

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit offers innovative solutions to food storage with the AZRF7W, designed for safely and properly storing allergy-sensitive and general purpose foods.

Sized just under 19" wide, the AZRF7W combines the 4.8 cu.ft. FF711ES frost-free refrigerator-freezer with the FFAR23L 1.7 cu.ft. all-refrigerator into one slim footprint using the StackRack. This unit ships in one box and comes fully assembled for easy setup and user convenience.

Refrigerator-freezer FF711ES is ENERGY STAR certified for an energy efficient performance that also saves on utility bills. It features a textured white finish with reversible doors for added placement flexibility. Inside, the refrigerator and freezer compartments include door racks for easy storage. The fresh produce section also features a large crisper drawer, as well as two adjustable shelves for added storage options. The compact freezer includes one removable shelf for additional storage flexibility. The FF711ES comes with "General Freezer Storage Zone" and "General Storage Zone" decals affixed to easily identify each compartment.

Stacked on top of the FF711ES, all-refrigerator FFAR23L has a white exterior finish. The front door has a factory-installed keyed lock for convenient security. The sealed back helps to ensure easy cleanup. Inside, the FFAR23L has an internal fan to keep a more even temperature. An adjustable wire shelf accommodates different sized storage needs. The FFAR23L comes with an "Allergy-Free Storage Zone" decal affixed, as well as ten allergy-specific magnets to help users identify which foods should not be stored inside. The individual magnets feature warnings for shellfish, fish, gluten, wheat, soy, dairy, tree nut, peanuts, sesame, and eggs.

Both models include interior dial thermostats for easy temperature management that are also safe from unwanted adjustments. No-frost operation helps to assure minimal user maintenance, while interior lighting makes viewing of contents easier and more efficient. Each unit includes a pre-installed cord with plug.

With its slim-fitting design and user-friendly features, the AZRF7W is perfect for schools, daycare centers, offices, and similar environments in need of separate storage for allergy-sensitive users.

Download
BROCHURE w/ DRAWINGS
AZRF7W.pdf
Download
TECHNICAL DRAWING (.dwg)
AZRF7W_REF._FREEZER__A-C_2018_.dwg
Download
ENERGY GUIDES
EnergyGuide-FF71ES.pdf
Download
ENERGY GUIDES
EnergyGuide-FFAR23L.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
