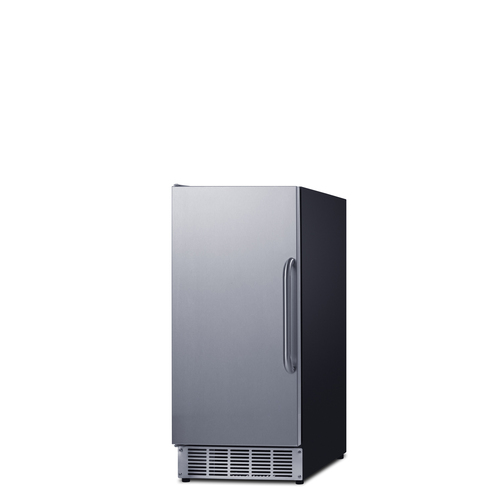

Built-In 45 lb. Clear Icemaker

SKU: BIM44G

Includes an internal pump for more flexibility

Estimated Time to Ship:

Next day shipping

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

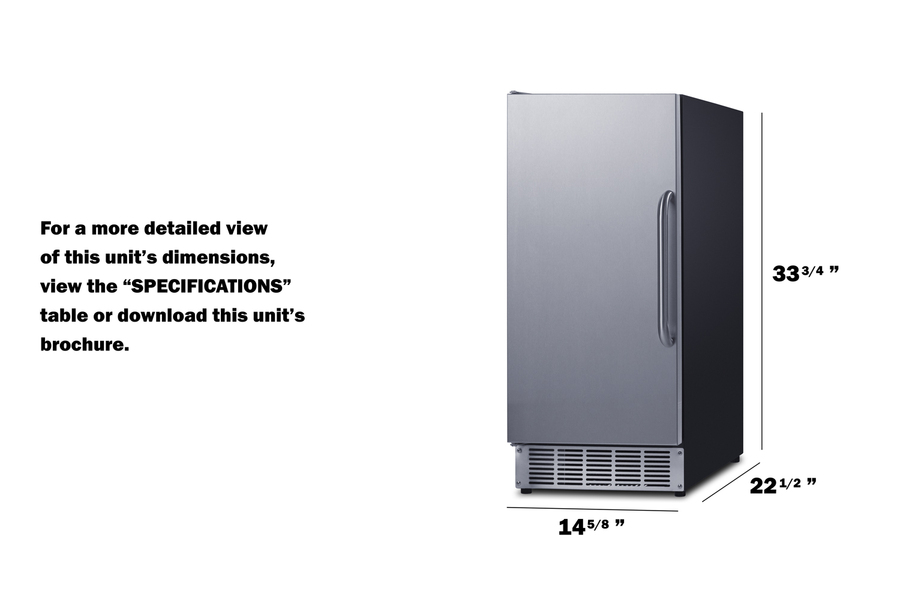

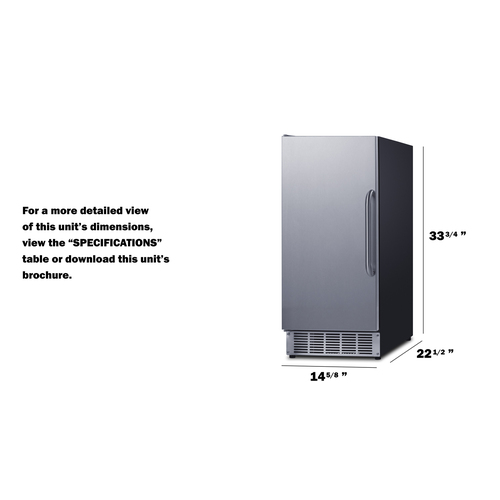

33.75" H x 14.63" W x 22.5" D
(86cm H x 37cm W x 57cm D)

Overview
Height of Cabinet	33.63" (85 cm)
Height to Hinge Cap	33.75" (86 cm)
Width	14.63" (37 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.5" (62 cm)
Depth with door at 90°	36.25" (92 cm)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	2.5
Plug Type	NEMA 5-15P
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101012261
Icemaker
Door Swing	LHD
Reversible	Yes
Drain Required	Yes
Daily Ice Production	45.0 lbs. (20 kg)
Ice Storage Capacity	25.0 lbs. (11 kg)
Ice Shape	Cube
Size of Cube	7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes	1
Interior Light	Yes
Fan Type	Exterior
Refrigerant Type	R290a
Refrigerant Amount	1.87 oz.
High Side PSI	286.0
Low Side PSI	110.0
Interior Height	18.75" (48 cm)
Interior Width	11.25" (29 cm)
Interior Depth	15.5" (39 cm)
Level Legs	4

Exterior

RHD - Right hand door swing Door reversal to right hand door swing	Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Lock

L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)

15" Wide Clear Icemaker

Built-in undercounter icemaker produces up to 45 lbs. of clear cubes

ENERGY STAR certified commercial performance

Efficient performance for commercial use

Commercially approved

ETL-S listed to NSF-12 standards for use in commercial environments

Built-in pump

Internal pump allows more flexibility in placing the unit

Automatic defrost

Reduced maintenance with auto defrost system

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user

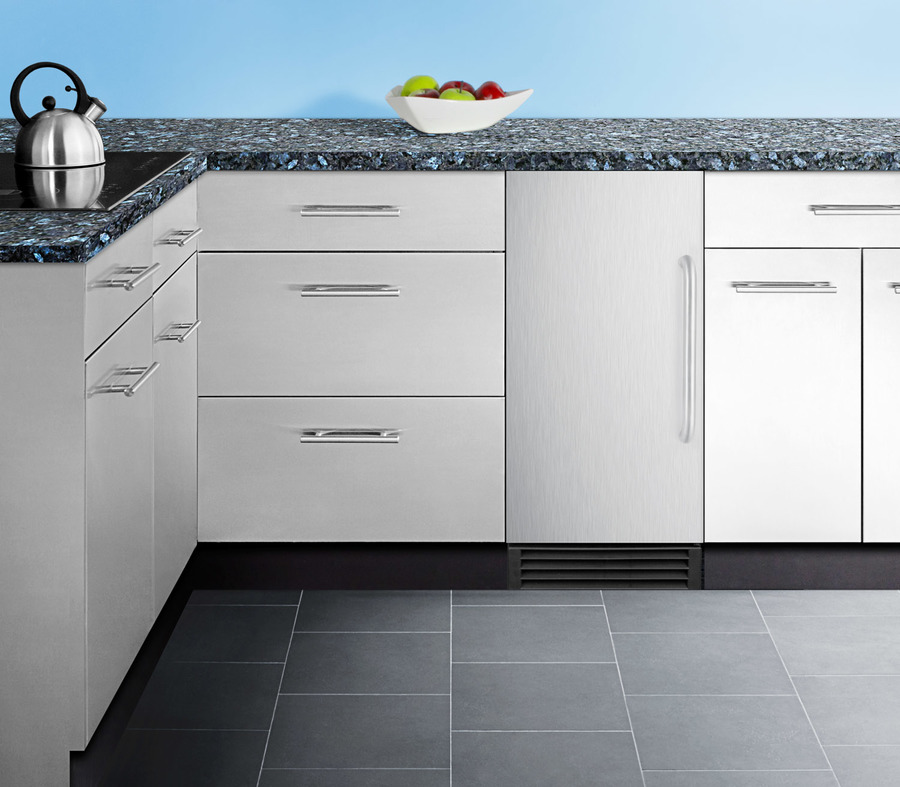

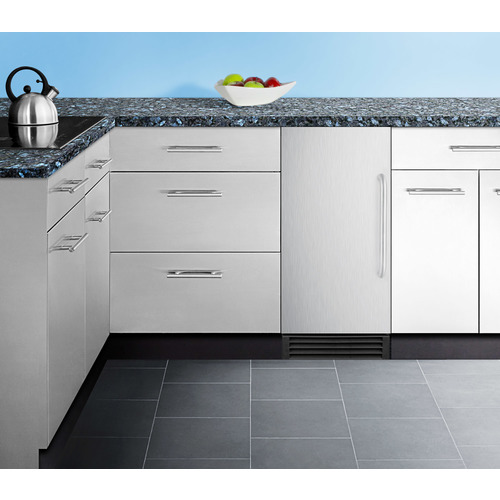

Built-in capable

Make the best use of space by installing your icemaker under the counter

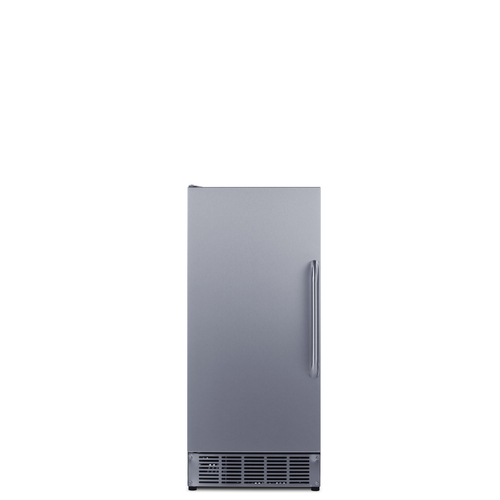

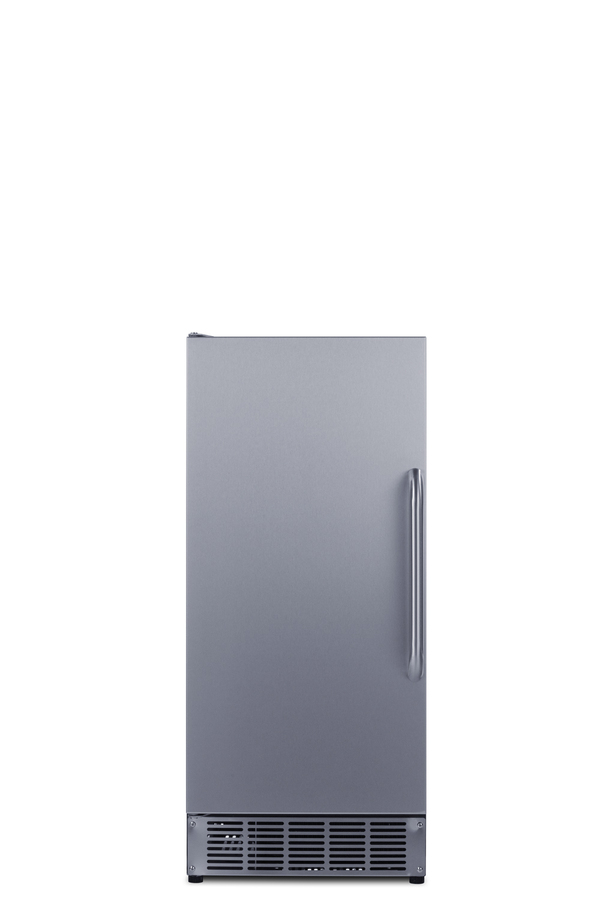

Stainless steel door

Professional styling with lasting durability

Professional towel bar handle

A curved handle in brushed stainless steel offers an easy grip

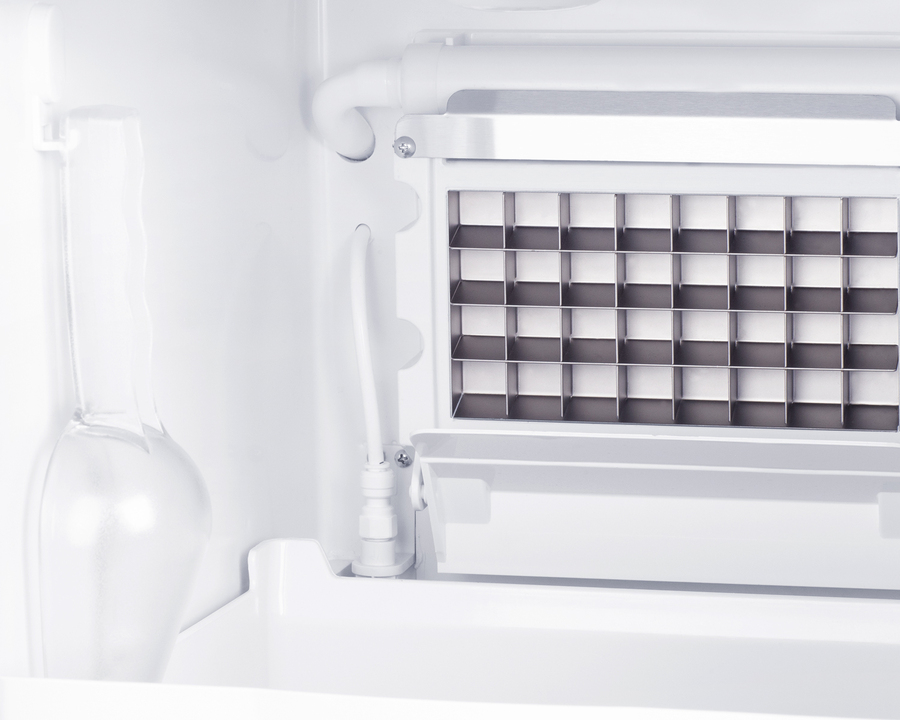

Clear ice cube production

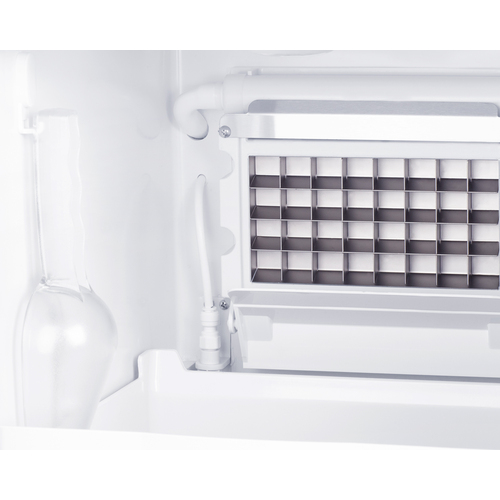

Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop

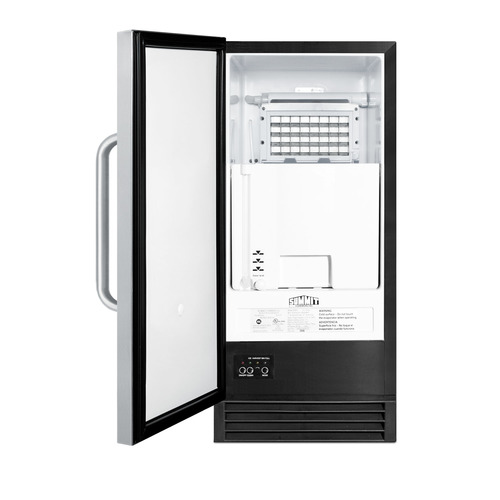

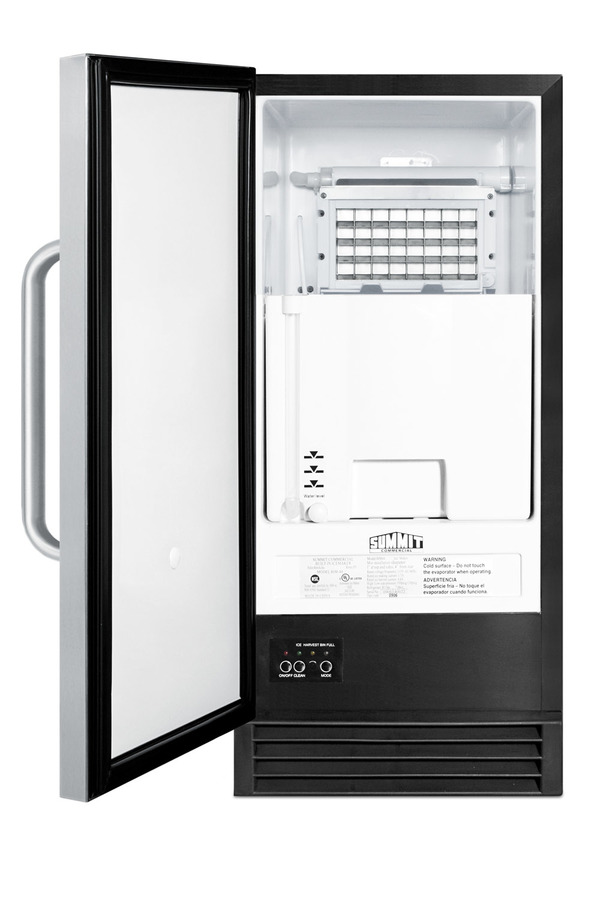

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Hoses included

Water supply and drain hose packaged inside for easy setup

Ice scoop

Large scoop included, with a hanging hook located inside for easy storage

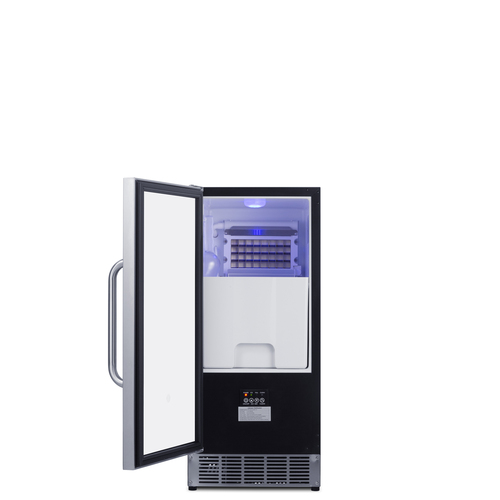

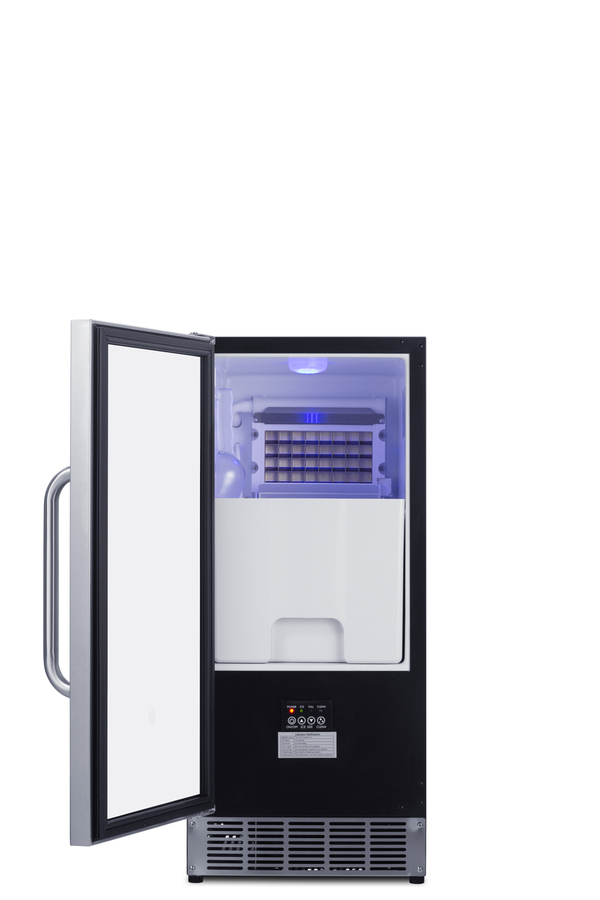

Interior light

LED lighting in a soft blue hue for easy viewing of the interior

Touch control panel

Provides easy operation of the unit with indicator lights for each stage of the production process

Fully finished black cabinet

Allows the icemaker to be used as a freestanding model

Sealed rear

Space saving design for easier cleanability

Leveling legs

Four leveling legs help to keep the unit level on uneven surfaces

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings full capacity clear ice production to residential and commercial spaces with a full selection of built-in undercounter clear icemakers.

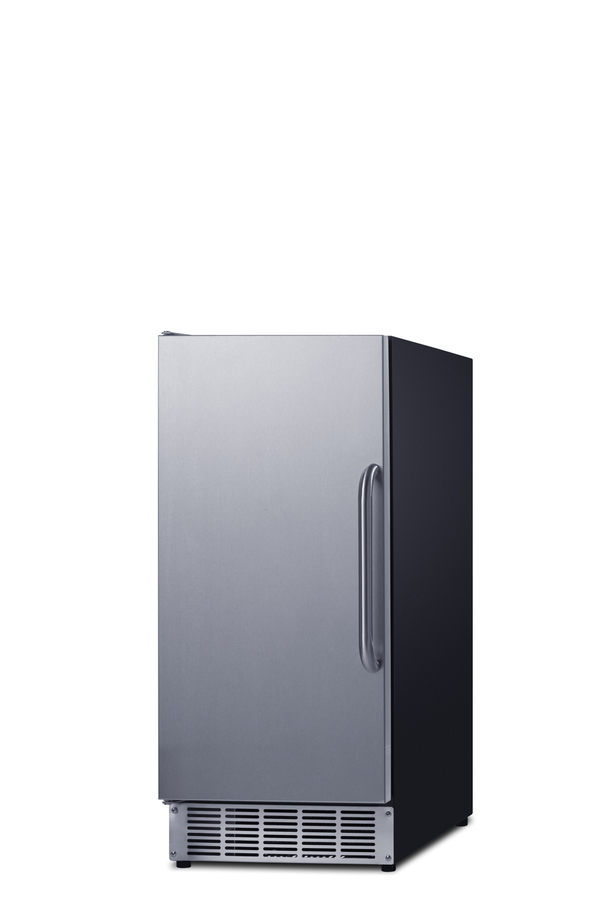

Model BIM44G is an indoor icemaker sized just under 34" high and 15" wide for an easy fit in commercial or home kitchens and bars. It features a reversible stainless steel door with a left hand door swing and pro style handle.The stainless steel kickplate completes the look. The front-breathing cooling system allows for built-in installation, while the fully finished black cabinet also lets you use the icemaker freestanding. This unit includes a built-in pump to allow for more flexible placement. We include both a drain hose and water supply hose.

Automatic defrost ensures minimum user maintenance. This unit produces up to 45 pounds of clear cube-shaped ice in a day cycle. The removable bin can hold up to 25 pounds. Ice is formed in sheets and can easily be broken into cubes using the provided scoop. We include a handy hook in the upper interior cabinet that lets you store the scoop in easy reach. LED lighting in a modern blue finish provides full illumination of the interior.

This unit is ETL-S listed to NSF standards and is ENERGY STAR certified as a commercial icemaker. Additional choices are available with a lower ADA compliant height, panel-ready door, and for outdoor use. Explore the full Summit selection to find the right icemaker for your needs.

BROCHURE
BIM44G.pdf

TECHNICAL DRAWING (.dwg)
BIM44G_BIM44GCSS_BIM47OS.dwg

ASSEMBLY DRAWING
BIM44G_BIM44GCSS_BIM47OS-Assembly.pdf

USE & CARE
BIM44G_BIM44GADA_BIM47OS_BIM47OSADA_User_Manual...

ACCUCOLD CATALOG
Accucold_Cold_Storage_Solutions_Catalog.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
