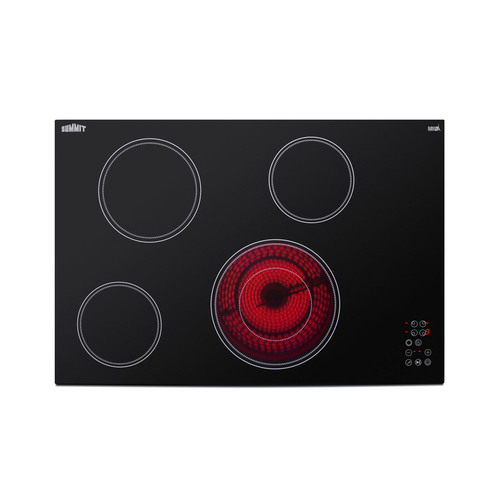

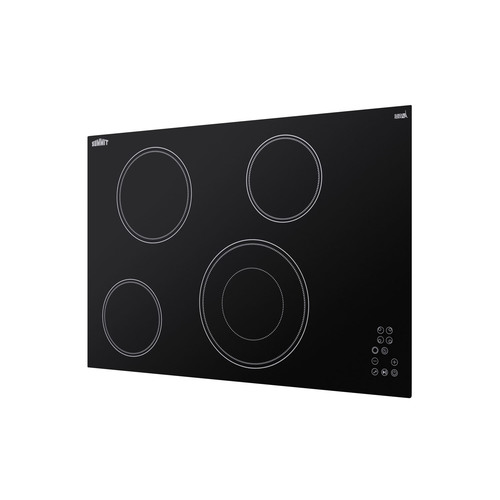

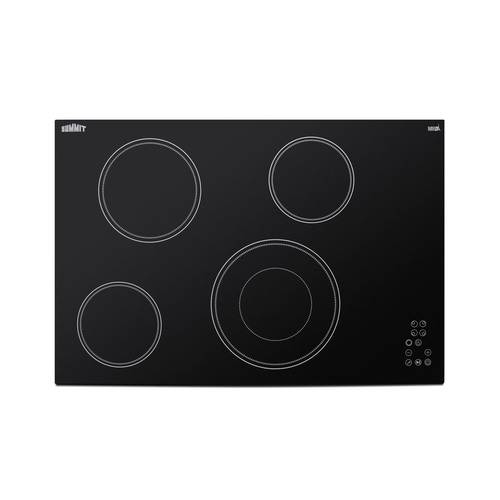

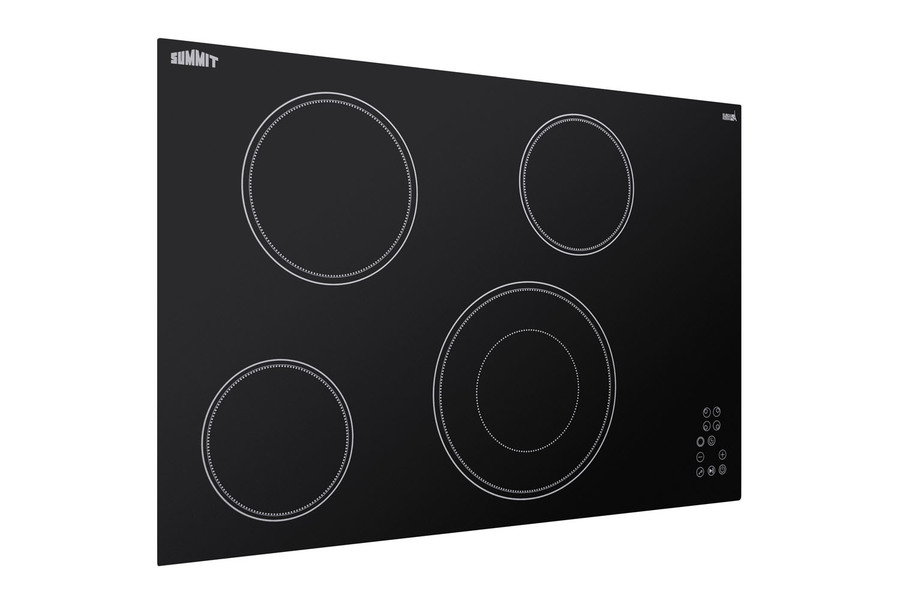

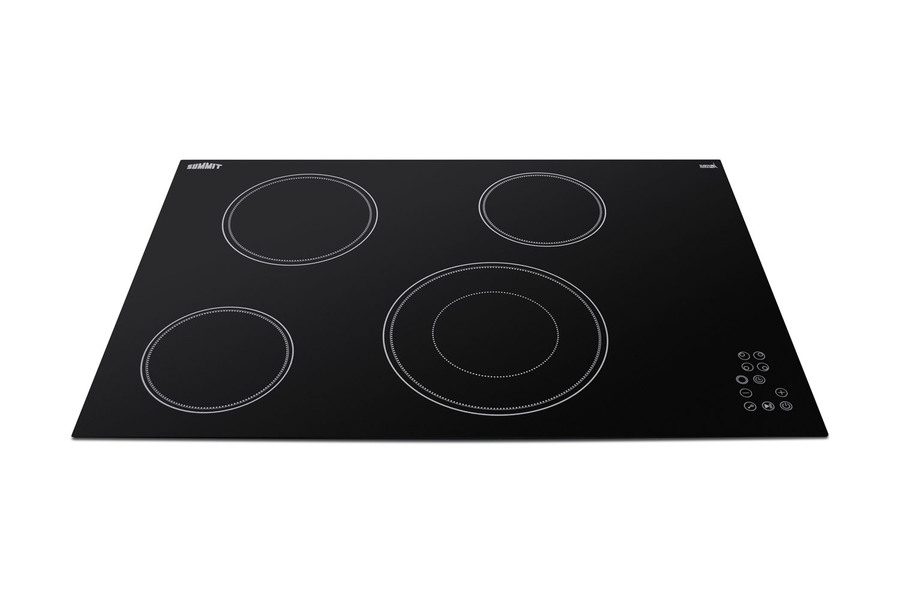

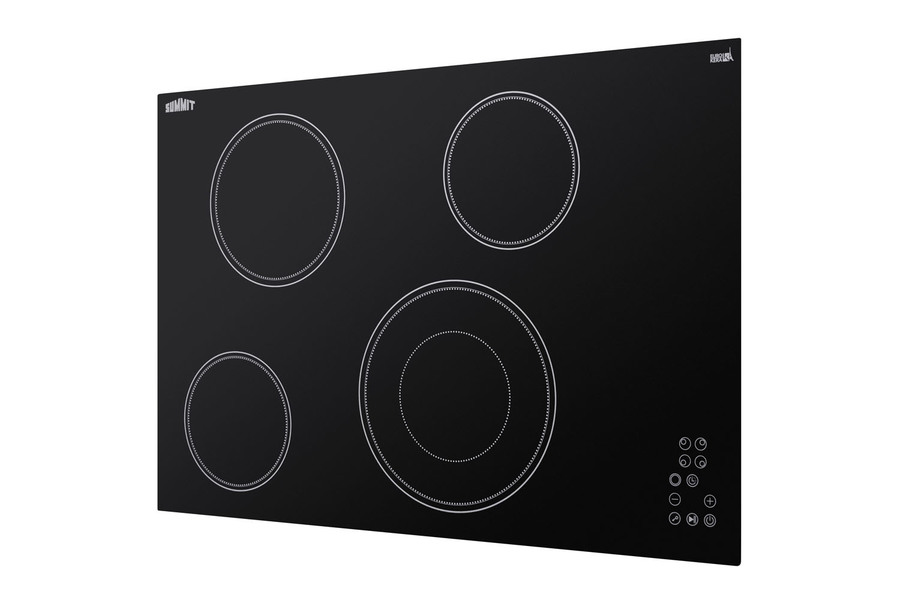

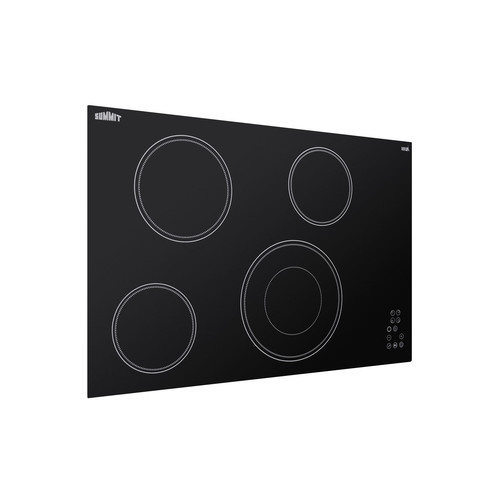

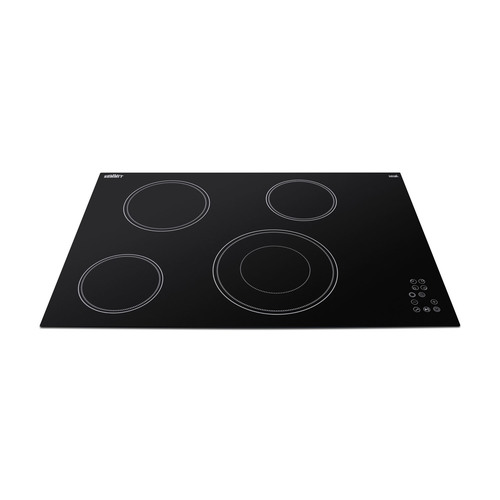

30" Wide 208-240V 4-Burner Radiant Cooktop

SKU: CR4B30T11B
Touch controls & an extra large 10" dual ring burner to accommodate large cookware
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
2.13" H x 30.25" W x 20.5" D
(5cm H x 77cm W x 52cm D)

Overview
Height of Cabinet 2.13" (5 cm)
Width 30.25" (77 cm)
Depth 20.5" (52 cm)
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 25.0
Voltage/Frequency 240 V AC/60 Hz
Weight 28.0 lbs. (13 kg)
Shipping Weight 29.0 lbs. (13 kg)
Parts & Labor Warranty 1 Year
UPC 761101078793
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 4
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Width 29.5" (75 cm)
Countertop Cutout Depth 19.63" (50 cm)
Element #1 Size 6.5" (17 cm)
Element #1 Wattage 1200.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 1800.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 1200.0
Element #4 Size 9.75" (25 cm)
Element #4 Wattage 2500.0
Power Cord Included No

30" wide 4-burner radiant cooktop

Designed to fit common 29 1/2" x 19 5/8" counter cutouts

EuroKera glass surface

Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

Extra large 2500W burner

Conveniently located front right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed

Large 1800W burner

1800W burner located in the left rear is 8" in diameter to handle larger cooking vessels

2 Standard 1200W burners

Front left and rear right burners are 6.5" in diameter to meet most cooking needs

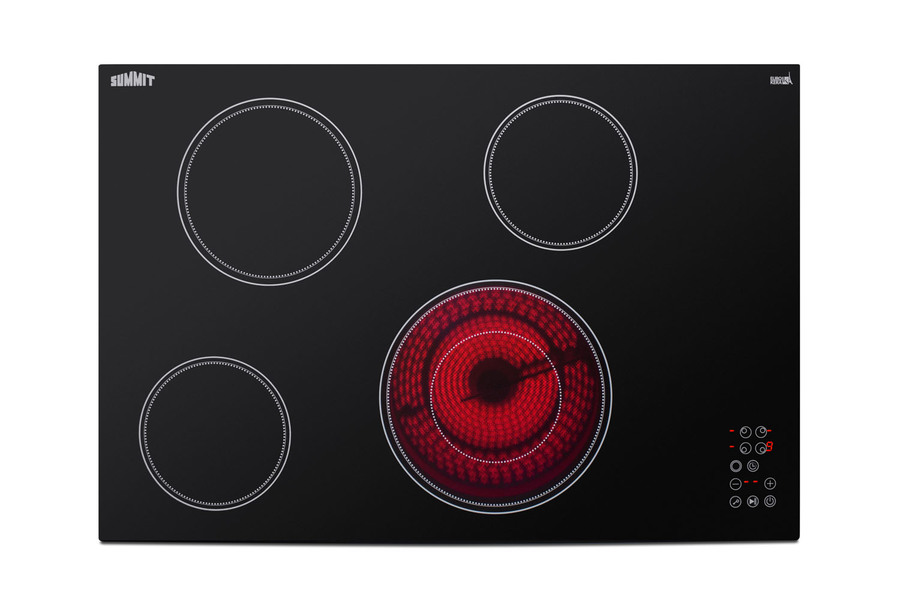

Dual cooking zone

Front right burner includes an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware

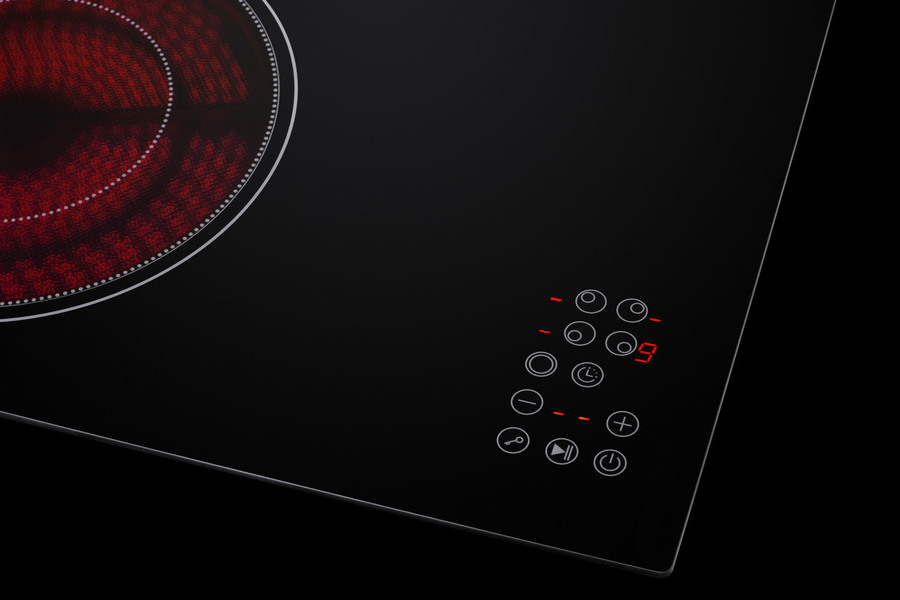

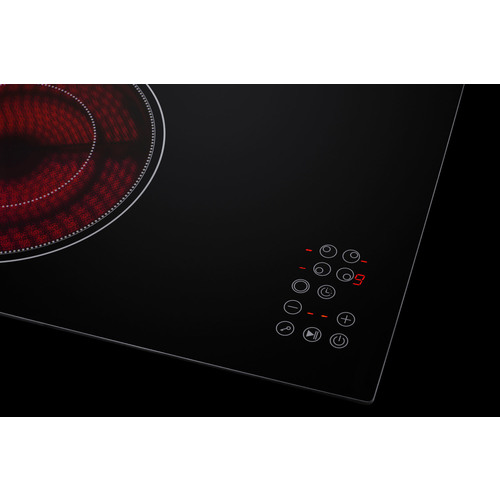

Digital touch controls

Easy operation with a digital control panel and digital display, located upfront but towards the side to help prevent any unintended adjustments when cooking

9 power levels

Select and adjust your heating levels at the touch of a button

Timer

Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up

Residual heat indicator light

Indicator shows when the surface is still hot to touch

ADA compliant design

Upfront controls meet ADA guidelines for easier accessibilty

Child lock

Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff

If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

208-240V operation

Requires professional hardwired installation (cord not included)

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.

The CR4B30T11B is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

Four elements let you meet a variety of cooking needs, with an extra large 2500W 9 3/4" front dual zone element ideal for woks, Dutch ovens, and other larger cooking vessels. The inner element is just 5 1/2", perfect for smaller pots used to melt butter, chocolate, and more. This unit includes an 1800W 8" burner located in the rear left, great for boiling water or heating up sauces in large pans while the front element is also in use. Two 6 1/2" 1200W elements accommodate smaller cookware.

The upfront digital controls are located to the right, ensuring you won't have to reach over the controls when adjusting your pots and pans. The temperature is easy to adjust with intuitive touch controls. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator.

With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B30T11B brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as white glass finishes. Browse the full Summit lineup for more.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
