24" Wide Built-In Refrigerator-Freezer, ADA Compliant

SKU: CT66LWBIADA
Made in Europe with a unique dual evaporator system to ensure better cooling in each section
Out of Stock; ETA:

11/30/2024

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068817
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 19.5" (50 cm)
Refrigerator - Interior Width 20.5" (52 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 5.0" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 20.5" (52 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
SS Hinges
Stainless steel top and bottom hinges
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Slim undercounter dimensions

Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished white cabinet

Allows the unit to be used freestanding

Factory installed lock

Keyed lock offers added security

Dual evaporator cooling

Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Cycle defrost

This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Adjustable shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Crisper drawer

Get the longest life and best taste out of produce by storing greens in lower slide drawer

Door shelves

Store tall bottles and condiments right on the door for convenient access

Interior light

Automatically illuminates when the door is opened

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Reversible door

User-reversible door swing for added flexibility

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

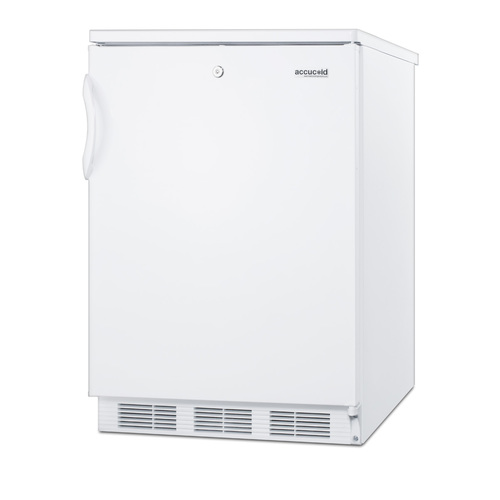

At 32" high, the CT66LWBIADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white exterior finish and a user-reversible door swing. A factory installed lock offers convenient security.

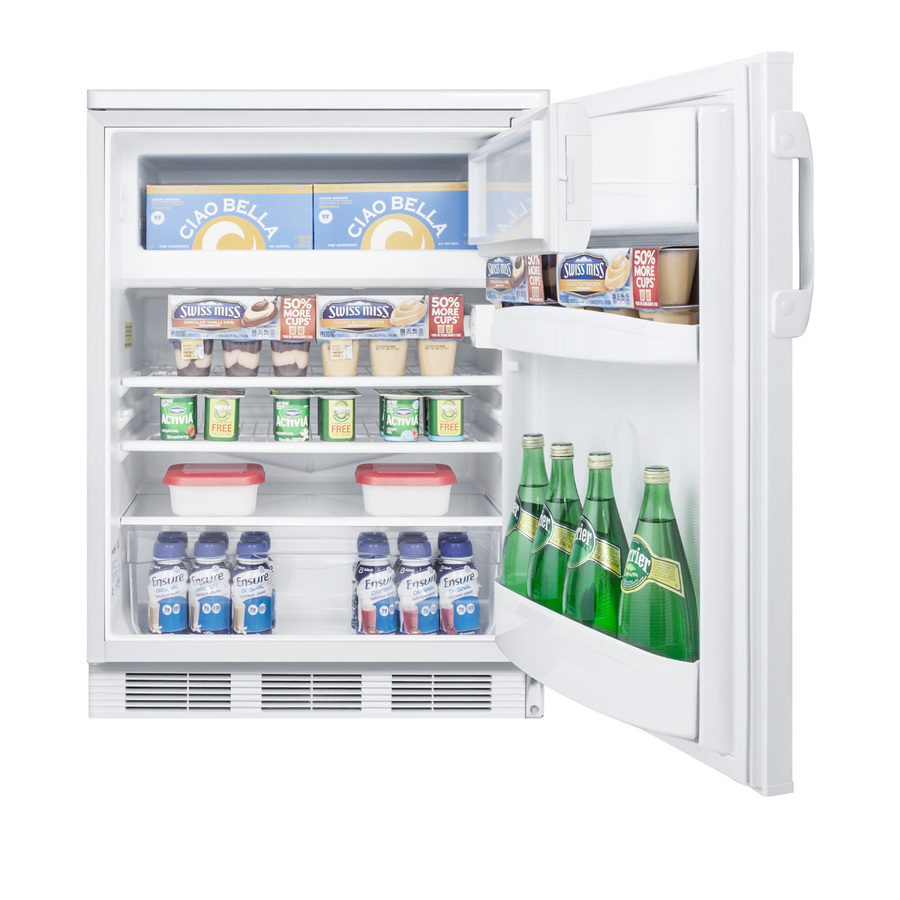

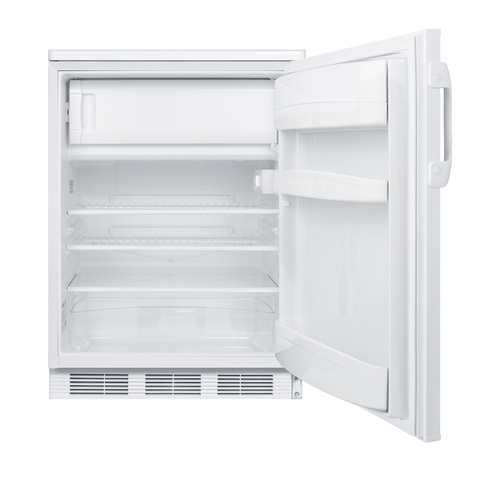

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66LWBIADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBIADA Series.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
