Portable Data Logger

SKU: DLSA11CAL-24P
NIST calibrated with certificate included
Estimated Time to Ship:

3 to 5 days; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

5.25" H x 0.75" W x 0.75" D
(13cm H x 2cm W x 2cm D)

Overview
Nominal Height 5.25" (13 cm)
Height of Cabinet 5.25" (13 cm)
Nominal Width 1.0" (3 cm)
Width 0.75" (2 cm)
Nominal Depth 1.0" (3 cm)
Depth 0.75" (2 cm)
Weight 0.5 lbs. (0 kg)
Parts & Labor Warranty 90 Days
UPC 761101054056

Set of 24

24 individually boxed loggers included

NIST calibrated loggers

Units are calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory and ship with a certificate; NOTE: there is a two week lead time for calibration

Reliable logging

Accurate within .5ºC in a -20 to 40ºC range (accuracy in other ranges is 1ºC)

User-set logging interval

Users can program the timing interval for data logging

USB connection

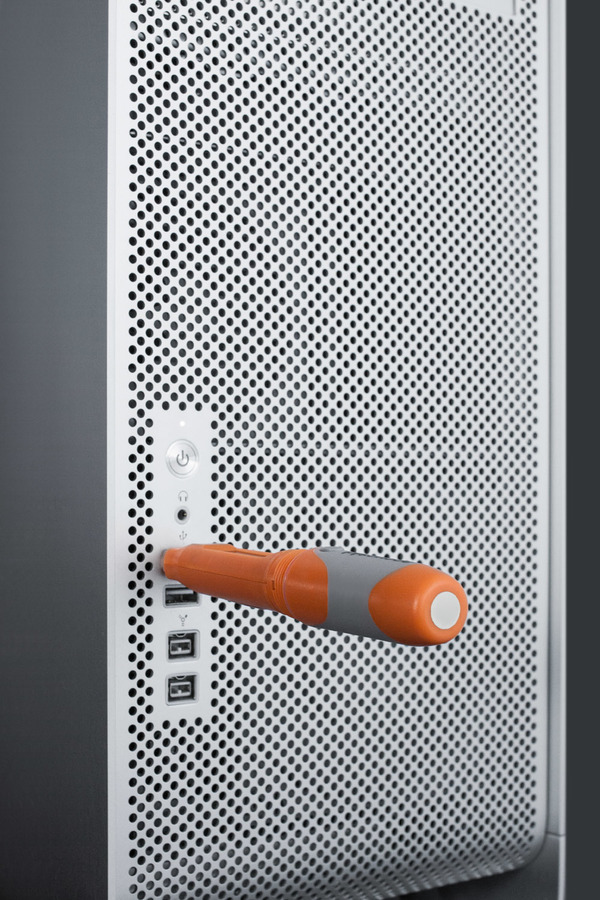

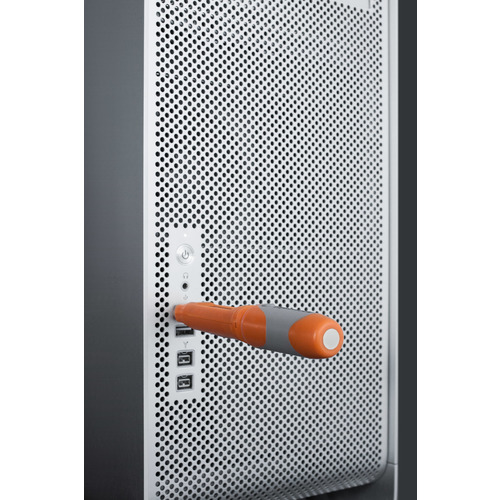

Data logger includes integrated USB drive that lets you plug the whole logger into your computer's USB port for easy analysis

Versatile software

Allows you to view the data in Excel, Adobe Illustrator, or PDF

Temperature display

LCD screen displays the current and high/low temperatures, as well as the average temperature and Mean Kinetic Temperature to show the overall effect of temperature fluctuations during the recording period

Displays Celsius or Fahrenheit

Users can set their preference through the software before using the logger

Visual alarm indicator

If setting high/low temperature parameters, the LCD display will show an "x" to communicate that the temperature is out of range. Out of range recordings will be color-coded in the exported report

Compact size

Portable design lets you place the logger virtually anywhere for convenient logging

Large recording capacity

Logger can store up to 32,000 data points

Transparent cover

Clear cap allows you to easily view the data without disrupting the recording

Built-in NTC thermistor

Internal sensor records temperature straight to the data logger for easy viewing when inserted in your computer's USB port

Water resistant design

Sturdy construction with a waterproof level of IP65

Battery-powered

Includes a replaceable 3.6V lithium battery. Battery life varies depending on recording parameters, but is specified at 12 months+ when used at 25ºC to record in 15 minute intervals

Low battery alert

Battery symbol flashes on the LCD screen when battery needs to be replaced

Accucold offers a range of user-friendly options for versatile and reliable temperature logging.

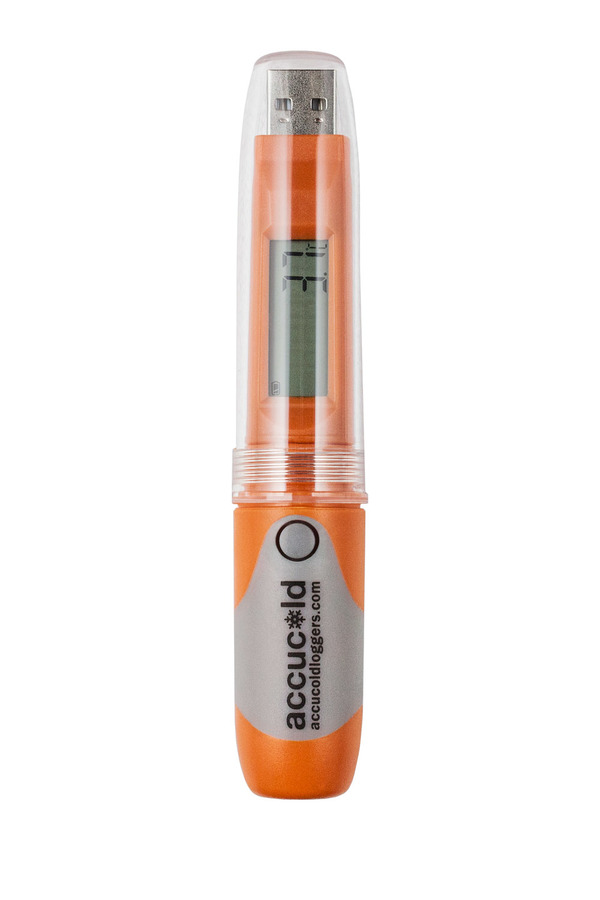

The DLSA11CAL-24P is a set of 24 DLSA11CAL standalone temperature loggers ideal for use when transporting items that need to be monitored. The compact size makes it easy to place in the logged area without compromising capacity. The logger includes an LCD screen with a digital display of the temperature to the nearest tenth of a degree, as recommended by the CDC for vaccine storage. You can also view the average temperature and mean kinetic temperature, a simplified way of showing the overall effect of temperature fluctuation during the recording period. This unit includes a protective transparent case that allows you to view the data without disrupting recording.

Designed for use with Windows-based platforms, the DLSA11CAL includes downloadable software that is easy to program to your specific needs. Users can set the recording interval from every 10 seconds to 24 hours and specify whether to display the temperature in Celsius or Fahrenheit. Users can also choose to set a minimum/maximum temperature alarm that will show a visual indicator alert if the temperature goes out of range. These readings will be color-coded in the data exports for easy analysis. The logger offers an accuracy range of .5ºC in the temperature range of -20 to 40ºC, and 1ºC outside of this  range. It records all data to the internal USB drive and can hold up to 32,000 readings. When you're ready to view your data, simply plug your logger into your computer and open the software in Excel, Adobe Illustrator, or PDF format. From there, you can easily view and export the data in graphical or tabular form.

These units are NIST calibrated in Accucold's ISO/IEC 17025:2017 accredited laboratory and ship with a calibration certificate for your records. All DLSA11CAL loggers include a replaceable lithium battery and a low battery alert on the LCD display.

NOTE: Due to the process of calibration, there is a one week lead time on calibrated orders. For these loggers without NIST certification, see the DLSA11-24P.



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
