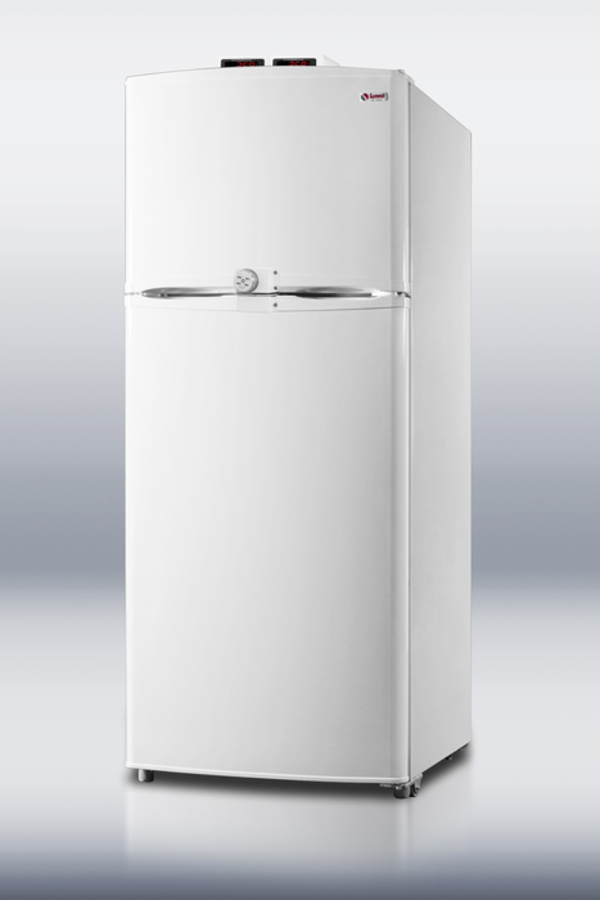

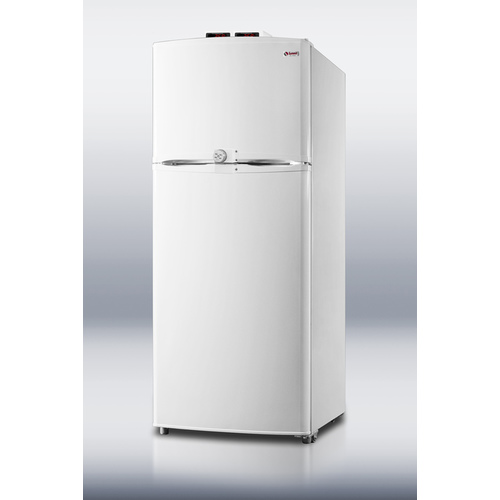

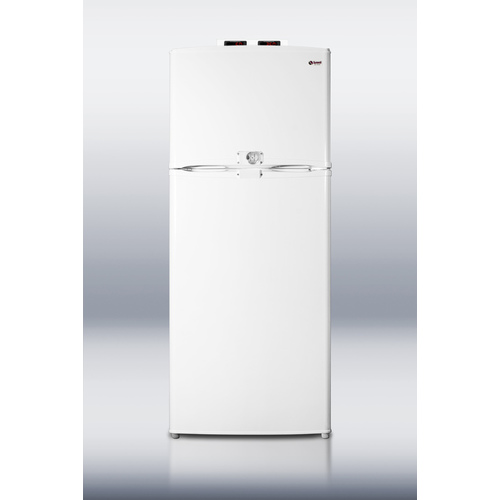

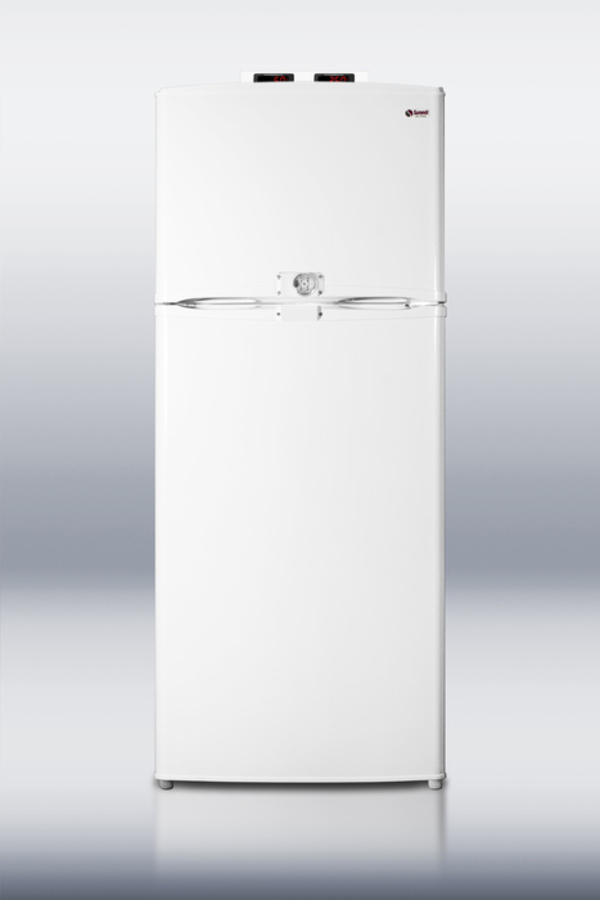

29" Wide Top Mount Refrigerator-Freezer

SKU: FF1620DTLLF2

DISCONTINUED

69.13" H x 29.13" W x 26.5" D
(176cm H x 74cm W x 67cm D)

Overview
Height of Cabinet	69.13" (176 cm)
Width	29.13" (74 cm)
Depth	26.5" (67 cm)
Depth with door at 90°	54.63" (139 cm)
Capacity	15.8 cu.ft. (447 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	UL
Amps	3.0
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101028590
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	2
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	38.75" (98 cm)
Refrigerator - Interior Width	25.0" (64 cm)
Refrigerator - Interior Depth	22.25" (57 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	7
Freezer - Interior Height	19.63" (50 cm)
Freezer - Interior Width	24.5" (62 cm)
Freezer - Interior Depth	17.0" (43 cm)
Gallon Door Storage	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	3.5 oz.
High Side PSI	335.0
Low Side PSI	140.0
Level Legs	2
Wheels	4

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Frost-free operation

No-frost convenience for reduced user maintenance

Digital thermostat

Precise temperature management for both the refrigerator and freezer

LLF2 lock

Combination lock with key override secures both sections

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

Store items right on the door for easy access

Hanging ice cube trays

Unique design lets you suspend the trays from shelves and adjust from side to side

Hanging deli crisper

Mini-drawer suspends from a refrigerator shelf and can be adjusted from side to side

Full freezer shelf

Removable shelf for added convenience

Interior light

Automatically illuminates when you open the door

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT FF1620DTLLFT2 is a dual temperature refrigerator-freezer built for full sized storage with reliable temperature precision in medical facilities.

The FF1620DTLLF2 features 15.8 cu.ft. storage capacity inside a unique 29 ¼" W x 26 ½" D counter depth footprint. Digital thermostats ensure accurate temperature management, with a digital readout of the temperature for the refrigerator and freezer. This unit is fully frost-free and includes an interior fan. A front combination lock (with key override) secures both sections.

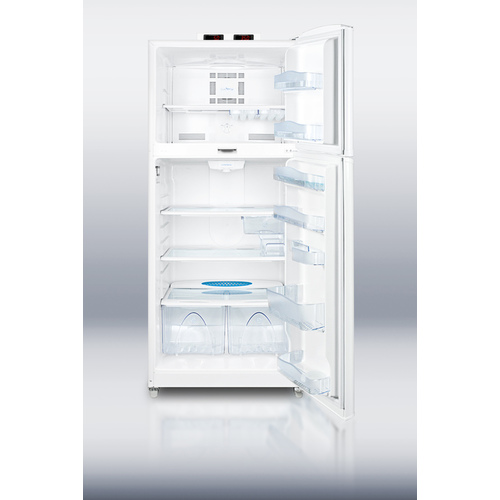

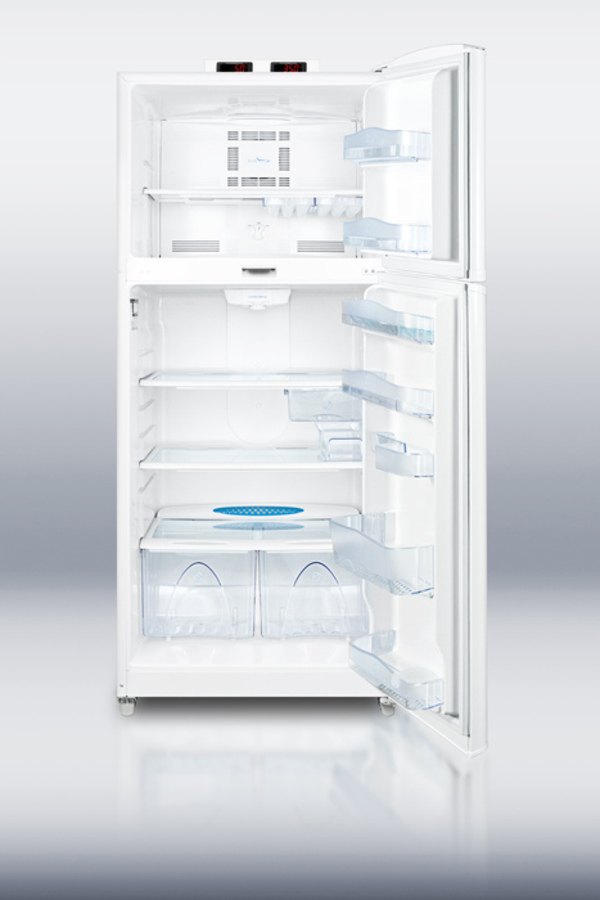

Inside, the FF1620DTLLF2 includes adjustable glass shelves. Additional features include interior lighting, multiple crisper drawers, and door storage in both the refrigerator and freezer section.
