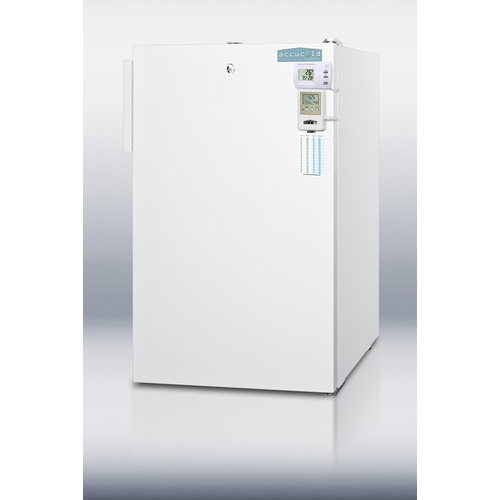

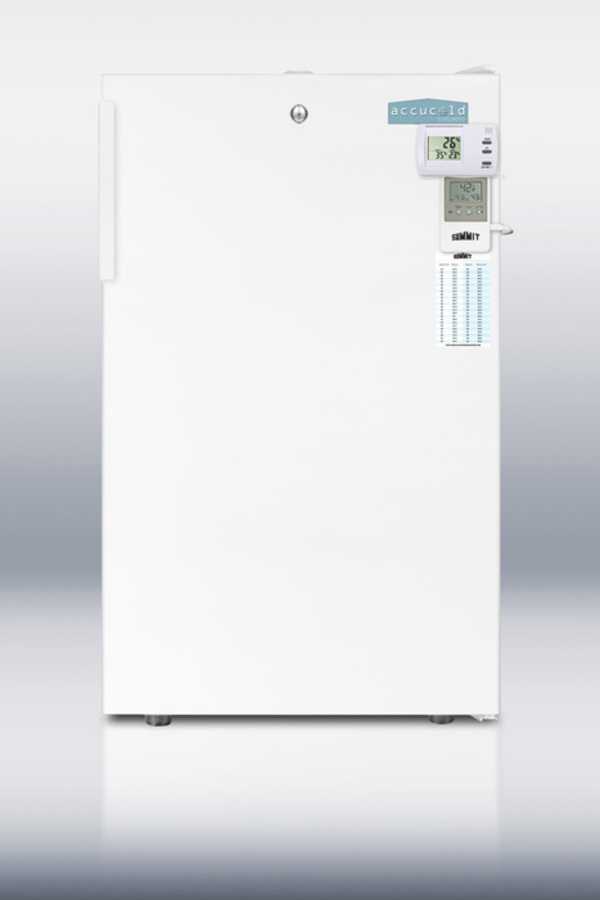

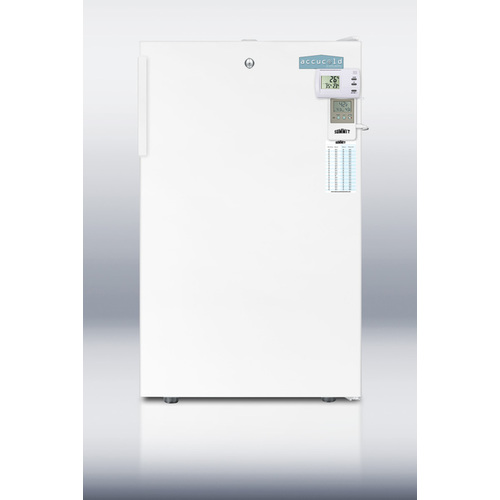

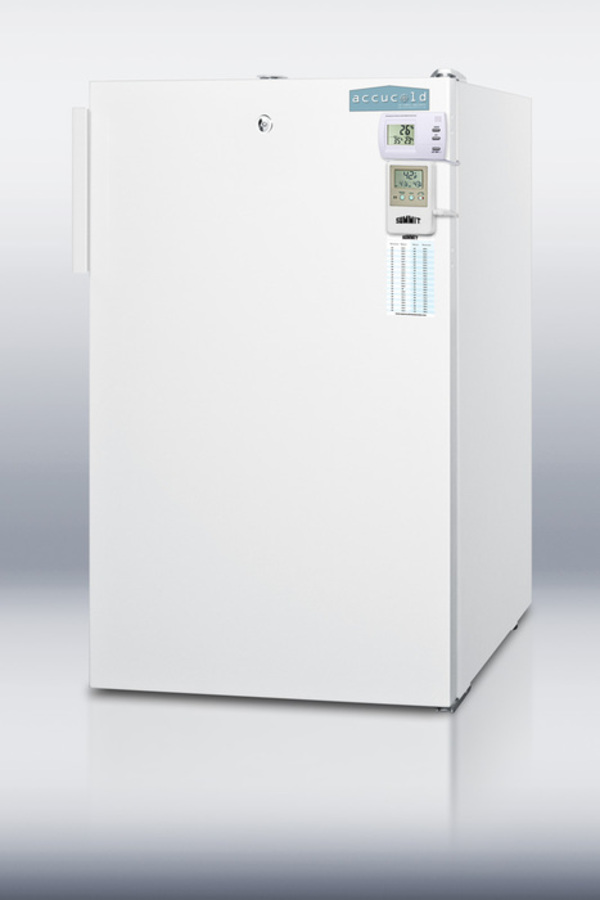

20" Wide Built-In All-Refrigerator, ADA Compliant
(83cm H x 49cm W x 54cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.5" (83 cm) |
| Width | 19.25" (49 cm) |
| Depth | 21.38" (54 cm) |
| Depth with Handle | 23.0" (58 cm) |
| Depth with door at 90° | 39.5" (100 cm) |
| Capacity | 4.1 cu.ft. (116 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 64.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.75oz. |
| High Side PSI | 205.0 |
| Low Side PSI | 103.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 28.5" (72 cm) |
| Interior Width | 15.75" (40 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 8.0" (20 cm) |
| Compressor Step Width | 17.0" (43 cm) |
| Compressor Step Depth | 6.75" (17 cm) |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
||
| Lock | ||
|
FEATURES
Full 4.1 cu.ft. capacity inside conveniently slim footprint

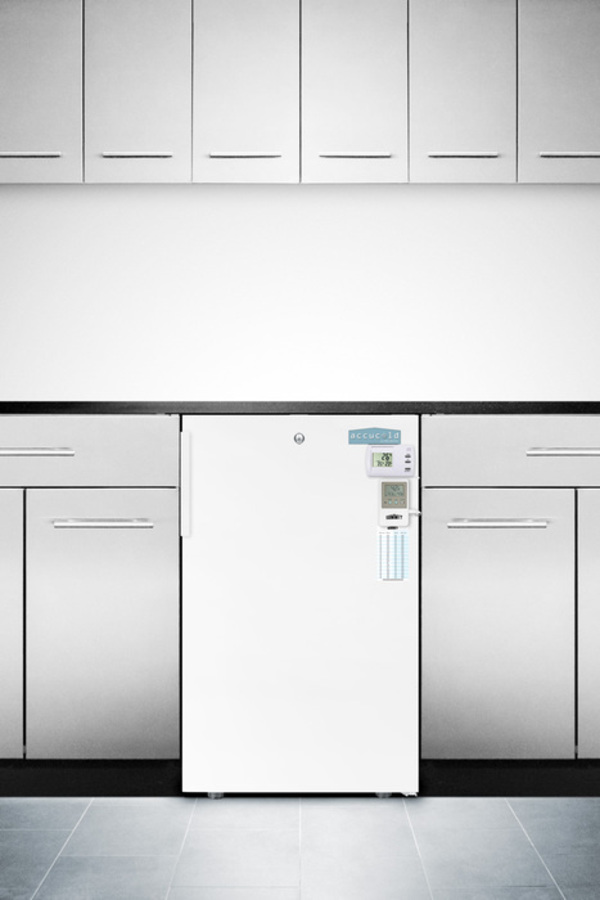

32" high to fit under lower ADA compliant counters

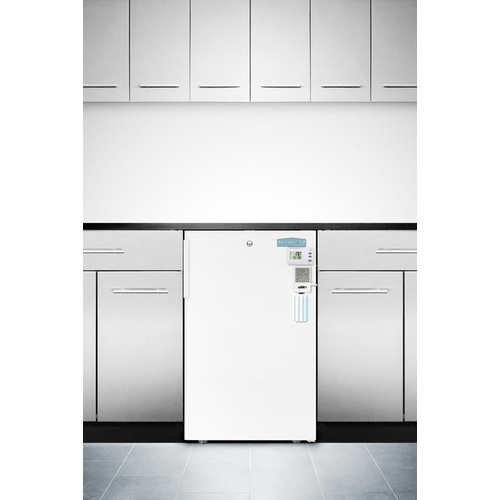

Make the best use of space by installing your appliance under the counter
Allows the unit to be used freestanding
Keyed lock for secure interior
Reduced maintenance with auto defrost system
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Electronic controls for more precise temperature management (rear-mounted)
Warns of temperature fluctuations and includes an external temperature readout on the door
Secure three-pronged cord for added unit safety
Displays the current and high/low humidity readings
Factory installed probe hole for user-supplied monitoring equipment

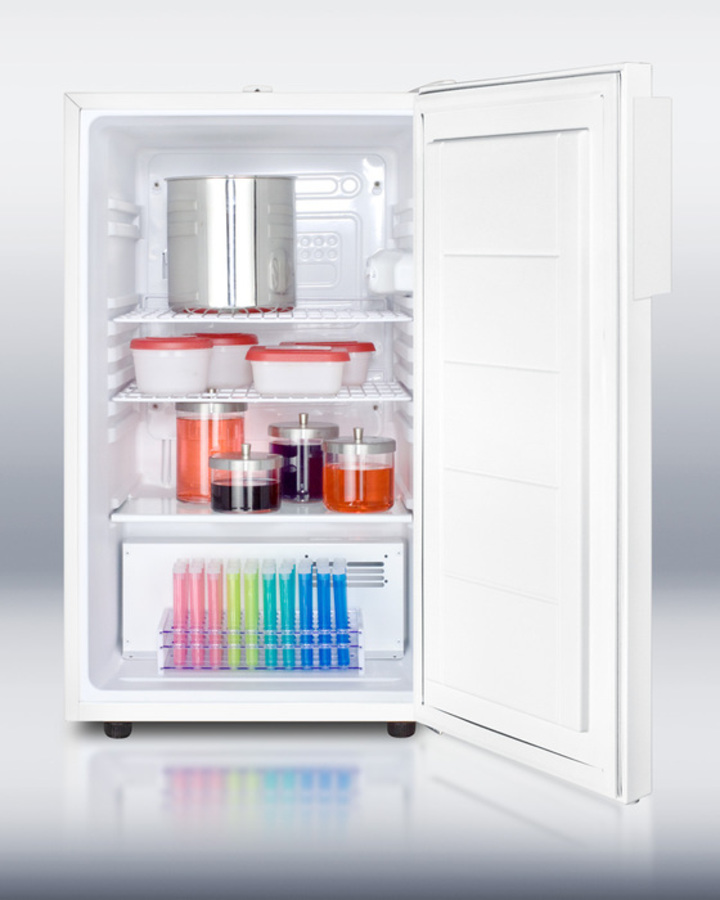

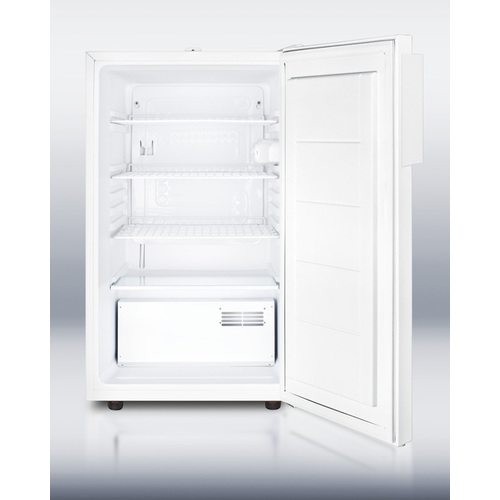

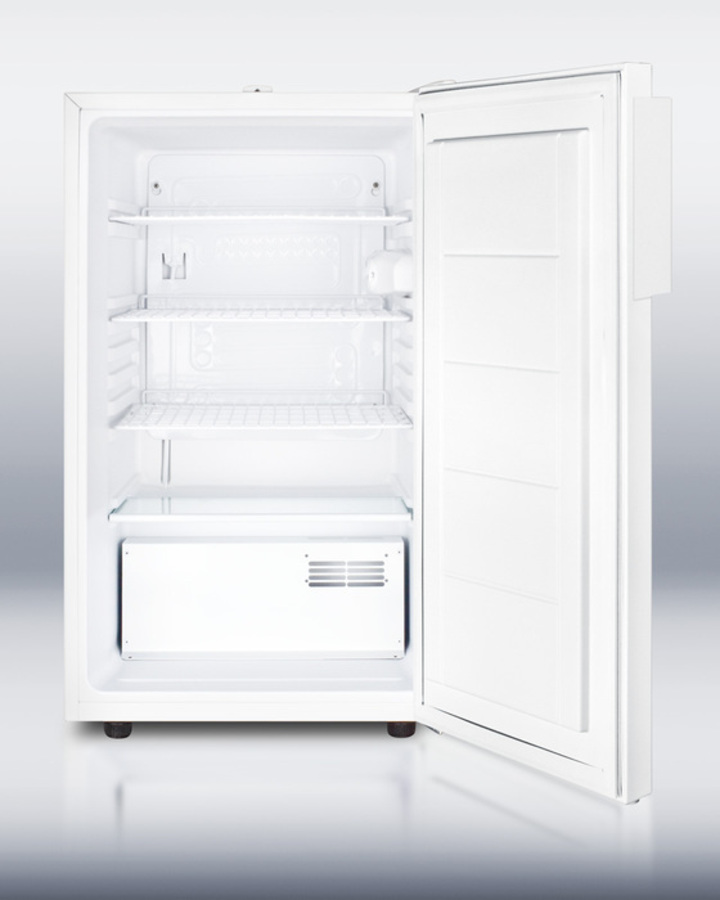

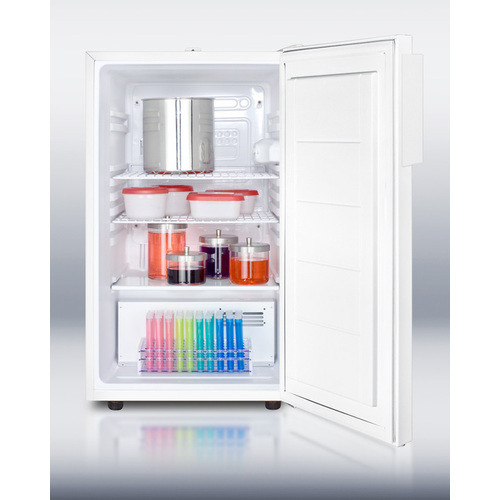

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Easy to clean, with more depth for storage
Turn the light on and off with a convenient rocker switch
Pair with FS407LBIMEDSCADA for a complete ADA compliant undercounter set
Environmentally friendly design with no ozone-damaging chemicals
DESCRIPTION
SUMMIT's ACCUCOLD™ series of refrigeration features units ideal for storing vaccines, pharmaceuticals, and other specimens requiring safe and reliable temperature conditions. The FF511LBIMEDSCADA is 20” wide, 32” high auto defrost all-refrigerator designed for freestanding or built-in use under lower ADA compliant counters. An internal fan provides even temperature distribution, while a heat sink helps to stabilize temperature under light loads. We install an audible alarm on the door to warn of interior temperature fluctuations and a rear-mounted digital thermostat to allow more control in temperature management. This unit also includes a humidity sensor for additional monitoring. The FF511LBIMEDSCADA includes adjustable shelves in the 4.1 cu.ft. interior. A green dot plug helps to protect the power cord from accidents in high traffic areas and a front lock adds keyed security. An additional probe hole is provided that allows users to install their own monitoring devices. In addition to the standard features, any FF511LBIMEDSCADA can be customized to your exact specifications. Additional options include temperature loggers, keypad locks, open door alarms, and more. SUMMIT sales representatives are available to help you design the perfect ACCUCOLD™ refrigerator for your storage needs.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
