24" Wide Built-In All-Refrigerator

SKU: FF7WBISSHV

Made in Europe and meets NSF-7 commercial standards

DISCONTINUED- REPLACED BY FF7LWBISSHV

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.25" H x 23.63" W x 23.5" D
(84cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	32.63" (83 cm)
Height to Hinge Cap	33.25" (84 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	45.63" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	8.0 lbs. (4 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101072333
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Legs to raise unit height 6" high leveling legs
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Interior

FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior	FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior
LockBox24 - Interior locking compartment Interior lift-up compartment with combination lock for use in FF7 and FFAR10 models

Lock

AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security	KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security
L-SideLock Add a single keyed lock located on the door's side

Handle

TBC Copper Towel Bar Handle Upgrade

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees	CDG-Emerald green door Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate	CDB-Cobalt blue door wrap Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Slim undercounter dimensions

Less than 24 inches wide with a full 5.5 c.f. capacity

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished white cabinet

Allows the unit to be used freestanding

Height Adjustable

Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high

Stainless steel wrapped door

Durable design with lasting elegance

Professional stainless steel handle

Thin 14mm diameter on vertical stainless steel handle

Automatic defrost

Reduced user maintenance with automatic defrost

Adjustable shelves

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Deep shelf space

Interior accommodates large trays up to 19 1/2" x 15 1/2"

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Adjustable thermostat

Dial thermostat located inside for easy temperature management

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BI Series features high performing, perfectly sized all-refrigerators designed for built-in use under counters.

The FF7WBISSHV features a front-breathing design that allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. The 24" footprint is ideal for many common cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This unit has a white cabinet and stainless steel wrapped door. A sleek handle completes the professional look.

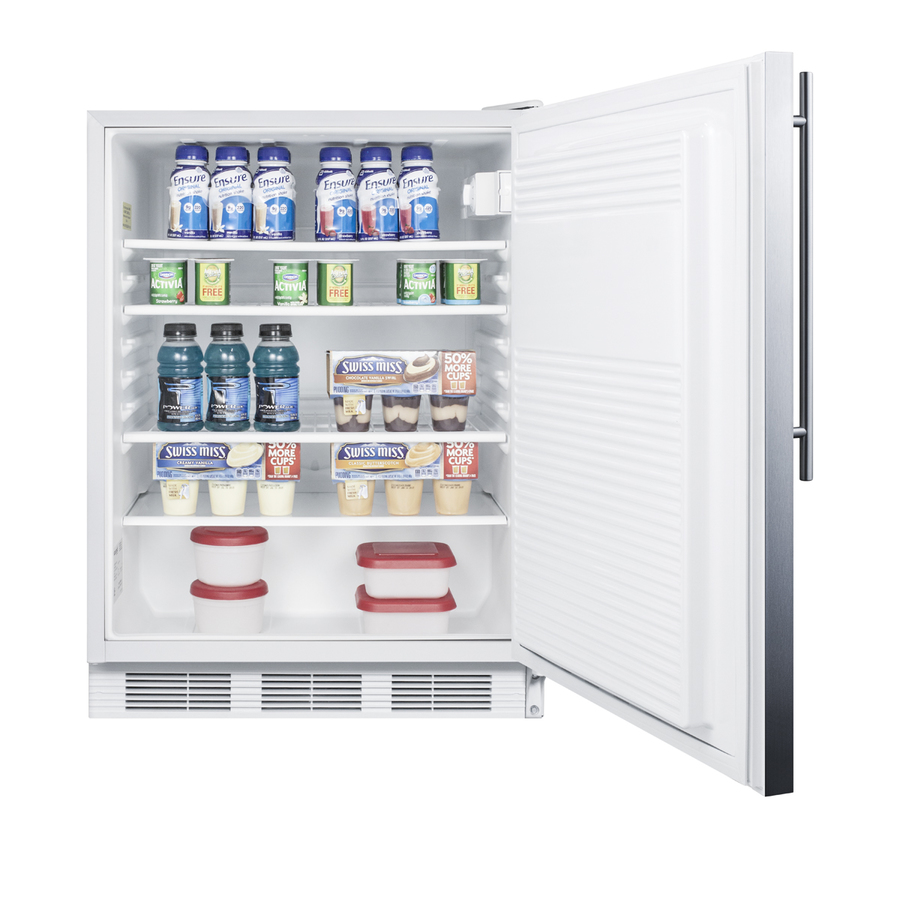

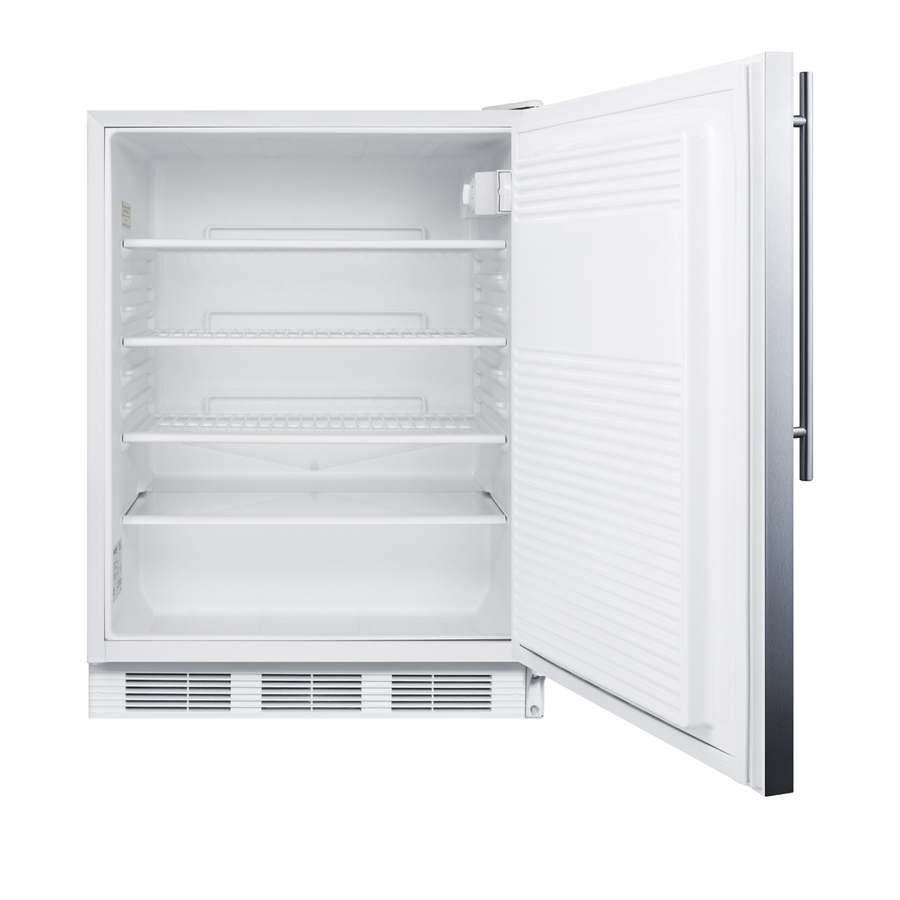

Inside, the FF7WBISSHV utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7WBISSHV is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BI Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options.

BROCHURE
FF7WBISSHV.pdf

USE & CARE
FF6WBI_FF7WBI__SCR600LBI_SCR600BLBI_Engl_French.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
