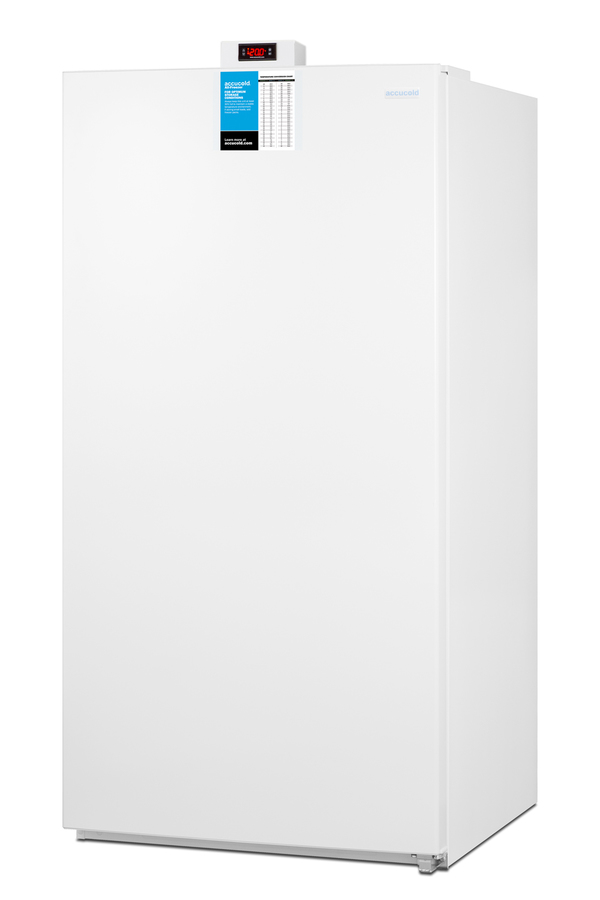

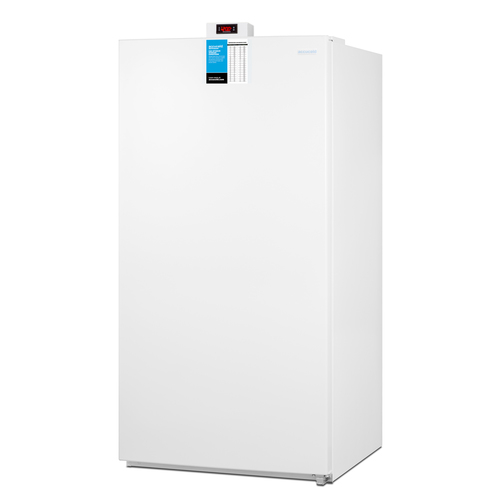

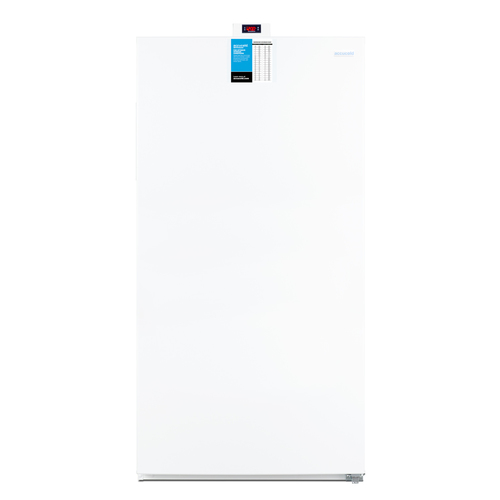

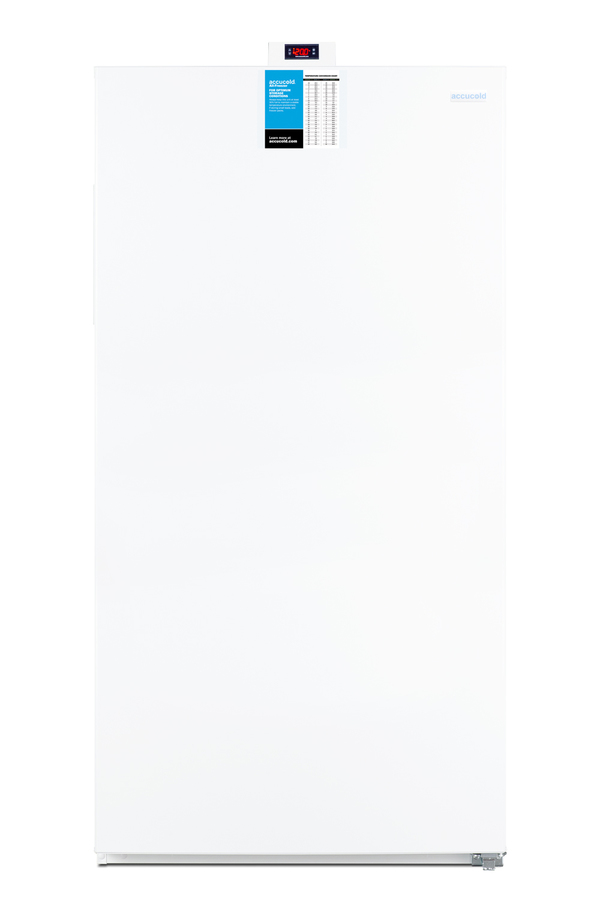

33" Wide Upright All-Freezer

SKU: FFUF194
Frost-free operation with digital controls for easy and intuitive use in general purpose applications
Estimated Time to Ship:

5 to 7 days

67.0" H x 32.75" W x 30.25" D
(170cm H x 83cm W x 77cm D)

Overview
Height of Cabinet 67.0" (170 cm)
Width 32.75" (83 cm)
Width with Door Open 33.75" (86 cm)
Depth 30.25" (77 cm)
Depth with door at 90° 59.75" (152 cm)
Capacity 17.0 cu.ft. (481 L)
Defrost Type Frost-Free/Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.8
Voltage/Frequency 115 V AC/60 Hz
Weight 227.0 lbs. (103 kg)
Shipping Weight 240.0 lbs. (109 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101084459
Freezer
Door Swing RHD
Reversible No
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Wire
Interior Height 57.0" (145 cm)
Interior Width 26.5" (67 cm)
Interior Depth 22.5" (57 cm)
Shelf Type Wire
Shelf Qty 4
Full Door Shelves 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 2.12 oz.
High Side PSI 210.0
Low Side PSI 103.0
Level Legs 2
Interior Drawers Yes
Compressor Step Height 11.0" (28 cm)
Compressor Step Width 26.5" (67 cm)
Compressor Step Depth 4.0" (10 cm)
Temperature Range -25 to -10ºC

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS 6" freezer casters
6" heavy duty casters with support brackets
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

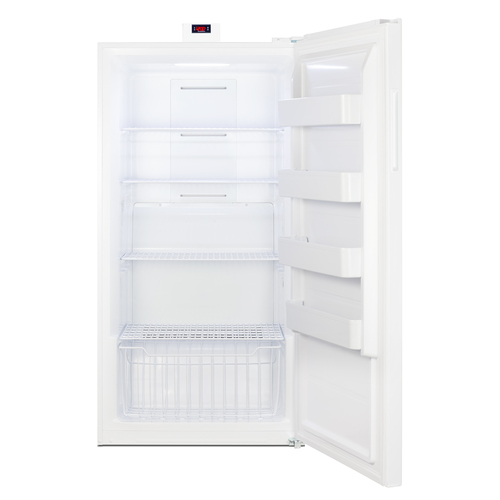

Upright all-freezer

Large capacity freezer with front-opening design

Large capacity

17 cu.ft. of interior space

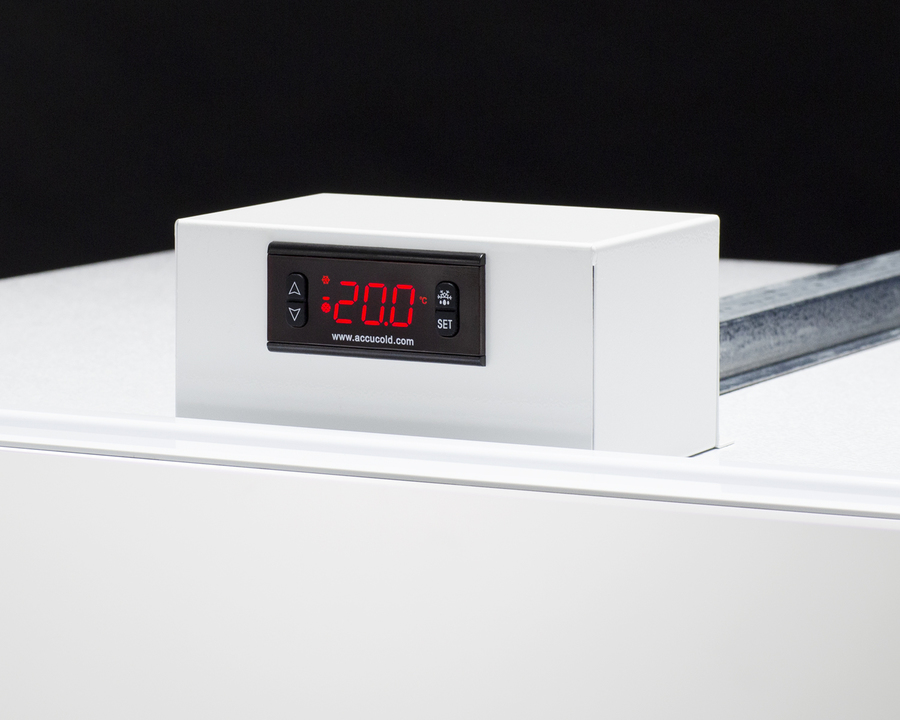

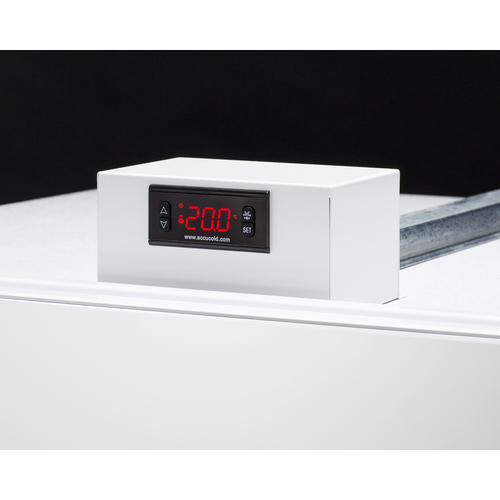

Digital controls

Electronic thermostat located on top of the freezer cabinet, allowing you to manage the temperature without opening the door

Frost-free operation

True no-frost operation that eliminates the need to ever manually defrost the interior

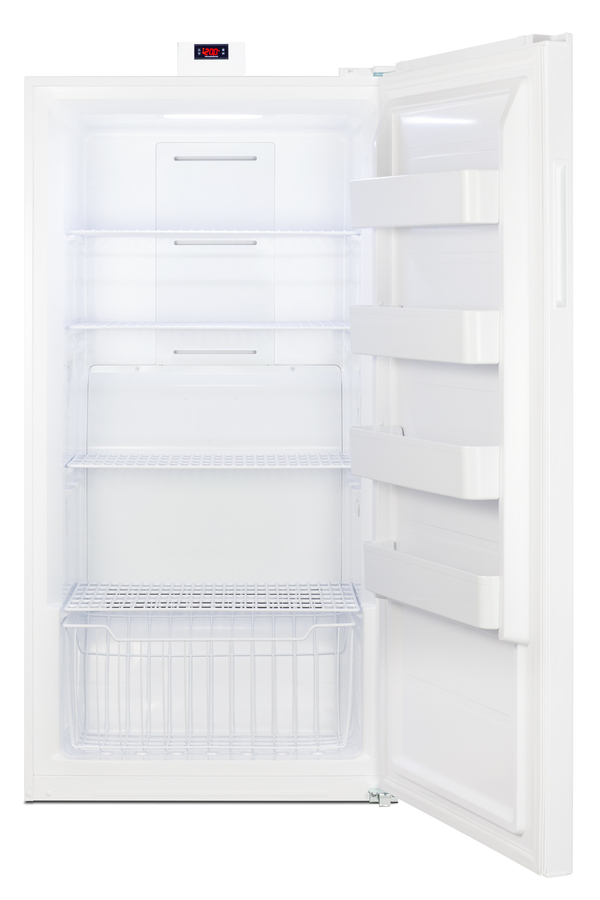

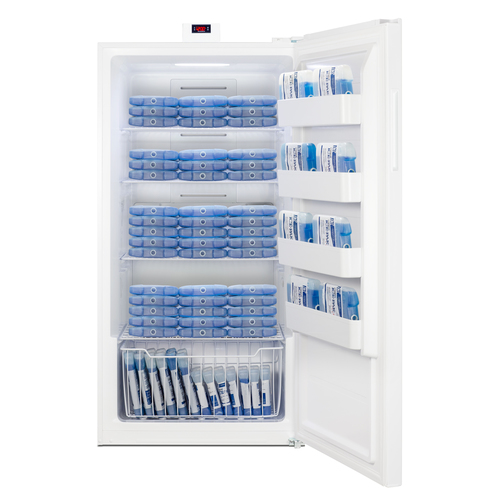

Adjustable shelves

Four wire shelves allow users to rearrange the freezer space to fit any sized item or remove shelves for simple cleanup

Door shelves

Fixed racks for convenient storage of smaller items

Storage basket

Lower wire drawer for additional organizing of stored contents

Interior light

LED lighting automatically illuminates when the door is opened

Fully finished white cabinet

Allows the unit to be freestanding

Magnetic door gasket

Powerful magnetic gaskets ensure a tight seal for energy savings and improved performance

Right hand door swing

Note: this door is not reversible

Right-angle plug

Provides flexibility in unit placement without needing added depth

Sealed back

Space saving design for easier cleanability

Matching refrigerator

Can be paired with the FFUR19 all-refrigerator

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's general purpose series offers reliable cold storage in a variety of designs, including full-sized freezers with frost-free operation for low maintenance use.

Model FFUF194 is an upright all-freezer with a full 17 cu.ft. storage capacity. It comes in a white exterior finish with a right hand door swing and powerful seal to ensure items are protected. This unit has a sealed back for easier cleanup and a right angle cord to allow a better fit. The digital control panel is located on top of the cabinet, allowing you to manage the interior temperature without opening the door. The FFUF194 is designed to operate between -25 to -10ºC. For a matching all-refrigerator, see the FFUR19.

The FFUF194 utilizes frost-free operation, eliminating the need to manually defrost the interior. Adjustable wire shelves accommodate a variety of sizes, with a removable lower basket for additional storage. Four door racks are included. This unit features LED lighting for an efficient view.

With its low maintenance design and large storage capacity, the FFUF194 is ideal for storing non-critical products in research, clinical, and industrial laboratory applications.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

Download
BROCHURE w/ DRAWINGS
FFUF194.pdf
Download
TECHNICAL DRAWING (.dwg)
FFUF194_FREEZER__A-C_2018_.dwg

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
