20" Wide All-Freezer

SKU: FS407LWSSHV
Designed for general purpose healthcare applications, with a manual defrost system to reach lower temperatures
DISCONTINUED- REPLACED BY FS407LWSSHH
34.0" H x 19.25" W x 21.38" D
(86cm H x 49cm W x 54cm D)

Overview
Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with Handle 23.0" (58 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 67.0 lbs. (30 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101084848
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 125.0
Low Side PSI 68.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4
Temperature Range -10 to -20°C

Exterior
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

General purpose healthcare design

Low temperature manual defrost freezer for use in healthcare, life science, and other institutional facilities

Slim 20" width

2.8 capacity inside a slim footprint

-20ºC capable

Low temperature capability ideal for certain sensitive items

Factory installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

Stainless steel wrapped door

Durable exterior in 304 grade stainless steel for a professional look

Professional handle

Vertically mounted handle in brushed stainless steel with a thin 14mm diameter to match many popular styles of cabinetry

Manual defrost

Efficient performance with more reliable temperature stability

Basket shelves

Four slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Adjustable thermostat

Rear mounted dial control to prevent accidental adjustments

Flat door liner

Easy to clean, with more depth for storage

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching refrigerator available

Pair with FF511LWSSHV all-refrigerator for a complete matching set

Fully finished white cabinet

Allows the unit to be used freestanding

CARB compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Accucold's general purpose freezer series includes conveniently sized options for a variety of storage applications in healthcare facilities.

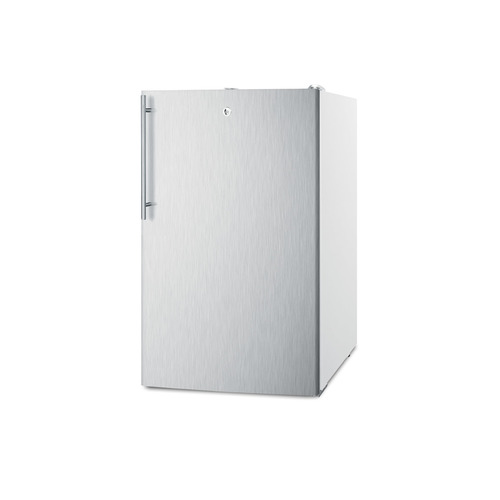

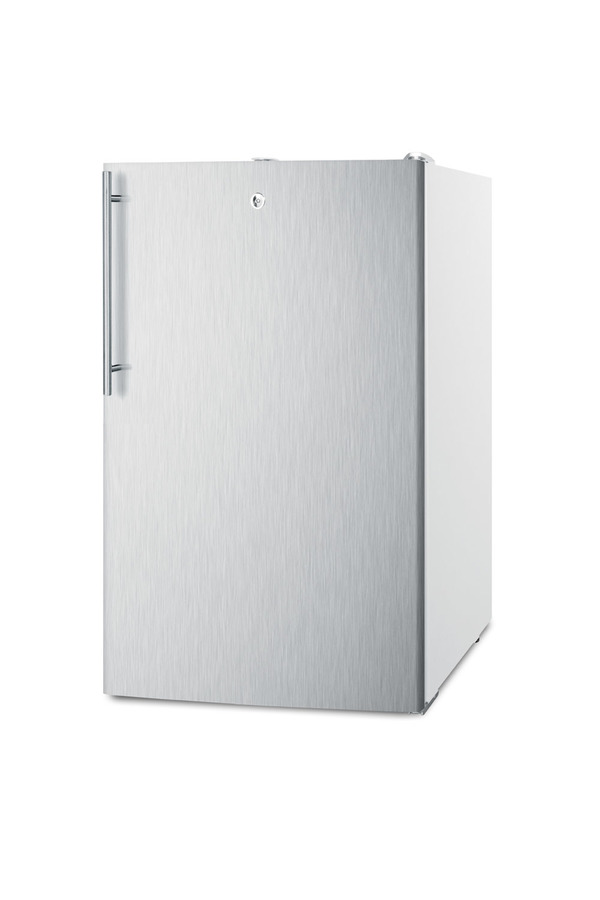

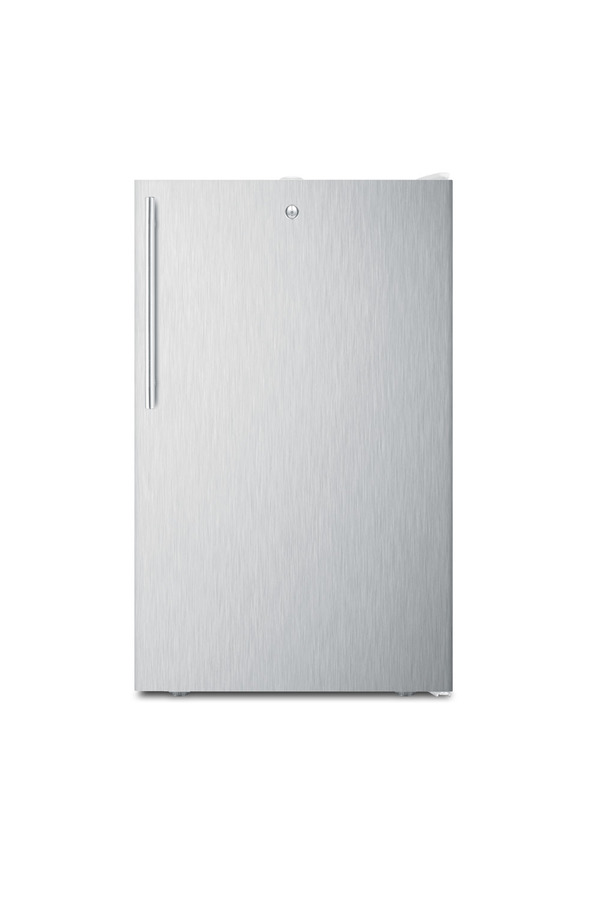

Sized just under 20" wide, the FS407LWSSHV is a counter height all-freezer designed for freestanding use. It features a white exterior cabinet with stainless steel wrapped door and sleek vertically mounted handle. A factory-installed lock is located towards the top of the door, making it easier to secure and access as needed. Two keys are included.

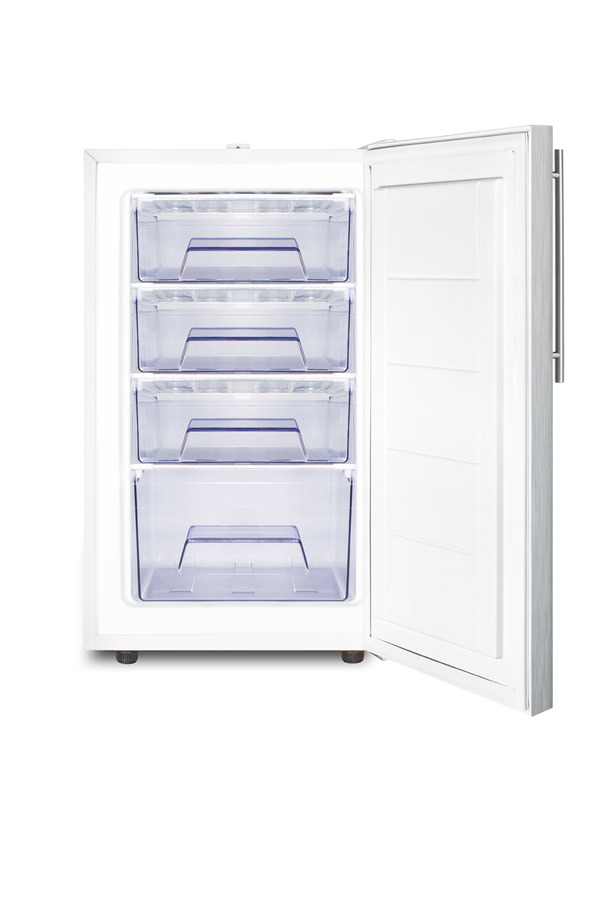

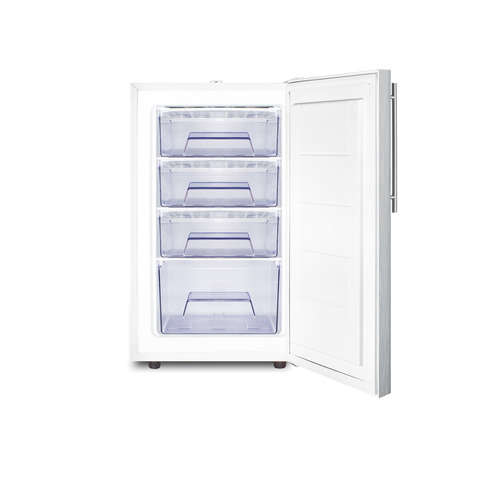

Inside, the FS407LWSSHV utilizes an efficient manual defrost system to reach temperatures as low as -20ºC. Four pull-out drawers with clear fronts offer convenient storage while protecting stored contents from being exposed to room temperature when the door is open. The adjustable dial thermostat is located in the rear of the model to help prevent unsupervised temperature changes.

In addition to this unit, Accucold manufactures additional general purpose and vaccine storage freezers in a variety of sizes. For a similarly sized unit designed for built-in use under ADA compliant counters, see the ADA305AF.

Note: Summit Appliance's general purpose series freezers are intended for a wide variety of basic storage of non-critical products. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options at 1-888-4-MED-LAB.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
