23 Cu.Ft. Reach-In All-Freezer

SKU: SCFF237
Made in South Korea with stainless steel construction inside and out for lasting durability in busy commercial settings
Estimated Time to Ship:

1 to 2 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
83.75" H x 27.5" W x 31.0" D
(213cm H x 70cm W x 79cm D)

Overview
Height of Cabinet 83.75" (213 cm)
Width 27.5" (70 cm)
Depth 31.0" (79 cm)
Depth with door at 90° 56.5" (144 cm)
Capacity 23.0 cu.ft. (651 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 8.0
Voltage/Frequency 115 V AC/60 Hz
Weight 273.0 lbs. (124 kg)
Shipping Weight 293.0 lbs. (133 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101062372
Freezer
Door Swing RHD
Reversible No
Interior Height 51.5" (131 cm)
Interior Width 23.5" (60 cm)
Interior Depth 27.0" (69 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 3.5 oz.
Wheels 4
Temperature Range -10 to 25ºF

Exterior
PHRI - Probe Hole
Factory installed 3/8" probe hole for customer supplied monitoring devices in 23/49 cu.ft. refrigerators and freezers; specify location upon order
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Commercially approved

Commercial construction meeting UL commercial listing standards

Complete stainless steel construction

Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

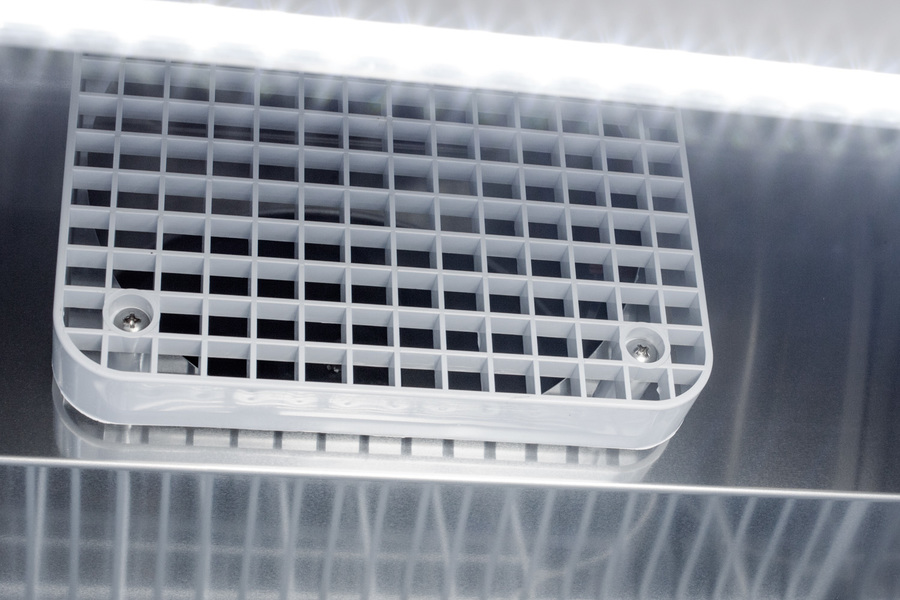

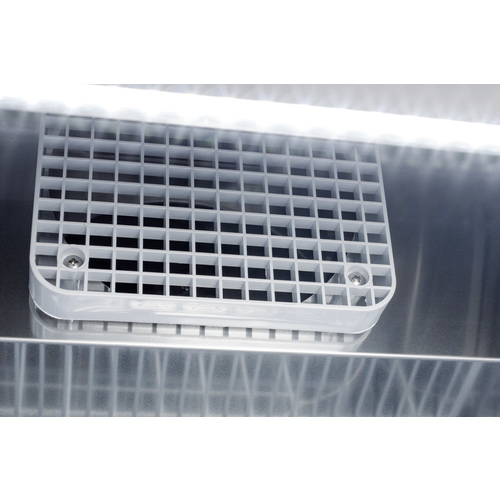

Forced air cooling

Top-mounted commercial fan ensures rapid temperature recovery

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Self-closing door

Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading

Open door alarm

Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

6 inch casters

6 inch casters

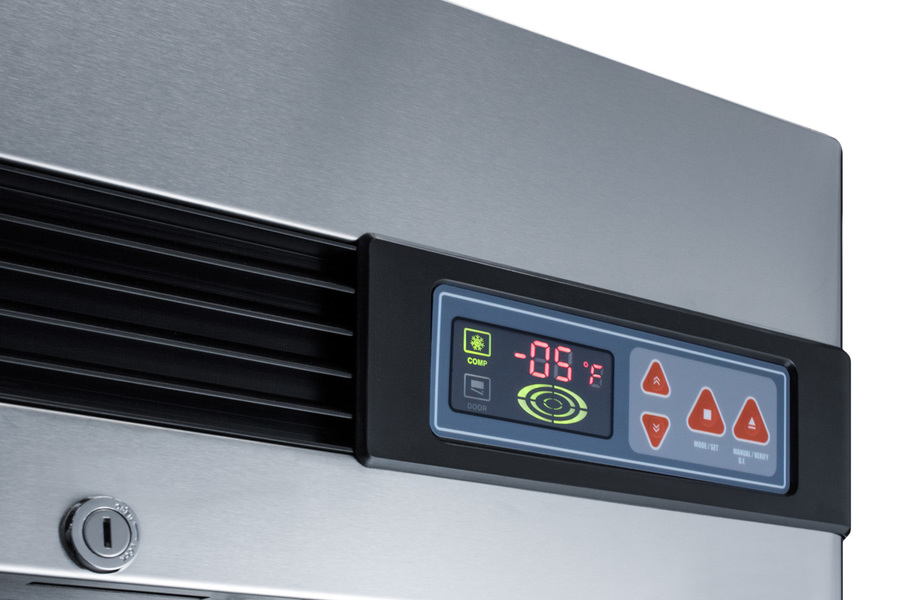

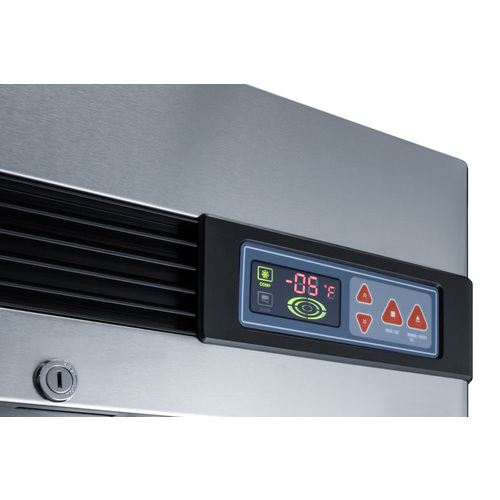

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

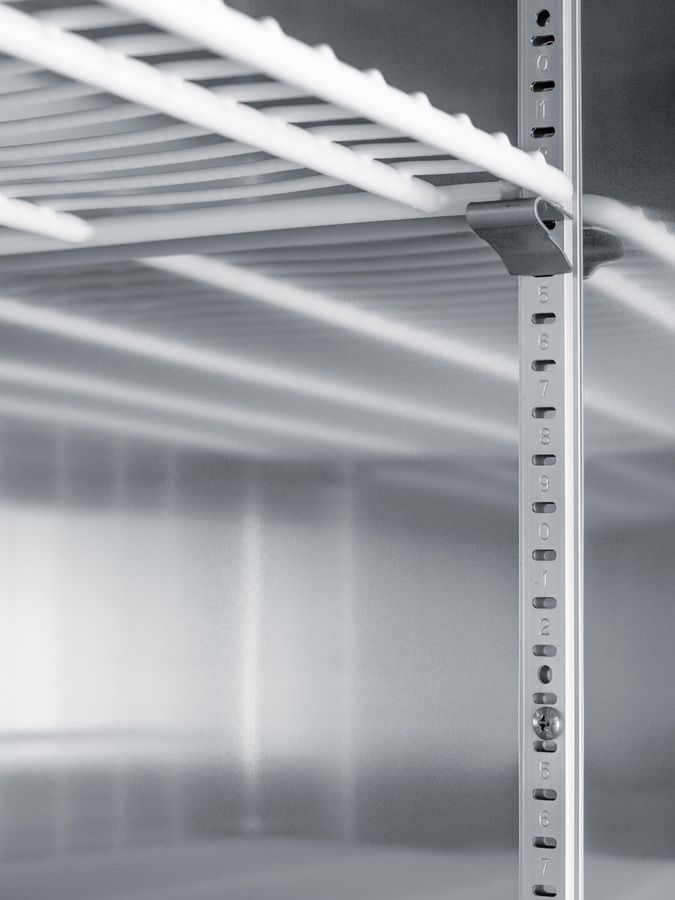

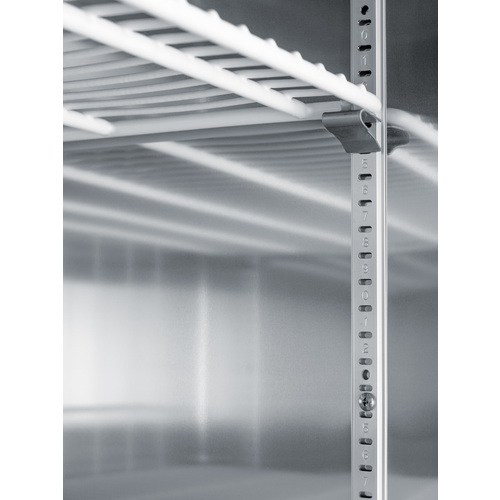

Adjustable plastic-coated wire shelves for improved circulation

Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items

Interior light

Energy efficient LED lighting with internal on/off switch

Large capacity

23 cubic feet of storage space inside

Condenser cleaning alarm

In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Sealed back

Space-saving design that ensures easier cleanup

Extended warranty

2 years parts and labor/5 years compressor

Matching refrigerator

Pair with SCRR232 for a matching set in stainless steel

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial's line of reach-in refrigeration features durable construction built to NSF-7 commercial standards.

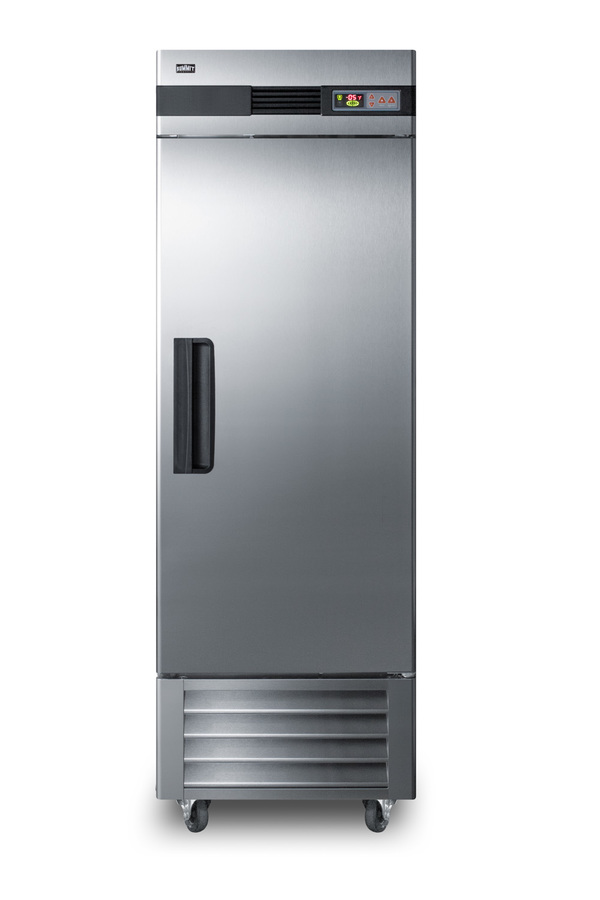

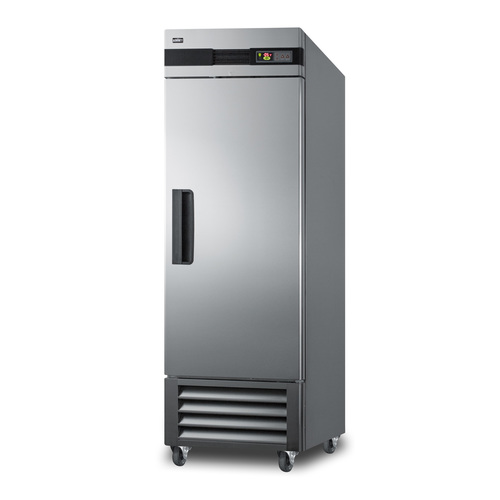

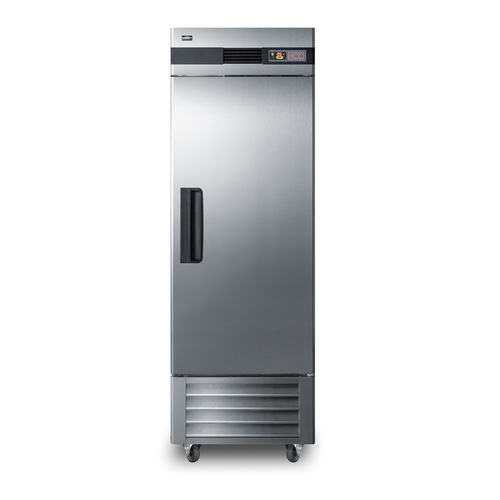

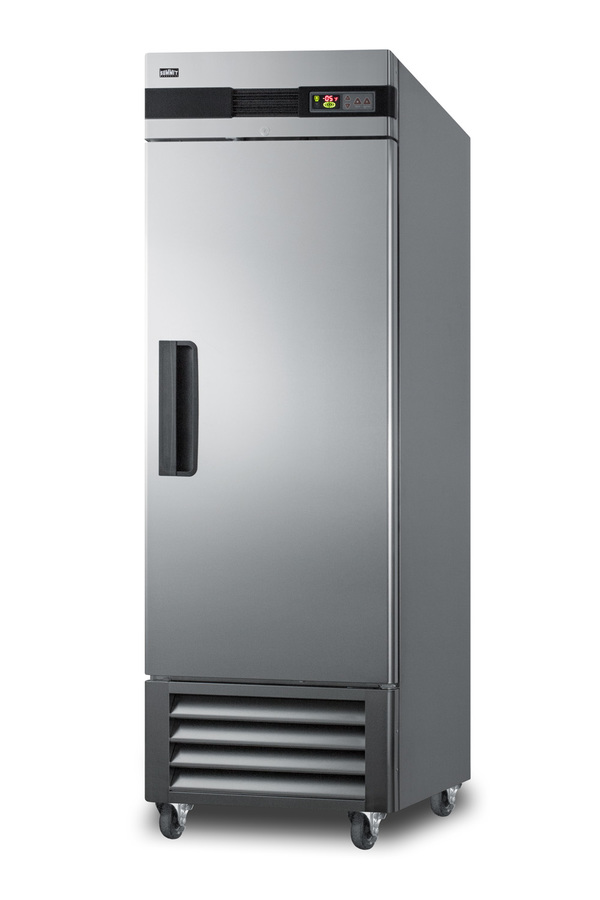

Made in South Korea, the SCFF237 is a commercial all-freezer with a complete stainless steel cabinet. The stainless steel door features a self-closing design to help protect stored contents in busy commercial settings where customers may not take the time to make sure the door is closed. It will remain open when pushed to 90º, making it easier to load and unload the unit. The sealed back design helps to simplify cleanup. This unit features a factory-installed lock located towards the top of the door for convenient security. We include a set of locking casters for optional installation.

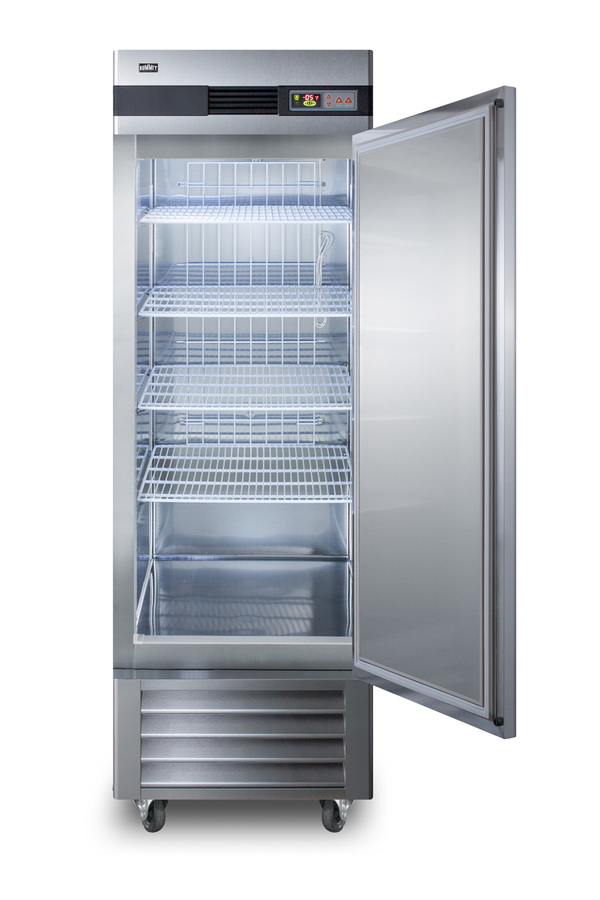

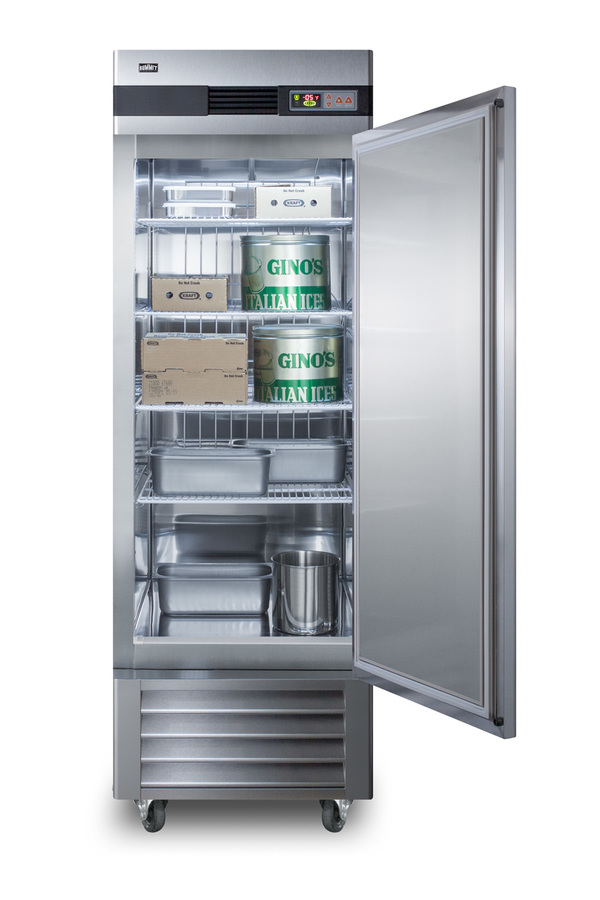

The SCFF237 features a large 23 cu.ft. interior constructed from stainless steel for easy cleanup and lasting durability. The cantilevered shelving system allows you to adjust the four vinyl-coated shelves to virtually any position, making it easy to accommodate any sized item. This unit is designed to fit common commercial baking trays. The LED lighting offers an energy efficient display when the door is opened. This unit utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery.

To ensure optimum storage conditions, the SCFF237 is equipped with a microprocessor temperature controller that makes it easy for staff to adjust the temperature. The large digital LED readout displays the current and high/low temperatures in Celsius or Fahrenheit. An audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

Designed with hydrocarbon refrigerant, the SCFF237 provides an energy efficient solution to large capacity storage. It is ETL-S listed to NSF-7 commercial standards. For a matching refrigerator, see the SCRR232.

Download
BROCHURE w/ DRAWINGS
SCFF237.pdf
Download
TECHNICAL DRAWING (.dwg)
SCRR233___ARS23ML_REF.__A-C_2010_.dwg
Download
MSDS INFORMATION
XR290a.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
