19.8 Cu.Ft. Chest Freezer

SKU: SCFM203
Durable construction to meet NSF-7 commercial standards
Estimated Time to Ship:

1 to 2 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
32.63" H x 76.0" W x 28.25" D
(83cm H x 193cm W x 72cm D)

Overview
Height of Cabinet 32.63" (83 cm)
Width 76.0" (193 cm)
Depth 28.25" (72 cm)
Depth with Handle 30.0" (76 cm)
Capacity 19.8 cu.ft. (561 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 3.6
Voltage/Frequency 115 V AC/60 Hz
Weight 205.0 lbs. (93 kg)
Shipping Weight 209.0 lbs. (95 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101080802
Freezer
Door Swing Lift-Up
Interior Height 24.25" (62 cm)
Interior Width 70.25" (178 cm)
Interior Depth 20.75" (53 cm)
Thermostat Type Dial
Refrigerant Type R290a
Refrigerant Amount 3.03 oz.
High Side PSI 400.0
Low Side PSI 200.0
Wheels 6
Compressor Step Height 10.25" (26 cm)
Compressor Step Width 11.75" (30 cm)
Compressor Step Depth 20.75" (53 cm)
Temperature Range -10 to -26ºC

Exterior
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Large capacity

19.8 cu.ft. of interior storage

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for commercial use

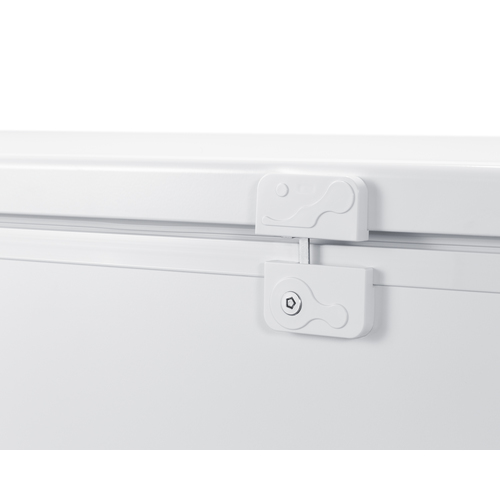

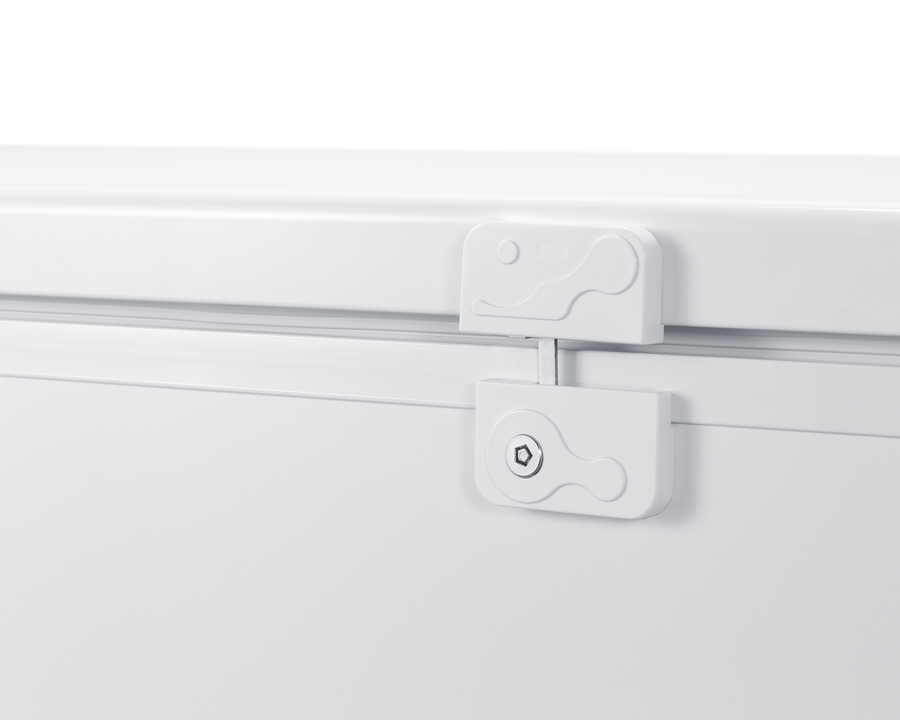

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Manual defrost operation

Static cooling system with a rear-mounted drain for easier defrosting as needed

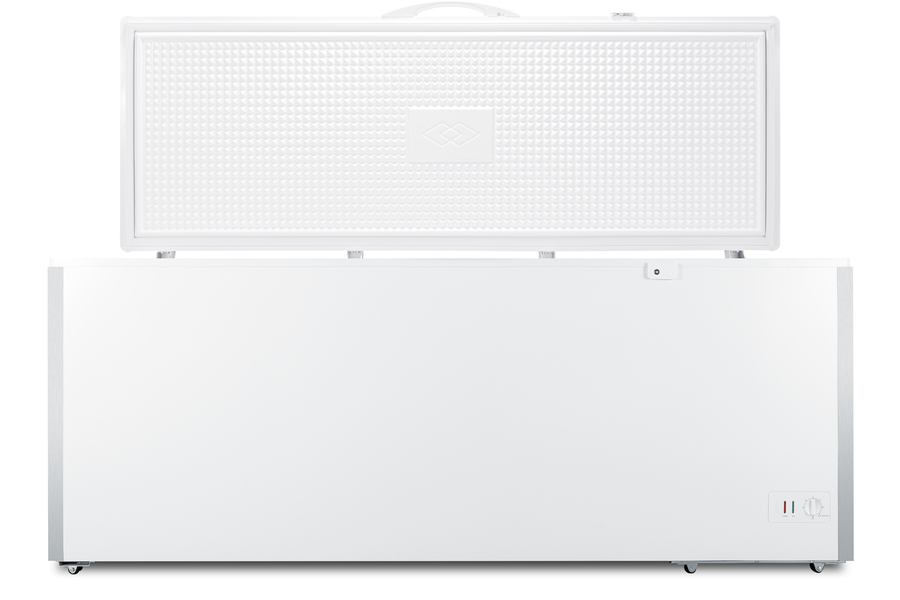

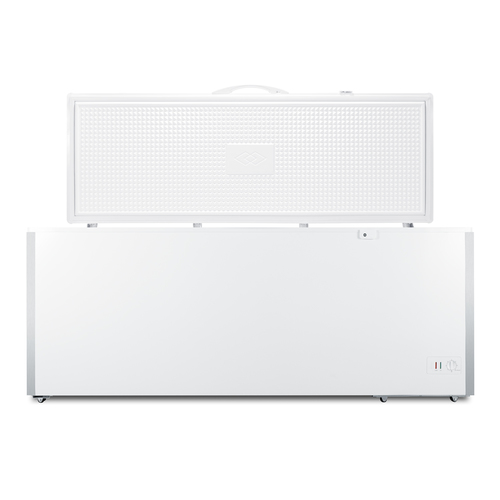

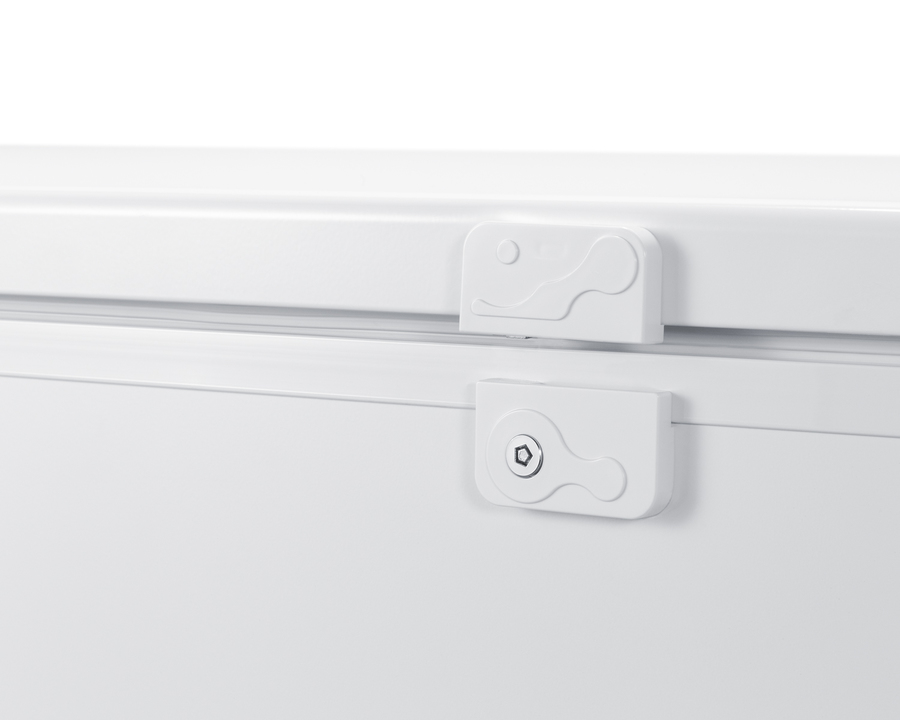

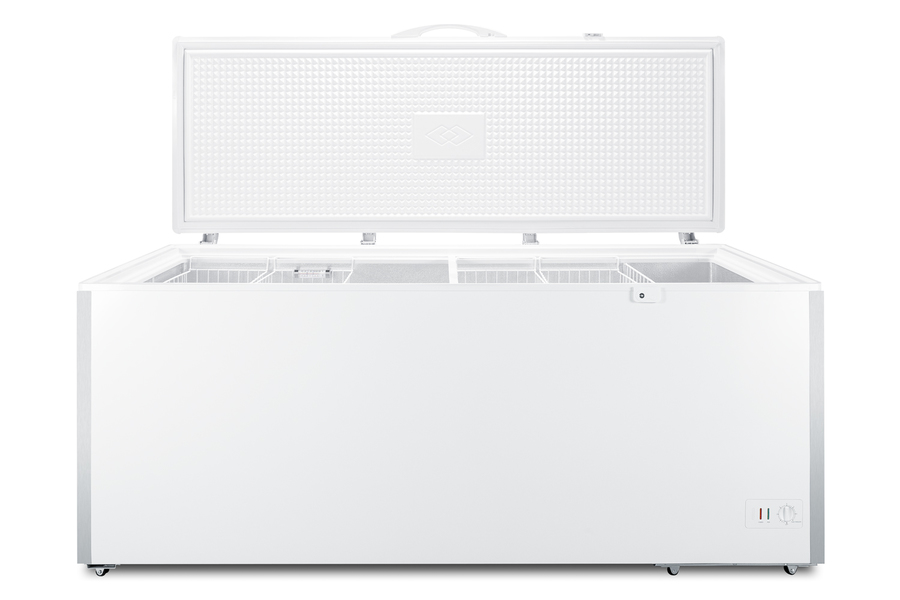

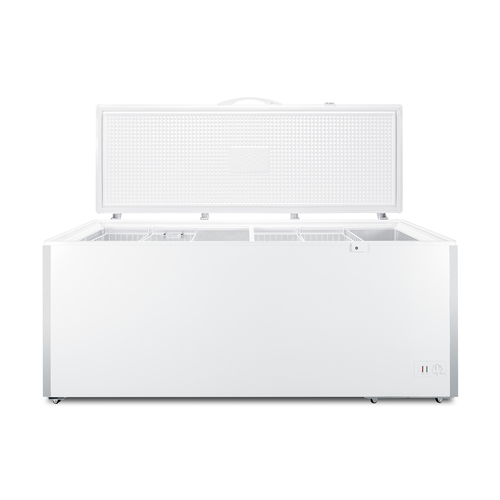

Counterbalanced hinges

The lid will remain open once lifted for safer loading

Thick insulation

3 1/2" thick walls ensure proper insulation for reliable storage

Stainless steel front corner protectors

External "bumpers" included for easy installation to help protect the corners in high traffic environments

Hammered aluminum interior

Solid construction for durable storage in busy settings

Easy-grip handle

External handle for easy opening

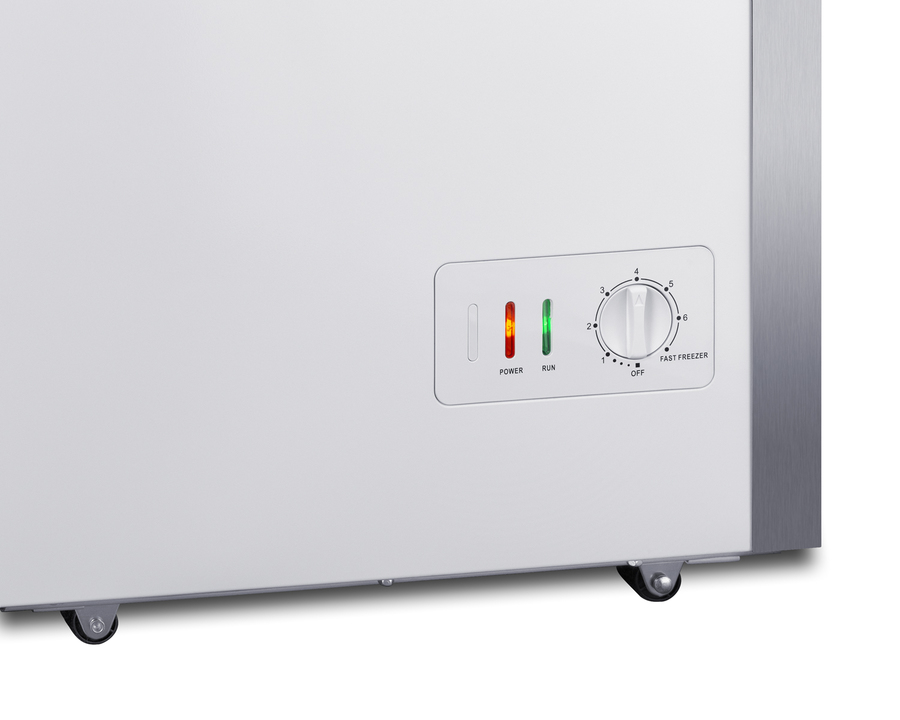

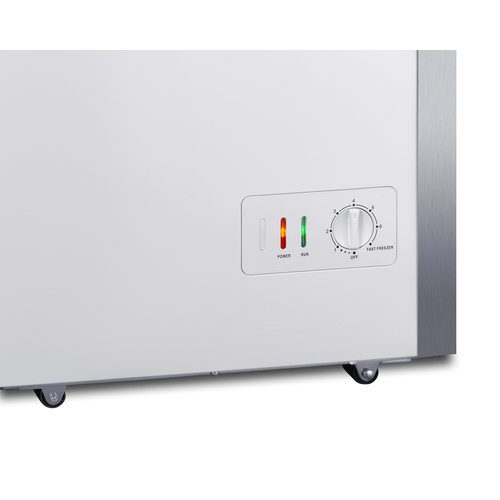

Adjustable thermostat

Dial thermostat ensures intuitive temperature management

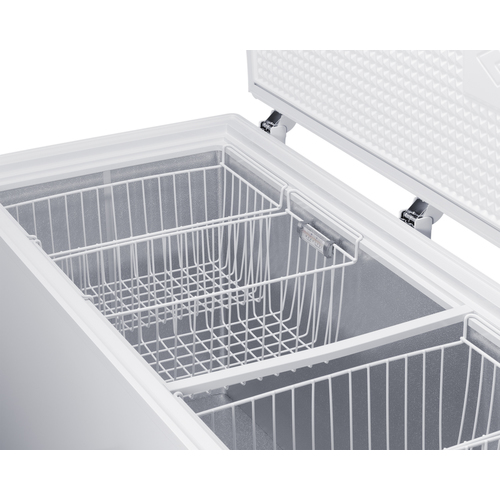

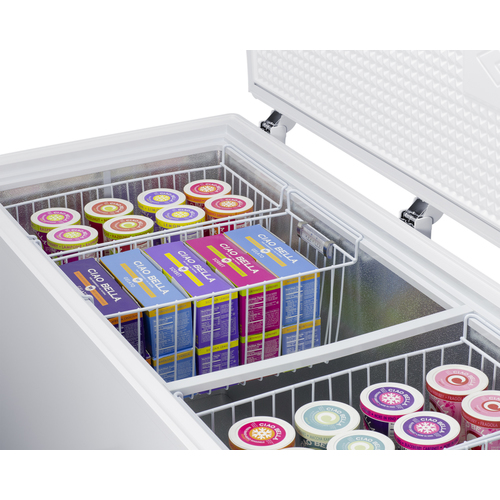

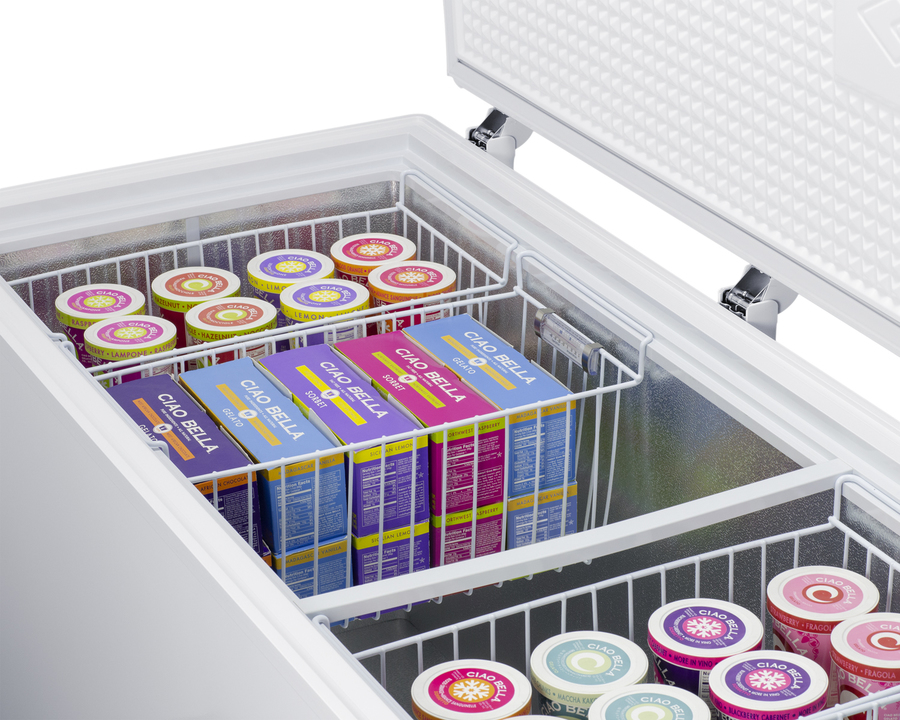

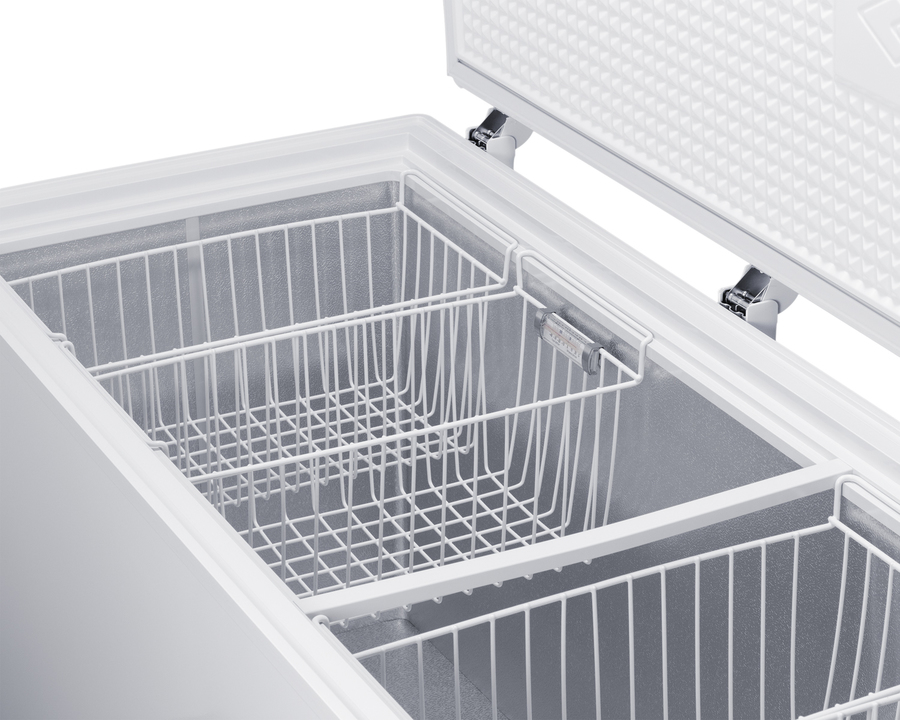

Storage baskets

Four removable wire baskets included

Removable divider

Slide-out wire divider lets you separate storage being kept on the right side of the freezer

Visual temperature alarm

Located in the front control area, the alarm light displays if the interior temperature rises above -11ºC

Removable thermometer

Portable thermometer latches onto a basket for a quick temperature reference

Small wheels

6 pre-installed gliding wheels make it easier to move the large freezer from side to side

White exterior

Clean white finish fits well in any establishment

Right angle plug

Cord features a space-saving right angle plug design to not protrude when plugged into an outlet

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

The SCFM203 is ETL-S listed to NSF-7 standards for commercial use. The large interior offers nearly 20 cu.ft. of storage capacity. The lift-up lid includes an easy-grab handle, factory-installed lock, and counterbalanced hinges to stay open for easier loading. We include two stainless steel corner protectors to help shield the freezer's sides in busy environments (minor assembly required). Six pre-installed wheels make it easy to move the unit from side to side as needed.

Inside, the SCFM203 features a hammered aluminum interior for lasting durability in commercial settings. Four sliding wire baskets offer easy storage, with a slide-out divider to help separate items stored on the right side. This unit utilizes static manual defrost cooling, with a defrost drain located in the rear. The cord is installed in the right side of the unit and features a right angle plug for a better fit into your wall outlet. The dial thermostat is located in the front corner, with a power indicator and an alarm light that will illuminate if the unit is operating warmer than -11ºC (12.2ºF). We include a removable thermometer that conveniently hooks onto a basket for a quick temperature reference.

In addition to this unit, SUMMIT COMMERICAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards. Browse our full lineup to find the right storage solution for your needs.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
