6.7 Cu.Ft. Chest Freezer

SKU: SCFM73SL
Durable construction to meet NSF-7 commercial standards
Estimated Time to Ship:

2 to 4 days

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

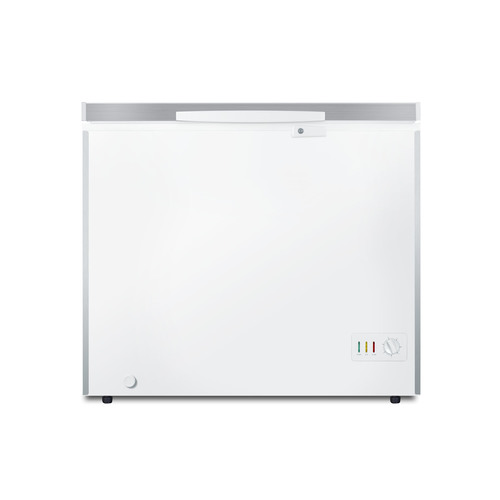

33.25" H x 37.5" W x 22.25" D
(84cm H x 95cm W x 57cm D)

Overview
Height of Cabinet 33.25" (84 cm)
Width 37.5" (95 cm)
Depth 22.25" (57 cm)
Depth with Handle 24.0" (61 cm)
Capacity 6.7 cu.ft. (190 L)
Defrost Type Manual
Door Stainless Look
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 91.0 lbs. (41 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087016
Freezer
Door Swing Lift-Up
Interior Height 26.0" (66 cm)
Interior Width 32.0" (81 cm)
Interior Depth 15.0" (38 cm)
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 300.0
Low Side PSI 130.0
Compressor Step Height 8.75" (22 cm)
Compressor Step Width 7.75" (20 cm)
Compressor Step Depth 15.0" (38 cm)
Temperature Range -10 to -26ºC

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for commercial use

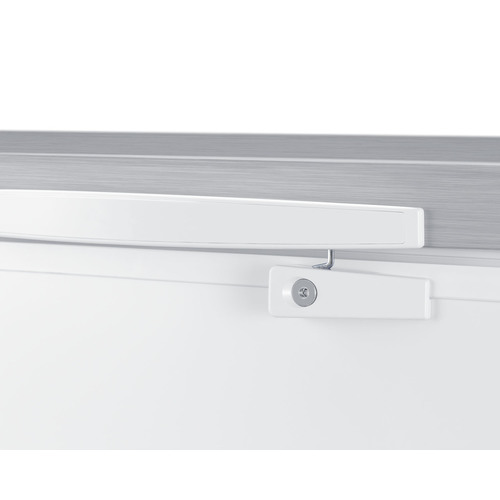

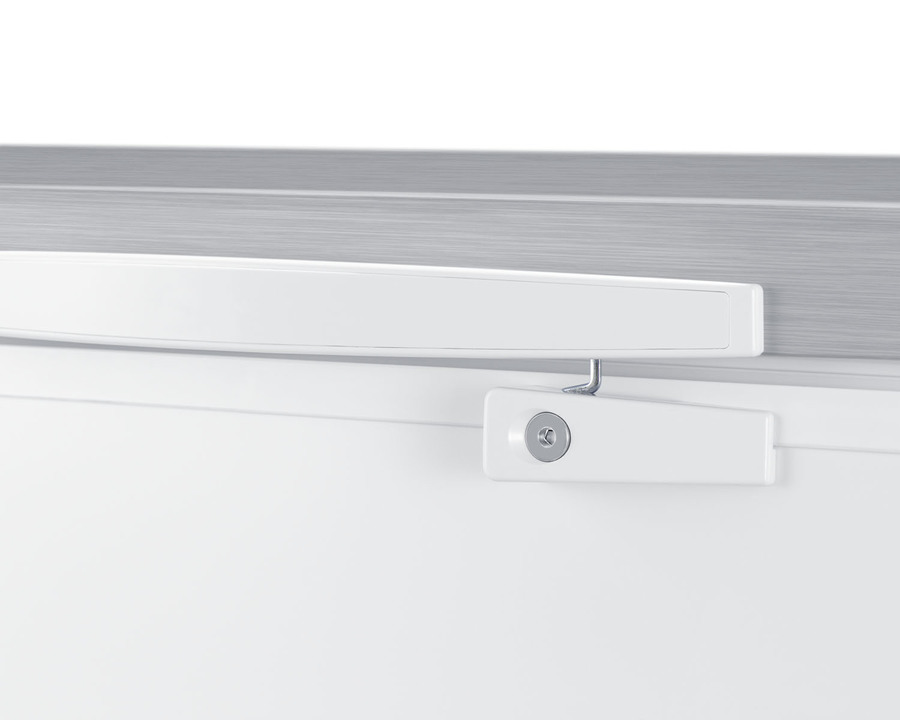

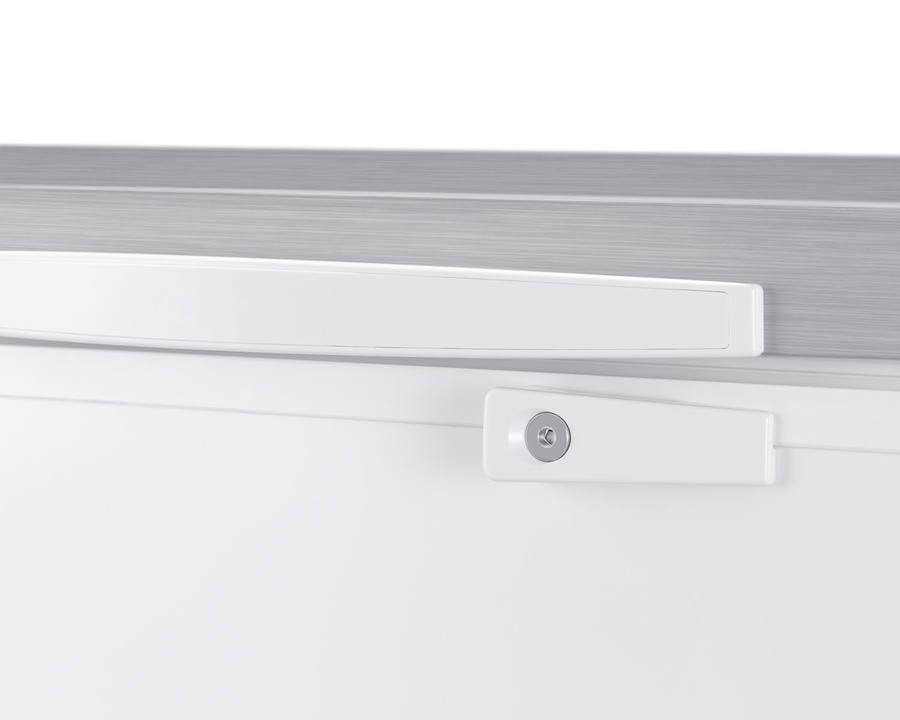

Lock included

Ships with a keyed lock and two keys for optional installation on the lid

Manual defrost operation

Static cooling system with a front drain for easier defrosting as needed

Counterbalanced hinges

The lid will remain open once lifted for easier loading

Stainless steel look

Lid comes in a silver finish for a professional look

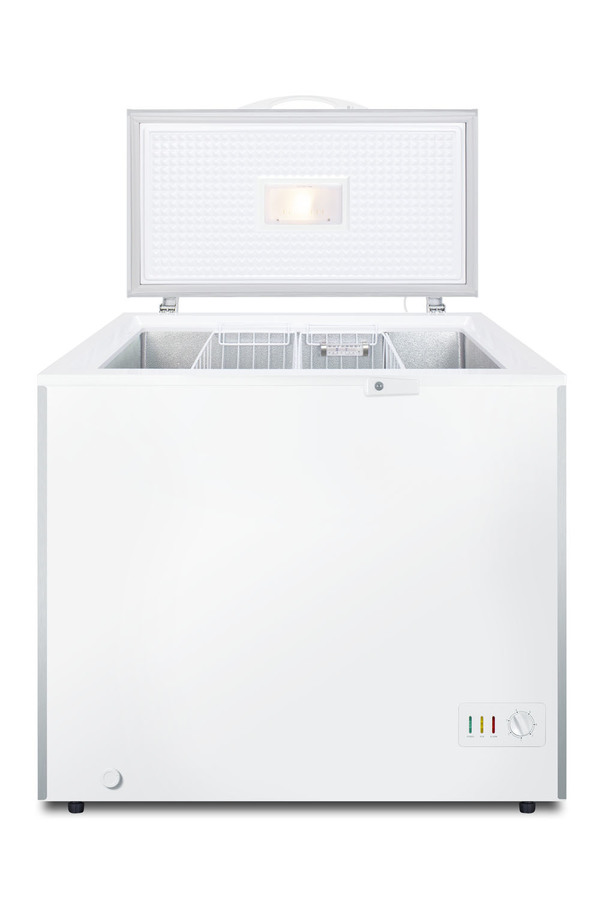

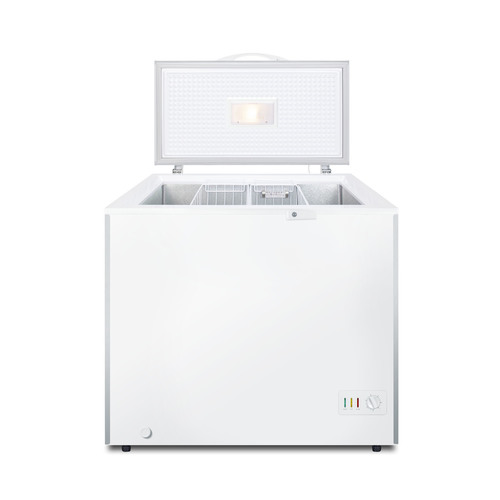

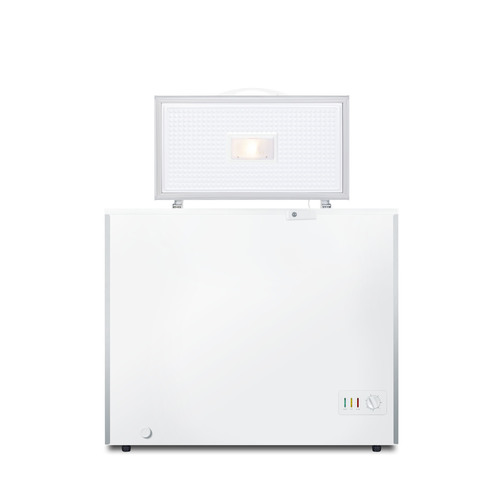

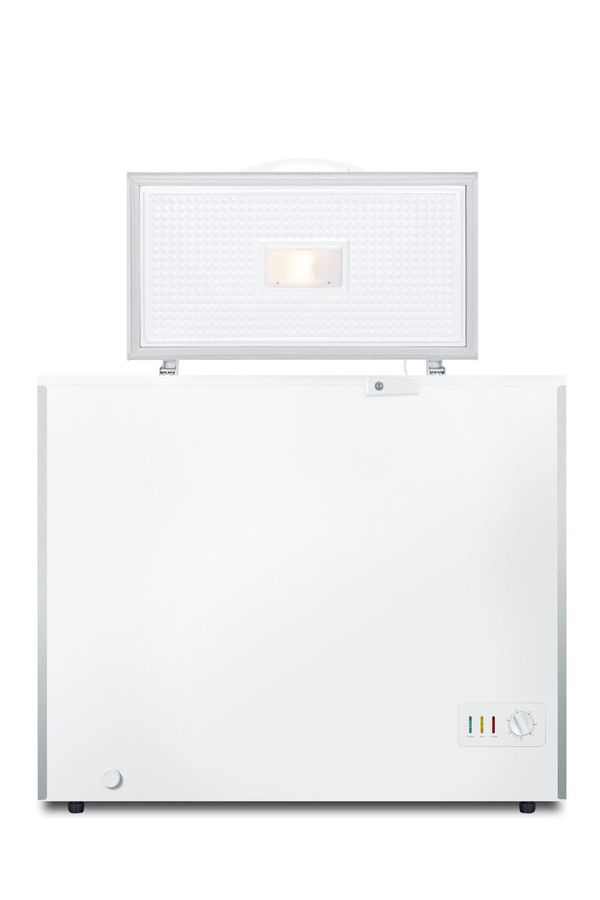

Interior light

LED light on the lid's interior for easy visibility when loading

Thick insulation

Solid walls ensure proper insulation for reliable storage

Stainless steel front corner protectors

Factory-installed external "bumpers" to help protect the corners in busy high traffic environments

Hammered aluminum interior

Solid construction for durable storage in busy settings

Easy-grip handle

External handle for easy opening (ships unsassembled)

Adjustable thermostat

Dial thermostat ensures intuitive temperature management

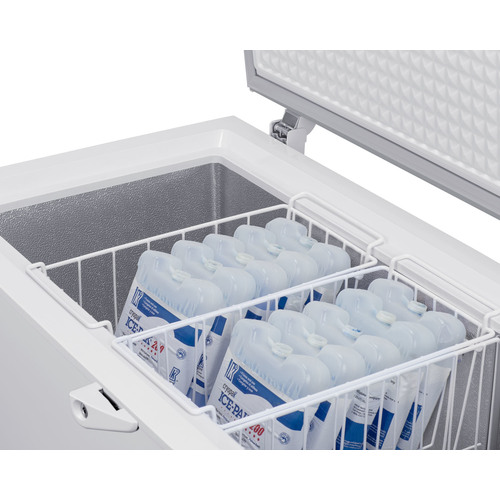

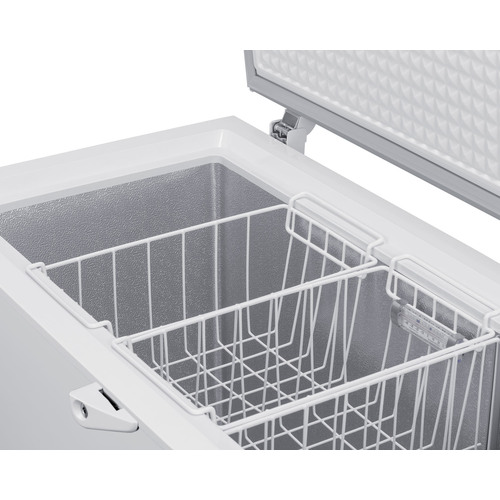

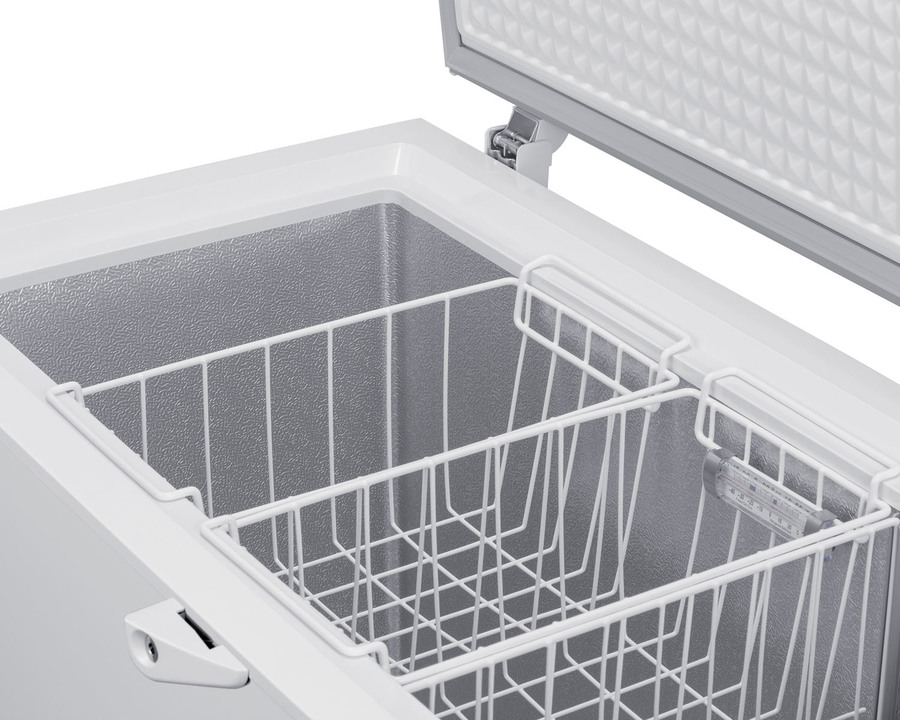

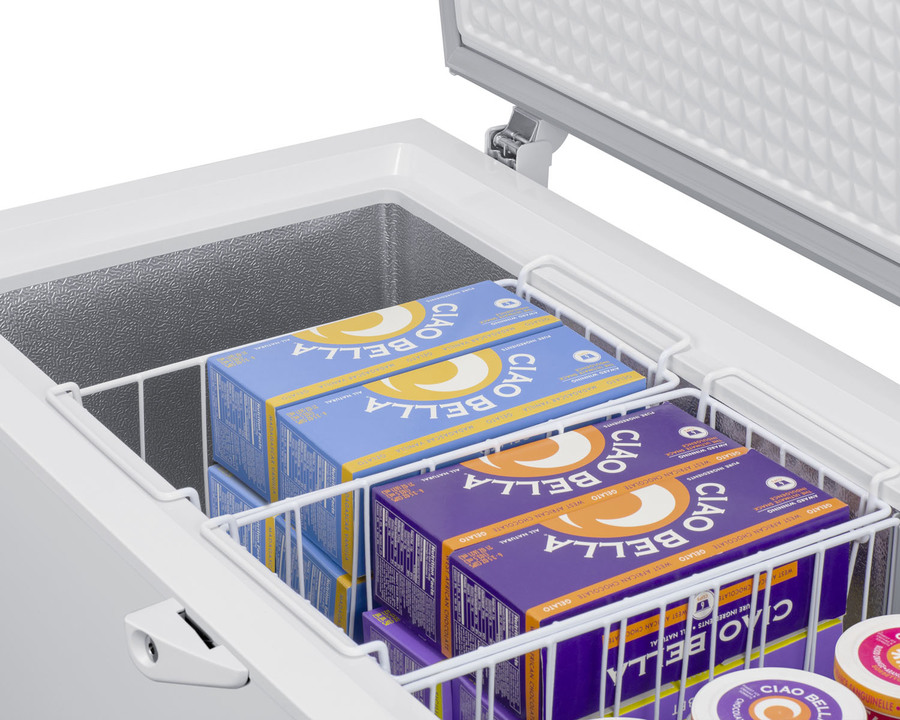

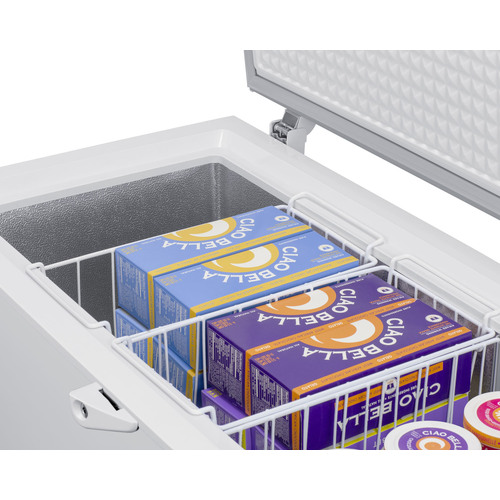

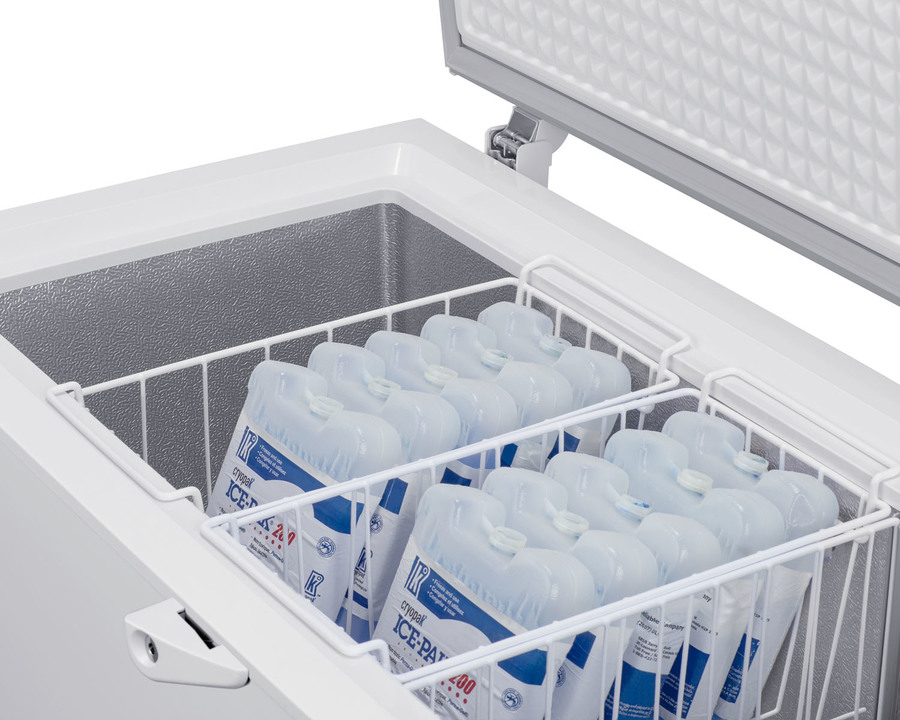

Storage baskets

Two removable wire baskets included

Removable divider

Slide-out wire divider lets you separate storage being kept on the right side of the freezer

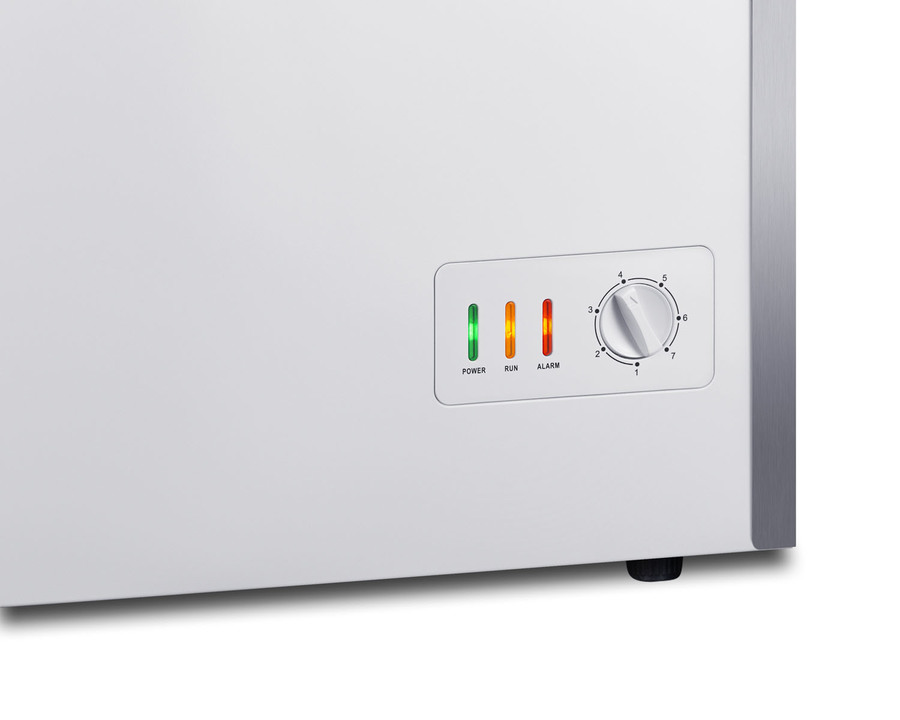

Visual temperature alarm

Located in the front control area, the alarm light displays if the interior temperature rises above -11ºC

Removable thermometer

Portable thermometer latches onto a basket for a quick temperature reference

White exterior

Clean white finish fits well in any establishment

Right angle plug

Cord features a space-saving right angle plug design to not protrude when plugged into an outlet

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

The SCFM73SL is ETL-S listed to NSF-7 standards for commercial use. The large interior offers 6.7 cu.ft. of storage capacity. The lid offers the look of stainless steel, with counterbalanced hinges to help stay open when loading the interior. We include a handle and keyed lock with two keys for optional user installation. This freezer features two pre-installed stainless steel corner protectors to help shield the unit's sides in busy environments.

Inside, the SCFM73SL features a hammered aluminum interior for lasting durability in commercial settings. The lid includes an LED light for better visibility. Two sliding wire baskets offer easy storage and a divider lets you separate items stored on the right side. This unit utilizes static manual defrost cooling, with a defrost drain located in the front. The cord features a right angle plug for an easier fit into your outlet. The dial thermostat is located in the front corner, with a power indicator and an alarm light that will illuminate if the unit is operating warmer than -11ºC (12.2ºF). We include a removable thermometer that conveniently hooks onto a basket for a quick temperature reference.

In addition to this unit, SUMMIT COMMERICAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards. Browse our full lineup to find the right storage solution for your needs.

Download
BROCHURE w/ DRAWINGS
SCFM73SL.pdf
Download
TECHNICAL DRAWING (.dwg)
SCFM73__FREEZER__A-C_.dwg
Download
ASSEMBLY DRAWING
SCFM73_ASS_Y.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
