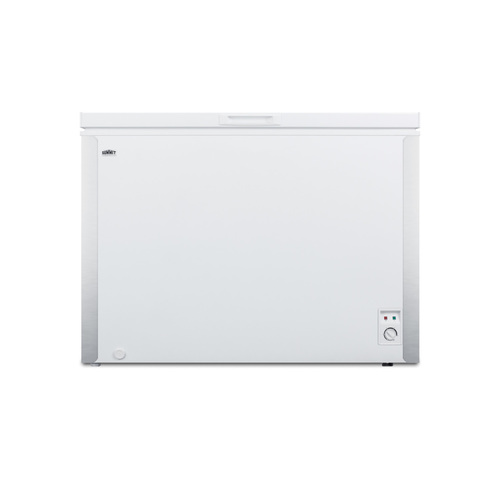

9 Cu.Ft. Chest Freezer

SKU: SCFM92
UL-S listed to NSF-7 standards for commercial use
Estimated Time to Ship:

3 to 5 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
33.0" H x 44.0" W x 24.0" D
(84cm H x 112cm W x 61cm D)

Overview
Height of Cabinet 33.0" (84 cm)
Width 44.0" (112 cm)
Depth 24.0" (61 cm)
Capacity 9.0 cu.ft. (255 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Shipping Weight 135.0 lbs. (61 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101052106
Freezer
Door Swing Lift-Up
Interior Height 26.5" (67 cm)
Interior Width 37.5" (95 cm)
Interior Depth 16.0" (41 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 1.94 oz.
Wheels 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 8.0" (20 cm)
Compressor Step Depth 8.0" (20 cm)
Temperature Range -30 to -12ºC/-22 to 10.4ºF

Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
L-SideLock
Add a single keyed lock located on the door's side
Exterior
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management

Commercially approved

UL-S listed to ANSI-NSF Standard 7 for commercial use

Hammered aluminum interior

Solid construction ensures lasting durability

Manual defrost operation

Static cooling system for efficient storage

Stainless steel front corner protectors

External "bumpers" are factory installed to protect the unit's front corners from dents

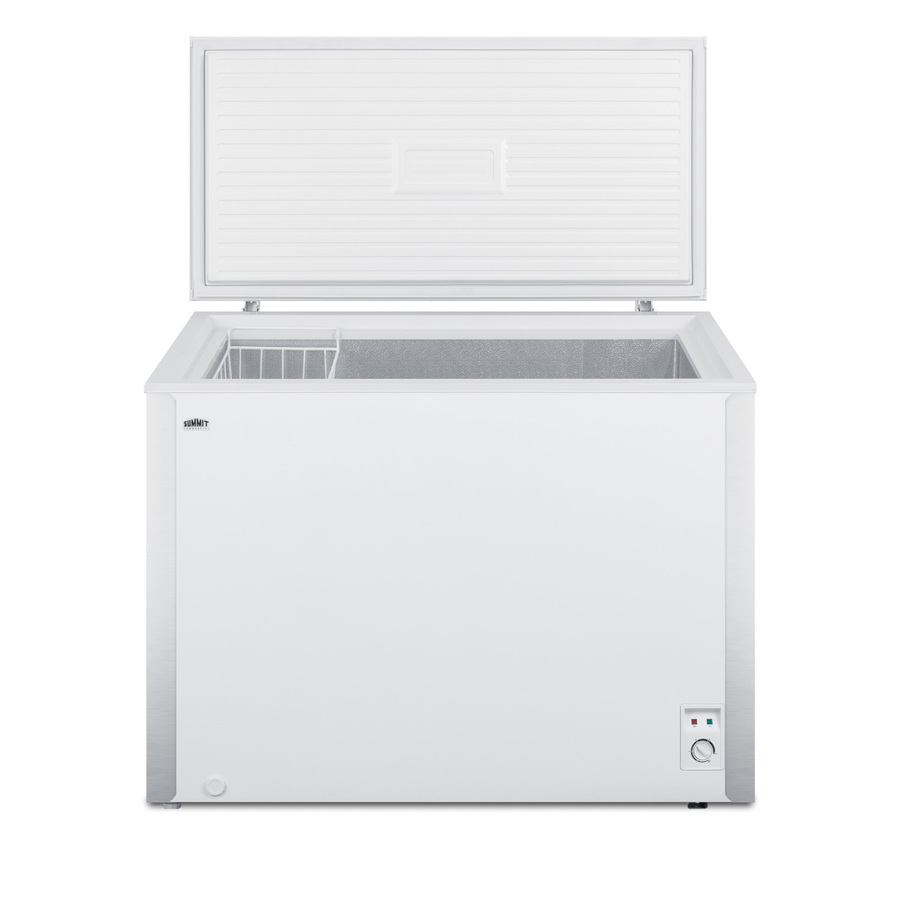

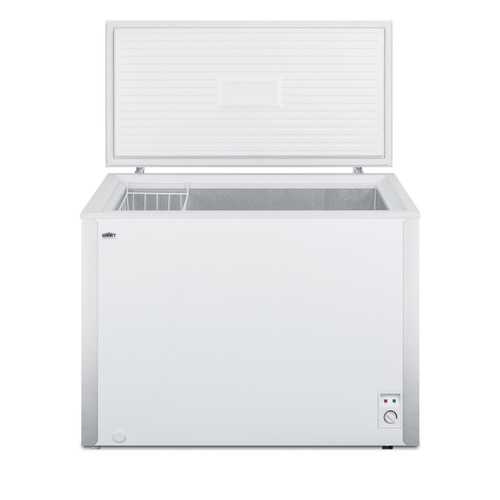

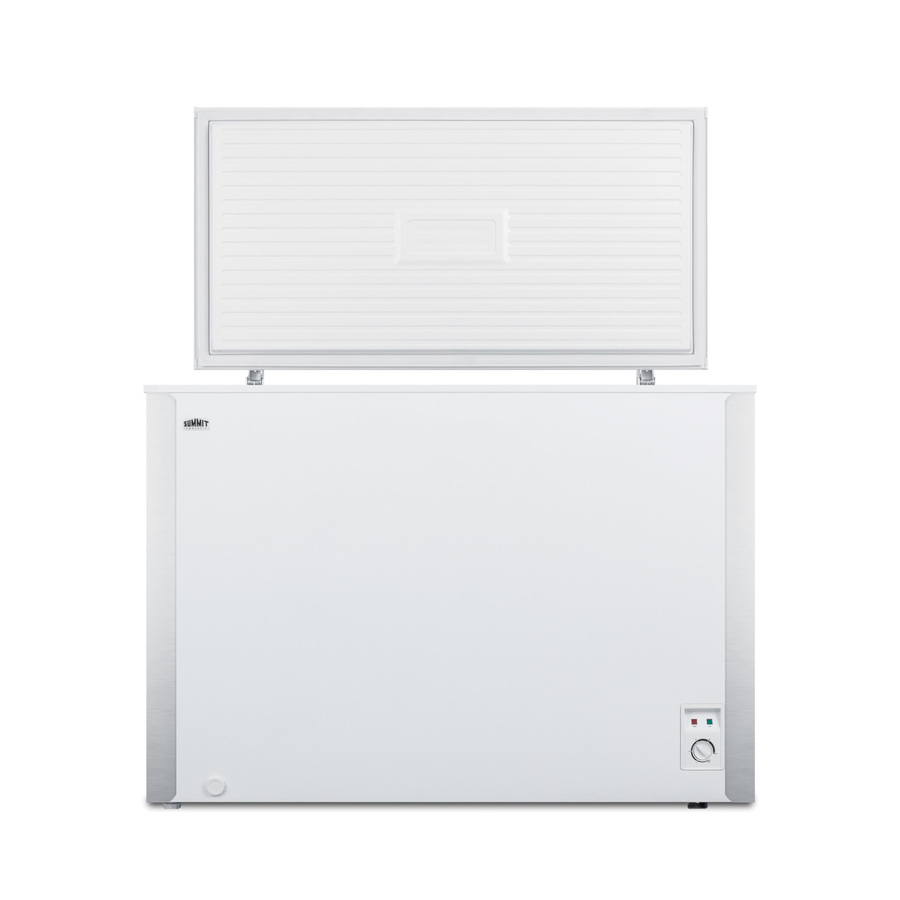

Counterbalanced hinges

Lid will stay opened when lifted past a certain point, making it easier to load and unload the interior

Pocket handle

Space-saving pocket handle makes it easy to open the lid without adding extra depth to the unit

Adjustable thermostat

Dial thermostat for easy temperature management

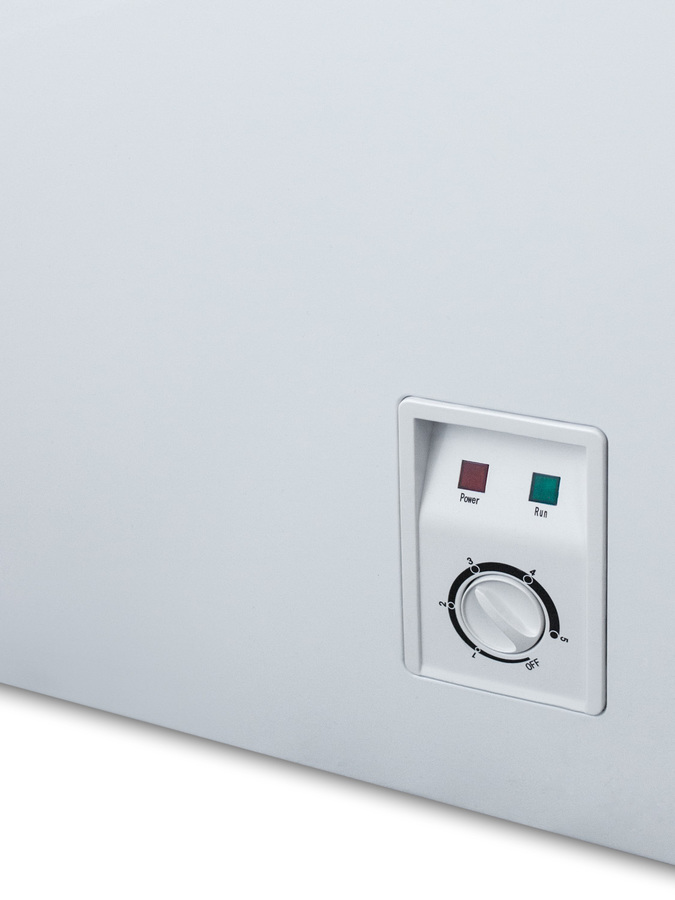

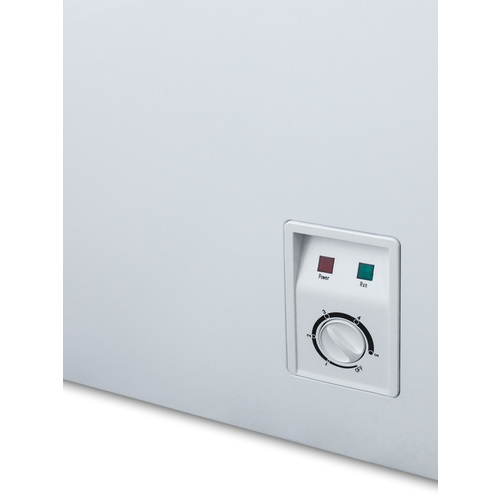

Indicator lights

Externally located thermostat includes an indicator light to show that the power is connected and a second for when the compressor is running

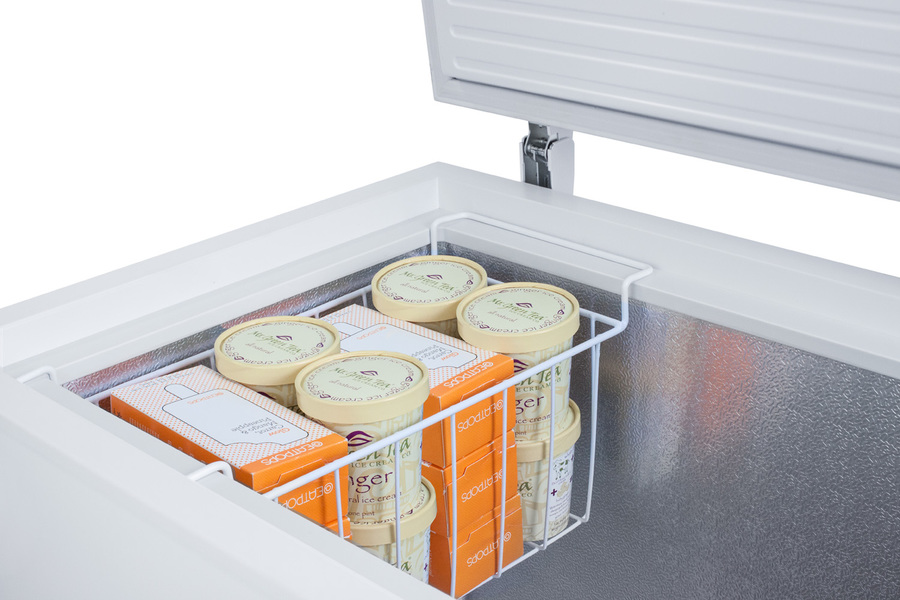

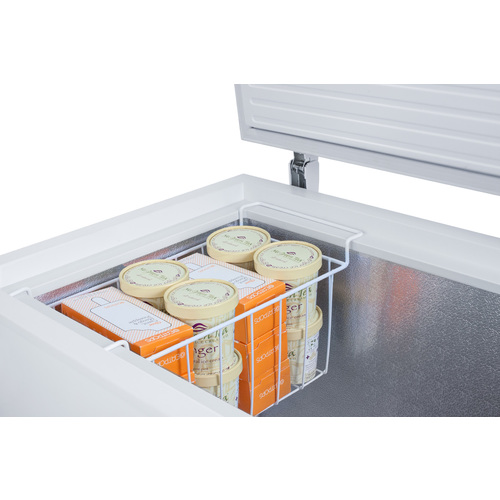

Storage basket

Removable basket offers convenient storage

Right angle cord

Flat plug design won't protrude in the wall, offering added space savings

Defrost drain

Front-located drain makes it easier to defrost when needed

White exterior

Textured white finish fits well in any establishment

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

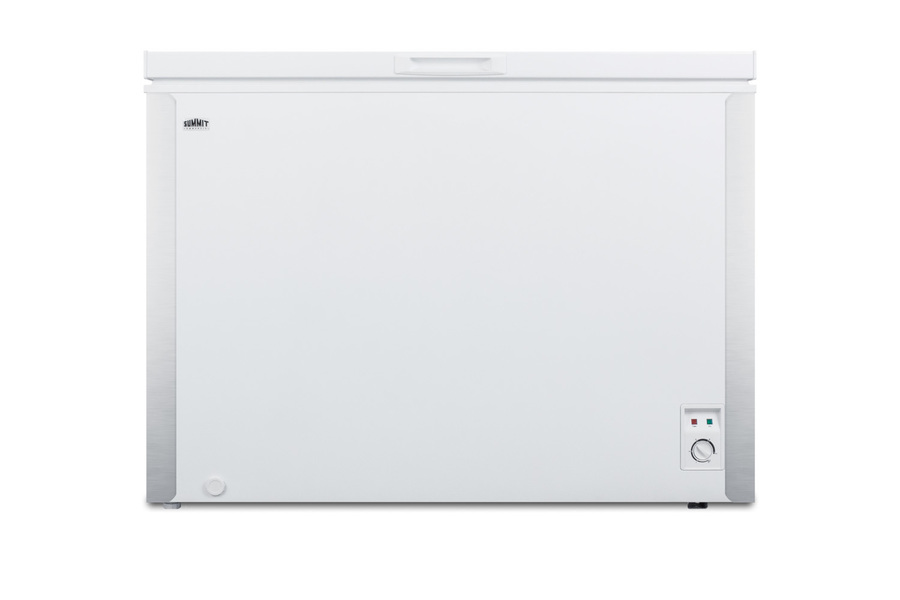

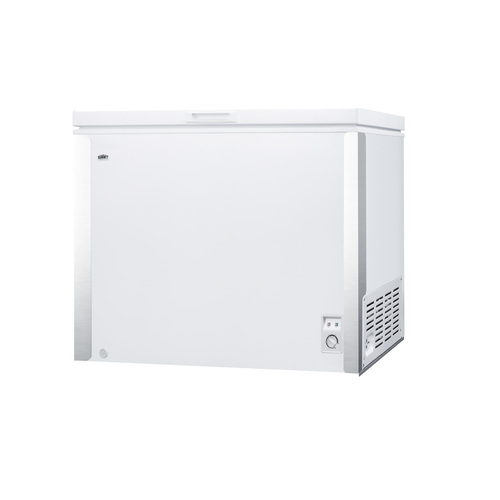

The SCFM92 is UL-S listed to NSF-7 standards for commercial use. It comes in a white finish with stainless steel corner guards factory installed on the exterior to ensure added protection in high traffic areas. The lid includes a pocket handle for convenient lifting and no added depth. The right side includes two wheels to make it easier to move when cleaning. The dial thermostat is located in the front, with indicator lights for the power and compressor. This unit is equipped with a right angle plug for added space savings.

Inside, the SCFM92 features a hammered aluminum floor and walls for added durability. We include a removable wire basket to help organize your storage. Static manual defrost offers added efficiency, with a front drain for easier defrosting.

In addition to this unit, SUMMIT COMMERCIAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards. Browse our website for more options.

Download
BROCHURE w/ DRAWINGS
SCFM92.pdf
Download
TECHNICAL DRAWING (.dwg)
SCFM92__FREEZER__A-C2010_.dwg

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
