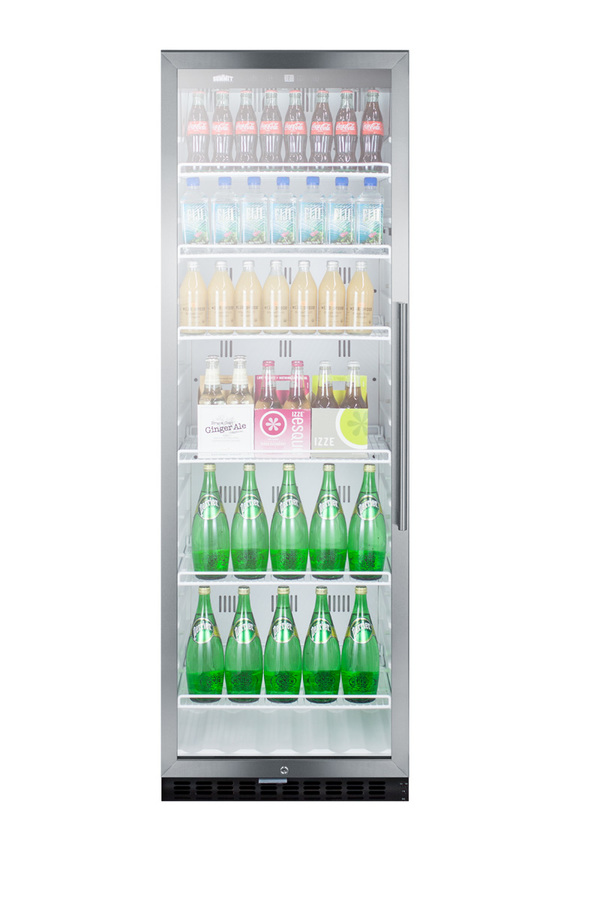

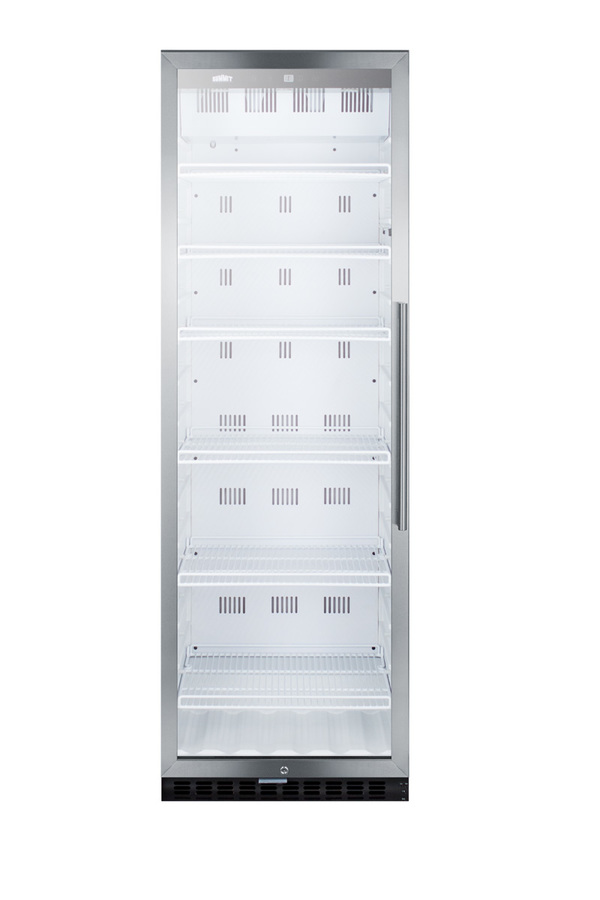

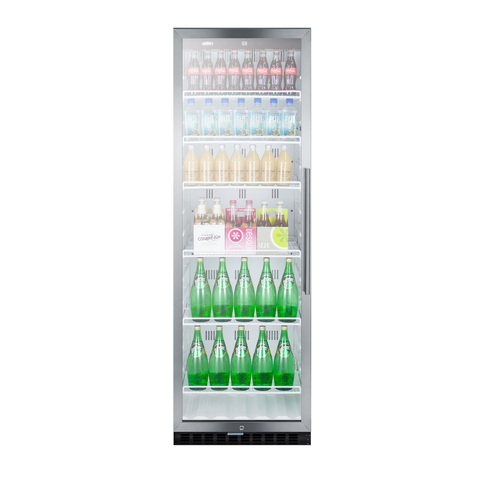

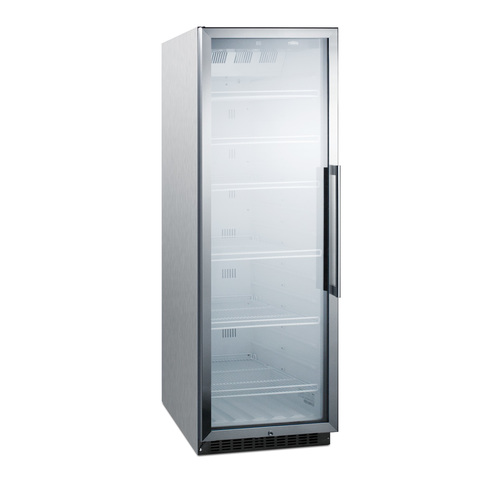

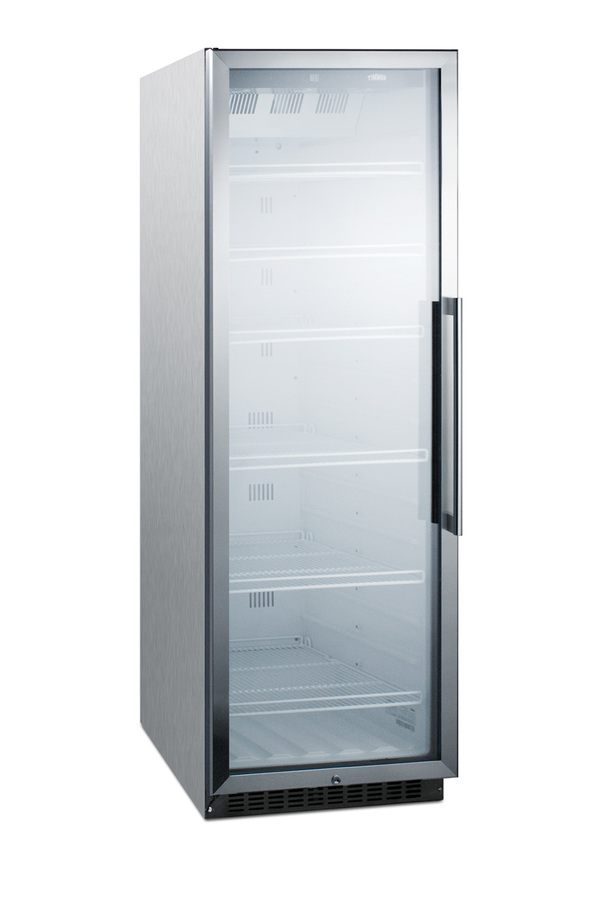

24" Wide Beverage Center

SKU: SCR1400WLHCSS
Self-closing door in double pane tempered glass provides a full interior display
Out of Stock; ETA:

10/07/2022

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
70.0" H x 23.63" W x 23.75" D
(178cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 70.0" (178 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Defrost Type Frost-Free
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Shipping Weight 210.0 lbs. (95 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101061566
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Reversible No
Shelf Type Wire
Shelf Qty 6
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36°F to 43°F
Dimensions
Interior Height 60.25" (153 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.5" (14 cm)

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Door
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models

Slim fit

Just 24" wide and deep for an easy fit in any setting

Frost-free operation

No-frost convenience for reduced user maintenance

Commercially listed

ETL-S listed to NSF standards for commercial use

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures

Glass door with stainless steel trim

Heat-safe design offers safe display of stored products

Professional handle

Completes the look

Factory installed lock

Keyed lock for a secure interior

Recessed LED lighting

On/off button to illuminate stored products with an attractive and energy efficient glow

Adjustable shelves

Fifteen glide positions accommodate a variety of sizes, with heavy duty wired shelving

Stainless steel cabinet

304 grade stainless steel for durable elegance

Digital thermostat

Electronic controls for precise temperature management. Temperature range: 34º F to 43º F

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's commercially approved beverage merchandisers are designed for durable service, convenient use, and attractive presentation.

SUMMIT SCR1400WLHCSS offers 12.6 cu.ft. of storage space in a slim-fitting footprint just under 24". Bottles and cans can be stored on six heavy duty wire shelves, with fifteen glide options to accommodate different sizes. LED lighting offers full illumination of stored products and a digital thermostat makes temperature control as simple as touching a button. The readout can be viewed in Celsius or Fahrenheit.

The frost-free SCR1400WLHCSS features a tempered heat-safe glass door trimmed in stainless steel, with a keyed lock for added security. The stainless steel trimmed glass door includes a pro style handle to complete the modern look, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. This model has a stainless steel wrapped cabinet and a right angle plug for an easier fit. It meets UL-471 commercial standards and is ETL-S listed to NSF standards for use in any commercial foodservice establishment. This unit has a left hand door swing. For a right hand version, see the SCR1400WCSS.

NOTE: This is an indoor refrigerator and is not designed for use in the outdoors.

Download
BROCHURE w/ DRAWINGS
SCR1400WLHCSS.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR1400W_BEVERAGE_FEF.__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
