Compact Beverage Center

SKU: SCR312L
Includes a digital thermostat for precise temperature control in commercial applications
DISCONTINUED- REPLACED BY SCR314L
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
26.13" H x 17.0" W x 19.25" D
(66cm H x 43cm W x 49cm D)

Overview
Height of Cabinet 25.5" (65 cm)
Height to Hinge Cap 26.13" (66 cm)
Width 17.0" (43 cm)
Depth 19.25" (49 cm)
Depth with Handle 21.0" (53 cm)
Depth with door at 90° 35.25" (90 cm)
Capacity 2.5 cu.ft. (71 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Shipping Weight 80.0 lbs. (36 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101021775
Refrigerator Features
Door Swing RHD
Reversible No
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.92oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34°F to 43°F
Sound Level 33.5 dB
Dimensions
Interior Height 20.5" (52 cm)
Interior Width 13.5" (34 cm)
Interior Depth 14.75" (37 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 5.25" (13 cm)

Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
Exterior
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Commercially approved

ETL-S listed to NSF-7 commercial standards

Fully finished black cabinet

Allows the unit to be used freestanding

Double pane tempered glass door

Heat resistant design provides clear view of stored products, with an elegant trim in stainless steel

Professional handle

17 1/2" long handle in brushed aluminum

Factory installed lock

Keep contents secure with a front lock on the door

Automatic defrost

No-frost convenience for reduced user maintenance

Digital thermostat

Precise temperature management at the touch of a button, with an external display for added convenience

Interior LED light

Externally located button turns this light on and off to illuminate the products for a tempting view

Adjustable chrome shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

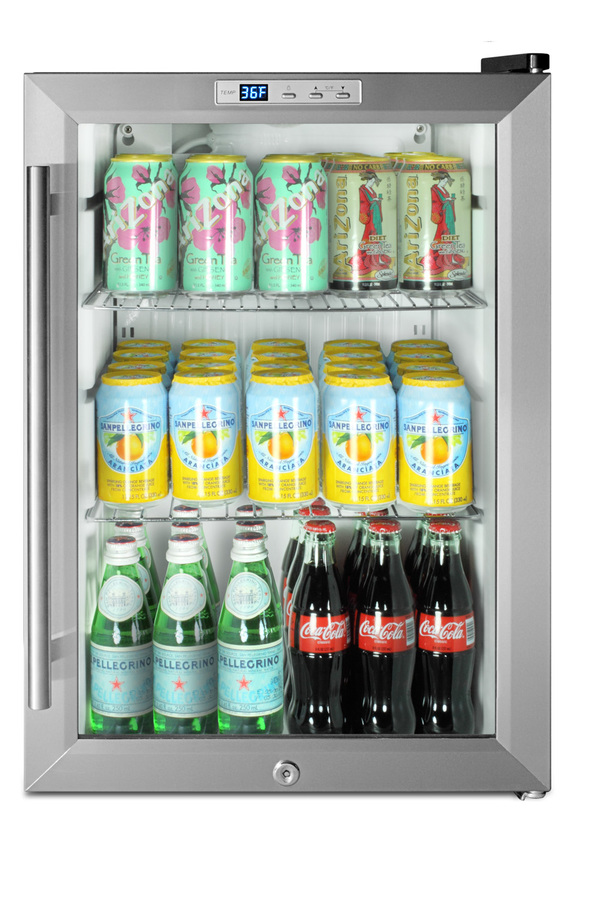

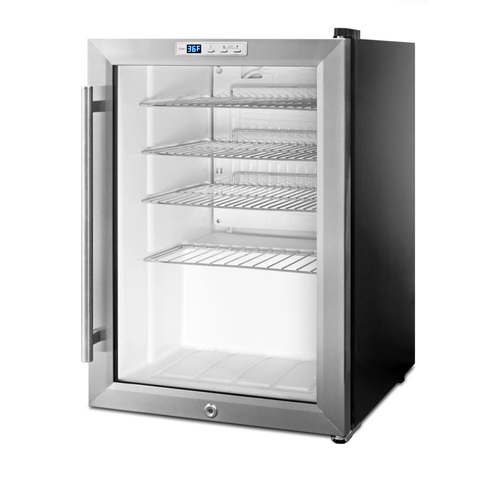

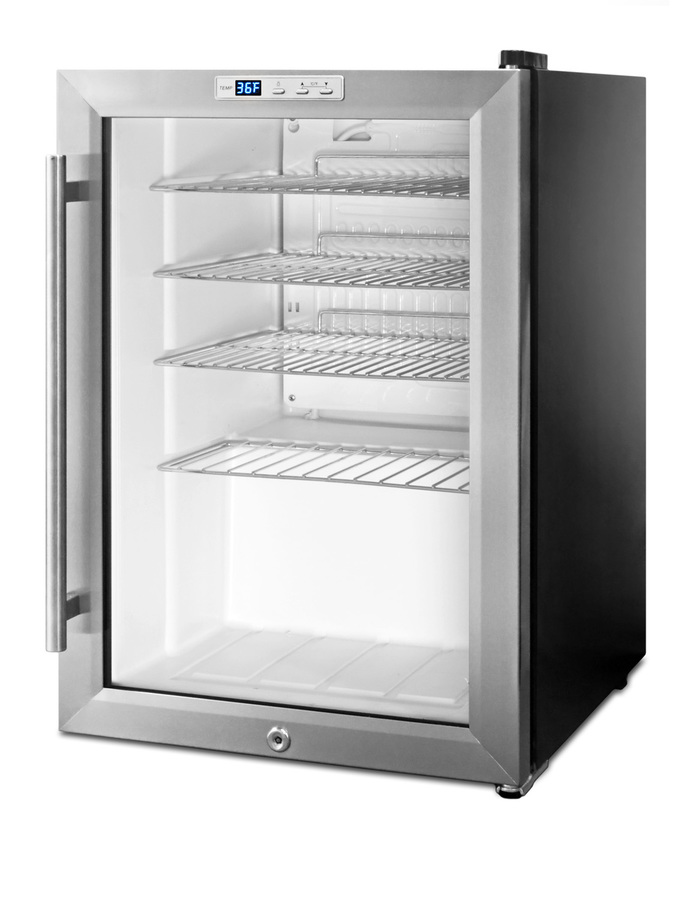

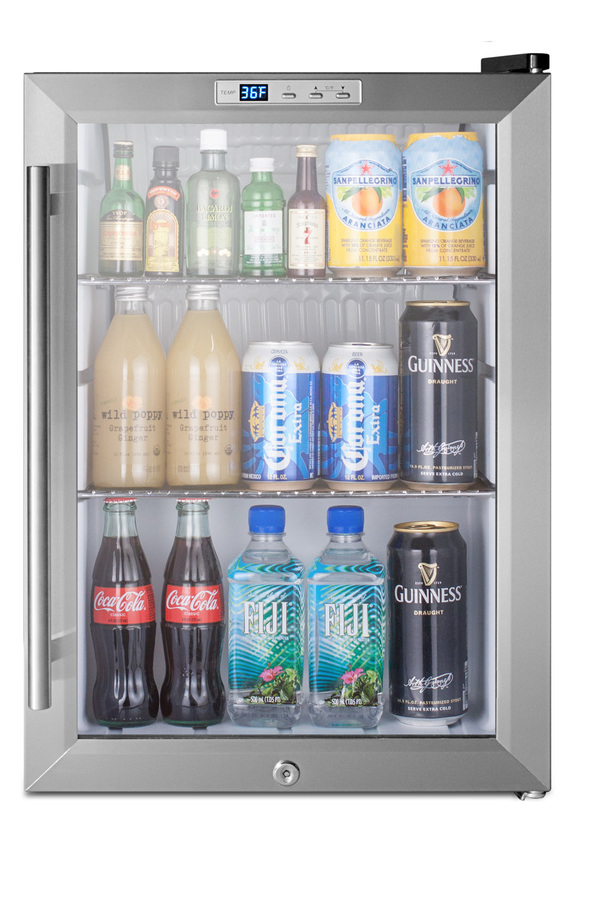

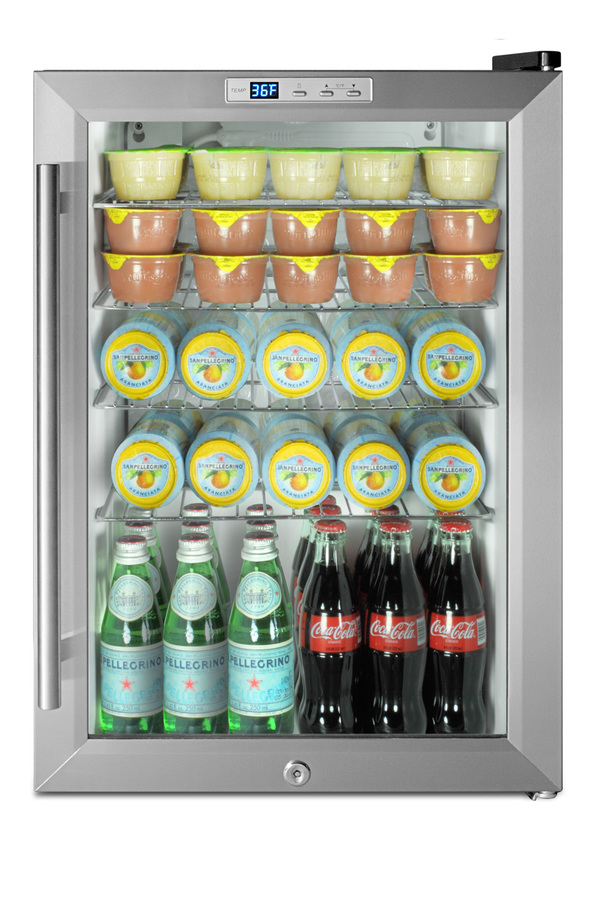

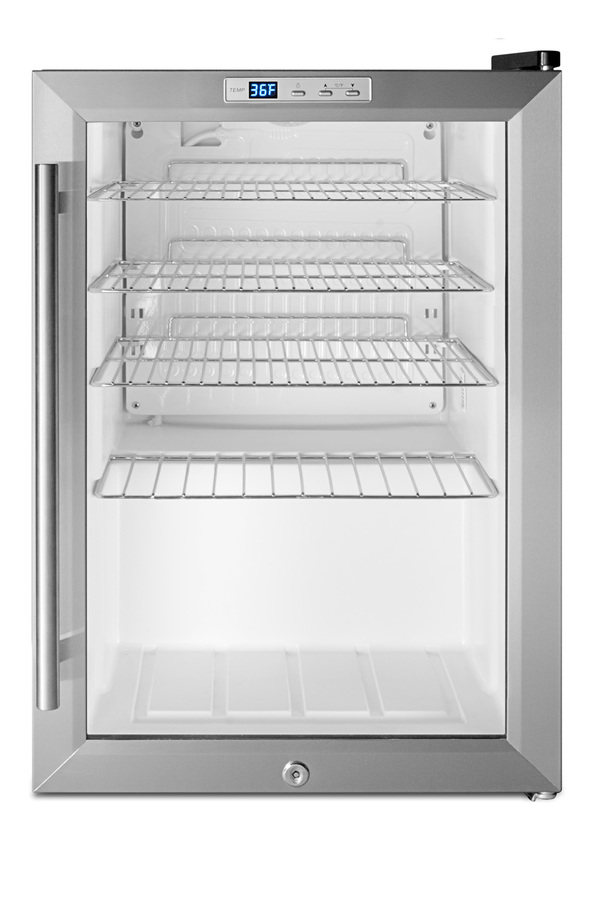

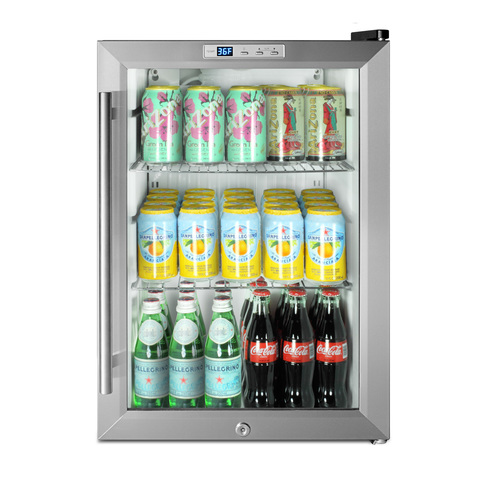

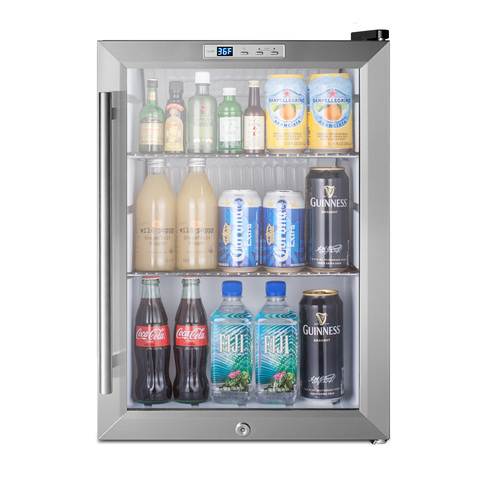

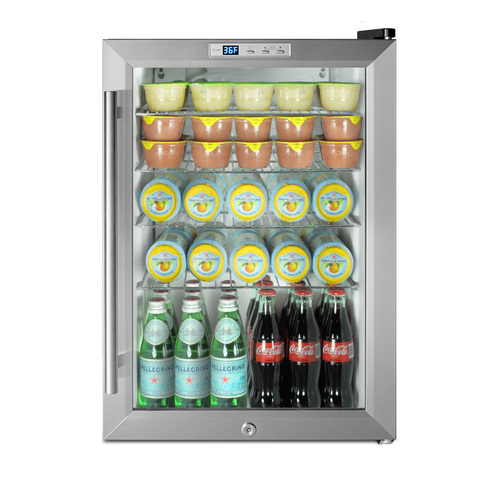

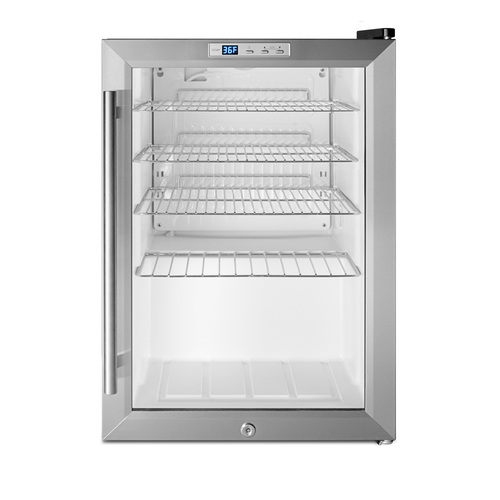

SUMMIT's SCR312L is a perfectly sized beverage cooler with elegant construction that offers the ideal storage and sale conditions.

This countertop unit presents a convenient and heat safe display behind a double pane tempered glass door, finished with a stainless steel trim and brushed aluminum handle. The black cabinet suits any setting, with a front lock adding keyed security.

Fully featured for commercial use, the SCR312L includes a digital thermostat conveniently located at the top of the door exterior. The external temperature readout and easy touch controls make temperature management simple and precise. An energy efficient LED light illuminates the interior and adjustable chrome shelves add a professional look.

Commercially approved to hold beverages and sealed food, the SCR312L uses automatic defrost operation system to minimize unit maintenance. This unit is a perfect replacement for SUMMIT's SCR310L.

Download
BROCHURE w/ DRAWINGS
SCR312L.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR312L_BEVERAGE_CEN._A-C2000_.dwg

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
