24" Wide Panel-Ready 2-Drawer Refrigerator-Freezer (Panel Not Included)
(86cm H x 60cm W x 62cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.75" (60 cm) |
| Depth | 24.25" (62 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 4.94 cu.ft. (140 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Energy Usage/Year | 418.0kWh/year |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 172.0 lbs. (78 kg) |
| Shipping Weight | 179.0 lbs. (81 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101081496 |
|
Refrigerator-Freezer
|
|
| Interior Light | Yes |
| Refrigerator - Interior Height | 12.75" (32 cm) |
| Refrigerator - Interior Width | 20.0" (51 cm) |
| Refrigerator - Interior Depth | 15.63" (40 cm) |
| Refrigerator - Temperature Range | 34 to 45ºF |
| Freezer - Interior Height | 12.75" (32 cm) |
| Freezer - Interior Width | 20.0" (51 cm) |
| Freezer - Interior Depth | 15.63" (40 cm) |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.8 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 140.0 |
| Freezer - Temperature Range | -5 to 5ºF |
FEATURES

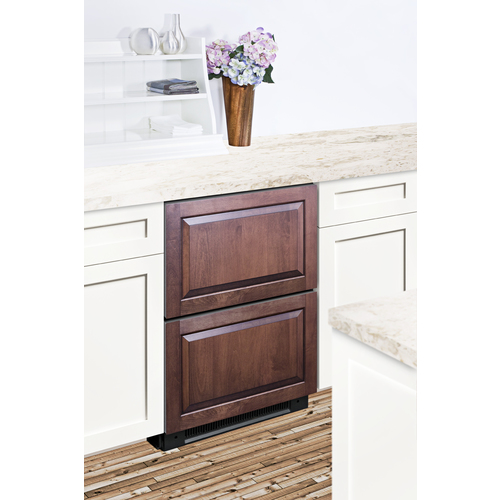

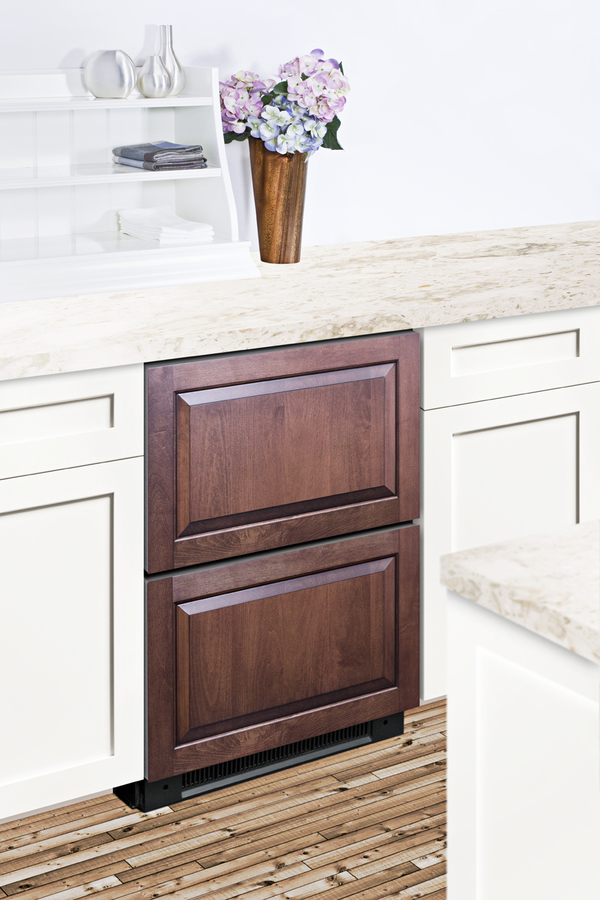

Make the best use of space by installing this unit under the counter and flush with other cabinetry

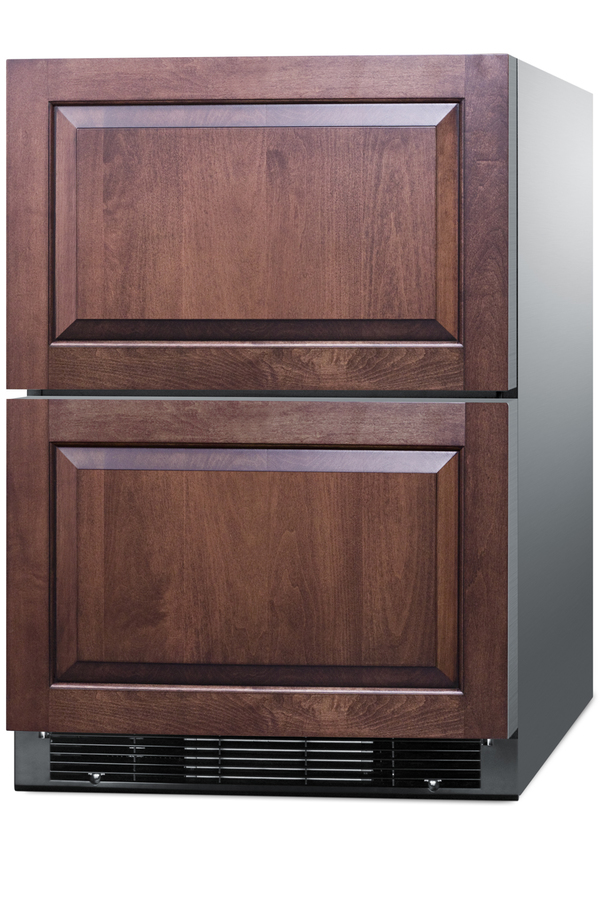

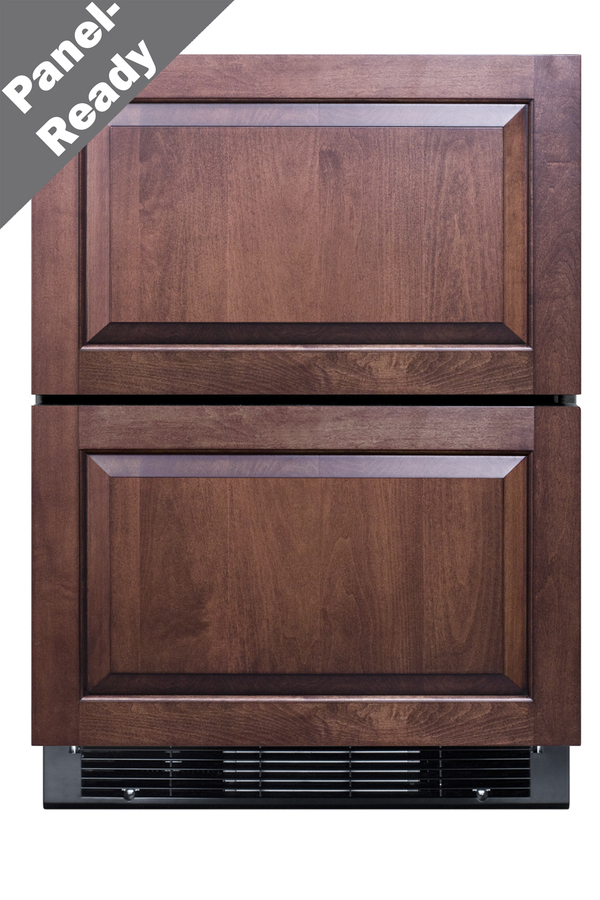

Drawer fronts can be customized with a custom overlay panel (panel dimensions: 23 3/4" H x 15" W at 3/4" maximum thickness)
Elegant style suits any setting
Thin (14mm diameter) stainless steel handles finish the look
Low maintenance design for easy operation

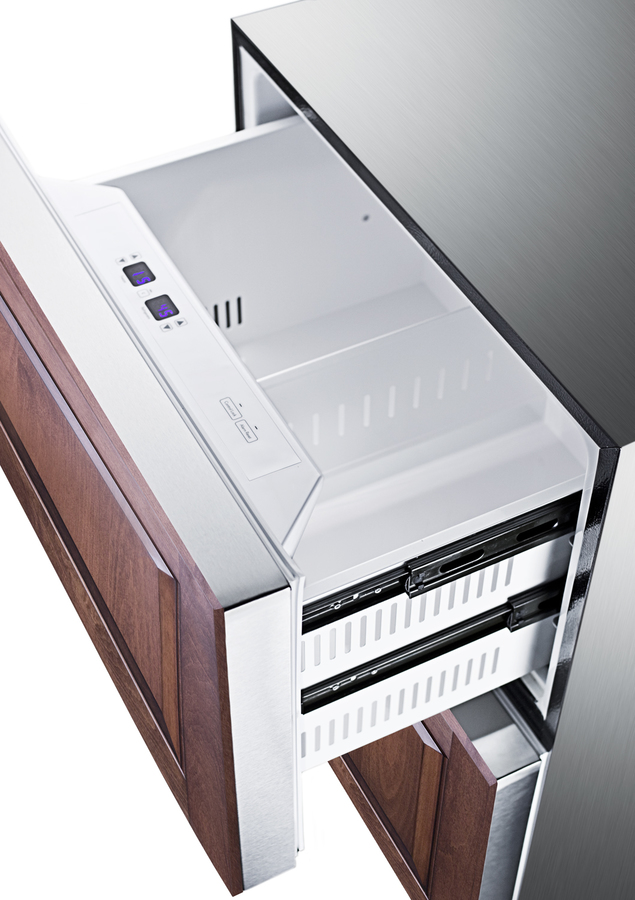

Electronic controls ensure easy and intuitive temperature management of both the refrigerator and freezer sections
Internal thermostat lets you view the set temperature in Fahrenheit or Celsius
Thermostat includes a locking feature to prevent unintentional changes
Audible alarm will sound if either drawer is left open for 10 minutes

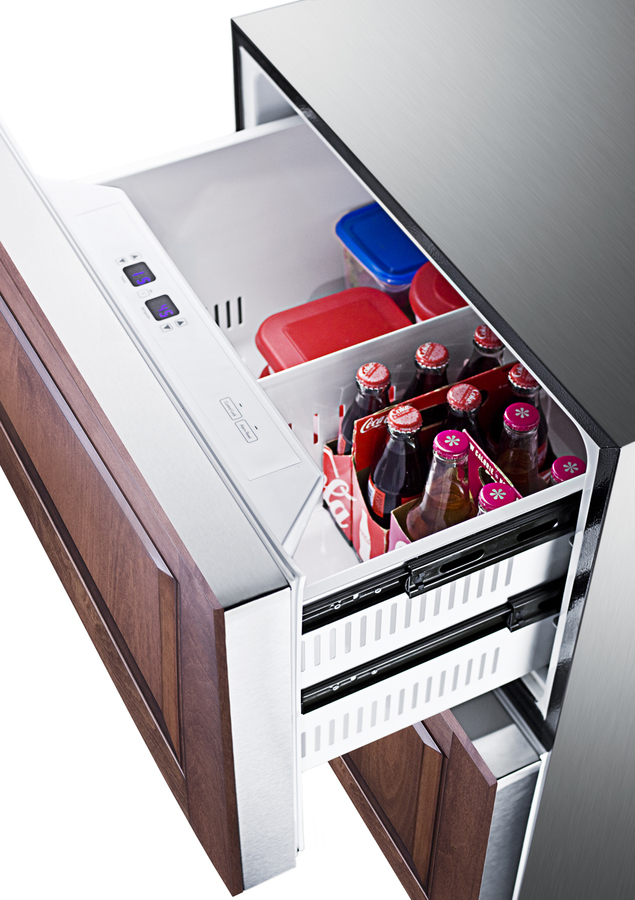

Refrigerator section includes a center divider for easier storage
Automatically illuminates when the top drawer is opened
Fully finished exterior allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Summit's extensive selection of built-in undercounter drawer refrigeration brings space-saving storage in a variety of stunning designs. The SPRF2D5PNR is a 2-drawer refrigerator-freezer designed and manufactured in North America. The front-breathing system enables built-in installation under counters, while the fully finished stainless steel cabinet also allows it to be used freestanding. It comes in a 24 inch wide fit, with panel-ready stainless steel drawer fronts that let you customize the look to best match adjacent cabinetry (panel dimensions: 23 3/4" H x 15" W at 3/4" maximum thickness). Pro-style handles complete the elegant look. Both the top drawer refrigerator and bottom drawer freezer utilize full frost-free operation, ensuring a low maintenance performance with reliable cooling. A digital thermostat ensures easy temperature management and an interior light provides a convenient view of stored items. With a unique design fully equipped for user convenience, the SPRF2D5PNR makes an attractive yet functional addition to any home. For this unit with a factory-installed icemaker, see the SPRF2D5IMPNR. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
